LINEAR ADAPTOR
WALLMOUNT - DUAL OUTPUT
EI 48 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-24V DC, S2:1-24V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-1.5A, S2:0.1-1.5A |
|
|
|
Output Watt |
19.2VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to DC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
The options of the dual output is limited to each output value |
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF48-aaaYYaaaYYDU |
3V DC |
1.5A |
3V DC |
1.5A |
9VA |
|
x = b |
SF48-bbbYYbbbYYDU |
4V DC |
1.4A |
4V DC |
1.4A |
11.2VA |
|
x = c |
SF48-cccYYcccYYDU |
6V DC |
1.2A |
6V DC |
1.2A |
14.4VA |
|
x = d |
SF48-dddYYdddYYDU |
9V DC |
1A |
9V DC |
1A |
18VA |
|
x = e |
SF48-eeeYYeeeYYDU |
12V DC |
0.8A |
12V DC |
0.8A |
19.2VA |
|
x = f |
SF48-fffYYfffYYDU |
15V DC |
0.6A |
15V DC |
0.6A |
18VA |
|
x = g |
SF48-gggYYgggYYDU |
18V DC |
0.5A |
18V DC |
0.5A |
18VA |
|
x = h |
SF48-hhhYYhhhYYDU |
20V DC |
0.4A |
20V DC |
0.4A |
16VA |
|
x = i |
SF48-iiiYYiiiYYDU |
24V DC |
0.3A |
24VDC |
0.3A |
14.4VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF48-0151503010DU |
1.5V DC |
1.5A |
3V DC |
1A |
5.25VA |
|
|
SF48-0301303013DU |
3V DC |
1.3A |
3V DC |
1.3A |
7.8VA |
|
|
SF48-0301507510DU |
3V DC |
1.5A |
7.5V DC |
1A |
12VA |
|
|
SF48-0501205010DU |
5V DC |
1.2A |
5V DC |
1A |
11VA |
|
|
SF48-0451209010DU |
4.5V DC |
1.2A |
9V DC |
1A |
14.4VA |
|
|
SF48-0501012008DU |
5V DC |
1A |
12V DC |
0.8A |
14.6VA |
|
|
SF48-0601224003DU |
6V DC |
1.2A |
24V DC |
0.3A |
14.4VA |
|
|
SF48-1350622003DU |
13.5V DC |
0.6A |
22V DC |
0.3A |
14.7VA |
|
|
SF48-2400224003DU |
24V DC |
0.2A |
24V DC |
0.3A |
12VA |
|

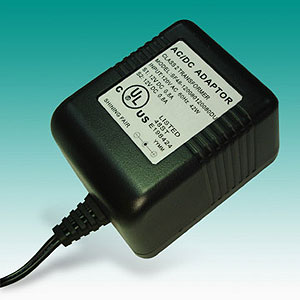

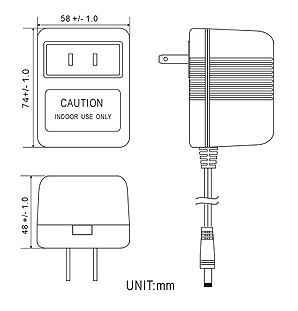

A-TYPE

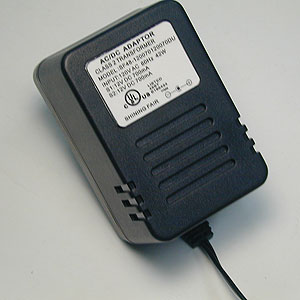

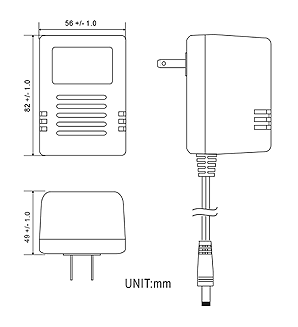

B-TYPE
 |
 |
 |
 |
 |
 |
