LINEAR ADAPTOR
WALLMOUNT

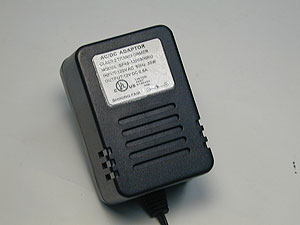

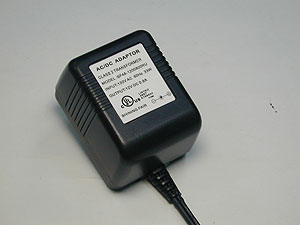

EI 48 AC TO DC (REGULATED) ADAPTOR
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-25V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-1.5A |
|
|
|
Output Watt |
13.5VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25V |
|---|
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.4A |
SF48-2200400RU |
SF48-2250400RU |
SF48-2300400RU |
SF48-2350400RU |
SF48-2400400RU |
SF48-2450400RU |
|
0.3A |
SF48-2200300RU |
SF48-2250300RU |
SF48-2300300RU |
SF48-2350300RU |
SF48-2400300RU |
SF48-2450300RU |
|
0.2A |
SF48-2200200RU |
SF48-2250200RU |
SF48-2300200RU |
SF48-2350200RU |
SF48-2400200RU |
SF48-2450200RU |
|
0.1A |
SF48-2200100RU |
SF48-2250100RU |
SF48-2300100RU |
SF48-2350100RU |
SF48-2400100RU |
SF48-2450100RU |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
0.7A |
SF48-1900700RU |
SF48-1950700RU |
|
|
|
|
|
0.6A |
SF48-1900600RU |
SF48-1950600RU |
SF48-2000600RU |
SF48-2050600RU |
|
|
|
0.5A |
SF48-1900500RU |
SF48-1950500RU |
SF48-2000500RU |
SF48-2050500RU |
SF48-2100500RU |
SF48-2150500RU |
|
0.4A |
SF48-1900400RU |
SF48-1950400RU |
SF48-2000400RU |
SF48-2050400RU |
SF48-2100400RU |
SF48-2150400RU |
|
0.3A |
SF48-1900300RU |
SF48-1950300RU |
SF48-2000300RU |
SF48-2050300RU |
SF48-2100300RU |
SF48-2150300RU |
|
0.2A |
SF48-1900200RU |
SF48-1950200RU |
SF48-2000200RU |
SF48-2050200RU |
SF48-2100200RU |
SF48-2150200RU |
|
0.1A |
|
|
SF48-2000100RU |
SF48-2050100RU |
SF48-2100100RU |
SF48-2150100RU |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
0.8A |
SF48-1600800RU |
SF48-1650800RU |
SF48-1700800RU |
|
|
|
|
0.7A |
SF48-1600700RU |
SF48-1650700RU |
SF48-1700700RU |
SF48-1750700RU |
SF48-1800700RU |
SF48-1850700RU |
|
0.6A |
SF48-1600600RU |
SF48-1650600RU |
SF48-1700600RU |
SF48-1750600RU |
SF48-1800600RU |
SF48-1850600RU |
|
0.5A |
SF48-1600500RU |
SF48-1650500RU |
SF48-1700500RU |
SF48-1750500RU |
SF48-1800500RU |
SF48-1850500RU |
|
0.4A |
SF48-1600400RU |
SF48-1650400RU |
SF48-1700400RU |
SF48-1750400RU |
SF48-1800400RU |
SF48-1850400RU |
|
0.3A |
SF48-1600300RU |
SF48-1650300RU |
SF48-1700300RU |
SF48-1750300RU |
SF48-1800300RU |
SF48-1850300RU |
|
0.2A |
SF48-1600200RU |
SF48-1650200RU |
SF48-1700200RU |
SF48-1750200RU |
SF48-1800200RU |
SF48-1850200RU |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.9A |
SF48-1300900RU |
SF48-1350900RU |
SF48-1400900RU |
SF48-1450900RU |
SF48-1500900RU |
|
|
0.8A |
SF48-1300800RU |
SF48-1350800RU |
SF48-1400800RU |
SF48-1450800RU |
SF48-1500800RU |
SF48-1550800RU |
|
0.7A |
SF48-1300700RU |
SF48-1350700RU |
SF48-1400700RU |
SF48-1450700RU |
SF48-1500700RU |
SF48-1550700RU |
|
0.6A |
SF48-1300600RU |
SF48-1350600RU |
SF48-1400600RU |
SF48-1450600RU |
SF48-1500600RU |
SF48-1550600RU |
|
0.5A |
SF48-1300500RU |
SF48-1350500RU |
SF48-1400500RU |
SF48-1450500RU |
SF48-1500500RU |
SF48-1550500RU |
|
0.4A |
SF48-1300400RU |
SF48-1350400RU |
SF48-1400400RU |
SF48-1450400RU |
SF48-1500400RU |
SF48-1550400RU |
|
0.3A |
SF48-1300300RU |
SF48-1350300RU |
SF48-1400300RU |
SF48-1450300RU |
SF48-1500300RU |
SF48-1550300RU |
|
0.2A |
|
|
|
|
SF48-1500200RU |
SF48-1550200RU |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.1A |
SF48-1001100RU |
SF48-1051100RU |
|
|
|
|
|
1.0A |
SF48-1001000RU |
SF48-1051000RU |
SF48-1101000RU |
SF48-1151000RU |
SF48-1201000RU |
|
|
0.9A |
SF48-1000900RU |
SF48-1050900RU |
SF48-1100900RU |
SF48-1150900RU |
SF48-1200900RU |
SF48-1250900RU |
|
0.8A |
SF48-1000800RU |
SF48-1050800RU |
SF48-1100800RU |
SF48-1150800RU |
SF48-1200800RU |
SF48-1250800RU |
|
0.7A |
SF48-1000700RU |
SF48-1050700RU |
SF48-1100700RU |
SF48-1150700RU |
SF48-1200700RU |
SF48-1250700RU |
|
0.6A |
SF48-1000600RU |
SF48-1050600RU |
SF48-1100600RU |
SF48-1150600RU |
SF48-1200600RU |
SF48-1250600RU |
|
0.5A |
SF48-1000500RU |
SF48-1050500RU |
SF48-1100500RU |
SF48-1150500RU |
SF48-1200500RU |
SF48-1250500RU |
|
0.4A |
SF48-1000400RU |
SF48-1050400RU |
SF48-1100400RU |
SF48-1150400RU |
SF48-1200400RU |
SF48-1250400RU |
|
0.3A |
|
|
SF48-1100300RU |
SF48-1150300RU |
SF48-1200300RU |
SF48-1250300RU |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
1.3A |
SF48-0701300RU |
SF48-0751300RU |
|
|
|
|
|
1.2A |
SF48-0701200RU |
SF48-0751200RU |
SF48-0801200RU |
SF48-0851200RU |
SF48-0901200RU |
|
|
1.1A |
SF48-0701100RU |
SF48-0751100RU |
SF48-0801100RU |
SF48-0851100RU |
SF48-0901100RU |
SF48-0951100RU |
|
1.0A |
SF48-0701000RU |
SF48-0751000RU |
SF48-0801000RU |
SF48-0851000RU |
SF48-0901000RU |
SF48-0951000RU |
|
0.9A |
SF48-0700900RU |
SF48-0750900RU |
SF48-0800900RU |
SF48-0850900RU |
SF48-0900900RU |
SF48-0950900RU |
|
0.8A |
SF48-0700800RU |
SF48-0750800RU |
SF48-0800800RU |
SF48-0850800RU |
SF48-0900800RU |
SF48-0950800RU |
|
0.7A |
SF48-0700700RU |
SF48-0750700RU |
SF48-0800700RU |
SF48-0850700RU |
SF48-0900700RU |
SF48-0950700RU |
|
0.6A |
SF48-0700600RU |
SF48-0750600RU |
SF48-0800600RG |
SF48-0850600RU |
SF48-0900600RG |
SF48-0950600RU |
|
0.5A |
|
|
|
|
SF48-0900500RG |
SF48-0950500RU |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
1.5A |
SF48-0401500RU |
SF48-0451500RU |
SF48-0501500RU |
|
|
|
|
1.4A |
SF48-0401400RU |
SF48-0451400RU |
SF48-0501400RU |
SF48-0551400RU |
SF48-0601400RU |
|
|
1.3A |
SF48-0401300RU |
SF48-0451300RU |
SF48-0501300RU |
SF48-0551300RU |
SF48-0601300RU |
SF48-0651300RU |
|
1.2A |
SF48-0401200RU |
SF48-0451200RU |
SF48-0501200RU |
SF48-0551200RU |
SF48-0601200RU |
SF48-0651200RU |
|
1.1A |
SF48-0401100RU |
SF48-0451100RU |
SF48-0501100RU |
SF48-0551100RU |
SF48-0601100RU |
SF48-0651100RU |
|
1.0A |
SF48-0401000RU |
SF48-0451000RU |
SF48-0501000RU |
SF48-0551000RU |
SF48-0601000RU |
SF48-0651000RU |
|
0.9A |
SF48-0400900RU |
SF48-0450900RU |
SF48-0500900RU |
SF48-0550900RU |
SF48-0600900RU |
SF48-0650900RU |
|
0.8A |
SF48-0400800RU |
SF48-0450800RU |
SF48-0500800RU |
SF48-0550800RU |
SF48-0600800RU |
SF48-0650800RU |
|
0.7A |
SF48-0400700RU |
SF48-0450700RU |
SF48-0500700RU |
SF48-0550700RU |
SF48-0600700RU |
SF48-0650700RU |
|
0.6A |
|
|
SF48-0500600RU |
SF48-0550600RU |
SF48-0600600RU |
SF48-0650600RU |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
1.5A |
SF48-0101500RU |
SF48-0151500RU |
SF48-0201500RU |
SF48-0251500RU |
SF48-0301500RU |
SF48-0351500RU |
|
1.4A |
SF48-0101400RU |
SF48-0151400RU |
SF48-0201400RU |
SF48-0251400RU |
SF48-0301400RU |
SF48-0351400RU |
|
1.3A |
SF48-0101300RU |
SF48-0151300RU |
SF48-0201300RU |
SF48-0251300RU |
SF48-0301300RU |
SF48-0351300RU |
|
1.2A |
SF48-0101200RU |
SF48-0151200RU |
SF48-0201200RU |
SF48-0251200RU |
SF48-0301200RU |
SF48-0351200RU |
|
1.1A |
SF48-0101100RU |
SF48-0151100RU |
SF48-0201100RU |
SF48-0251100RU |
SF48-0301100RU |
SF48-0351100RU |
|
1.0A |
SF48-0101000RU |
SF48-0151000RU |
SF48-0201000RU |
SF48-0251000RU |
SF48-0301000RU |
SF48-0351000RU |
|
0.9A |
SF48-0100900RU |
SF48-0150900RU |
SF48-0200900RU |
SF48-0250900RU |
SF48-0300900RU |
SF48-0350900RU |
|
0.8A |
SF48-0100800RU |
SF48-0150800RU |
SF48-0200800RU |
SF48-0250800RU |
SF48-0300800RU |
SF48-0350800RU |
|
0.7A |
SF48-0100700RU |
SF48-0150700RU |
SF48-0200700RU |
SF48-0250700RU |
SF48-0300700RU |
SF48-0350700RU |

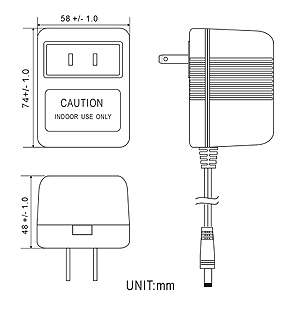

A-TYPE

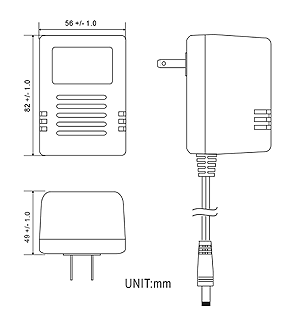

B-TYPE
 |
 |
 |
 |
 |
 |
