GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
SAA/C-tick/CB |
AS/NZS 60950/ |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-24V AC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.4-3A |
||
|
Output Watt |
24.7VA max |
||
LINEAR ADAPTOR
WALLMOUNT

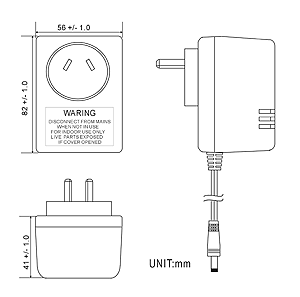

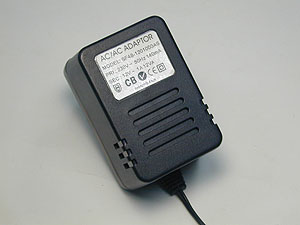

EI 48 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.1A |
SF48-2101100AS |
SF48-2201100AS |
|
|
|
|
|
1.0A |
SF48-2101000AS |
SF48-2201000AS |
SF48-2301000AS |
SF48-2401000AS |
|
|
|
0.9A |
SF48-2100900AS |
SF48-2200900AS |
SF48-2300900AS |
SF48-2400900AS |
|
|
|
0.8A |
SF48-2100800AS |
SF48-2200800AS |
SF48-2300800AS |
SF48-2400800AS |
|
|
|
0.7A |
SF48-2100700AS |
SF48-2200700AS |
SF48-2300700AS |
SF48-2400700AS |
|
|
|
0.6A |
SF48-2100600AS |
SF48-2200600AS |
SF48-2300600AS |
SF48-2400600AS |
|
|
|
0.5A |
SF48-2100500AS |
SF48-2200500AS |
SF48-2300500AS |
SF48-2400500AS |
|
|
|
0.4A |
SF48-2100400AS |
SF48-2200400AS |
SF48-2300400AS |
SF48-2400400AS |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF48-1501600AS |
|
|
|
|
|
|
1.5A |
SF48-1501500AS |
SF48-1601500AS |
|
|
|
|
|
1.4A |
SF48-1501400AS |
SF48-1601400AS |
SF48-1701400AS |
|
|
|
|
1.3A |
SF48-1501300AS |
SF48-1601300AS |
SF48-1701300AS |
SF48-1801300AS |
SF48-1901300AS |
|
|
1.2A |
SF48-1501200AS |
SF48-1601200AS |
SF48-1701200AS |
SF48-1801200AS |
SF48-1901200AS |
SF48-2001200AS |
|
1.1A |
SF48-1501100AS |
SF48-1601100AS |
SF48-1701100AS |
SF48-1801100AS |
SF48-1901100AS |
SF48-2001100AS |
|
1.0A |
SF48-1501000AS |
SF48-1601000AS |
SF48-1701000AS |
SF48-1801000AS |
SF48-1901000AS |
SF48-2001000AS |
|
0.9A |
SF48-1500900AS |
SF48-1600900AS |
SF48-1700900AS |
SF48-1800900AS |
SF48-1900900AS |
SF48-2000900AS |
|
0.8A |
SF48-1500800AS |
SF48-1600800AS |
SF48-1700800AS |
SF48-1800800AS |
SF48-1900800AS |
SF48-2000800AS |
|
0.7A |
SF48-1500700AS |
SF48-1600700AS |
SF48-1700700AS |
SF48-1800700AS |
SF48-1900700AS |
SF48-2000700AS |
|
0.6A |
SF48-1500600AS |
SF48-1600600AS |
SF48-1700600AS |
SF48-1800600AS |
SF48-1900600AS |
SF48-2000600AS |
|
0.5A |
|
|
SF48-1700500AS |
SF48-1800500AS |
SF48-1900500AS |
SF48-2000500AS |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF48-1202000AS |
|
|
|
|
|
|
1.9A |
SF48-1201900AS |
SF48-1251900AS |
|
|
|
|
|
1.8A |
SF48-1201800AS |
SF48-1251800AS |
SF48-1301800AS |
|
|
|
|
1.7A |
SF48-1201700AS |
SF48-1251700AS |
SF48-1301700AS |
SF48-1351700AS |
SF48-1401700AS |
|
|
1.6A |
SF48-1201600AS |
SF48-1251600AS |
SF48-1301600AS |
SF48-1351600AS |
SF48-1401600AS |
SF48-1451600AS |
|
1.5A |
SF48-1201500AS |
SF48-1251500AS |
SF48-1301500AS |
SF48-1351500AS |
SF48-1401500AS |
SF48-1451500AS |
|
1.4A |
SF48-1201400AS |
SF48-1251400AS |
SF48-1301400AS |
SF48-1351400AS |
SF48-1401400AS |
SF48-1451400AS |
|
1.3A |
SF48-1201300AS |
SF48-1251300AS |
SF48-1301300AS |
SF48-1351300AS |
SF48-1401300AS |
SF48-1451300AS |
|
1.2A |
SF48-1201200AS |
SF48-1251200AS |
SF48-1301200AS |
SF48-1351200AS |
SF48-1401200AS |
SF48-1451200AS |
|
1.1A |
SF48-1201100AS |
SF48-1251100AS |
SF48-1301100AS |
SF48-1351100AS |
SF48-1401100AS |
SF48-1451100AS |
|
1.0A |
SF48-1201000AS |
SF48-1251000AS |
SF48-1301000AS |
SF48-1351000AS |
SF48-1401000AS |
SF48-1451000AS |
|
0.9A |
SF48-1200900AS |
SF48-1250900AS |
SF48-1300900AS |
SF48-1350900AS |
SF48-1400900AS |
SF48-1450900AS |
|
0.8A |
SF48-1200800AS |
SF48-1250800AS |
SF48-1300800AS |
SF48-1350800AS |
SF48-1400800AS |
SF48-1450800AS |
|
0.7A |
|
|
SF48-1300700AS |
SF48-1350700AS |
SF48-1400700AS |
SF48-1450700AS |
|
0.6A |
|
|
|
|
|
SF48-1450600AS |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF48-0902500AS |
|
|
|
|
|
|
2.4A |
SF48-0902400AS |
SF48-0952400AS |
|
|
|
|
|
2.3A |
SF48-0902300AS |
SF48-0952300AS |
SF48-1002300AS |
|
|
|
|
2.2A |
SF48-0902200AS |
SF48-0952200AS |
SF48-1002200AS |
SF48-1052200AS |
|
|
|
2.1A |
SF48-0902100AS |
SF48-0952100AS |
SF48-1002100AS |
SF48-1052100AS |
SF48-1102100AS |
|
|
2.0A |
SF48-0902000AS |
SF48-0952000AS |
SF48-1002000AS |
SF48-1052000AS |
SF48-1102000AS |
SF48-1152000AS |
|
1.9A |
SF48-0901900AS |
SF48-0951900AS |
SF48-1001900AS |
SF48-1051900AS |
SF48-1101900AS |
SF48-1151900AS |
|
1.8A |
SF48-0901800AS |
SF48-0951800AS |
SF48-1001800AS |
SF48-1051800AS |
SF48-1101800AS |
SF48-1151800AS |
|
1.7A |
SF48-0901700AS |
SF48-0951700AS |
SF48-1001700AS |
SF48-1051700AS |
SF48-1101700AS |
SF48-1151700AS |
|
1.6A |
SF48-0901600AS |
SF48-0951600AS |
SF48-1001600AS |
SF48-1051600AS |
SF48-1101600AS |
SF48-1151600AS |
|
1.5A |
SF48-0901500AS |
SF48-0951500AS |
SF48-1001500AS |
SF48-1051500AS |
SF48-1101500AS |
SF48-1151500AS |
|
1.4A |
SF48-0901400AS |
SF48-0951400AS |
SF48-1001400AS |
SF48-1051400AS |
SF48-1101400AS |
SF48-1151400AS |
|
1.3A |
SF48-0901300AS |
SF48-0951300AS |
SF48-1001300AS |
SF48-1051300AS |
SF48-1101300AS |
SF48-1151300AS |
|
1.2A |
SF48-0901200AS |
SF48-0951200AS |
SF48-1001200AS |
SF48-1051200AS |
SF48-1101200AS |
SF48-1151200AS |
|
1.1A |
SF48-0901100AS |
SF48-0951100AS |
SF48-1001100AS |
SF48-1051100AS |
SF48-1101100AS |
SF48-1151100AS |
|
1.0A |
|
SF48-0951000AS |
SF48-1001000AS |
SF48-1051000AS |
SF48-1101000AS |
SF48-1151000AS |
|
0.9A |
|
|
SF48-1000900AS |
SF48-1050900AS |
SF48-1100900AS |
SF48-1150900AS |
|
0.8A |
|
|
|
|
|
SF48-1150800AS |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF48-0603000AS |
SF48-0653000AS |
|
|
|
|
|
2.9A |
SF48-0602900AS |
SF48-0652900AS |
SF48-0702900AS |
|
|
|
|
2.8A |
SF48-0602800AS |
SF48-0652800AS |
SF48-0702800AS |
SF48-0752800AS |
|
|
|
2.7A |
SF48-0602700AS |
SF48-0652700AS |
SF48-0702700AS |
SF48-0752700AS |
SF48-0802700AS |
|
|
2.6A |
SF48-0602600AS |
SF48-0652600AS |
SF48-0702600AS |
SF48-0752600AS |
SF48-0802600AS |
SF48-0852600AS |
|
2.5A |
SF48-0602500AS |
SF48-0652500AS |
SF48-0702500AS |
SF48-0752500AS |
SF48-0802500AS |
SF48-0852500AS |
|
2.4A |
SF48-0602400AS |
SF48-0652400AS |
SF48-0702400AS |
SF48-0752400AS |
SF48-0802400AS |
SF48-0852400AS |
|
2.3A |
SF48-0602300AS |
SF48-0652300AS |
SF48-0702300AS |
SF48-0752300AS |
SF48-0802300AS |
SF48-0852300AS |
|
2.2A |
SF48-0602200AS |
SF48-0652200AS |
SF48-0702200AS |
SF48-0752200AS |
SF48-0802200AS |
SF48-0852200AS |
|
2.1A |
SF48-0602100AS |
SF48-0652100AS |
SF48-0702100AS |
SF48-0752100AS |
SF48-0802100AS |
SF48-0852100AS |
|
2.0A |
SF48-0602000AS |
SF48-0652000AS |
SF48-0702000AS |
SF48-0752000AS |
SF48-0802000AS |
SF48-0852000AS |
|
1.9A |
SF48-0601900AS |
SF48-0651900AS |
SF48-0701900AS |
SF48-0751900AS |
SF48-0801900AS |
SF48-0851900AS |
|
1.8A |
SF48-0601800AS |
SF48-0651800AS |
SF48-0701800AS |
SF48-0751800AS |
SF48-0801800AS |
SF48-0851800AS |
|
1.7A |
SF48-0601700AS |
SF48-0651700AS |
SF48-0701700AS |
SF48-0751700AS |
SF48-0801700AS |
SF48-0851700AS |
|
1.6A |
SF48-0601600AS |
SF48-0651600AS |
SF48-0701600AS |
SF48-0751600AS |
SF48-0801600AS |
SF48-0851600AS |
|
1.5A |
SF48-0601500AS |
SF48-0651500AS |
SF48-0701500AS |
SF48-0751500AS |
SF48-0801500AS |
SF48-0851500AS |
|
1.4A |
SF48-0601400AS |
SF48-0651400AS |
SF48-0701400AS |
SF48-0751400AS |
SF48-0801400AS |
SF48-0851400AS |
|
1.3A |
SF48-0601300AS |
SF48-0651300AS |
SF48-0701300AS |
SF48-0751300AS |
SF48-0801300AS |
SF48-0851300AS |
|
1.2A |
SF48-0601200AS |
SF48-0651200AS |
SF48-0701200AS |
SF48-0751200AS |
SF48-0801200AS |
SF48-0851200AS |
|
1.1A |
|
|
|
|
SF48-0801100AS |
SF48-0851100AS |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF48-0303000AS |
SF48-0353000AS |
SF48-0403000AS |
SF48-0453000AS |
SF48-0503000AS |
SF48-0553000AS |
|
2.9A |
SF48-0302900AS |
SF48-0352900AS |
SF48-0402900AS |
SF48-0452900AS |
SF48-0502900AS |
SF48-0552900AS |
|
2.8A |
SF48-0302800AS |
SF48-0352800AS |
SF48-0402800AS |
SF48-0452800AS |
SF48-0502800AS |
SF48-0552800AS |
|
2.7A |
SF48-0302700AS |
SF48-0352700AS |
SF48-0402700AS |
SF48-0452700AS |
SF48-0502700AS |
SF48-0552700AS |
|
2.6A |
SF48-0302600AS |
SF48-0352600AS |
SF48-0402600AS |
SF48-0452600AS |
SF48-0502600AS |
SF48-0552600AS |
|
2.5A |
SF48-0302500AS |
SF48-0352500AS |
SF48-0402500AS |
SF48-0452500AS |
SF48-0502500AS |
SF48-0552500AS |
|
2.4A |
SF48-0302400AS |
SF48-0352400AS |
SF48-0402400AS |
SF48-0452400AS |
SF48-0502400AS |
SF48-0552400AS |
|
2.3A |
SF48-0302300AS |
SF48-0352300AS |
SF48-0402300AS |
SF48-0452300AS |
SF48-0502300AS |
SF48-0552300AS |
|
2.2A |
SF48-0302200AS |
SF48-0352200AS |
SF48-0402200AS |
SF48-0452200AS |
SF48-0502200AS |
SF48-0552200AS |
|
2.1A |
SF48-0302100AS |
SF48-0352100AS |
SF48-0402100AS |
SF48-0452100AS |
SF48-0502100AS |
SF48-0552100AS |
|
2.0A |
SF48-0302000AS |
SF48-0352000AS |
SF48-0402000AS |
SF48-0452000AS |
SF48-0502000AS |
SF48-0552000AS |
|
1.9A |
SF48-0301900AS |
SF48-0351900AS |
SF48-0401900AS |
SF48-0451900AS |
SF48-0501900AS |
SF48-0551900AS |
|
1.8A |
SF48-0301800AS |
SF48-0351800AS |
SF48-0401800AS |
SF48-0451800AS |
SF48-0501800AS |
SF48-0551800AS |
|
1.7A |
SF48-0301700AS |
SF48-0351700AS |
SF48-0401700AS |
SF48-0451700AS |
SF48-0501700AS |
SF48-0551700AS |
|
1.6A |
SF48-0301600AS |
SF48-0351600AS |
SF48-0401600AS |
SF48-0451600AS |
SF48-0501600AS |
SF48-0551600AS |
|
1.5A |
|
SF48-0351500AS |
SF48-0401500AS |
SF48-0451500AS |
SF48-0501500AS |
SF48-0551500AS |
|
1.4A |
|
|
|
SF48-0451400AS |
SF48-0501400AS |
SF48-0551400AS |
|
1.3A |
|
|
|
SF48-0451300AS |
SF48-0501300AS |
SF48-0551300AS |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
|---|
 |
 |
 |
 |
 |
 |
