GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.2-2.2A |
||
|
Output Watt |
19.2VA max |
||
LINEAR ADAPTOR
WALLMOUNT
EI 48 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
|---|
|
21V |
22V |
23V |
24V |
|
|
|
|
0.8A |
SF48-2100800DG |
SF48-2200800DG |
SF48-2300800DG |
SF48-2400800DG |
|
|
|
0.7A |
SF48-2100700DG |
SF48-2200700DG |
SF48-2300700DG |
SF48-2400700DG |
|
|
|
0.6A |
SF48-2100600DG |
SF48-2200600DG |
SF48-2300600DG |
SF48-2400600DG |
|
|
|
0.5A |
SF48-2100500DG |
SF48-2200500DG |
SF48-2300500DG |
SF48-2400500DG |
|
|
|
0.4A |
SF48-2100400DG |
SF48-2200400DG |
SF48-2300400DG |
SF48-2400400DG |
|
|
|
0.3A |
SF48-2100300DG |
SF48-2200300DG |
SF48-2300300DG |
SF48-2400300DG |
|
|
|
0.2A |
SF48-2100200DG |
SF48-2200200DG |
SF48-2300200DG |
SF48-2400200DG |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.1A |
SF48-1501100DG |
|
|
|
|
|
|
1.0A |
SF48-1501000DG |
SF48-1601000DG |
SF48-1701000DG |
SF48-1801000DG |
|
|
|
0.9A |
SF48-1500900DG |
SF48-1600900DG |
SF48-1700900DG |
SF48-1800900DG |
SF48-1900900DG |
SF48-2000900DG |
|
0.8A |
SF48-1500800DG |
SF48-1600800DG |
SF48-1700800DG |
SF48-1800800DG |
SF48-1900800DG |
SF48-2000800DG |
|
0.7A |
SF48-1500700DG |
SF48-1600700DG |
SF48-1700700DG |
SF48-1800700DG |
SF48-1900700DG |
SF48-2000700DG |
|
0.6A |
SF48-1500600DG |
SF48-1600600DG |
SF48-1700600DG |
SF48-1800600DG |
SF48-1900600DG |
SF48-2000600DG |
|
0.5A |
SF48-1500500DG |
SF48-1600500DG |
SF48-1700500DG |
SF48-1800500DG |
SF48-1900500DG |
SF48-2000500DG |
|
0.4A |
SF48-1500400DG |
SF48-1600400DG |
SF48-1700400DG |
SF48-1800400DG |
SF48-1900400DG |
SF48-2000400DG |
|
0.3A |
|
SF48-1600300DG |
SF48-1700300DG |
SF48-1800300DG |
SF48-1900300DG |
SF48-2000300DG |
|
0.2A |
|
|
|
|
|
SF48-2000200DG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.4A |
SF48-1201400DG |
|
|
|
|
|
|
1.3A |
SF48-1201300DG |
SF48-1251300DG |
|
|
|
|
|
1.2A |
SF48-1201200DG |
SF48-1251200DG |
SF48-1301200DG |
SF48-1351200DG |
|
|
|
1.1A |
SF48-1201100DG |
SF48-1251100DG |
SF48-1301100DG |
SF48-1351100DG |
SF48-1401100DG |
SF48-1451100DG |
|
1.0A |
SF48-1201000DG |
SF48-1251000DG |
SF48-1301000DG |
SF48-1351000DG |
SF48-1401000DG |
SF48-1451000DG |
|
0.9A |
SF48-1200900DG |
SF48-1250900DG |
SF48-1300900DG |
SF48-1350900DG |
SF48-1400900DG |
SF48-1450900DG |
|
0.8A |
SF48-1200800DG |
SF48-1250800DG |
SF48-1300800DG |
SF48-1350800DG |
SF48-1400800DG |
SF48-1450800DG |
|
0.7A |
SF48-1200700DG |
SF48-1250700DG |
SF48-1300700DG |
SF48-1350700DG |
SF48-1400700DG |
SF48-1450700DG |
|
0.6A |
SF48-1200600DG |
SF48-1250600DG |
SF48-1300600DG |
SF48-1350600DG |
SF48-1400600DG |
SF48-1450600DG |
|
0.5A |
SF48-1200500DG |
SF48-1250500DG |
SF48-1300500DG |
SF48-1350500DG |
SF48-1400500DG |
SF48-1450500DG |
|
0.4A |
|
SF48-1250400DG |
SF48-1300400DG |
SF48-1350400DG |
SF48-1400400DG |
SF48-1450400DG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.7A |
SF48-0901700DG |
|
|
|
|
|
|
1.6A |
SF48-0901600DG |
SF48-0951600DG |
|
|
|
|
|
1.5A |
SF48-0901500DG |
SF48-0951500DG |
SF48-1001500DG |
SF48-1051500DG |
|
|
|
1.4A |
SF48-0901400DG |
SF48-0951400DG |
SF48-1001400DG |
SF48-1051400DG |
SF48-1101400DG |
SF48-1151400DG |
|
1.3A |
SF48-0901300DG |
SF48-0951300DG |
SF48-1001300DG |
SF48-1051300DG |
SF48-1101300DG |
SF48-1151300DG |
|
1.2A |
SF48-0901200DG |
SF48-0951200DG |
SF48-1001200DG |
SF48-1051200DG |
SF48-1101200DG |
SF48-1151200DG |
|
1.1A |
SF48-0901100DG |
SF48-0951100DG |
SF48-1001100DG |
SF48-1051100DG |
SF48-1101100DG |
SF48-1151100DG |
|
1.0A |
SF48-0901000DG |
SF48-0951000DG |
SF48-1001000DG |
SF48-1051000DG |
SF48-1101000DG |
SF48-1151000DG |
|
0.9A |
SF48-0900900DG |
SF48-0950900DG |
SF48-1000900DG |
SF48-1050900DG |
SF48-1100900DG |
SF48-1150900DG |
|
0.8A |
SF48-0900800DG |
SF48-0950800DG |
SF48-1000800DG |
SF48-1050800DG |
SF48-1100800DG |
SF48-1150800DG |
|
0.7A |
SF48-0900700DG |
SF48-0950700DG |
SF48-1000700DG |
SF48-1050700DG |
SF48-1100700DG |
SF48-1150700DG |
|
0.6A |
SF48-0900600DG |
SF48-0950600DG |
SF48-1000600DG |
SF48-1050600DG |
SF48-1100600DG |
SF48-1150600DG |
|
0.5A |
|
SF48-0950500DG |
SF48-1000500DG |
SF48-1050500DG |
SF48-1100500DG |
SF48-1150500DG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.0A |
SF48-0602000DG |
SF48-0652000DG |
SF48-0702000DG |
SF48-0752000DG |
|
|
|
1.9A |
SF48-0601900DG |
SF48-0651900DG |
SF48-0701900DG |
SF48-0751900DG |
SF48-0801900DG |
|
|
1.8A |
SF48-0601800DG |
SF48-0651800DG |
SF48-0701800DG |
SF48-0751800DG |
SF48-0801800DG |
SF48-0851800DG |
|
1.7A |
SF48-0601700DG |
SF48-0651700DG |
SF48-0701700DG |
SF48-0751700DG |
SF48-0801700DG |
SF48-0851700DG |
|
1.6A |
SF48-0601600DG |
SF48-0651600DG |
SF48-0701600DG |
SF48-0751600DG |
SF48-0801600DG |
SF48-0851600DG |
|
1.5A |
SF48-0601500DG |
SF48-0651500DG |
SF48-0701500DG |
SF48-0751500DG |
SF48-0801500DG |
SF48-0851500DG |
|
1.4A |
SF48-0601400DG |
SF48-0651400DG |
SF48-0701400DG |
SF48-0751400DG |
SF48-0801400DG |
SF48-0851400DG |
|
1.3A |
SF48-0601300DG |
SF48-0651300DG |
SF48-0701300DG |
SF48-0751300DG |
SF48-0801300DG |
SF48-0851300DG |
|
1.2A |
SF48-0601200DG |
SF48-0651200DG |
SF48-0701200DG |
SF48-0751200DG |
SF48-0801200DG |
SF48-0851200DG |
|
1.1A |
SF48-0601100DG |
SF48-0651100DG |
SF48-0701100DG |
SF48-0751100DG |
SF48-0801100DG |
SF48-0851100DG |
|
1.0A |
SF48-0601000DG |
SF48-0651000DG |
SF48-0701000DG |
SF48-0751000DG |
SF48-0801000DG |
SF48-0851000DG |
|
0.9A |
|
SF48-0650900DG |
SF48-0700900DG |
SF48-0750900DG |
SF48-0800900DG |
SF48-0850900DG |
|
0.8A |
|
|
SF48-0700800DG |
SF48-0750800DG |
SF48-0800800DG |
SF48-0850800DG |
|
0.7A |
|
|
|
|
SF48-0800700DG |
SF48-0850700DG |
|
0.6A |
|
|
|
|
|
SF48-0850600DG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.2A |
|
SF48-0352200DG |
SF48-0402200DG |
SF48-0452200DG |
|
|
|
2.1A |
SF48-0302100DG |
SF48-0352100DG |
SF48-0402100DG |
SF48-0452100DG |
|
|
|
2.0A |
SF48-0302000DG |
SF48-0352000DG |
SF48-0402000DG |
SF48-0452000DG |
SF48-0502000DG |
SF48-0552000DG |
|
1.9A |
SF48-0301900DG |
SF48-0351900DG |
SF48-0401900DG |
SF48-0451900DG |
SF48-0501900DG |
SF48-0551900DG |
|
1.8A |
SF48-0301800DG |
SF48-0351800DG |
SF48-0401800DG |
SF48-0451800DG |
SF48-0501800DG |
SF48-0551800DG |
|
1.7A |
SF48-0301700DG |
SF48-0351700DG |
SF48-0401700DG |
SF48-0451700DG |
SF48-0501700DG |
SF48-0551700DG |
|
1.6A |
SF48-0301600DG |
SF48-0351600DG |
SF48-0401600DG |
SF48-0451600DG |
SF48-0501600DG |
SF48-0551600DG |
|
1.5A |
SF48-0301500DG |
SF48-0351500DG |
SF48-0401500DG |
SF48-0451500DG |
SF48-0501500DG |
SF48-0551500DG |
|
1.4A |
|
|
SF48-0401400DG |
SF48-0451400DG |
SF48-0501400DG |
SF48-0551400DG |
|
1.3A |
|
|
|
SF48-0451300DG |
SF48-0501300DG |
SF48-0551300DG |
|
1.2A |
|
|
|
|
SF48-0501200DG |
SF48-0551200DG |
|
1.1A |
|
|
|
|
|
SF48-0551100DG |

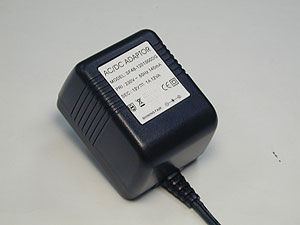

A-TYPE

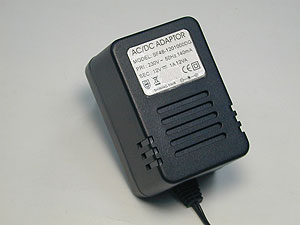

B-TYPE
 |
 |
 |
 |
 |
 |
