GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
PSE |
J 60950 |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
100V AC |
Output Voltage |
7-25V AC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.3-2.9A |
||
|
Output Watt |
25VA max |
||
LINEAR ADAPTOR
WALLMOUNT

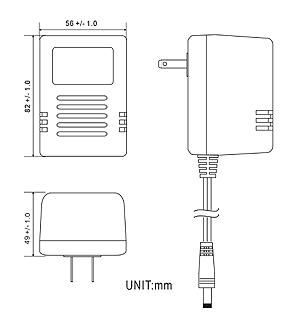

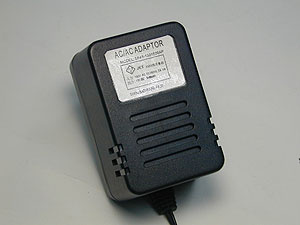

EI 48 AC TO AC ADAPTOR
INPUT:100V AC 50/60 Hz
OUTPUT SPECIFICATION
|
7-9.5V |
10-12.5V |
13-16V |
17-22V |
23-25V |
|---|
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.3A |
SF48T-1002300AP |
|
|
|
|
|
|
2.2A |
SF48T-1002200AP |
SF48T-1052200AP |
|
|
|
|
|
2.1A |
SF48T-1002100AP |
SF48T-1052100AP |
SF48T-1102100AP |
|
|
|
|
2.0A |
SF48T-1002000AP |
SF48T-1052000AP |
SF48T-1102000AP |
SF48T-1152000AP |
SF48T-1202000AP |
|
|
1.9A |
SF48T-1001900AP |
SF48T-1051900AP |
SF48T-1101900AP |
SF48T-1151900AP |
SF48T-1201900AP |
SF48T-1251900AP |
|
1.8A |
SF48T-1001800AP |
SF48T-1051800AP |
SF48T-1101800AP |
SF48T-1151800AP |
SF48T-1201800AP |
SF48T-1251800AP |
|
1.7A |
SF48T-1001700AP |
SF48T-1051700AP |
SF48T-1101700AP |
SF48T-1151700AP |
SF48T-1201700AP |
SF48T-1251700AP |
|
1.6A |
SF48T-1001600AP |
SF48T-1051600AP |
SF48T-1101600AP |
SF48T-1151600AP |
SF48T-1201600AP |
SF48T-1251600AP |
|
1.5A |
SF48T-1001500AP |
SF48T-1051500AP |
SF48T-1101500AP |
SF48T-1151500AP |
SF48T-1201500AP |
SF48T-1251500AP |
|
1.4A |
SF48T-1001400AP |
SF48T-1051400AP |
SF48T-1101400AP |
SF48T-1151400AP |
SF48T-1201400AP |
SF48T-1251400AP |
|
1.3A |
SF48T-1001300AP |
SF48T-1051300AP |
SF48T-1101300AP |
SF48T-1151300AP |
SF48T-1201300AP |
SF48T-1251300AP |
|
1.2A |
SF48T-1001200AP |
SF48T-1051200AP |
SF48T-1101200AP |
SF48T-1151200AP |
SF48T-1201200AP |
SF48T-1251200AP |
|
1.1A |
SF48T-1001100AP |
SF48T-1051100AP |
SF48T-1101100AP |
SF48T-1151100AP |
SF48T-1201100AP |
SF48T-1251100AP |
|
1.0A |
SF48T-1001000AP |
SF48T-1051000AP |
SF48T-1101000AP |
SF48T-1151000AP |
SF48T-1201000AP |
SF48T-1251000AP |
|
0.9A |
SF48T-1000900AP |
SF48T-1050900AP |
SF48T-1100900AP |
SF48T-1150900AP |
SF48T-1200900AP |
SF48T-1250900AP |
|
0.8A |
|
|
|
SF48T-1150800AP |
SF48T-1200800AP |
SF48T-1250800AP |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.9A |
SF48T-0702900AP |
|
|
|
|
|
|
2.8A |
SF48T-0702800AP |
SF48T-0752800AP |
|
|
|
|
|
2.7A |
SF48T-0702700AP |
SF48T-0752700AP |
SF48T-0802700AP |
|
|
|
|
2.6A |
SF48T-0702600AP |
SF48T-0752600AP |
SF48T-0802600AP |
SF48T-0852600AP |
|
|
|
2.5A |
SF48T-0702500AP |
SF48T-0752500AP |
SF48T-0802500AP |
SF48T-0852500AP |
SF48T-0902500AP |
|
|
2.4A |
SF48T-0702400AP |
SF48T-0752400AP |
SF48T-0802400AP |
SF48T-0852400AP |
SF48T-0902400AP |
SF48T-0952400AP |
|
2.3A |
SF48T-0702300AP |
SF48T-0752300AP |
SF48T-0802300AP |
SF48T-0852300AP |
SF48T-0902300AP |
SF48T-0952300AP |
|
2.2A |
SF48T-0702200AP |
SF48T-0752200AP |
SF48T-0802200AP |
SF48T-0852200AP |
SF48T-0902200AP |
SF48T-0952200AP |
|
2.1A |
SF48T-0702100AP |
SF48T-0752100AP |
SF48T-0802100AP |
SF48T-0852100AP |
SF48T-0902100AP |
SF48T-0952100AP |
|
2.0A |
SF48T-0702000AP |
SF48T-0752000AP |
SF48T-0802000AP |
SF48T-0852000AP |
SF48T-0902000AP |
SF48T-0952000AP |
|
1.9A |
SF48T-0701900AP |
SF48T-0751900AP |
SF48T-0801900AP |
SF48T-0851900AP |
SF48T-0901900AP |
SF48T-0951900AP |
|
1.8A |
SF48T-0701800AP |
SF48T-0751800AP |
SF48T-0801800AP |
SF48T-0851800AP |
SF48T-0901800AP |
SF48T-0951800AP |
|
1.7A |
SF48T-0701700AP |
SF48T-0751700AP |
SF48T-0801700AP |
SF48T-0851700AP |
SF48T-0901700AP |
SF48T-0951700AP |
|
1.6A |
SF48T-0701600AP |
SF48T-0751600AP |
SF48T-0801600AP |
SF48T-0851600AP |
SF48T-0901600AP |
SF48T-0951600AP |
|
1.5A |
SF48T-0701500AP |
SF48T-0751500AP |
SF48T-0801500AP |
SF48T-0851500AP |
SF48T-0901500AP |
SF48T-0951500AP |
|
1.4A |
SF48T-0701400AP |
SF48T-0751400AP |
SF48T-0801400AP |
SF48T-0851400AP |
SF48T-0901400AP |
SF48T-0951400AP |
|
1.3A |
SF48T-0701300AP |
SF48T-0751300AP |
SF48T-0801300AP |
SF48T-0851300AP |
SF48T-0901300AP |
SF48T-0951300AP |
|
1.2A |
SF48T-0701200AP |
SF48T-0751200AP |
SF48T-0801200AP |
SF48T-0851200AP |
SF48T-0901200AP |
SF48T-0951200AP |
|
1.1A |
|
|
SF48T-0801100AP |
SF48T-0851100AP |
SF48T-0901100AP |
SF48T-0951100AP |
|
1.0A |
|
|
|
|
SF48T-0901000AP |
SF48T-0951000AP |
|
23V |
24V |
25V |
|
|
|
|
|
1.0A |
SF48T-2301000AP |
SF48T-2401000AP |
SF48T-2501000AP |
|
|
|
|
0.9A |
SF48T-2300900AP |
SF48T-2400900AP |
SF48T-2500900AP |
|
|
|
|
0.8A |
SF48T-2300800AP |
SF48T-2400800AP |
SF48T-2500800AP |
|
|
|
|
0.7A |
SF48T-2300700AP |
SF48T-2400700AP |
SF48T-2500700AP |
|
|
|
|
0.6A |
SF48T-2300600AP |
SF48T-2400600AP |
SF48T-2500600AP |
|
|
|
|
0.5A |
SF48T-2300500AP |
SF48T-2400500AP |
SF48T-2500500AP |
|
|
|
|
0.4A |
SF48T-2300400AP |
SF48T-2400400AP |
SF48T-2500400AP |
|
|
|
|
0.3A |
|
SF48T-2400300AP |
SF48T-2500300AP |
|
|
|
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
1.4A |
SF48T-1701400AP |
|
|
|
|
|
|
1.3A |
SF48T-1701300AP |
SF48T-1801300AP |
SF48T-1901300AP |
|
|
|
|
1.2A |
SF48T-1701200AP |
SF48T-1801200AP |
SF48T-1901200AP |
SF48T-2001200AP |
|
|
|
1.1A |
SF48T-1701100AP |
SF48T-1801100AP |
SF48T-1901100AP |
SF48T-2001100AP |
SF48T-2101100AP |
SF48T-2201100AP |
|
1.0A |
SF48T-1701000AP |
SF48T-1801000AP |
SF48T-1901000AP |
SF48T-2001000AP |
SF48T-2101000AP |
SF48T-2201000AP |
|
0.9A |
SF48T-1700900AP |
SF48T-1800900AP |
SF48T-1900900AP |
SF48T-2000900AP |
SF48T-2100900AP |
SF48T-2200900AP |
|
0.8A |
SF48T-1700800AP |
SF48T-1800800AP |
SF48T-1900800AP |
SF48T-2000800AP |
SF48T-2100800AP |
SF48T-2200800AP |
|
0.7A |
SF48T-1700700AP |
SF48T-1800700AP |
SF48T-1900700AP |
SF48T-2000700AP |
SF48T-2100700AP |
SF48T-2200700AP |
|
0.6A |
SF48T-1700600AP |
SF48T-1800600AP |
SF48T-1900600AP |
SF48T-2000600AP |
SF48T-2100600AP |
SF48T-2200600AP |
|
0.5A |
SF48T-1700500AP |
SF48T-1800500AP |
SF48T-1900500AP |
SF48T-2000500AP |
SF48T-2100500AP |
SF48T-2200500AP |
|
0.4A |
|
|
|
|
SF48T-2100400AP |
SF48T-2200400AP |
|
13V |
13.5V |
14V |
14.5V |
15V |
16V |
|
|
1.8A |
SF48T-1301800AP |
|
|
|
|
|
|
1.7A |
SF48T-1301700AP |
SF48T-1351700AP |
SF48T-1401700AP |
|
|
|
|
1.6A |
SF48T-1301600AP |
SF48T-1351600AP |
SF48T-1401600AP |
SF48T-1451600AP |
SF48T-1501600AP |
|
|
1.5A |
SF48T-1301500AP |
SF48T-1351500AP |
SF48T-1401500AP |
SF48T-1451500AP |
SF48T-1501500AP |
SF48T-1601500AP |
|
1.4A |
SF48T-1301400AP |
SF48T-1351400AP |
SF48T-1401400AP |
SF48T-1451400AP |
SF48T-1501400AP |
SF48T-1601400AP |
|
1.3A |
SF48T-1301300AP |
SF48T-1351300AP |
SF48T-1401300AP |
SF48T-1451300AP |
SF48T-1501300AP |
SF48T-1601300AP |
|
1.2A |
SF48T-1301200AP |
SF48T-1351200AP |
SF48T-1401200AP |
SF48T-1451200AP |
SF48T-1501200AP |
SF48T-1601200AP |
|
1.1A |
SF48T-1301100AP |
SF48T-1351100AP |
SF48T-1401100AP |
SF48T-1451100AP |
SF48T-1501100AP |
SF48T-1601100AP |
|
1.0A |
SF48T-1301000AP |
SF48T-1351000AP |
SF48T-1401000AP |
SF48T-1451000AP |
SF48T-1501000AP |
SF48T-1601000AP |
|
0.9A |
SF48T-1300900AP |
SF48T-1350900AP |
SF48T-1400900AP |
SF48T-1450900AP |
SF48T-1500900AP |
SF48T-1600900AP |
|
0.8A |
SF48T-1300800AP |
SF48T-1350800AP |
SF48T-1400800AP |
SF48T-1450800AP |
SF48T-1500800AP |
SF48T-1600800AP |
|
0.7A |
SF48T-1300700AP |
SF48T-1350700AP |
SF48T-1400700AP |
SF48T-1450700AP |
SF48T-1500700AP |
SF48T-1600700AP |
|
0.6A |
|
|
|
SF48T-1450600AP |
SF48T-1500600AP |
SF48T-1600600AP |
 |
 |
 |
 |
 |
 |
