LINEAR ADAPTOR
DESKTOP

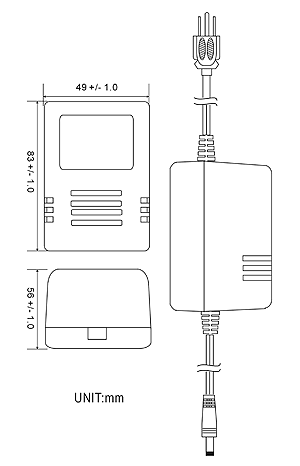

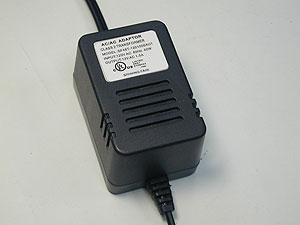

EI 48 AC TO AC ADAPTOR (US 3 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-5A |
|
|
|
Output Watt |
25VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
1.0A |
SF48T-2501000AU1 |
|
|
|
|
|
|
0.9A |
SF48T-2500900AU1 |
SF48T-2550900AU1 |
SF48T-2600900AU1 |
SF48T-2650900AU1 |
SF48T-2700900AU1 |
|
|
0.8A |
SF48T-2500800AU1 |
SF48T-2550800AU1 |
SF48T-2600800AU1 |
SF48T-2650800AU1 |
SF48T-2700800AU1 |
|
|
0.7A |
SF48T-2500700AU1 |
SF48T-2550700AU1 |
SF48T-2600700AU1 |
SF48T-2650700AU1 |
SF48T-2700700AU1 |
|
|
0.6A |
SF48T-2500600AU1 |
SF48T-2550600AU1 |
SF48T-2600600AU1 |
SF48T-2650600AU1 |
SF48T-2700600AU1 |
SF48T-2800600AU1 |
|
0.5A |
SF48T-2500500AU1 |
SF48T-2550500AU1 |
SF48T-2600500AU1 |
SF48T-2650500AU1 |
SF48T-2700500AU1 |
SF48T-2800500AU1 |
|
0.4A |
SF48T-2500400AU1 |
SF48T-2550400AU1 |
SF48T-2600400AU1 |
SF48T-2650400AU1 |
SF48T-2700400AU1 |
SF48T-2800400AU1 |
|
0.3A |
SF48T-2500300AU1 |
SF48T-2550300AU1 |
SF48T-2600300AU1 |
SF48T-2650300AU1 |
SF48T-2700300AU1 |
SF48T-2800300AU1 |
|
0.2A |
SF48T-2500200AU1 |
SF48T-2550200AU1 |
SF48T-2600200AU1 |
SF48T-2650200AU1 |
SF48T-2700200AU1 |
SF48T-2800200AU1 |
|
0.1A |
|
|
|
SF48T-2650100AU1 |
SF48T-2700100AU1 |
SF48T-2800100AU1 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
1.1A |
SF48T-2201100AU1 |
|
|
|
|
|
|
1.0A |
SF48T-2201000AU1 |
SF48T-2251000AU1 |
SF48T-2301000AU1 |
SF48T-2351000AU1 |
SF48T-2401000AU1 |
SF48T-2451000AU1 |
|
0.9A |
SF48T-2200900AU1 |
SF48T-2250900AU1 |
SF48T-2300900AU1 |
SF48T-2350900AU1 |
SF48T-2400900AU1 |
SF48T-2450900AU1 |
|
0.8A |
SF48T-2200800AU1 |
SF48T-2250800AU1 |
SF48T-2300800AU1 |
SF48T-2350800AU1 |
SF48T-2400800AU1 |
SF48T-2450800AU1 |
|
0.7A |
SF48T-2200700AU1 |
SF48T-2250700AU1 |
SF48T-2300700AU1 |
SF48T-2350700AU1 |
SF48T-2400700AU1 |
SF48T-2450700AU1 |
|
0.6A |
SF48T-2200600AU1 |
SF48T-2250600AU1 |
SF48T-2300600AU1 |
SF48T-2350600AU1 |
SF48T-2400600AU1 |
SF48T-2450600AU1 |
|
0.5A |
SF48T-2200500AU1 |
SF48T-2250500AU1 |
SF48T-2300500AU1 |
SF48T-2350500AU1 |
SF48T-2400500AU1 |
SF48T-2450500AU1 |
|
0.4A |
SF48T-2200400AU1 |
SF48T-2250400AU1 |
SF48T-2300400AU1 |
SF48T-2350400AU1 |
SF48T-2400400AU1 |
SF48T-2450400AU1 |
|
0.3A |
SF48T-2200300AU1 |
SF48T-2250300AU1 |
SF48T-2300300AU1 |
SF48T-2350300AU1 |
SF48T-2400300AU1 |
SF48T-2450300AU1 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.2A |
SF48T-1901200AU1 |
SF48T-1951200AU1 |
SF48T-2001200AU1 |
|
|
|
|
1.1A |
SF48T-1901100AU1 |
SF48T-1951100AU1 |
SF48T-2001100AU1 |
SF48T-2051100AU1 |
SF48T-2101100AU1 |
SF48T-2151100AU1 |
|
1.0A |
SF48T-1901000AU1 |
SF48T-1951000AU1 |
SF48T-2001000AU1 |
SF48T-2051000AU1 |
SF48T-2101000AU1 |
SF48T-2151000AU1 |
|
0.9A |
SF48T-1900900AU1 |
SF48T-1950900AU1 |
SF48T-2000900AU1 |
SF48T-2050900AU1 |
SF48T-2100900AU1 |
SF48T-2150900AU1 |
|
0.8A |
SF48T-1900800AU1 |
SF48T-1950800AU1 |
SF48T-2000800AU1 |
SF48T-2050800AU1 |
SF48T-2100800AU1 |
SF48T-2150800AU1 |
|
0.7A |
SF48T-1900700AU1 |
SF48T-1950700AU1 |
SF48T-2000700AU1 |
SF48T-2050700AU1 |
SF48T-2100700AU1 |
SF48T-2150700AU1 |
|
0.6A |
SF48T-1900600AU1 |
SF48T-1950600AU1 |
SF48T-2000600AU1 |
SF48T-2050600AU1 |
SF48T-2100600AU1 |
SF48T-2150600AU1 |
|
0.5A |
SF48T-1900500AU1 |
SF48T-1950500AU1 |
SF48T-2000500AU1 |
SF48T-2050500AU1 |
SF48T-2100500AU1 |
SF48T-2150500AU1 |
|
0.4A |
|
|
|
SF48T-2050400AU1 |
SF48T-2100400AU1 |
SF48T-2150400AU1 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.5A |
SF48T-1601500AU1 |
|
|
|
|
|
|
1.4A |
SF48T-1601400AU1 |
SF48T-1651400AU1 |
SF48T-1701400AU1 |
|
|
|
|
1.3A |
SF48T-1601300AU1 |
SF48T-1651300AU1 |
SF48T-1701300AU1 |
SF48T-1751300AU1 |
SF48T-1801300AU1 |
|
|
1.2A |
SF48T-1601200AU1 |
SF48T-1651200AU1 |
SF48T-1701200AU1 |
SF48T-1751200AU1 |
SF48T-1801200AU1 |
SF48T-1851200AU1 |
|
1.1A |
SF48T-1601100AU1 |
SF48T-1651100AU1 |
SF48T-1701100AU1 |
SF48T-1751100AU1 |
SF48T-1801100AU1 |
SF48T-1851100AU1 |
|
1.0A |
SF48T-1601000AU1 |
SF48T-1651000AU1 |
SF48T-1701000AU1 |
SF48T-1751000AU1 |
SF48T-1801000AU1 |
SF48T-1851000AU1 |
|
0.9A |
SF48T-1600900AU1 |
SF48T-1650900AU1 |
SF48T-1700900AU1 |
SF48T-1750900AU1 |
SF48T-1800900AU1 |
SF48T-1850900AU1 |
|
0.8A |
SF48T-1600800AU1 |
SF48T-1650800AU1 |
SF48T-1700800AU1 |
SF48T-1750800AU1 |
SF48T-1800800AU1 |
SF48T-1850800AU1 |
|
0.7A |
SF48T-1600700AU1 |
SF48T-1650700AU1 |
SF48T-1700700AU1 |
SF48T-1750700AU1 |
SF48T-1800700AU1 |
SF48T-1850700AU1 |
|
0.6A |
SF48T-1600600AU1 |
SF48T-1650600AU1 |
SF48T-1700600AU1 |
SF48T-1750600AU1 |
SF48T-1800600AU1 |
SF48T-1850600AU1 |
|
0.5A |
|
|
|
SF48T-1750600AU1 |
SF48T-1800600AU1 |
SF48T-1850600AU1 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.8A |
SF48T-1301800AU1 |
SF48T-1351800AU1 |
|
|
|
|
|
1.7A |
SF48T-1301700AU1 |
SF48T-1351700AU1 |
SF48T-1401700AU1 |
|
|
|
|
1.6A |
SF48T-1301600AU1 |
SF48T-1351600AU1 |
SF48T-1401600AU1 |
SF48T-1451600AU1 |
SF48T-1501600AU1 |
|
|
1.5A |
SF48T-1301500AU1 |
SF48T-1351500AU1 |
SF48T-1401500AU1 |
SF48T-1451500AU1 |
SF48T-1501500AU1 |
SF48T-1551500AU1 |
|
1.4A |
SF48T-1301400AU1 |
SF48T-1351400AU1 |
SF48T-1401400AU1 |
SF48T-1451400AU1 |
SF48T-1501400AU1 |
SF48T-1551400AU1 |
|
1.3A |
SF48T-1301300AU1 |
SF48T-1351300AU1 |
SF48T-1401300AU1 |
SF48T-1451300AU1 |
SF48T-1501300AU1 |
SF48T-1551300AU1 |
|
1.2A |
SF48T-1301200AU1 |
SF48T-1351200AU1 |
SF48T-1401200AU1 |
SF48T-1451200AU1 |
SF48T-1501200AU1 |
SF48T-1551200AU1 |
|
1.1A |
SF48T-1301100AU1 |
SF48T-1351100AU1 |
SF48T-1401100AU1 |
SF48T-1451100AU1 |
SF48T-1501100AU1 |
SF48T-1551100AU1 |
|
1.0A |
SF48T-1301000AU1 |
SF48T-1351000AU1 |
SF48T-1401000AU1 |
SF48T-1451000AU1 |
SF48T-1501000AU1 |
SF48T-1551000AU1 |
|
0.9A |
SF48T-1300900AU1 |
SF48T-1350900AU1 |
SF48T-1400900AU1 |
SF48T-1450900AU1 |
SF48T-1500900AU1 |
SF48T-1550900AU1 |
|
0.8A |
SF48T-1300800AU1 |
SF48T-1350800AU1 |
SF48T-1400800AU1 |
SF48T-1450800AU1 |
SF48T-1500800AU1 |
SF48T-1550800AU1 |
|
0.7A |
SF48T-1300700AU1 |
SF48T-1350700AU1 |
SF48T-1400700AU1 |
SF48T-1450700AU1 |
SF48T-1500700AU1 |
SF48T-1550700AU1 |
|
0.6A |
|
|
SF48T-1400600AU1 |
SF48T-1450600AU1 |
SF48T-1500600AU1 |
SF48T-1550600AU1 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.4A |
SF48T-1002400AU1 |
|
|
|
|
|
|
2.3A |
SF48T-1002300AU1 |
|
|
|
|
|
|
2.2A |
SF48T-1002200AU1 |
SF48T-1052200AU1 |
|
|
|
|
|
2.1A |
SF48T-1002100AU1 |
SF48T-1052100AU1 |
SF48T-1102100AU1 |
SF48T-1152100AU1 |
|
|
|
2.0A |
SF48T-1002000AU1 |
SF48T-1052000AU1 |
SF48T-1102000AU1 |
SF48T-1152000AU1 |
SF48T-1202000AU1 |
|
|
1.9A |
SF48T-1001900AU1 |
SF48T-1051900AU1 |
SF48T-1101900AU1 |
SF48T-1151900AU1 |
SF48T-1201900AU1 |
SF48T-1251900AU1 |
|
1.8A |
SF48T-1001800AU1 |
SF48T-1051800AU1 |
SF48T-1101800AU1 |
SF48T-1151800AU1 |
SF48T-1201800AU1 |
SF48T-1251800AU1 |
|
1.7A |
SF48T-1001700AU1 |
SF48T-1051700AU1 |
SF48T-1101700AU1 |
SF48T-1151700AU1 |
SF48T-1201700AU1 |
SF48T-1251700AU1 |
|
1.6A |
SF48T-1001600AU1 |
SF48T-1051600AU1 |
SF48T-1101600AU1 |
SF48T-1151600AU1 |
SF48T-1201600AU1 |
SF48T-1251600AU1 |
|
1.5A |
SF48T-1001500AU1 |
SF48T-1051500AU1 |
SF48T-1101500AU1 |
SF48T-1151500AU1 |
SF48T-1201500AU1 |
SF48T-1251500AU1 |
|
1.4A |
SF48T-1001400AU1 |
SF48T-1051400AU1 |
SF48T-1101400AU1 |
SF48T-1151400AU1 |
SF48T-1201400AU1 |
SF48T-1251400AU1 |
|
1.3A |
SF48T-1001300AU1 |
SF48T-1051300AU1 |
SF48T-1101300AU1 |
SF48T-1151300AU1 |
SF48T-1201300AU1 |
SF48T-1251300AU1 |
|
1.2A |
SF48T-1001200AU1 |
SF48T-1051200AU1 |
SF48T-1101200AU1 |
SF48T-1151200AU1 |
SF48T-1201200AU1 |
SF48T-1251200AU1 |
|
1.1A |
SF48T-1001100AU1 |
SF48T-1051100AU1 |
SF48T-1101100AU1 |
SF48T-1151100AU1 |
SF48T-1201100AU1 |
SF48T-1251100AU1 |
|
1.0A |
SF48T-1001000AU1 |
SF48T-1051000AU1 |
SF48T-1101000AU1 |
SF48T-1151000AU1 |
SF48T-1201000AU1 |
SF48T-1251000AU1 |
|
0.9A |
SF48T-1000900AU1 |
SF48T-1050900AU1 |
SF48T-1100900AU1 |
SF48T-1150900AU1 |
SF48T-1200900AU1 |
SF48T-1250900AU1 |
|
0.8A |
SF48T-1000800AU1 |
SF48T-1050800AU1 |
SF48T-1100800AU1 |
SF48T-1150800AU1 |
SF48T-1200800AU1 |
SF48T-1250800AU1 |
|
0.7A |
|
|
SF48T-1100700AU1 |
SF48T-1150700AU1 |
SF48T-1200700AU1 |
SF48T-1250700AU1 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
3.2A |
SF48T-0703200AU1 |
|
|
|
|
|
|
3.1A |
SF48T-0703100AU1 |
|
|
|
|
|
|
3.0A |
SF48T-0703000AU1 |
SF48T-0753000AU1 |
|
|
|
|
|
2.9A |
SF48T-0702900AU1 |
SF48T-0752900AU1 |
SF48T-0802900AU1 |
|
|
|
|
2.8A |
SF48T-0702800AU1 |
SF48T-0752800AU1 |
SF48T-0802800AU1 |
SF48T-0852800AU1 |
|
|
|
2.7A |
SF48T-0702700AU1 |
SF48T-0752700AU1 |
SF48T-0802700AU1 |
SF48T-0852700AU1 |
|
|
|
2.6A |
SF48T-0702600AU1 |
SF48T-0752600AU1 |
SF48T-0802600AU1 |
SF48T-0852600AU1 |
SF48T-0902600AU1 |
|
|
2.5A |
SF48T-0702500AU1 |
SF48T-0752500AU1 |
SF48T-0802500AU1 |
SF48T-0852500AU1 |
SF48T-0902500AU1 |
SF48T-0952500AU1 |
|
2.4A |
SF48T-0702400AU1 |
SF48T-0752400AU1 |
SF48T-0802400AU1 |
SF48T-0852400AU1 |
SF48T-0902400AU1 |
SF48T-0952400AU1 |
|
2.3A |
SF48T-0702300AU1 |
SF48T-0752300AU1 |
SF48T-0802300AU1 |
SF48T-0852300AU1 |
SF48T-0902300AU1 |
SF48T-0952300AU1 |
|
2.2A |
SF48T-0702200AU1 |
SF48T-0752200AU1 |
SF48T-0802200AU1 |
SF48T-0852200AU1 |
SF48T-0902200AU1 |
SF48T-0952200AU1 |
|
2.1A |
SF48T-0702100AU1 |
SF48T-0752100AU1 |
SF48T-0802100AU1 |
SF48T-0852100AU1 |
SF48T-0902100AU1 |
SF48T-0952100AU1 |
|
2.0A |
SF48T-0702000AU1 |
SF48T-0752000AU1 |
SF48T-0802000AU1 |
SF48T-0852000AU1 |
SF48T-0902000AU1 |
SF48T-0952000AU1 |
|
1.9A |
SF48T-0701900AU1 |
SF48T-0751900AU1 |
SF48T-0801900AU1 |
SF48T-0851900AU1 |
SF48T-0901900AU1 |
SF48T-0951900AU1 |
|
1.8A |
SF48T-0701800AU1 |
SF48T-0751800AU1 |
SF48T-0801800AU1 |
SF48T-0851800AU1 |
SF48T-0901800AU1 |
SF48T-0951800AU1 |
|
1.7A |
SF48T-0701700AU1 |
SF48T-0751700AU1 |
SF48T-0801700AU1 |
SF48T-0851700AU1 |
SF48T-0901700AU1 |
SF48T-0951700AU1 |
|
1.6A |
SF48T-0701600AU1 |
SF48T-0751600AU1 |
SF48T-0801600AU1 |
SF48T-0851600AU1 |
SF48T-0901600AU1 |
SF48T-0951600AU1 |
|
1.5A |
SF48T-0701500AU1 |
SF48T-0751500AU1 |
SF48T-0801500AU1 |
SF48T-0851500AU1 |
SF48T-0901500AU1 |
SF48T-0951500AU1 |
|
1.4A |
SF48T-0701400AU1 |
SF48T-0751400AU1 |
SF48T-0801400AU1 |
SF48T-0851400AU1 |
SF48T-0901400AU1 |
SF48T-0951400AU1 |
|
1.3A |
SF48T-0701300AU1 |
SF48T-0751300AU1 |
SF48T-0801300AU1 |
SF48T-0851300AU1 |
SF48T-0901300AU1 |
SF48T-0951300AU1 |
|
1.2A |
SF48T-0701200AU1 |
SF48T-0751200AU1 |
SF48T-0801200AU1 |
SF48T-0851200AU1 |
SF48T-0901200AU1 |
SF48T-0951200AU1 |
|
1.1A |
|
SF48T-0751100AU1 |
SF48T-0801100AU1 |
SF48T-0851100AU1 |
SF48T-0901100AU1 |
SF48T-0951100AU1 |
|
1.0A |
|
|
|
|
|
SF48T-0951000AU1 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
4.3A |
SF48T-0404300AU1 |
|
|
|
|
|
|
4.2A |
SF48T-0404200AU1 |
SF48T-0454200AU1 |
|
|
|
|
|
4.1A |
SF48T-0404100AU1 |
SF48T-0454100AU1 |
SF48T-0504100AU1 |
|
|
|
|
4.0A |
SF48T-0404000AU1 |
SF48T-0454000AU1 |
SF48T-0504000AU1 |
SF48T-0554000AU1 |
|
|
|
3.5A |
SF48T-0403500AU1 |
SF48T-0453500AU1 |
SF48T-0503500AU1 |
SF48T-0553500AU1 |
SF48T-0603500AU1 |
|
|
3.4A |
SF48T-0403400AU1 |
SF48T-0453400AU1 |
SF48T-0503400AU1 |
SF48T-0553400AU1 |
SF48T-0603400AU1 |
SF48T-0653400AU1 |
|
3.3A |
SF48T-0403300AU1 |
SF48T-0453300AU1 |
SF48T-0503300AU1 |
SF48T-0553300AU1 |
SF48T-0603300AU1 |
SF48T-0653300AU1 |
|
3.2A |
SF48T-0403200AU1 |
SF48T-0453200AU1 |
SF48T-0503200AU1 |
SF48T-0553200AU1 |
SF48T-0603200AU1 |
SF48T-0653200AU1 |
|
3.1A |
SF48T-0403100AU1 |
SF48T-0453100AU1 |
SF48T-0503100AU1 |
SF48T-0553100AU1 |
SF48T-0603100AU1 |
SF48T-0653100AU1 |
|
3.0A |
SF48T-0403000AU1 |
SF48T-0453000AU1 |
SF48T-0503000AU1 |
SF48T-0553000AU1 |
SF48T-0603000AU1 |
SF48T-0653000AU1 |
|
2.9A |
SF48T-0402900AU1 |
SF48T-0452900AU1 |
SF48T-0502900AU1 |
SF48T-0552900AU1 |
SF48T-0602900AU1 |
SF48T-0652900AU1 |
|
2.8A |
SF48T-0402800AU1 |
SF48T-0452800AU1 |
SF48T-0502800AU1 |
SF48T-0552800AU1 |
SF48T-0602800AU1 |
SF48T-0652800AU1 |
|
2.7A |
SF48T-0402700AU1 |
SF48T-0452700AU1 |
SF48T-0502700AU1 |
SF48T-0552700AU1 |
SF48T-0602700AU1 |
SF48T-0652700AU1 |
|
2.6A |
SF48T-0402600AU1 |
SF48T-0452600AU1 |
SF48T-0502600AU1 |
SF48T-0552600AU1 |
SF48T-0602600AU1 |
SF48T-0652600AU1 |
|
2.5A |
SF48T-0402500AU1 |
SF48T-0452500AU1 |
SF48T-0502500AU1 |
SF48T-0552500AU1 |
SF48T-0602500AU1 |
SF48T-0652500AU1 |
|
2.4A |
SF48T-0402400AU1 |
SF48T-0452400AU1 |
SF48T-0502400AU1 |
SF48T-0552400AU1 |
SF48T-0602400AU1 |
SF48T-0652400AU1 |
|
2.3A |
SF48T-0402300AU1 |
SF48T-0452300AU1 |
SF48T-0502300AU1 |
SF48T-0552300AU1 |
SF48T-0602300AU1 |
SF48T-0652300AU1 |
|
2.2A |
SF48T-0402200AU1 |
SF48T-0452200AU1 |
SF48T-0502200AU1 |
SF48T-0552200AU1 |
SF48T-0602200AU1 |
SF48T-0652200AU1 |
|
2.1A |
SF48T-0402100AU1 |
SF48T-0452100AU1 |
SF48T-0502100AU1 |
SF48T-0552100AU1 |
SF48T-0602100AU1 |
SF48T-0652100AU1 |
|
2.0A |
SF48T-0402000AU1 |
SF48T-0452000AU1 |
SF48T-0502000AU1 |
SF48T-0552000AU1 |
SF48T-0602000AU1 |
SF48T-0652000AU1 |
|
1.9A |
SF48T-0401900AU1 |
SF48T-0451900AU1 |
SF48T-0501900AU1 |
SF48T-0551900AU1 |
SF48T-0601900AU1 |
SF48T-0651900AU1 |
|
1.8A |
SF48T-0401800AU1 |
SF48T-0451800AU1 |
SF48T-0501800AU1 |
SF48T-0551800AU1 |
SF48T-0601800AU1 |
SF48T-0651800AU1 |
|
1.7A |
SF48T-0401700AU1 |
SF48T-0451700AU1 |
SF48T-0501700AU1 |
SF48T-0551700AU1 |
SF48T-0601700AU1 |
SF48T-0651700AU1 |
|
1.6A |
|
|
SF48T-0501600AU1 |
SF48T-0551600AU1 |
SF48T-0601600AU1 |
SF48T-0651600AU1 |
|
1.5A |
|
|
|
|
SF48T-0601500AU1 |
SF48T-0651500AU1 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
5.0A |
SF48T-0105000AU1 |
SF48T-0155000AU1 |
SF48T-0205000AU1 |
SF48T-0255000AU1 |
SF48T-0305000AU1 |
|
|
4.5A |
SF48T-0104500AU1 |
SF48T-0154500AU1 |
SF48T-0204500AU1 |
SF48T-0254500AU1 |
SF48T-0304500AU1 |
SF48T-0354500AU1 |
|
4.0A |
SF48T-0104000AU1 |
SF48T-0154000AU1 |
SF48T-0204000AU1 |
SF48T-0254000AU1 |
SF48T-0304000AU1 |
SF48T-0354000AU1 |
|
3.5A |
SF48T-0103500AU1 |
SF48T-0153500AU1 |
SF48T-0203500AU1 |
SF48T-0253500AU1 |
SF48T-0303500AU1 |
SF48T-0353500AU1 |
|
3.4A |
SF48T-0103400AU1 |
SF48T-0153400AU1 |
SF48T-0203400AU1 |
SF48T-0253400AU1 |
SF48T-0303400AU1 |
SF48T-0353400AU1 |
|
3.3A |
SF48T-0103300AU1 |
SF48T-0153300AU1 |
SF48T-0203300AU1 |
SF48T-0253300AU1 |
SF48T-0303300AU1 |
SF48T-0353300AU1 |
|
3.2A |
SF48T-0103200AU1 |
SF48T-0153200AU1 |
SF48T-0203200AU1 |
SF48T-0253200AU1 |
SF48T-0303200AU1 |
SF48T-0353200AU1 |
|
3.1A |
SF48T-0103100AU1 |
SF48T-0153100AU1 |
SF48T-0203100AU1 |
SF48T-0253100AU1 |
SF48T-0303100AU1 |
SF48T-0353100AU1 |
|
3.0A |
SF48T-0103000AU1 |
SF48T-0153000AU1 |
SF48T-0203000AU1 |
SF48T-0253000AU1 |
SF48T-0303000AU1 |
SF48T-0353000AU1 |
|
2.9A |
SF48T-0102900AU1 |
SF48T-0152900AU1 |
SF48T-0202900AU1 |
SF48T-0252900AU1 |
SF48T-0302900AU1 |
SF48T-0352900AU1 |
|
2.8A |
SF48T-0102800AU1 |
SF48T-0152800AU1 |
SF48T-0202800AU1 |
SF48T-0252800AU1 |
SF48T-0302800AU1 |
SF48T-0352800AU1 |
|
2.7A |
SF48T-0102700AU1 |
SF48T-0152700AU1 |
SF48T-0202700AU1 |
SF48T-0252700AU1 |
SF48T-0302700AU1 |
SF48T-0352700AU1 |
|
2.6A |
SF48T-0102600AU1 |
SF48T-0152600AU1 |
SF48T-0202600AU1 |
SF48T-0252600AU1 |
SF48T-0302600AU1 |
SF48T-0352600AU1 |
|
2.5A |
SF48T-0102500AU1 |
SF48T-0152500AU1 |
SF48T-0202500AU1 |
SF48T-0252500AU1 |
SF48T-0302500AU1 |
SF48T-0352500AU1 |
|
2.4A |
SF48T-0102400AU1 |
SF48T-0152400AU1 |
SF48T-0202400AU1 |
SF48T-0252400AU1 |
SF48T-0302400AU1 |
SF48T-0352400AU1 |
|
2.3A |
SF48T-0102300AU1 |
SF48T-0152300AU1 |
SF48T-0202300AU1 |
SF48T-0252300AU1 |
SF48T-0302300AU1 |
SF48T-0352300AU1 |
|
2.2A |
SF48T-0102200AU1 |
SF48T-0152200AU1 |
SF48T-0202200AU1 |
SF48T-0252200AU1 |
SF48T-0302200AU1 |
SF48T-0352200AU1 |
|
2.1A |
SF48T-0102100AU1 |
SF48T-0152100AU1 |
SF48T-0202100AU1 |
SF48T-0252100AU1 |
SF48T-0302100AU1 |
SF48T-0352100AU1 |
|
2.0A |
SF48T-0102000AU1 |
SF48T-0152000AU1 |
SF48T-0202000AU1 |
SF48T-0252000AU1 |
SF48T-0302000AU1 |
SF48T-0352000AU1 |
|
1.9A |
SF48T-0101900AU1 |
SF48T-0151900AU1 |
SF48T-0201900AU1 |
SF48T-0251900AU1 |
SF48T-0301900AU1 |
SF48T-0351900AU1 |
 |
 |
 |
 |
 |
 |
