LINEAR ADAPTOR
DESKTOP

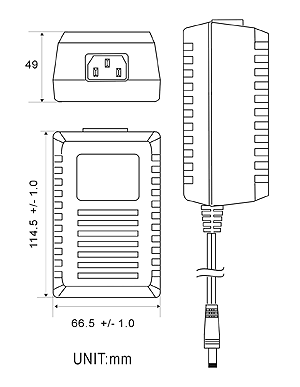

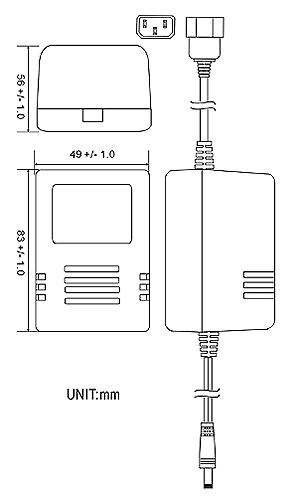

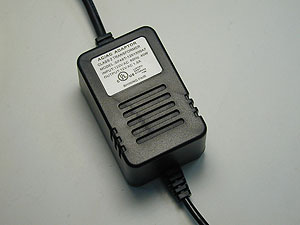

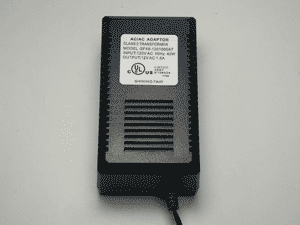

EI 48 AC TO AC ADAPTOR (IEC320-3 PRONG PIN)
Input:120V AC 60Hz

00title405a

OUTPUT SPECIFICATION

40-UL

GENERAL SPECIFICATION

Temperatures

Humidity

Operating Temperatures

-10 to +30oC

Operating Humidity

10 to 90% RH

Storage Temperatures

-10 to +70oC

Storage Humidity

5 to 95% RH

Hi-Pot Test

Safety

Compliance With

Primary to Core

1800V AC, one second

UL/CUL

UL 1310/
CAN/CSA C22.2 No.223

Primary to Secondary

1800V AC, one second

ELECTRICAL SPECIFICATION

INPUT

OUTPUT

Input Voltage

120V AC

Output Voltage

1.5-28V AC

Input Frequency

60Hz

Output Tolerance (Load)

5%





Output Current

0.1-5A





Output Watt

25VA max

name5txt

25.5V AC

26V AC

26.5V AC

27V AC

28V AC



0.9A

SF48T-2550900A7

SF48T-2600900A7

SF48T-2650900A7

SF48T-2700900A7





0.8A

SF48T-2550800A7

SF48T-2600800A7

SF48T-2650800A7

SF48T-2700800A7





0.7A

SF48T-2550700A7

SF48T-2600700A7

SF48T-2650700A7

SF48T-2700700A7





0.6A

SF48T-2550600A7

SF48T-2600600A7

SF48T-2650600A7

SF48T-2700600A7

SF48T-2800600A7



0.5A

SF48T-2550500A7

SF48T-2600500A7

SF48T-2650500A7

SF48T-2700500A7

SF48T-2800500A7



0.4A

SF48T-2550400A7

SF48T-2600400A7

SF48T-2650400A7

SF48T-2700400A7

SF48T-2800400A7



0.3A

SF48T-2550300A7

SF48T-2600300A7

SF48T-2650300A7

SF48T-2700300A7

SF48T-2800300A7



0.2A

SF48T-2550200A7

SF48T-2600200A7

SF48T-2650200A7

SF48T-2700200A7

SF48T-2800200A7



0.1A





SF48T-2650100A7

SF48T-2700100A7

SF48T-2800100A7



name5txt

22.5V AC

23V AC

23.5V AC

24V AC

24.5V AC

25V AC

1.0A

SF48T-2251000A7

SF48T-2301000A7

SF48T-2351000A7

SF48T-2401000A7

SF48T-2451000A7

SF48T-2501000A7

0.9A

SF48T-2250900A7

SF48T-2300900A7

SF48T-2350900A7

SF48T-2400900A7

SF48T-2450900A7

SF48T-2500900A7

0.8A

SF48T-2250800A7

SF48T-2300800A7

SF48T-2350800A7

SF48T-2400800A7

SF48T-2450800A7

SF48T-2500800A7

0.7A

SF48T-2250700A7

SF48T-2300700A7

SF48T-2350700A7

SF48T-2400700A7

SF48T-2450700A7

SF48T-2500700A7

0.6A

SF48T-2250600A7

SF48T-2300600A7

SF48T-2350600A7

SF48T-2400600A7

SF48T-2450600A7

SF48T-2500600A7

0.5A

SF48T-2250500A7

SF48T-2300500A7

SF48T-2350500A7

SF48T-2400500A7

SF48T-2450500A7

SF48T-2500500A7

0.4A

SF48T-2250400A7

SF48T-2300400A7

SF48T-2350400A7

SF48T-2400400A7

SF48T-2450400A7

SF48T-2500400A7

0.3A

SF48T-2250300A7

SF48T-2300300A7

SF48T-2350300A7

SF48T-2400300A7

SF48T-2450300A7

SF48T-2500300A7

0.2A











SF48T-2500200A7

name5txt

19.5V AC

20V AC

20.5V AC

21V AC

21.5V AC

22V AC

1.2A

SF48T-1951200A7

SF48T-2001200A7









1.1A

SF48T-1951100A7

SF48T-2001100A7

SF48T-2051100A7

SF48T-2101100A7

SF48T-2151100A7

SF48T-2201100A7

1.0A

SF48T-1951000A7

SF48T-2001000A7

SF48T-2051000A7

SF48T-2101000A7

SF48T-2151000A7

SF48T-2201000A7

0.9A

SF48T-1950900A7

SF48T-2000900A7

SF48T-2050900A7

SF48T-2100900A7

SF48T-2150900A7

SF48T-2200900A7

0.8A

SF48T-1950800A7

SF48T-2000800A7

SF48T-2050800A7

SF48T-2100800A7

SF48T-2150800A7

SF48T-2200800A7

0.7A

SF48T-1950700A7

SF48T-2000700A7

SF48T-2050700A7

SF48T-2100700A7

SF48T-2150700A7

SF48T-2200700A7

0.6A

SF48T-1950600A7

SF48T-2000600A7

SF48T-2050600A7

SF48T-2100600A7

SF48T-2150600A7

SF48T-2200600A7

0.5A

SF48T-1950500A7

SF48T-2000500A7

SF48T-2050500A7

SF48T-2100500A7

SF48T-2150500A7

SF48T-2200500A7

0.4A





SF48T-2050400A7

SF48T-2100400A7

SF48T-2150400A7

SF48T-2200400A7

0.3A











SF48T-2200300A7

name5txt

16.5V

17V

17.5V

18V

18.5V

19V AC

1.4A

SF48T-1651400A7

SF48T-1701400A7









1.3A

SF48T-1651300A7

SF48T-1701300A7

SF48T-1751300A7

SF48T-1801300A7





1.2A

SF48T-1651200A7

SF48T-1701200A7

SF48T-1751200A7

SF48T-1801200A7

SF48T-1851200A7

SF48T-1901200A7

1.1A

SF48T-1651100A7

SF48T-1701100A7

SF48T-1751100A7

SF48T-1801100A7

SF48T-1851100A7

SF48T-1901100A7

1.0A

SF48T-1651000A7

SF48T-1701000A7

SF48T-1751000A7

SF48T-1801000A7

SF48T-1851000A7

SF48T-1901000A7

0.9A

SF48T-1650900A7

SF48T-1700900A7

SF48T-1750900A7

SF48T-1800900A7

SF48T-1850900A7

SF48T-1900900A7

0.8A

SF48T-1650800A7

SF48T-1700800A7

SF48T-1750800A7

SF48T-1800800A7

SF48T-1850800A7

SF48T-1900800A7

0.7A

SF48T-1650700A7

SF48T-1700700A7

SF48T-1750700A7

SF48T-1800700A7

SF48T-1850700A7

SF48T-1900700A7

0.6A

SF48T-1650600A7

SF48T-1700600A7

SF48T-1750600A7

SF48T-1800600A7

SF48T-1850600A7

SF48T-1900600A7

0.5A





SF48T-1750600A7

SF48T-1800600A7

SF48T-1850600A7

SF48T-1900500A7

name5txt

13.5V

14V

14.5V

15V

15.5V

16V

1.8A

SF48T-1351800A7











1.7A

SF48T-1351700A7

SF48T-1401700A7









1.6A

SF48T-1351600A7

SF48T-1401600A7

SF48T-1451600A7

SF48T-1501600A7





1.5A

SF48T-1351500A7

SF48T-1401500A7

SF48T-1451500A7

SF48T-1501500A7

SF48T-1551500A7

SF48T-1601500A7

1.4A

SF48T-1351400A7

SF48T-1401400A7

SF48T-1451400A7

SF48T-1501400A7

SF48T-1551400A7

SF48T-1601400A7

1.3A

SF48T-1351300A7

SF48T-1401300A7

SF48T-1451300A7

SF48T-1501300A7

SF48T-1551300A7

SF48T-1601300A7

1.2A

SF48T-1351200A7

SF48T-1401200A7

SF48T-1451200A7

SF48T-1501200A7

SF48T-1551200A7

SF48T-1601200A7

1.1A

SF48T-1351100A7

SF48T-1401100A7

SF48T-1451100A7

SF48T-1501100A7

SF48T-1551100A7

SF48T-1601100A7

1.0A

SF48T-1351000A7

SF48T-1401000A7

SF48T-1451000A7

SF48T-1501000A7

SF48T-1551000A7

SF48T-1601000A7

0.9A

SF48T-1350900A7

SF48T-1400900A7

SF48T-1450900A7

SF48T-1500900A7

SF48T-1550900A7

SF48T-1600900A7

0.8A

SF48T-1350800A7

SF48T-1400800A7

SF48T-1450800A7

SF48T-1500800A7

SF48T-1550800A7

SF48T-1600800A7

0.7A

SF48T-1350700A7

SF48T-1400700A7

SF48T-1450700A7

SF48T-1500700A7

SF48T-1550700A7

SF48T-1600700A7

0.6A



SF48T-1400600A7

SF48T-1450600A7

SF48T-1500600A7

SF48T-1550600A7

SF48T-1600600A7

name5txt

10.5V

11V

11.5V

12V

12.5V

13V

2.2A

SF48T-1052200A7











2.1A

SF48T-1052100A7

SF48T-1102100A7

SF48T-1152100A7







2.0A

SF48T-1052000A7

SF48T-1102000A7

SF48T-1152000A7

SF48T-1202000A7





1.9A

SF48T-1051900A7

SF48T-1101900A7

SF48T-1151900A7

SF48T-1201900A7

SF48T-1251900A7



1.8A

SF48T-1051800A7

SF48T-1101800A7

SF48T-1151800A7

SF48T-1201800A7

SF48T-1251800A7

SF48T-1301800A7

1.7A

SF48T-1051700A7

SF48T-1101700A7

SF48T-1151700A7

SF48T-1201700A7

SF48T-1251700A7

SF48T-1301700A7

1.6A

SF48T-1051600A7

SF48T-1101600A7

SF48T-1151600A7

SF48T-1201600A7

SF48T-1251600A7

SF48T-1301600A7

1.5A

SF48T-1051500A7

SF48T-1101500A7

SF48T-1151500A7

SF48T-1201500A7

SF48T-1251500A7

SF48T-1301500A7

1.4A

SF48T-1051400A7

SF48T-1101400A7

SF48T-1151400A7

SF48T-1201400A7

SF48T-1251400A7

SF48T-1301400A7

1.3A

SF48T-1051300A7

SF48T-1101300A7

SF48T-1151300A7

SF48T-1201300A7

SF48T-1251300A7

SF48T-1301300A7

1.2A

SF48T-1051200A7

SF48T-1101200A7

SF48T-1151200A7

SF48T-1201200A7

SF48T-1251200A7

SF48T-1301200A7

1.1A

SF48T-1051100A7

SF48T-1101100A7

SF48T-1151100A7

SF48T-1201100A7

SF48T-1251100A7

SF48T-1301100A7

1.0A

SF48T-1051000A7

SF48T-1101000A7

SF48T-1151000A7

SF48T-1201000A7

SF48T-1251000A7

SF48T-1301000A7

0.9A

SF48T-1050900A7

SF48T-1100900A7

SF48T-1150900A7

SF48T-1200900A7

SF48T-1250900A7

SF48T-1300900A7

0.8A

SF48T-1050800A7

SF48T-1100800A7

SF48T-1150800A7

SF48T-1200800A7

SF48T-1250800A7

SF48T-1300800A7

0.7A



SF48T-1100700A7

SF48T-1150700A7

SF48T-1200700A7

SF48T-1250700A7

SF48T-1300700A7

name5txt

7.5V

8V

8.5V

9V

9.5V

10V

3.0A

SF48T-0753000A7











2.9A

SF48T-0752900A7

SF48T-0802900A7









2.8A

SF48T-0752800A7

SF48T-0802800A7

SF48T-0852800A7







2.7A

SF48T-0752700A7

SF48T-0802700A7

SF48T-0852700A7







2.6A

SF48T-0752600A7

SF48T-0802600A7

SF48T-0852600A7

SF48T-0902600A7





2.5A

SF48T-0752500A7

SF48T-0802500A7

SF48T-0852500A7

SF48T-0902500A7

SF48T-0952500A7



2.4A

SF48T-0752400A7

SF48T-0802400A7

SF48T-0852400A7

SF48T-0902400A7

SF48T-0952400A7

SF48T-1002400A7

2.3A

SF48T-0752300A7

SF48T-0802300A7

SF48T-0852300A7

SF48T-0902300A7

SF48T-0952300A7

SF48T-1002300A7

2.2A

SF48T-0752200A7

SF48T-0802200A7

SF48T-0852200A7

SF48T-0902200A7

SF48T-0952200A7

SF48T-1002200A7

2.1A

SF48T-0752100A7

SF48T-0802100A7

SF48T-0852100A7

SF48T-0902100A7

SF48T-0952100A7

SF48T-1002100A7

2.0A

SF48T-0752000A7

SF48T-0802000A7

SF48T-0852000A7

SF48T-0902000A7

SF48T-0952000A7

SF48T-1002000A7

1.9A

SF48T-0751900A7

SF48T-0801900A7

SF48T-0851900A7

SF48T-0901900A7

SF48T-0951900A7

SF48T-1001900A7

1.8A

SF48T-0751800A7

SF48T-0801800A7

SF48T-0851800A7

SF48T-0901800A7

SF48T-0951800A7

SF48T-1001800A7

1.7A

SF48T-0751700A7

SF48T-0801700A7

SF48T-0851700A7

SF48T-0901700A7

SF48T-0951700A7

SF48T-1001700A7

1.6A

SF48T-0751600A7

SF48T-0801600A7

SF48T-0851600A7

SF48T-0901600A7

SF48T-0951600A7

SF48T-1001600A7

1.5A

SF48T-0751500A7

SF48T-0801500A7

SF48T-0851500A7

SF48T-0901500A7

SF48T-0951500A7

SF48T-1001500A7

1.4A

SF48T-0751400A7

SF48T-0801400A7

SF48T-0851400A7

SF48T-0901400A7

SF48T-0951400A7

SF48T-1001400A7

1.3A

SF48T-0751300A7

SF48T-0801300A7

SF48T-0851300A7

SF48T-0901300A7

SF48T-0951300A7

SF48T-1001300A7

1.2A

SF48T-0751200A7

SF48T-0801200A7

SF48T-0851200A7

SF48T-0901200A7

SF48T-0951200A7

SF48T-1001200A7

1.1A

SF48T-0751100A7

SF48T-0801100A7

SF48T-0851100A7

SF48T-0901100A7

SF48T-0951100A7

SF48T-1001100A7

1.0A









SF48T-0951000A7

SF48T-1001000A7

0.9A











SF48T-1000900A7

0.8A











SF48T-1000800A7

name5txt

4V

4.5V

5V

5.5V

6V

7V

4.2A

SF48T-0454200A7











4.1A

SF48T-0454100A7

SF48T-0504100A7









4.0A

SF48T-0454000A7

SF48T-0504000A7

SF48T-0554000A7







3.5A

SF48T-0453500A7

SF48T-0503500A7

SF48T-0553500A7

SF48T-0603500A7





3.4A

SF48T-0453400A7

SF48T-0503400A7

SF48T-0553400A7

SF48T-0603400A7

SF48T-0653400A7



3.3A

SF48T-0453300A7

SF48T-0503300A7

SF48T-0553300A7

SF48T-0603300A7

SF48T-0653300A7



3.2A

SF48T-0453200A7

SF48T-0503200A7

SF48T-0553200A7

SF48T-0603200A7

SF48T-0653200A7

SF48T-0703200A7

3.1A

SF48T-0453100A7

SF48T-0503100A7

SF48T-0553100A7

SF48T-0603100A7

SF48T-0653100A7

SF48T-0703100A7

3.0A

SF48T-0453000A7

SF48T-0503000A7

SF48T-0553000A7

SF48T-0603000A7

SF48T-0653000A7

SF48T-0703000A7

2.9A

SF48T-0452900A7

SF48T-0502900A7

SF48T-0552900A7

SF48T-0602900A7

SF48T-0652900A7

SF48T-0702900A7

2.8A

SF48T-0452800A7

SF48T-0502800A7

SF48T-0552800A7

SF48T-0602800A7

SF48T-0652800A7

SF48T-0702800A7

2.7A

SF48T-0452700A7

SF48T-0502700A7

SF48T-0552700A7

SF48T-0602700A7

SF48T-0652700A7

SF48T-0702700A7

2.6A

SF48T-0452600A7

SF48T-0502600A7

SF48T-0552600A7

SF48T-0602600A7

SF48T-0652600A7

SF48T-0702600A7

2.5A

SF48T-0452500A7

SF48T-0502500A7

SF48T-0552500A7

SF48T-0602500A7

SF48T-0652500A7

SF48T-0702500A7

2.4A

SF48T-0452400A7

SF48T-0502400A7

SF48T-0552400A7

SF48T-0602400A7

SF48T-0652400A7

SF48T-0702400A7

2.3A

SF48T-0452300A7

SF48T-0502300A7

SF48T-0552300A7

SF48T-0602300A7

SF48T-0652300A7

SF48T-0702300A7

2.2A

SF48T-0452200A7

SF48T-0502200A7

SF48T-0552200A7

SF48T-0602200A7

SF48T-0652200A7

SF48T-0702200A7

2.1A

SF48T-0452100A7

SF48T-0502100A7

SF48T-0552100A7

SF48T-0602100A7

SF48T-0652100A7

SF48T-0702100A7

2.0A

SF48T-0452000A7

SF48T-0502000A7

SF48T-0552000A7

SF48T-0602000A7

SF48T-0652000A7

SF48T-0702000A7

1.9A

SF48T-0451900A7

SF48T-0501900A7

SF48T-0551900A7

SF48T-0601900A7

SF48T-0651900A7

SF48T-0701900A7

1.8A

SF48T-0451800A7

SF48T-0501800A7

SF48T-0551800A7

SF48T-0601800A7

SF48T-0651800A7

SF48T-0701800A7

1.7A

SF48T-0451700A7

SF48T-0501700A7

SF48T-0551700A7

SF48T-0601700A7

SF48T-0651700A7

SF48T-0701700A7

1.6A



SF48T-0501600A7

SF48T-0551600A7

SF48T-0601600A7

SF48T-0651600A7

SF48T-0701600A7

1.5A







SF48T-0601500A7

SF48T-0651500A7

SF48T-0701500A7

1.4A











SF48T-0701400A7

1.3A











SF48T-0701300A7

1.2A











SF48T-0701200A7

name5txt

1.5V

2V

2.5V

3V

3.5V

4V

5.0A

SF48T-0155000A7

SF48T-0205000A7

SF48T-0255000A7

SF48T-0305000A7





4.5A

SF48T-0154500A7

SF48T-0204500A7

SF48T-0254500A7

SF48T-0304500A7

SF48T-0354500A7



4.3A

SF48T-0154300A7

SF48T-0204300A7

SF48T-0254300A7

SF48T-0304300A7

SF48T-0354300A7

SF48T-0404300A7

4.2A

SF48T-0154200A7

SF48T-0204200A7

SF48T-0254200A7

SF48T-0304200A7

SF48T-0354200A7

SF48T-0404200A7

4.1A

SF48T-0154100A7

SF48T-0204100A7

SF48T-0254100A7

SF48T-0304100A7

SF48T-0354100A7

SF48T-0404100A7

4.0A

SF48T-0154000A7

SF48T-0204000A7

SF48T-0254000A7

SF48T-0304000A7

SF48T-0354000A7

SF48T-0404000A7

3.5A

SF48T-0153500A7

SF48T-0203500A7

SF48T-0253500A7

SF48T-0303500A7

SF48T-0353500A7

SF48T-0403500A7

3.4A

SF48T-0153400A7

SF48T-0203400A7

SF48T-0253400A7

SF48T-0303400A7

SF48T-0353400A7

SF48T-0403400A7

3.3A

SF48T-0153300A7

SF48T-0203300A7

SF48T-0253300A7

SF48T-0303300A7

SF48T-0353300A7

SF48T-0403300A7

3.2A

SF48T-0153200A7

SF48T-0203200A7

SF48T-0253200A7

SF48T-0303200A7

SF48T-0353200A7

SF48T-0403200A7

3.1A

SF48T-0153100A7

SF48T-0203100A7

SF48T-0253100A7

SF48T-0303100A7

SF48T-0353100A7

SF48T-0403100A7

3.0A

SF48T-0153000A7

SF48T-0203000A7

SF48T-0253000A7

SF48T-0303000A7

SF48T-0353000A7

SF48T-0403000A7

2.9A

SF48T-0152900A7

SF48T-0202900A7

SF48T-0252900A7

SF48T-0302900A7

SF48T-0352900A7

SF48T-0402900A7

2.8A

SF48T-0152800A7

SF48T-0202800A7

SF48T-0252800A7

SF48T-0302800A7

SF48T-0352800A7

SF48T-0402800A7

2.7A

SF48T-0152700A7

SF48T-0202700A7

SF48T-0252700A7

SF48T-0302700A7

SF48T-0352700A7

SF48T-0402700A7

2.6A

SF48T-0152600A7

SF48T-0202600A7

SF48T-0252600A7

SF48T-0302600A7

SF48T-0352600A7

SF48T-0402600A7

2.5A

SF48T-0152500A7

SF48T-0202500A7

SF48T-0252500A7

SF48T-0302500A7

SF48T-0352500A7

SF48T-0402500A7

2.4A

SF48T-0152400A7

SF48T-0202400A7

SF48T-0252400A7

SF48T-0302400A7

SF48T-0352400A7

SF48T-0402400A7

2.3A

SF48T-0152300A7

SF48T-0202300A7

SF48T-0252300A7

SF48T-0302300A7

SF48T-0352300A7

SF48T-0402300A7

2.2A

SF48T-0152200A7

SF48T-0202200A7

SF48T-0252200A7

SF48T-0302200A7

SF48T-0352200A7

SF48T-0402200A7

2.1A

SF48T-0152100A7

SF48T-0202100A7

SF48T-0252100A7

SF48T-0302100A7

SF48T-0352100A7

SF48T-0402100A7

2.0A

SF48T-0152000A7

SF48T-0202000A7

SF48T-0252000A7

SF48T-0302000A7

SF48T-0352000A7

SF48T-0402000A7

1.9A

SF48T-0151900A7

SF48T-0201900A7

SF48T-0251900A7

SF48T-0301900A7

SF48T-0351900A7

SF48T-0401900A7

1.8A











SF48T-0401800A7

1.7A











SF48T-0401700A7

 1.5-4V

4-7V

7.5-10V

10.5-13V

13.5-16V

16.5-19V

19.5-22V

22.5-25V

25.5-28V

00002
00002
00002
00002
00002
00002
00002
00002
00002

CORD IN/OUT

01-US-AC-IEC-EI48-P-C-IN
01-US-AC-IEC-EI48-DIM-C-IN
01-US-AC-IEC-EI48-P-C-IN2
02-US-AC-IEC-EI48-DIM-S

INPUT IEC SOCKET

side-bg11b
side-bg11
side-bg12
side-bg-crn1
page4s1
btn-blk
side-bg11
side-bg-crn
btn-co-j1
00002
