LINEAR ADAPTOR
WALLMOUNT

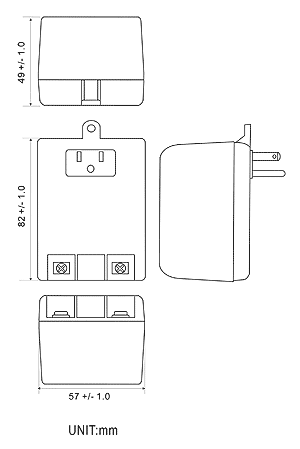

EI 48 AC TO AC ADAPTOR (US 3 PIN+SCREWED)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-5A |
|
|
|
Output Watt |
25VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
1.0A |
SF48-2501000AU-1W |
|
|
|
|
|
|
0.9A |
SF48-2500900AU-1W |
SF48-2550900AU-1W |
SF48-2600900AU-1W |
SF48-2650900AU-1W |
SF48-2700900AU-1W |
|
|
0.8A |
SF48-2500800AU-1W |
SF48-2550800AU-1W |
SF48-2600800AU-1W |
SF48-2650800AU-1W |
SF48-2700800AU-1W |
|
|
0.7A |
SF48-2500700AU-1W |
SF48-2550700AU-1W |
SF48-2600700AU-1W |
SF48-2650700AU-1W |
SF48-2700700AU-1W |
|
|
0.6A |
SF48-2500600AU-1W |
SF48-2550600AU-1W |
SF48-2600600AU-1W |
SF48-2650600AU-1W |
SF48-2700600AU-1W |
SF48-2800600AU-1W |
|
0.5A |
SF48-2500500AU-1W |
SF48-2550500AU-1W |
SF48-2600500AU-1W |
SF48-2650500AU-1W |
SF48-2700500AU-1W |
SF48-2800500AU-1W |
|
0.4A |
SF48-2500400AU-1W |
SF48-2550400AU-1W |
SF48-2600400AU-1W |
SF48-2650400AU-1W |
SF48-2700400AU-1W |
SF48-2800400AU-1W |
|
0.3A |
SF48-2500300AU-1W |
SF48-2550300AU-1W |
SF48-2600300AU-1W |
SF48-2650300AU-1W |
SF48-2700300AU-1W |
SF48-2800300AU-1W |
|
0.2A |
SF48-2500200AU-1W |
SF48-2550200AU-1W |
SF48-2600200AU-1W |
SF48-2650200AU-1W |
SF48-2700200AU-1W |
SF48-2800200AU-1W |
|
0.1A |
|
|
|
SF48-2650100AU-1W |
SF48-2700100AU-1W |
SF48-2800100AU-1W |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
1.1A |
SF48-2201100AU-1W |
|
|
|
|
|
|
1.0A |
SF48-2201000AU-1W |
SF48-2251000AU-1W |
SF48-2301000AU-1W |
SF48-2351000AU-1W |
SF48-2401000AU-1W |
SF48-2451000AU-1W |
|
0.9A |
SF48-2200900AU-1W |
SF48-2250900AU-1W |
SF48-2300900AU-1W |
SF48-2350900AU-1W |
SF48-2400900AU-1W |
SF48-2450900AU-1W |
|
0.8A |
SF48-2200800AU-1W |
SF48-2250800AU-1W |
SF48-2300800AU-1W |
SF48-2350800AU-1W |
SF48-2400800AU-1W |
SF48-2450800AU-1W |
|
0.7A |
SF48-2200700AU-1W |
SF48-2250700AU-1W |
SF48-2300700AU-1W |
SF48-2350700AU-1W |
SF48-2400700AU-1W |
SF48-2450700AU-1W |
|
0.6A |
SF48-2200600AU-1W |
SF48-2250600AU-1W |
SF48-2300600AU-1W |
SF48-2350600AU-1W |
SF48-2400600AU-1W |
SF48-2450600AU-1W |
|
0.5A |
SF48-2200500AU-1W |
SF48-2250500AU-1W |
SF48-2300500AU-1W |
SF48-2350500AU-1W |
SF48-2400500AU-1W |
SF48-2450500AU-1W |
|
0.4A |
SF48-2200400AU-1W |
SF48-2250400AU-1W |
SF48-2300400AU-1W |
SF48-2350400AU-1W |
SF48-2400400AU-1W |
SF48-2450400AU-1W |
|
0.3A |
SF48-2200300AU-1W |
SF48-2250300AU-1W |
SF48-2300300AU-1W |
SF48-2350300AU-1W |
SF48-2400300AU-1W |
SF48-2450300AU-1W |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.2A |
SF48-1901200AU-1W |
SF48-1951200AU-1W |
SF48-2001200AU-1W |
|
|
|
|
1.1A |
SF48-1901100AU-1W |
SF48-1951100AU-1W |
SF48-2001100AU-1W |
SF48-2051100AU-1W |
SF48-2101100AU-1W |
SF48-2151100AU-1W |
|
1.0A |
SF48-1901000AU-1W |
SF48-1951000AU-1W |
SF48-2001000AU-1W |
SF48-2051000AU-1W |
SF48-2101000AU-1W |
SF48-2151000AU-1W |
|
0.9A |
SF48-1900900AU-1W |
SF48-1950900AU-1W |
SF48-2000900AU-1W |
SF48-2050900AU-1W |
SF48-2100900AU-1W |
SF48-2150900AU-1W |
|
0.8A |
SF48-1900800AU-1W |
SF48-1950800AU-1W |
SF48-2000800AU-1W |
SF48-2050800AU-1W |
SF48-2100800AU-1W |
SF48-2150800AU-1W |
|
0.7A |
SF48-1900700AU-1W |
SF48-1950700AU-1W |
SF48-2000700AU-1W |
SF48-2050700AU-1W |
SF48-2100700AU-1W |
SF48-2150700AU-1W |
|
0.6A |
SF48-1900600AU-1W |
SF48-1950600AU-1W |
SF48-2000600AU-1W |
SF48-2050600AU-1W |
SF48-2100600AU-1W |
SF48-2150600AU-1W |
|
0.5A |
SF48-1900500AU-1W |
SF48-1950500AU-1W |
SF48-2000500AU-1W |
SF48-2050500AU-1W |
SF48-2100500AU-1W |
SF48-2150500AU-1W |
|
0.4A |
|
|
|
SF48-2050400AU-1W |
SF48-2100400AU-1W |
SF48-2150400AU-1W |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.5A |
SF48-1601500AU-1W |
|
|
|
|
|
|
1.4A |
SF48-1601400AU-1W |
SF48-1651400AU-1W |
SF48-1701400AU-1W |
|
|
|
|
1.3A |
SF48-1601300AU-1W |
SF48-1651300AU-1W |
SF48-1701300AU-1W |
SF48-1751300AU-1W |
SF48-1801300AU-1W |
|
|
1.2A |
SF48-1601200AU-1W |
SF48-1651200AU-1W |
SF48-1701200AU-1W |
SF48-1751200AU-1W |
SF48-1801200AU-1W |
SF48-1851200AU-1W |
|
1.1A |
SF48-1601100AU-1W |
SF48-1651100AU-1W |
SF48-1701100AU-1W |
SF48-1751100AU-1W |
SF48-1801100AU-1W |
SF48-1851100AU-1W |
|
1.0A |
SF48-1601000AU-1W |
SF48-1651000AU-1W |
SF48-1701000AU-1W |
SF48-1751000AU-1W |
SF48-1801000AU-1W |
SF48-1851000AU-1W |
|
0.9A |
SF48-1600900AU-1W |
SF48-1650900AU-1W |
SF48-1700900AU-1W |
SF48-1750900AU-1W |
SF48-1800900AU-1W |
SF48-1850900AU-1W |
|
0.8A |
SF48-1600800AU-1W |
SF48-1650800AU-1W |
SF48-1700800AU-1W |
SF48-1750800AU-1W |
SF48-1800800AU-1W |
SF48-1850800AU-1W |
|
0.7A |
SF48-1600700AU-1W |
SF48-1650700AU-1W |
SF48-1700700AU-1W |
SF48-1750700AU-1W |
SF48-1800700AU-1W |
SF48-1850700AU-1W |
|
0.6A |
SF48-1600600AU-1W |
SF48-1650600AU-1W |
SF48-1700600AU-1W |
SF48-1750600AU-1W |
SF48-1800600AU-1W |
SF48-1850600AU-1W |
|
0.5A |
|
|
|
SF48-1750600AU-1W |
SF48-1800600AU-1W |
SF48-1850600AU-1W |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.8A |
SF48-1301800AU-1W |
SF48-1351800AU-1W |
|
|
|
|
|
1.7A |
SF48-1301700AU-1W |
SF48-1351700AU-1W |
SF48-1401700AU-1W |
|
|
|
|
1.6A |
SF48-1301600AU-1W |
SF48-1351600AU-1W |
SF48-1401600AU-1W |
SF48-1451600AU-1W |
SF48-1501600AU-1W |
|
|
1.5A |
SF48-1301500AU-1W |
SF48-1351500AU-1W |
SF48-1401500AU-1W |
SF48-1451500AU-1W |
SF48-1501500AU-1W |
SF48-1551500AU-1W |
|
1.4A |
SF48-1301400AU-1W |
SF48-1351400AU-1W |
SF48-1401400AU-1W |
SF48-1451400AU-1W |
SF48-1501400AU-1W |
SF48-1551400AU-1W |
|
1.3A |
SF48-1301300AU-1W |
SF48-1351300AU-1W |
SF48-1401300AU-1W |
SF48-1451300AU-1W |
SF48-1501300AU-1W |
SF48-1551300AU-1W |
|
1.2A |
SF48-1301200AU-1W |
SF48-1351200AU-1W |
SF48-1401200AU-1W |
SF48-1451200AU-1W |
SF48-1501200AU-1W |
SF48-1551200AU-1W |
|
1.1A |
SF48-1301100AU-1W |
SF48-1351100AU-1W |
SF48-1401100AU-1W |
SF48-1451100AU-1W |
SF48-1501100AU-1W |
SF48-1551100AU-1W |
|
1.0A |
SF48-1301000AU-1W |
SF48-1351000AU-1W |
SF48-1401000AU-1W |
SF48-1451000AU-1W |
SF48-1501000AU-1W |
SF48-1551000AU-1W |
|
0.9A |
SF48-1300900AU-1W |
SF48-1350900AU-1W |
SF48-1400900AU-1W |
SF48-1450900AU-1W |
SF48-1500900AU-1W |
SF48-1550900AU-1W |
|
0.8A |
SF48-1300800AU-1W |
SF48-1350800AU-1W |
SF48-1400800AU-1W |
SF48-1450800AU-1W |
SF48-1500800AU-1W |
SF48-1550800AU-1W |
|
0.7A |
SF48-1300700AU-1W |
SF48-1350700AU-1W |
SF48-1400700AU-1W |
SF48-1450700AU-1W |
SF48-1500700AU-1W |
SF48-1550700AU-1W |
|
0.6A |
|
|
SF48-1400600AU-1W |
SF48-1450600AU-1W |
SF48-1500600AU-1W |
SF48-1550600AU-1W |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.4A |
SF48-1002400AU-1W |
|
|
|
|
|
|
2.3A |
SF48-1002300AU-1W |
|
|
|
|
|
|
2.2A |
SF48-1002200AU-1W |
SF48-1052200AU-1W |
|
|
|
|
|
2.1A |
SF48-1002100AU-1W |
SF48-1052100AU-1W |
SF48-1102100AU-1W |
SF48-1152100AU-1W |
|
|
|
2.0A |
SF48-1002000AU-1W |
SF48-1052000AU-1W |
SF48-1102000AU-1W |
SF48-1152000AU-1W |
SF48-1202000AU-1W |
|
|
1.9A |
SF48-1001900AU-1W |
SF48-1051900AU-1W |
SF48-1101900AU-1W |
SF48-1151900AU-1W |
SF48-1201900AU-1W |
SF48-1251900AU-1W |
|
1.8A |
SF48-1001800AU-1W |
SF48-1051800AU-1W |
SF48-1101800AU-1W |
SF48-1151800AU-1W |
SF48-1201800AU-1W |
SF48-1251800AU-1W |
|
1.7A |
SF48-1001700AU-1W |
SF48-1051700AU-1W |
SF48-1101700AU-1W |
SF48-1151700AU-1W |
SF48-1201700AU-1W |
SF48-1251700AU-1W |
|
1.6A |
SF48-1001600AU-1W |
SF48-1051600AU-1W |
SF48-1101600AU-1W |
SF48-1151600AU-1W |
SF48-1201600AU-1W |
SF48-1251600AU-1W |
|
1.5A |
SF48-1001500AU-1W |
SF48-1051500AU-1W |
SF48-1101500AU-1W |
SF48-1151500AU-1W |
SF48-1201500AU-1W |
SF48-1251500AU-1W |
|
1.4A |
SF48-1001400AU-1W |
SF48-1051400AU-1W |
SF48-1101400AU-1W |
SF48-1151400AU-1W |
SF48-1201400AU-1W |
SF48-1251400AU-1W |
|
1.3A |
SF48-1001300AU-1W |
SF48-1051300AU-1W |
SF48-1101300AU-1W |
SF48-1151300AU-1W |
SF48-1201300AU-1W |
SF48-1251300AU-1W |
|
1.2A |
SF48-1001200AU-1W |
SF48-1051200AU-1W |
SF48-1101200AU-1W |
SF48-1151200AU-1W |
SF48-1201200AU-1W |
SF48-1251200AU-1W |
|
1.1A |
SF48-1001100AU-1W |
SF48-1051100AU-1W |
SF48-1101100AU-1W |
SF48-1151100AU-1W |
SF48-1201100AU-1W |
SF48-1251100AU-1W |
|
1.0A |
SF48-1001000AU-1W |
SF48-1051000AU-1W |
SF48-1101000AU-1W |
SF48-1151000AU-1W |
SF48-1201000AU-1W |
SF48-1251000AU-1W |
|
0.9A |
SF48-1000900AU-1W |
SF48-1050900AU-1W |
SF48-1100900AU-1W |
SF48-1150900AU-1W |
SF48-1200900AU-1W |
SF48-1250900AU-1W |
|
0.8A |
SF48-1000800AU-1W |
SF48-1050800AU-1W |
SF48-1100800AU-1W |
SF48-1150800AU-1W |
SF48-1200800AU-1W |
SF48-1250800AU-1W |
|
0.7A |
|
|
SF48-1100700AU-1W |
SF48-1150700AU-1W |
SF48-1200700AU-1W |
SF48-1250700AU-1W |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
3.2A |
SF48-0703200AU-1W |
|
|
|
|
|
|
3.1A |
SF48-0703100AU-1W |
|
|
|
|
|
|
3.0A |
SF48-0703000AU-1W |
SF48-0753000AU-1W |
|
|
|
|
|
2.9A |
SF48-0702900AU-1W |
SF48-0752900AU-1W |
SF48-0802900AU-1W |
|
|
|
|
2.8A |
SF48-0702800AU-1W |
SF48-0752800AU-1W |
SF48-0802800AU-1W |
SF48-0852800AU-1W |
|
|
|
2.7A |
SF48-0702700AU-1W |
SF48-0752700AU-1W |
SF48-0802700AU-1W |
SF48-0852700AU-1W |
|
|
|
2.6A |
SF48-0702600AU-1W |
SF48-0752600AU-1W |
SF48-0802600AU-1W |
SF48-0852600AU-1W |
SF48-0902600AU-1W |
|
|
2.5A |
SF48-0702500AU-1W |
SF48-0752500AU-1W |
SF48-0802500AU-1W |
SF48-0852500AU-1W |
SF48-0902500AU-1W |
SF48-0952500AU-1W |
|
2.4A |
SF48-0702400AU-1W |
SF48-0752400AU-1W |
SF48-0802400AU-1W |
SF48-0852400AU-1W |
SF48-0902400AU-1W |
SF48-0952400AU-1W |
|
2.3A |
SF48-0702300AU-1W |
SF48-0752300AU-1W |
SF48-0802300AU-1W |
SF48-0852300AU-1W |
SF48-0902300AU-1W |
SF48-0952300AU-1W |
|
2.2A |
SF48-0702200AU-1W |
SF48-0752200AU-1W |
SF48-0802200AU-1W |
SF48-0852200AU-1W |
SF48-0902200AU-1W |
SF48-0952200AU-1W |
|
2.1A |
SF48-0702100AU-1W |
SF48-0752100AU-1W |
SF48-0802100AU-1W |
SF48-0852100AU-1W |
SF48-0902100AU-1W |
SF48-0952100AU-1W |
|
2.0A |
SF48-0702000AU-1W |
SF48-0752000AU-1W |
SF48-0802000AU-1W |
SF48-0852000AU-1W |
SF48-0902000AU-1W |
SF48-0952000AU-1W |
|
1.9A |
SF48-0701900AU-1W |
SF48-0751900AU-1W |
SF48-0801900AU-1W |
SF48-0851900AU-1W |
SF48-0901900AU-1W |
SF48-0951900AU-1W |
|
1.8A |
SF48-0701800AU-1W |
SF48-0751800AU-1W |
SF48-0801800AU-1W |
SF48-0851800AU-1W |
SF48-0901800AU-1W |
SF48-0951800AU-1W |
|
1.7A |
SF48-0701700AU-1W |
SF48-0751700AU-1W |
SF48-0801700AU-1W |
SF48-0851700AU-1W |
SF48-0901700AU-1W |
SF48-0951700AU-1W |
|
1.6A |
SF48-0701600AU-1W |
SF48-0751600AU-1W |
SF48-0801600AU-1W |
SF48-0851600AU-1W |
SF48-0901600AU-1W |
SF48-0951600AU-1W |
|
1.5A |
SF48-0701500AU-1W |
SF48-0751500AU-1W |
SF48-0801500AU-1W |
SF48-0851500AU-1W |
SF48-0901500AU-1W |
SF48-0951500AU-1W |
|
1.4A |
SF48-0701400AU-1W |
SF48-0751400AU-1W |
SF48-0801400AU-1W |
SF48-0851400AU-1W |
SF48-0901400AU-1W |
SF48-0951400AU-1W |
|
1.3A |
SF48-0701300AU-1W |
SF48-0751300AU-1W |
SF48-0801300AU-1W |
SF48-0851300AU-1W |
SF48-0901300AU-1W |
SF48-0951300AU-1W |
|
1.2A |
SF48-0701200AU-1W |
SF48-0751200AU-1W |
SF48-0801200AU-1W |
SF48-0851200AU-1W |
SF48-0901200AU-1W |
SF48-0951200AU-1W |
|
1.1A |
|
SF48-0751100AU-1W |
SF48-0801100AU-1W |
SF48-0851100AU-1W |
SF48-0901100AU-1W |
SF48-0951100AU-1W |
|
1.0A |
|
|
|
|
|
SF48-0951000AU-1W |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
4.3A |
SF48-0404300AU-1W |
|
|
|
|
|
|
4.2A |
SF48-0404200AU-1W |
SF48-0454200AU-1W |
|
|
|
|
|
4.1A |
SF48-0404100AU-1W |
SF48-0454100AU-1W |
SF48-0504100AU-1W |
|
|
|
|
4.0A |
SF48-0404000AU-1W |
SF48-0454000AU-1W |
SF48-0504000AU-1W |
SF48-0554000AU-1W |
|
|
|
3.5A |
SF48-0403500AU-1W |
SF48-0453500AU-1W |
SF48-0503500AU-1W |
SF48-0553500AU-1W |
SF48-0603500AU-1W |
|
|
3.4A |
SF48-0403400AU-1W |
SF48-0453400AU-1W |
SF48-0503400AU-1W |
SF48-0553400AU-1W |
SF48-0603400AU-1W |
SF48-0653400AU-1W |
|
3.3A |
SF48-0403300AU-1W |
SF48-0453300AU-1W |
SF48-0503300AU-1W |
SF48-0553300AU-1W |
SF48-0603300AU-1W |
SF48-0653300AU-1W |
|
3.2A |
SF48-0403200AU-1W |
SF48-0453200AU-1W |
SF48-0503200AU-1W |
SF48-0553200AU-1W |
SF48-0603200AU-1W |
SF48-0653200AU-1W |
|
3.1A |
SF48-0403100AU-1W |
SF48-0453100AU-1W |
SF48-0503100AU-1W |
SF48-0553100AU-1W |
SF48-0603100AU-1W |
SF48-0653100AU-1W |
|
3.0A |
SF48-0403000AU-1W |
SF48-0453000AU-1W |
SF48-0503000AU-1W |
SF48-0553000AU-1W |
SF48-0603000AU-1W |
SF48-0653000AU-1W |
|
2.9A |
SF48-0402900AU-1W |
SF48-0452900AU-1W |
SF48-0502900AU-1W |
SF48-0552900AU-1W |
SF48-0602900AU-1W |
SF48-0652900AU-1W |
|
2.8A |
SF48-0402800AU-1W |
SF48-0452800AU-1W |
SF48-0502800AU-1W |
SF48-0552800AU-1W |
SF48-0602800AU-1W |
SF48-0652800AU-1W |
|
2.7A |
SF48-0402700AU-1W |
SF48-0452700AU-1W |
SF48-0502700AU-1W |
SF48-0552700AU-1W |
SF48-0602700AU-1W |
SF48-0652700AU-1W |
|
2.6A |
SF48-0402600AU-1W |
SF48-0452600AU-1W |
SF48-0502600AU-1W |
SF48-0552600AU-1W |
SF48-0602600AU-1W |
SF48-0652600AU-1W |
|
2.5A |
SF48-0402500AU-1W |
SF48-0452500AU-1W |
SF48-0502500AU-1W |
SF48-0552500AU-1W |
SF48-0602500AU-1W |
SF48-0652500AU-1W |
|
2.4A |
SF48-0402400AU-1W |
SF48-0452400AU-1W |
SF48-0502400AU-1W |
SF48-0552400AU-1W |
SF48-0602400AU-1W |
SF48-0652400AU-1W |
|
2.3A |
SF48-0402300AU-1W |
SF48-0452300AU-1W |
SF48-0502300AU-1W |
SF48-0552300AU-1W |
SF48-0602300AU-1W |
SF48-0652300AU-1W |
|
2.2A |
SF48-0402200AU-1W |
SF48-0452200AU-1W |
SF48-0502200AU-1W |
SF48-0552200AU-1W |
SF48-0602200AU-1W |
SF48-0652200AU-1W |
|
2.1A |
SF48-0402100AU-1W |
SF48-0452100AU-1W |
SF48-0502100AU-1W |
SF48-0552100AU-1W |
SF48-0602100AU-1W |
SF48-0652100AU-1W |
|
2.0A |
SF48-0402000AU-1W |
SF48-0452000AU-1W |
SF48-0502000AU-1W |
SF48-0552000AU-1W |
SF48-0602000AU-1W |
SF48-0652000AU-1W |
|
1.9A |
SF48-0401900AU-1W |
SF48-0451900AU-1W |
SF48-0501900AU-1W |
SF48-0551900AU-1W |
SF48-0601900AU-1W |
SF48-0651900AU-1W |
|
1.8A |
SF48-0401800AU-1W |
SF48-0451800AU-1W |
SF48-0501800AU-1W |
SF48-0551800AU-1W |
SF48-0601800AU-1W |
SF48-0651800AU-1W |
|
1.7A |
SF48-0401700AU-1W |
SF48-0451700AU-1W |
SF48-0501700AU-1W |
SF48-0551700AU-1W |
SF48-0601700AU-1W |
SF48-0651700AU-1W |
|
1.6A |
|
|
SF48-0501600AU-1W |
SF48-0551600AU-1W |
SF48-0601600AU-1W |
SF48-0651600AU-1W |
|
1.5A |
|
|
|
|
SF48-0601500AU-1W |
SF48-0651500AU-1W |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
5.0A |
SF48-0105000AU-1W |
SF48-0155000AU-1W |
SF48-0205000AU-1W |
SF48-0255000AU-1W |
SF48-0305000AU-1W |
|
|
4.5A |
SF48-0104500AU-1W |
SF48-0154500AU-1W |
SF48-0204500AU-1W |
SF48-0254500AU-1W |
SF48-0304500AU-1W |
SF48-0354500AU-1W |
|
4.0A |
SF48-0104000AU-1W |
SF48-0154000AU-1W |
SF48-0204000AU-1W |
SF48-0254000AU-1W |
SF48-0304000AU-1W |
SF48-0354000AU-1W |
|
3.5A |
SF48-0103500AU-1W |
SF48-0153500AU-1W |
SF48-0203500AU-1W |
SF48-0253500AU-1W |
SF48-0303500AU-1W |
SF48-0353500AU-1W |
|
3.4A |
SF48-0103400AU-1W |
SF48-0153400AU-1W |
SF48-0203400AU-1W |
SF48-0253400AU-1W |
SF48-0303400AU-1W |
SF48-0353400AU-1W |
|
3.3A |
SF48-0103300AU-1W |
SF48-0153300AU-1W |
SF48-0203300AU-1W |
SF48-0253300AU-1W |
SF48-0303300AU-1W |
SF48-0353300AU-1W |
|
3.2A |
SF48-0103200AU-1W |
SF48-0153200AU-1W |
SF48-0203200AU-1W |
SF48-0253200AU-1W |
SF48-0303200AU-1W |
SF48-0353200AU-1W |
|
3.1A |
SF48-0103100AU-1W |
SF48-0153100AU-1W |
SF48-0203100AU-1W |
SF48-0253100AU-1W |
SF48-0303100AU-1W |
SF48-0353100AU-1W |
|
3.0A |
SF48-0103000AU-1W |
SF48-0153000AU-1W |
SF48-0203000AU-1W |
SF48-0253000AU-1W |
SF48-0303000AU-1W |
SF48-0353000AU-1W |
|
2.9A |
SF48-0102900AU-1W |
SF48-0152900AU-1W |
SF48-0202900AU-1W |
SF48-0252900AU-1W |
SF48-0302900AU-1W |
SF48-0352900AU-1W |
|
2.8A |
SF48-0102800AU-1W |
SF48-0152800AU-1W |
SF48-0202800AU-1W |
SF48-0252800AU-1W |
SF48-0302800AU-1W |
SF48-0352800AU-1W |
|
2.7A |
SF48-0102700AU-1W |
SF48-0152700AU-1W |
SF48-0202700AU-1W |
SF48-0252700AU-1W |
SF48-0302700AU-1W |
SF48-0352700AU-1W |
|
2.6A |
SF48-0102600AU-1W |
SF48-0152600AU-1W |
SF48-0202600AU-1W |
SF48-0252600AU-1W |
SF48-0302600AU-1W |
SF48-0352600AU-1W |
|
2.5A |
SF48-0102500AU-1W |
SF48-0152500AU-1W |
SF48-0202500AU-1W |
SF48-0252500AU-1W |
SF48-0302500AU-1W |
SF48-0352500AU-1W |
|
2.4A |
SF48-0102400AU-1W |
SF48-0152400AU-1W |
SF48-0202400AU-1W |
SF48-0252400AU-1W |
SF48-0302400AU-1W |
SF48-0352400AU-1W |
|
2.3A |
SF48-0102300AU-1W |
SF48-0152300AU-1W |
SF48-0202300AU-1W |
SF48-0252300AU-1W |
SF48-0302300AU-1W |
SF48-0352300AU-1W |
|
2.2A |
SF48-0102200AU-1W |
SF48-0152200AU-1W |
SF48-0202200AU-1W |
SF48-0252200AU-1W |
SF48-0302200AU-1W |
SF48-0352200AU-1W |
|
2.1A |
SF48-0102100AU-1W |
SF48-0152100AU-1W |
SF48-0202100AU-1W |
SF48-0252100AU-1W |
SF48-0302100AU-1W |
SF48-0352100AU-1W |
|
2.0A |
SF48-0102000AU-1W |
SF48-0152000AU-1W |
SF48-0202000AU-1W |
SF48-0252000AU-1W |
SF48-0302000AU-1W |
SF48-0352000AU-1W |
|
1.9A |
SF48-0101900AU-1W |
SF48-0151900AU-1W |
SF48-0201900AU-1W |
SF48-0251900AU-1W |
SF48-0301900AU-1W |
SF48-0351900AU-1W |
 |
 |
 |
 |
 |
 |
