LINEAR ADAPTOR
DESKTOP

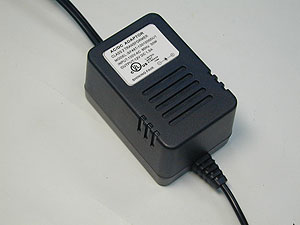

EI 48 AC TO DC ADAPTOR (US 3 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
21.6VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48T-2500800DU1 |
SF48T-2550800DU1 |
|
|
|
|
|
0.7A |
SF48T-2500700DU1 |
SF48T-2550700DU1 |
SF48T-2600700DU1 |
SF48T-2650700DU1 |
SF48T-2700700DU1 |
SF48T-2800700DU1 |
|
0.6A |
SF48T-2500600DU1 |
SF48T-2550600DU1 |
SF48T-2600600DU1 |
SF48T-2650600DU1 |
SF48T-2700600DU1 |
SF48T-2800600DU1 |
|
0.5A |
SF48T-2500500DU1 |
SF48T-2550500DU1 |
SF48T-2600500DU1 |
SF48T-2650500DU1 |
SF48T-2700500DU1 |
SF48T-2800500DU1 |
|
0.4A |
SF48T-2500400DU1 |
SF48T-2550400DU1 |
SF48T-2600400DU1 |
SF48T-2650400DU1 |
SF48T-2700400DU1 |
SF48T-2800400DU1 |
|
0.3A |
SF48T-2500300DU1 |
SF48T-2550300DU1 |
SF48T-2600300DU1 |
SF48T-2650300DU1 |
SF48T-2700300DU1 |
SF48T-2800300DU1 |
|
0.2A |
SF48T-2500200DU1 |
SF48T-2550200DU1 |
SF48T-2600200DU1 |
SF48T-2650200DU1 |
SF48T-2700200DU1 |
SF48T-2800200DU1 |
|
0.1A |
|
|
SF48T-2600100DU1 |
SF48T-2650100DU1 |
SF48T-2700100DU1 |
SF48T-2800100DU1 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48T-2200900DU1 |
SF48T-2250900DU1 |
SF48T-2300900DU1 |
SF48T-2350900DU1 |
SF48T-2400900DU1 |
|
|
0.8A |
SF48T-2200800DU1 |
SF48T-2250800DU1 |
SF48T-2300800DU1 |
SF48T-2350800DU1 |
SF48T-2400800DU1 |
SF48T-2450800DU1 |
|
0.7A |
SF48T-2200700DU1 |
SF48T-2250700DU1 |
SF48T-2300700DU1 |
SF48T-2350700DU1 |
SF48T-2400700DU1 |
SF48T-2450700DU1 |
|
0.6A |
SF48T-2200600DU1 |
SF48T-2250600DU1 |
SF48T-2300600DU1 |
SF48T-2350600DU1 |
SF48T-2400600DU1 |
SF48T-2450600DU1 |
|
0.5A |
SF48T-2200500DU1 |
SF48T-2250500DU1 |
SF48T-2300500DU1 |
SF48T-2350500DU1 |
SF48T-2400500DU1 |
SF48T-2450500DU1 |
|
0.4A |
SF48T-2200400DU1 |
SF48T-2250400DU1 |
SF48T-2300400DU1 |
SF48T-2350400DU1 |
SF48T-2400400DU1 |
SF48T-2450400DU1 |
|
0.3A |
SF48T-2200300DU1 |
SF48T-2250300DU1 |
SF48T-2300300DU1 |
SF48T-2350300DU1 |
SF48T-2400300DU1 |
SF48T-2450300DU1 |
|
0.2A |
SF48T-2200200DU1 |
SF48T-2250200DU1 |
SF48T-2300200DU1 |
SF48T-2350200DU1 |
SF48T-2400200DU1 |
SF48T-2450200DU1 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48T-1901100DU1 |
SF48T-1951100DU1 |
|
|
|
|
|
1.0A |
SF48T-1901000DU1 |
SF48T-1951000DU1 |
SF48T-2001000DU1 |
SF48T-2051000DU1 |
SF48T-2101000DU1 |
|
|
0.9A |
SF48T-1900900DU1 |
SF48T-1950900DU1 |
SF48T-2000900DU1 |
SF48T-2050900DU1 |
SF48T-2100900DU1 |
SF48T-2150900DU1 |
|
0.8A |
SF48T-1900800DU1 |
SF48T-1950800DU1 |
SF48T-2000800DU1 |
SF48T-2050800DU1 |
SF48T-2100800DU1 |
SF48T-2150800DU1 |
|
0.7A |
SF48T-1900700DU1 |
SF48T-1950700DU1 |
SF48T-2000700DU1 |
SF48T-2050700DU1 |
SF48T-2100700DU1 |
SF48T-2150700DU1 |
|
0.6A |
SF48T-1900600DU1 |
SF48T-1950600DU1 |
SF48T-2000600DU1 |
SF48T-2050600DU1 |
SF48T-2100600DU1 |
SF48T-2150600DU1 |
|
0.5A |
SF48T-1900500DU1 |
SF48T-1950500DU1 |
SF48T-2000500DU1 |
SF48T-2050500DU1 |
SF48T-2100500DU1 |
SF48T-2150500DU1 |
|
0.4A |
SF48T-1900400DU1 |
SF48T-1950400DU1 |
SF48T-2000400DU1 |
SF48T-2050400DU1 |
SF48T-2100400DU1 |
SF48T-2150400DU1 |
|
0.3A |
SF48T-1900300DU1 |
SF48T-1950300DU1 |
SF48T-2000300DU1 |
SF48T-2050300DU1 |
SF48T-2100300DU1 |
SF48T-2150300DU1 |
|
0.2A |
|
|
SF48T-2000200DU1 |
SF48T-2050200DU1 |
SF48T-2100200DU1 |
SF48T-2150200DU1 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48T-1601200DU1 |
SF48T-1651200DU1 |
SF48T-1701200DU1 |
SF48T-1751200DU1 |
SF48T-1801200DU1 |
|
|
1.1A |
SF48T-1601100DU1 |
SF48T-1651100DU1 |
SF48T-1701100DU1 |
SF48T-1751100DU1 |
SF48T-1801100DU1 |
SF48T-1851100DU1 |
|
1.0A |
SF48T-1601000DU1 |
SF48T-1651000DU1 |
SF48T-1701000DU1 |
SF48T-1751000DU1 |
SF48T-1801000DU1 |
SF48T-1851000DU1 |
|
0.9A |
SF48T-1600900DU1 |
SF48T-1650900DU1 |
SF48T-1700900DU1 |
SF48T-1750900DU1 |
SF48T-1800900DU1 |
SF48T-1850900DU1 |
|
0.8A |
SF48T-1600800DU1 |
SF48T-1650800DU1 |
SF48T-1700800DU1 |
SF48T-1750800DU1 |
SF48T-1800800DU1 |
SF48T-1850800DU1 |
|
0.7A |
SF48T-1600700DU1 |
SF48T-1650700DU1 |
SF48T-1700700DU1 |
SF48T-1750700DU1 |
SF48T-1800700DU1 |
SF48T-1850700DU1 |
|
0.6A |
SF48T-1600600DU1 |
SF48T-1650600DU1 |
SF48T-1700600DU1 |
SF48T-1750600DU1 |
SF48T-1800600DU1 |
SF48T-1850600DU1 |
|
0.5A |
SF48T-1600500DU1 |
SF48T-1650500DU1 |
SF48T-1700500DU1 |
SF48T-1750500DU1 |
SF48T-1800500DU1 |
SF48T-1850500DU1 |
|
0.4A |
SF48T-1600400DU1 |
SF48T-1650400DU1 |
SF48T-1700400DU1 |
SF48T-1750400DU1 |
SF48T-1800400DU1 |
SF48T-1850400DU1 |
|
0.3A |
|
|
|
SF48T-1750300DU1 |
SF48T-1800300DU1 |
SF48T-1850300DU1 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48T-1301400DU1 |
SF48T-1351400DU1 |
|
|
|
|
|
1.3A |
SF48T-1301300DU1 |
SF48T-1351300DU1 |
SF48T-1401300DU1 |
SF48T-1451300DU1 |
SF48T-1501300DU1 |
|
|
1.2A |
SF48T-1301200DU1 |
SF48T-1351200DU1 |
SF48T-1401200DU1 |
SF48T-1451200DU1 |
SF48T-1501200DU1 |
SF48T-1551200DU1 |
|
1.1A |
SF48T-1301100DU1 |
SF48T-1351100DU1 |
SF48T-1401100DU1 |
SF48T-1451100DU1 |
SF48T-1501100DU1 |
SF48T-1551100DU1 |
|
1.0A |
SF48T-1301000DU1 |
SF48T-1351000DU1 |
SF48T-1401000DU1 |
SF48T-1451000DU1 |
SF48T-1501000DU1 |
SF48T-1551000DU1 |
|
0.9A |
SF48T-1300900DU1 |
SF48T-1350900DU1 |
SF48T-1400900DU1 |
SF48T-1450900DU1 |
SF48T-1500900DU1 |
SF48T-1550900DU1 |
|
0.8A |
SF48T-1300800DU1 |
SF48T-1350800DU1 |
SF48T-1400800DU1 |
SF48T-1450800DU1 |
SF48T-1500800DU1 |
SF48T-1550800DU1 |
|
0.7A |
SF48T-1300700DU1 |
SF48T-1350700DU1 |
SF48T-1400700DU1 |
SF48T-1450700DU1 |
SF48T-1500700DU1 |
SF48T-1550700DU1 |
|
0.6A |
|
|
SF48T-1400600DU1 |
SF48T-1450600DU1 |
SF48T-1500600DU1 |
SF48T-1550600DU1 |
|
0.5A |
|
|
|
|
SF48T-1500500DU1 |
SF48T-1550500DU1 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48T-1001900DU1 |
|
|
|
|
|
|
1.8A |
SF48T-1001800DU1 |
SF48T-1051800DU1 |
|
|
|
|
|
1.7A |
SF48T-1001700DU1 |
SF48T-1051700DU1 |
SF48T-1101700DU1 |
|
|
|
|
1.6A |
SF48T-1001600DU1 |
SF48T-1051600DU1 |
SF48T-1101600DU1 |
SF48T-1151600DU1 |
|
|
|
1.5A |
SF48T-1001500DU1 |
SF48T-1051500DU1 |
SF48T-1101500DU1 |
SF48T-1151500DU1 |
SF48T-1201500DU1 |
|
|
1.4A |
SF48T-1001400DU1 |
SF48T-1051400DU1 |
SF48T-1101400DU1 |
SF48T-1151400DU1 |
SF48T-1201400DU1 |
SF48T-1251400DU1 |
|
1.3A |
SF48T-1001300DU1 |
SF48T-1051300DU1 |
SF48T-1101300DU1 |
SF48T-1151300DU1 |
SF48T-1201300DU1 |
SF48T-1251300DU1 |
|
1.2A |
SF48T-1001200DU1 |
SF48T-1051200DU1 |
SF48T-1101200DU1 |
SF48T-1151200DU1 |
SF48T-1201200DU1 |
SF48T-1251200DU1 |
|
1.1A |
SF48T-1001100DU1 |
SF48T-1051100DU1 |
SF48T-1101100DU1 |
SF48T-1151100DU1 |
SF48T-1201100DU1 |
SF48T-1251100DU1 |
|
1.0A |
SF48T-1001000DU1 |
SF48T-1051000DU1 |
SF48T-1101000DU1 |
SF48T-1151000DU1 |
SF48T-1201000DU1 |
SF48T-1251000DU1 |
|
0.9A |
SF48T-1000900DU1 |
SF48T-1050900DU1 |
SF48T-1100900DU1 |
SF48T-1150900DU1 |
SF48T-1200900DU1 |
SF48T-1250900DU1 |
|
0.8A |
SF48T-1000800DU1 |
SF48T-1050800DU1 |
SF48T-1100800DU1 |
SF48T-1150800DU1 |
SF48T-1200800DU1 |
SF48T-1250800DU1 |
|
0.7A |
|
|
SF48T-1100700DU1 |
SF48T-1150700DU1 |
SF48T-1200700DU1 |
SF48T-1250700DU1 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48T-0702400DU1 |
|
|
|
|
|
|
2.3A |
SF48T-0702300DU1 |
SF48T-0752300DU1 |
|
|
|
|
|
2.2A |
SF48T-0702200DU1 |
SF48T-0752200DU1 |
SF48T-0802200DU1 |
|
|
|
|
2.1A |
SF48T-0702100DU1 |
SF48T-0752100DU1 |
SF48T-0802100DU1 |
SF48T-0852100DU1 |
|
|
|
2.0A |
SF48T-0702000DU1 |
SF48T-0752000DU1 |
SF48T-0802000DU1 |
SF48T-0852000DU1 |
SF48T-0902000DU1 |
|
|
1.9A |
SF48T-0701900DU1 |
SF48T-0751900DU1 |
SF48T-0801900DU1 |
SF48T-0851900DU1 |
SF48T-0901900DU1 |
SF48T-0951900DU1 |
|
1.8A |
SF48T-0701800DU1 |
SF48T-0751800DU1 |
SF48T-0801800DU1 |
SF48T-0851800DU1 |
SF48T-0901800DU1 |
SF48T-0951800DU1 |
|
1.7A |
SF48T-0701700DU1 |
SF48T-0751700DU1 |
SF48T-0801700DU1 |
SF48T-0851700DU1 |
SF48T-0901700DU1 |
SF48T-0951700DU1 |
|
1.6A |
SF48T-0701600DU1 |
SF48T-0751600DU1 |
SF48T-0801600DU1 |
SF48T-0851600DU1 |
SF48T-0901600DU1 |
SF48T-0951600DU1 |
|
1.5A |
SF48T-0701500DU1 |
SF48T-0751500DU1 |
SF48T-0801500DU1 |
SF48T-0851500DU1 |
SF48T-0901500DU1 |
SF48T-0951500DU1 |
|
1.4A |
SF48T-0701400DU1 |
SF48T-0751400DU1 |
SF48T-0801400DU1 |
SF48T-0851400DU1 |
SF48T-0901400DU1 |
SF48T-0951400DU1 |
|
1.3A |
SF48T-0701300DU1 |
SF48T-0751300DU1 |
SF48T-0801300DU1 |
SF48T-0851300DU1 |
SF48T-0901300DU1 |
SF48T-0951300DU1 |
|
1.2A |
SF48T-0701200DU1 |
SF48T-0751200DU1 |
SF48T-0801200DU1 |
SF48T-0851200DU1 |
SF48T-0901200DU1 |
SF48T-0951200DU1 |
|
1.1A |
|
|
SF48T-0801100DU1 |
SF48T-0851100DU1 |
SF48T-0901100DU1 |
SF48T-0951100DU1 |
|
1.0A |
|
|
|
|
SF48T-0901000DU1 |
SF48T-0951000DU1 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48T-0402800DU1 |
|
|
|
|
|
|
2.7A |
SF48T-0402700DU1 |
SF48T-0452700DU1 |
SF48T-0502700DU1 |
|
|
|
|
2.6A |
SF48T-0402600DU1 |
SF48T-0452600DU1 |
SF48T-0502600DU1 |
SF48T-0552600DU1 |
SF48T-0602600DU1 |
|
|
2.5A |
SF48T-0402500DU1 |
SF48T-0452500DU1 |
SF48T-0502500DU1 |
SF48T-0552500DU1 |
SF48T-0602500DU1 |
SF48T-0652500DU1 |
|
2.4A |
SF48T-0402400DU1 |
SF48T-0452400DU1 |
SF48T-0502400DU1 |
SF48T-0552400DU1 |
SF48T-0602400DU1 |
SF48T-0652400DU1 |
|
2.3A |
SF48T-0402300DU1 |
SF48T-0452300DU1 |
SF48T-0502300DU1 |
SF48T-0552300DU1 |
SF48T-0602300DU1 |
SF48T-0652300DU1 |
|
2.2A |
SF48T-0402200DU1 |
SF48T-0452200DU1 |
SF48T-0502200DU1 |
SF48T-0552200DU1 |
SF48T-0602200DU1 |
SF48T-0652200DU1 |
|
2.1A |
SF48T-0402100DU1 |
SF48T-0452100DU1 |
SF48T-0502100DU1 |
SF48T-0552100DU1 |
SF48T-0602100DU1 |
SF48T-0652100DU1 |
|
2.0A |
SF48T-0402000DU1 |
SF48T-0452000DU1 |
SF48T-0502000DU1 |
SF48T-0552000DU1 |
SF48T-0602000DU1 |
SF48T-0652000DU1 |
|
1.9A |
SF48T-0401900DU1 |
SF48T-0451900DU1 |
SF48T-0501900DU1 |
SF48T-0551900DU1 |
SF48T-0601900DU1 |
SF48T-0651900DU1 |
|
1.8A |
SF48T-0401800DU1 |
SF48T-0451800DU1 |
SF48T-0501800DU1 |
SF48T-0551800DU1 |
SF48T-0601800DU1 |
SF48T-0651800DU1 |
|
1.7A |
SF48T-0401700DU1 |
SF48T-0451700DU1 |
SF48T-0501700DU1 |
SF48T-0551700DU1 |
SF48T-0601700DU1 |
SF48T-0651700DU1 |
|
1.6A |
SF48T-0401600DU1 |
SF48T-0451600DU1 |
SF48T-0501600DU1 |
SF48T-0551600DU1 |
SF48T-0601600DU1 |
SF48T-0651600DU1 |
|
1.5A |
SF48T-0401500DU1 |
SF48T-0451500DU1 |
SF48T-0501500DU1 |
SF48T-0551500DU1 |
SF48T-0601500DU1 |
SF48T-0651500DU1 |
|
1.4A |
SF48T-0401400DU1 |
SF48T-0451400DU1 |
SF48T-0501400DU1 |
SF48T-0551400DU1 |
SF48T-0601400DU1 |
SF48T-0651400DU1 |
|
1.3A |
|
|
SF48T-0501300DU1 |
SF48T-0551300DU1 |
SF48T-0601400DU1 |
SF48T-0651400DU1 |
|
1.2A |
|
|
|
|
SF48T-0601200DU1 |
SF48T-0651200DU1 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48T-0104000DU1 |
SF48T-0154000DU1 |
|
|
|
|
|
3.7A |
SF48T-0103700DU1 |
SF48T-0153700DU1 |
SF48T-0203700DU1 |
|
|
|
|
3.5A |
SF48T-0103500DU1 |
SF48T-0153500DU1 |
SF48T-0203500DU1 |
SF48T-0253500DU1 |
|
|
|
3.2A |
SF48T-0103200DU1 |
SF48T-0153200DU1 |
SF48T-0203200DU1 |
SF48T-0253200DU1 |
SF48T-0303200DU1 |
|
|
3.0A |
SF48T-0103000DU1 |
SF48T-0153000DU1 |
SF48T-0203000DU1 |
SF48T-0253000DU1 |
SF48T-0303000DU1 |
SF48T-0353000DU1 |
|
2.9A |
SF48T-0102900DU1 |
SF48T-0152900DU1 |
SF48T-0202900DU1 |
SF48T-0252900DU1 |
SF48T-0302900DU1 |
SF48T-0352900DU1 |
|
2.8A |
SF48T-0102800DU1 |
SF48T-0152800DU1 |
SF48T-0202800DU1 |
SF48T-0252800DU1 |
SF48T-0302800DU1 |
SF48T-0352800DU1 |
|
2.7A |
SF48T-0102700DU1 |
SF48T-0152700DU1 |
SF48T-0202700DU1 |
SF48T-0252700DU1 |
SF48T-0302700DU1 |
SF48T-0352700DU1 |
|
2.6A |
SF48T-0102600DU1 |
SF48T-0152600DU1 |
SF48T-0202600DU1 |
SF48T-0252600DU1 |
SF48T-0302600DU1 |
SF48T-0352600DU1 |
|
2.5A |
SF48T-0102500DU1 |
SF48T-0152500DU1 |
SF48T-0202500DU1 |
SF48T-0252500DU1 |
SF48T-0302500DU1 |
SF48T-0352500DU1 |
|
2.4A |
SF48T-0102400DU1 |
SF48T-0152400DU1 |
SF48T-0202400DU1 |
SF48T-0252400DU1 |
SF48T-0302400DU1 |
SF48T-0352400DU1 |
|
2.3A |
SF48T-0102300DU1 |
SF48T-0152300DU1 |
SF48T-0202300DU1 |
SF48T-0252300DU1 |
SF48T-0302300DU1 |
SF48T-0352300DU1 |
|
2.2A |
SF48T-0102200DU1 |
SF48T-0152200DU1 |
SF48T-0202200DU1 |
SF48T-0252200DU1 |
SF48T-0302200DU1 |
SF48T-0352200DU1 |
|
2.1A |
SF48T-0102100DU1 |
SF48T-0152100DU1 |
SF48T-0202100DU1 |
SF48T-0252100DU1 |
SF48T-0302100DU1 |
SF48T-0352100DU1 |
|
2.0A |
SF48T-0102000DU1 |
SF48T-0152000DU1 |
SF48T-0202000DU1 |
SF48T-0252000DU1 |
SF48T-0302000DU1 |
SF48T-0352000DU1 |
|
1.9A |
SF48T-0101900DU1 |
SF48T-0151900DU1 |
SF48T-0201900DU1 |
SF48T-0251900DU1 |
SF48T-0301900DU1 |
SF48T-0351900DU1 |
|
1.8A |
SF48T-0101800DU1 |
SF48T-0151800DU1 |
SF48T-0201800DU1 |
SF48T-0251800DU1 |
SF48T-0301800DU1 |
SF48T-0351800DU1 |
|
1.7A |
SF48T-0101700DU1 |
SF48T-0151700DU1 |
SF48T-0201700DU1 |
SF48T-0251700DU1 |
SF48T-0301700DU1 |
SF48T-0351700DU1 |
|
1.6A |
SF48T-0101600DU1 |
SF48T-0151600DU1 |
SF48T-0201600DU1 |
SF48T-0251600DU1 |
SF48T-0301600DU1 |
SF48T-0351600DU1 |
|
1.5A |
SF48T-0101500DU1 |
SF48T-0151500DU1 |
SF48T-0201500DU1 |
SF48T-0251500DU1 |
SF48T-0301500DU1 |
SF48T-0351500DU1 |
|
1.4A |
|
|
|
|
SF48T-0301400DU1 |
SF48T-0351400DU1 |
 |
 |
 |
 |
 |
 |
