LINEAR ADAPTOR
DESKTOP
EI 48 AC TO DC ADAPTOR (IEC320-3 PRONG PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
19.8VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48T-2500800D7 |
SF48T-2550800D7 |
|
|
|
|
|
0.7A |
SF48T-2500700D7 |
SF48T-2550700D7 |
SF48T-2600700D7 |
SF48T-2650700D7 |
SF48T-2700700D7 |
SF48T-2800700D7 |
|
0.6A |
SF48T-2500600D7 |
SF48T-2550600D7 |
SF48T-2600600D7 |
SF48T-2650600D7 |
SF48T-2700600D7 |
SF48T-2800600D7 |
|
0.5A |
SF48T-2500500D7 |
SF48T-2550500D7 |
SF48T-2600500D7 |
SF48T-2650500D7 |
SF48T-2700500D7 |
SF48T-2800500D7 |
|
0.4A |
SF48T-2500400D7 |
SF48T-2550400D7 |
SF48T-2600400D7 |
SF48T-2650400D7 |
SF48T-2700400D7 |
SF48T-2800400D7 |
|
0.3A |
SF48T-2500300D7 |
SF48T-2550300D7 |
SF48T-2600300D7 |
SF48T-2650300D7 |
SF48T-2700300D7 |
SF48T-2800300D7 |
|
0.2A |
SF48T-2500200D7 |
SF48T-2550200D7 |
SF48T-2600200D7 |
SF48T-2650200D7 |
SF48T-2700200D7 |
SF48T-2800200D7 |
|
0.1A |
|
|
SF48T-2600100D7 |
SF48T-2650100D7 |
SF48T-2700100D7 |
SF48T-2800100D7 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48T-2200900D7 |
SF48T-2250900D7 |
SF48T-2300900D7 |
SF48T-2350900D7 |
SF48T-2400900D7 |
|
|
0.8A |
SF48T-2200800D7 |
SF48T-2250800D7 |
SF48T-2300800D7 |
SF48T-2350800D7 |
SF48T-2400800D7 |
SF48T-2450800D7 |
|
0.7A |
SF48T-2200700D7 |
SF48T-2250700D7 |
SF48T-2300700D7 |
SF48T-2350700D7 |
SF48T-2400700D7 |
SF48T-2450700D7 |
|
0.6A |
SF48T-2200600D7 |
SF48T-2250600D7 |
SF48T-2300600D7 |
SF48T-2350600D7 |
SF48T-2400600D7 |
SF48T-2450600D7 |
|
0.5A |
SF48T-2200500D7 |
SF48T-2250500D7 |
SF48T-2300500D7 |
SF48T-2350500D7 |
SF48T-2400500D7 |
SF48T-2450500D7 |
|
0.4A |
SF48T-2200400D7 |
SF48T-2250400D7 |
SF48T-2300400D7 |
SF48T-2350400D7 |
SF48T-2400400D7 |
SF48T-2450400D7 |
|
0.3A |
SF48T-2200300D7 |
SF48T-2250300D7 |
SF48T-2300300D7 |
SF48T-2350300D7 |
SF48T-2400300D7 |
SF48T-2450300D7 |
|
0.2A |
SF48T-2200200D7 |
SF48T-2250200D7 |
SF48T-2300200D7 |
SF48T-2350200D7 |
SF48T-2400200D7 |
SF48T-2450200D7 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48T-1901100D7 |
SF48T-1951100D7 |
|
|
|
|
|
1.0A |
SF48T-1901000D7 |
SF48T-1951000D7 |
SF48T-2001000D7 |
SF48T-2051000D7 |
SF48T-2101000D7 |
|
|
0.9A |
SF48T-1900900D7 |
SF48T-1950900D7 |
SF48T-2000900D7 |
SF48T-2050900D7 |
SF48T-2100900D7 |
SF48T-2150900D7 |
|
0.8A |
SF48T-1900800D7 |
SF48T-1950800D7 |
SF48T-2000800D7 |
SF48T-2050800D7 |
SF48T-2100800D7 |
SF48T-2150800D7 |
|
0.7A |
SF48T-1900700D7 |
SF48T-1950700D7 |
SF48T-2000700D7 |
SF48T-2050700D7 |
SF48T-2100700D7 |
SF48T-2150700D7 |
|
0.6A |
SF48T-1900600D7 |
SF48T-1950600D7 |
SF48T-2000600D7 |
SF48T-2050600D7 |
SF48T-2100600D7 |
SF48T-2150600D7 |
|
0.5A |
SF48T-1900500D7 |
SF48T-1950500D7 |
SF48T-2000500D7 |
SF48T-2050500D7 |
SF48T-2100500D7 |
SF48T-2150500D7 |
|
0.4A |
SF48T-1900400D7 |
SF48T-1950400D7 |
SF48T-2000400D7 |
SF48T-2050400D7 |
SF48T-2100400D7 |
SF48T-2150400D7 |
|
0.3A |
SF48T-1900300D7 |
SF48T-1950300D7 |
SF48T-2000300D7 |
SF48T-2050300D7 |
SF48T-2100300D7 |
SF48T-2150300D7 |
|
0.2A |
|
|
SF48T-2000200D7 |
SF48T-2050200D7 |
SF48T-2100200D7 |
SF48T-2150200D7 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48T-1601200D7 |
SF48T-1651200D7 |
SF48T-1701200D7 |
SF48T-1751200D7 |
SF48T-1801200D7 |
|
|
1.1A |
SF48T-1601100D7 |
SF48T-1651100D7 |
SF48T-1701100D7 |
SF48T-1751100D7 |
SF48T-1801100D7 |
SF48T-1851100D7 |
|
1.0A |
SF48T-1601000D7 |
SF48T-1651000D7 |
SF48T-1701000D7 |
SF48T-1751000D7 |
SF48T-1801000D7 |
SF48T-1851000D7 |
|
0.9A |
SF48T-1600900D7 |
SF48T-1650900D7 |
SF48T-1700900D7 |
SF48T-1750900D7 |
SF48T-1800900D7 |
SF48T-1850900D7 |
|
0.8A |
SF48T-1600800D7 |
SF48T-1650800D7 |
SF48T-1700800D7 |
SF48T-1750800D7 |
SF48T-1800800D7 |
SF48T-1850800D7 |
|
0.7A |
SF48T-1600700D7 |
SF48T-1650700D7 |
SF48T-1700700D7 |
SF48T-1750700D7 |
SF48T-1800700D7 |
SF48T-1850700D7 |
|
0.6A |
SF48T-1600600D7 |
SF48T-1650600D7 |
SF48T-1700600D7 |
SF48T-1750600D7 |
SF48T-1800600D7 |
SF48T-1850600D7 |
|
0.5A |
SF48T-1600500D7 |
SF48T-1650500D7 |
SF48T-1700500D7 |
SF48T-1750500D7 |
SF48T-1800500D7 |
SF48T-1850500D7 |
|
0.4A |
SF48T-1600400D7 |
SF48T-1650400D7 |
SF48T-1700400D7 |
SF48T-1750400D7 |
SF48T-1800400D7 |
SF48T-1850400D7 |
|
0.3A |
|
|
|
SF48T-1750300D7 |
SF48T-1800300D7 |
SF48T-1850300D7 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48T-1301400D7 |
SF48T-1351400D7 |
|
|
|
|
|
1.3A |
SF48T-1301300D7 |
SF48T-1351300D7 |
SF48T-1401300D7 |
SF48T-1451300D7 |
SF48T-1501300D7 |
|
|
1.2A |
SF48T-1301200D7 |
SF48T-1351200D7 |
SF48T-1401200D7 |
SF48T-1451200D7 |
SF48T-1501200D7 |
SF48T-1551200D7 |
|
1.1A |
SF48T-1301100D7 |
SF48T-1351100D7 |
SF48T-1401100D7 |
SF48T-1451100D7 |
SF48T-1501100D7 |
SF48T-1551100D7 |
|
1.0A |
SF48T-1301000D7 |
SF48T-1351000D7 |
SF48T-1401000D7 |
SF48T-1451000D7 |
SF48T-1501000D7 |
SF48T-1551000D7 |
|
0.9A |
SF48T-1300900D7 |
SF48T-1350900D7 |
SF48T-1400900D7 |
SF48T-1450900D7 |
SF48T-1500900D7 |
SF48T-1550900D7 |
|
0.8A |
SF48T-1300800D7 |
SF48T-1350800D7 |
SF48T-1400800D7 |
SF48T-1450800D7 |
SF48T-1500800D7 |
SF48T-1550800D7 |
|
0.7A |
SF48T-1300700D7 |
SF48T-1350700D7 |
SF48T-1400700D7 |
SF48T-1450700D7 |
SF48T-1500700D7 |
SF48T-1550700D7 |
|
0.6A |
|
|
SF48T-1400600D7 |
SF48T-1450600D7 |
SF48T-1500600D7 |
SF48T-1550600D7 |
|
0.5A |
|
|
|
|
SF48T-1500500D7 |
SF48T-1550500D7 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48T-1001900D7 |
|
|
|
|
|
|
1.8A |
SF48T-1001800D7 |
SF48T-1051800D7 |
|
|
|
|
|
1.7A |
SF48T-1001700D7 |
SF48T-1051700D7 |
SF48T-1101700D7 |
|
|
|
|
1.6A |
SF48T-1001600D7 |
SF48T-1051600D7 |
SF48T-1101600D7 |
SF48T-1151600D7 |
|
|
|
1.5A |
SF48T-1001500D7 |
SF48T-1051500D7 |
SF48T-1101500D7 |
SF48T-1151500D7 |
SF48T-1201500D7 |
|
|
1.4A |
SF48T-1001400D7 |
SF48T-1051400D7 |
SF48T-1101400D7 |
SF48T-1151400D7 |
SF48T-1201400D7 |
SF48T-1251400D7 |
|
1.3A |
SF48T-1001300D7 |
SF48T-1051300D7 |
SF48T-1101300D7 |
SF48T-1151300D7 |
SF48T-1201300D7 |
SF48T-1251300D7 |
|
1.2A |
SF48T-1001200D7 |
SF48T-1051200D7 |
SF48T-1101200D7 |
SF48T-1151200D7 |
SF48T-1201200D7 |
SF48T-1251200D7 |
|
1.1A |
SF48T-1001100D7 |
SF48T-1051100D7 |
SF48T-1101100D7 |
SF48T-1151100D7 |
SF48T-1201100D7 |
SF48T-1251100D7 |
|
1.0A |
SF48T-1001000D7 |
SF48T-1051000D7 |
SF48T-1101000D7 |
SF48T-1151000D7 |
SF48T-1201000D7 |
SF48T-1251000D7 |
|
0.9A |
SF48T-1000900D7 |
SF48T-1050900D7 |
SF48T-1100900D7 |
SF48T-1150900D7 |
SF48T-1200900D7 |
SF48T-1250900D7 |
|
0.8A |
SF48T-1000800D7 |
SF48T-1050800D7 |
SF48T-1100800D7 |
SF48T-1150800D7 |
SF48T-1200800D7 |
SF48T-1250800D7 |
|
0.7A |
|
|
SF48T-1100700D7 |
SF48T-1150700D7 |
SF48T-1200700D7 |
SF48T-1250700D7 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48T-0702400D7 |
|
|
|
|
|
|
2.3A |
SF48T-0702300D7 |
SF48T-0752300D7 |
|
|
|
|
|
2.2A |
SF48T-0702200D7 |
SF48T-0752200D7 |
SF48T-0802200D7 |
|
|
|
|
2.1A |
SF48T-0702100D7 |
SF48T-0752100D7 |
SF48T-0802100D7 |
SF48T-0852100D7 |
|
|
|
2.0A |
SF48T-0702000D7 |
SF48T-0752000D7 |
SF48T-0802000D7 |
SF48T-0852000D7 |
SF48T-0902000D7 |
|
|
1.9A |
SF48T-0701900D7 |
SF48T-0751900D7 |
SF48T-0801900D7 |
SF48T-0851900D7 |
SF48T-0901900D7 |
SF48T-0951900D7 |
|
1.8A |
SF48T-0701800D7 |
SF48T-0751800D7 |
SF48T-0801800D7 |
SF48T-0851800D7 |
SF48T-0901800D7 |
SF48T-0951800D7 |
|
1.7A |
SF48T-0701700D7 |
SF48T-0751700D7 |
SF48T-0801700D7 |
SF48T-0851700D7 |
SF48T-0901700D7 |
SF48T-0951700D7 |
|
1.6A |
SF48T-0701600D7 |
SF48T-0751600D7 |
SF48T-0801600D7 |
SF48T-0851600D7 |
SF48T-0901600D7 |
SF48T-0951600D7 |
|
1.5A |
SF48T-0701500D7 |
SF48T-0751500D7 |
SF48T-0801500D7 |
SF48T-0851500D7 |
SF48T-0901500D7 |
SF48T-0951500D7 |
|
1.4A |
SF48T-0701400D7 |
SF48T-0751400D7 |
SF48T-0801400D7 |
SF48T-0851400D7 |
SF48T-0901400D7 |
SF48T-0951400D7 |
|
1.3A |
SF48T-0701300D7 |
SF48T-0751300D7 |
SF48T-0801300D7 |
SF48T-0851300D7 |
SF48T-0901300D7 |
SF48T-0951300D7 |
|
1.2A |
SF48T-0701200D7 |
SF48T-0751200D7 |
SF48T-0801200D7 |
SF48T-0851200D7 |
SF48T-0901200D7 |
SF48T-0951200D7 |
|
1.1A |
|
|
SF48T-0801100D7 |
SF48T-0851100D7 |
SF48T-0901100D7 |
SF48T-0951100D7 |
|
1.0A |
|
|
|
|
SF48T-0901000D7 |
SF48T-0951000D7 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48T-0402800D7 |
|
|
|
|
|
|
2.7A |
SF48T-0402700D7 |
SF48T-0452700D7 |
SF48T-0502700D7 |
|
|
|
|
2.6A |
SF48T-0402600D7 |
SF48T-0452600D7 |
SF48T-0502600D7 |
SF48T-0552600D7 |
SF48T-0602600D7 |
|
|
2.5A |
SF48T-0402500D7 |
SF48T-0452500D7 |
SF48T-0502500D7 |
SF48T-0552500D7 |
SF48T-0602500D7 |
SF48T-0652500D7 |
|
2.4A |
SF48T-0402400D7 |
SF48T-0452400D7 |
SF48T-0502400D7 |
SF48T-0552400D7 |
SF48T-0602400D7 |
SF48T-0652400D7 |
|
2.3A |
SF48T-0402300D7 |
SF48T-0452300D7 |
SF48T-0502300D7 |
SF48T-0552300D7 |
SF48T-0602300D7 |
SF48T-0652300D7 |
|
2.2A |
SF48T-0402200D7 |
SF48T-0452200D7 |
SF48T-0502200D7 |
SF48T-0552200D7 |
SF48T-0602200D7 |
SF48T-0652200D7 |
|
2.1A |
SF48T-0402100D7 |
SF48T-0452100D7 |
SF48T-0502100D7 |
SF48T-0552100D7 |
SF48T-0602100D7 |
SF48T-0652100D7 |
|
2.0A |
SF48T-0402000D7 |
SF48T-0452000D7 |
SF48T-0502000D7 |
SF48T-0552000D7 |
SF48T-0602000D7 |
SF48T-0652000D7 |
|
1.9A |
SF48T-0401900D7 |
SF48T-0451900D7 |
SF48T-0501900D7 |
SF48T-0551900D7 |
SF48T-0601900D7 |
SF48T-0651900D7 |
|
1.8A |
SF48T-0401800D7 |
SF48T-0451800D7 |
SF48T-0501800D7 |
SF48T-0551800D7 |
SF48T-0601800D7 |
SF48T-0651800D7 |
|
1.7A |
SF48T-0401700D7 |
SF48T-0451700D7 |
SF48T-0501700D7 |
SF48T-0551700D7 |
SF48T-0601700D7 |
SF48T-0651700D7 |
|
1.6A |
SF48T-0401600D7 |
SF48T-0451600D7 |
SF48T-0501600D7 |
SF48T-0551600D7 |
SF48T-0601600D7 |
SF48T-0651600D7 |
|
1.5A |
SF48T-0401500D7 |
SF48T-0451500D7 |
SF48T-0501500D7 |
SF48T-0551500D7 |
SF48T-0601500D7 |
SF48T-0651500D7 |
|
1.4A |
SF48T-0401400D7 |
SF48T-0451400D7 |
SF48T-0501400D7 |
SF48T-0551400D7 |
SF48T-0601400D7 |
SF48T-0651400D7 |
|
1.3A |
|
|
SF48T-0501300D7 |
SF48T-0551300D7 |
SF48T-0601400D7 |
SF48T-0651400D7 |
|
1.2A |
|
|
|
|
SF48T-0601200D7 |
SF48T-0651200D7 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48T-0104000D7 |
SF48T-0154000D7 |
|
|
|
|
|
3.7A |
SF48T-0103700D7 |
SF48T-0153700D7 |
SF48T-0203700D7 |
|
|
|
|
3.5A |
SF48T-0103500D7 |
SF48T-0153500D7 |
SF48T-0203500D7 |
SF48T-0253500D7 |
|
|
|
3.2A |
SF48T-0103200D7 |
SF48T-0153200D7 |
SF48T-0203200D7 |
SF48T-0253200D7 |
SF48T-0303200D7 |
|
|
3.0A |
SF48T-0103000D7 |
SF48T-0153000D7 |
SF48T-0203000D7 |
SF48T-0253000D7 |
SF48T-0303000D7 |
SF48T-0353000D7 |
|
2.9A |
SF48T-0102900D7 |
SF48T-0152900D7 |
SF48T-0202900D7 |
SF48T-0252900D7 |
SF48T-0302900D7 |
SF48T-0352900D7 |
|
2.8A |
SF48T-0102800D7 |
SF48T-0152800D7 |
SF48T-0202800D7 |
SF48T-0252800D7 |
SF48T-0302800D7 |
SF48T-0352800D7 |
|
2.7A |
SF48T-0102700D7 |
SF48T-0152700D7 |
SF48T-0202700D7 |
SF48T-0252700D7 |
SF48T-0302700D7 |
SF48T-0352700D7 |
|
2.6A |
SF48T-0102600D7 |
SF48T-0152600D7 |
SF48T-0202600D7 |
SF48T-0252600D7 |
SF48T-0302600D7 |
SF48T-0352600D7 |
|
2.5A |
SF48T-0102500D7 |
SF48T-0152500D7 |
SF48T-0202500D7 |
SF48T-0252500D7 |
SF48T-0302500D7 |
SF48T-0352500D7 |
|
2.4A |
SF48T-0102400D7 |
SF48T-0152400D7 |
SF48T-0202400D7 |
SF48T-0252400D7 |
SF48T-0302400D7 |
SF48T-0352400D7 |
|
2.3A |
SF48T-0102300D7 |
SF48T-0152300D7 |
SF48T-0202300D7 |
SF48T-0252300D7 |
SF48T-0302300D7 |
SF48T-0352300D7 |
|
2.2A |
SF48T-0102200D7 |
SF48T-0152200D7 |
SF48T-0202200D7 |
SF48T-0252200D7 |
SF48T-0302200D7 |
SF48T-0352200D7 |
|
2.1A |
SF48T-0102100D7 |
SF48T-0152100D7 |
SF48T-0202100D7 |
SF48T-0252100D7 |
SF48T-0302100D7 |
SF48T-0352100D7 |
|
2.0A |
SF48T-0102000D7 |
SF48T-0152000D7 |
SF48T-0202000D7 |
SF48T-0252000D7 |
SF48T-0302000D7 |
SF48T-0352000D7 |
|
1.9A |
SF48T-0101900D7 |
SF48T-0151900D7 |
SF48T-0201900D7 |
SF48T-0251900D7 |
SF48T-0301900D7 |
SF48T-0351900D7 |
|
1.8A |
SF48T-0101800D7 |
SF48T-0151800D7 |
SF48T-0201800D7 |
SF48T-0251800D7 |
SF48T-0301800D7 |
SF48T-0351800D7 |
|
1.7A |
SF48T-0101700D7 |
SF48T-0151700D7 |
SF48T-0201700D7 |
SF48T-0251700D7 |
SF48T-0301700D7 |
SF48T-0351700D7 |
|
1.6A |
SF48T-0101600D7 |
SF48T-0151600D7 |
SF48T-0201600D7 |
SF48T-0251600D7 |
SF48T-0301600D7 |
SF48T-0351600D7 |
|
1.5A |
SF48T-0101500D7 |
SF48T-0151500D7 |
SF48T-0201500D7 |
SF48T-0251500D7 |
SF48T-0301500D7 |
SF48T-0351500D7 |
|
1.4A |
|
|
|
|
SF48T-0301400D7 |
SF48T-0351400D7 |

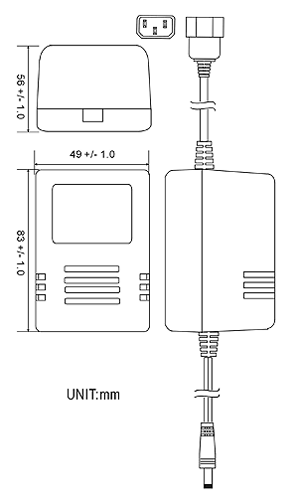

CORD IN/OUT

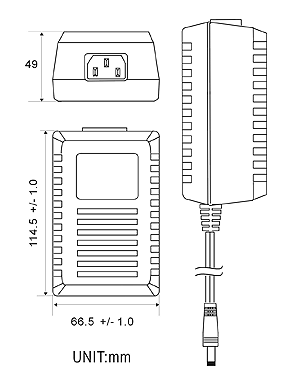

INPUT IEC SOCKET
 |
 |
 |
 |
 |
 |
