LINEAR ADAPTOR
DESKTOP

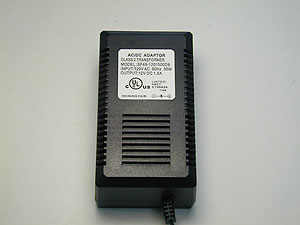

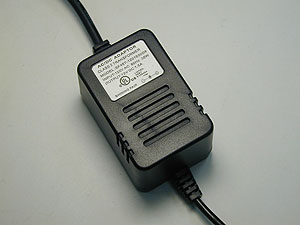

EI 48 AC TO DC ADAPTOR (IEC320-2 ROUND PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
19.8VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48T-2500800D8 |
SF48T-2550800D8 |
|
|
|
|
|
0.7A |
SF48T-2500700D8 |
SF48T-2550700D8 |
SF48T-2600700D8 |
SF48T-2650700D8 |
SF48T-2700700D8 |
SF48T-2800700D8 |
|
0.6A |
SF48T-2500600D8 |
SF48T-2550600D8 |
SF48T-2600600D8 |
SF48T-2650600D8 |
SF48T-2700600D8 |
SF48T-2800600D8 |
|
0.5A |
SF48T-2500500D8 |
SF48T-2550500D8 |
SF48T-2600500D8 |
SF48T-2650500D8 |
SF48T-2700500D8 |
SF48T-2800500D8 |
|
0.4A |
SF48T-2500400D8 |
SF48T-2550400D8 |
SF48T-2600400D8 |
SF48T-2650400D8 |
SF48T-2700400D8 |
SF48T-2800400D8 |
|
0.3A |
SF48T-2500300D8 |
SF48T-2550300D8 |
SF48T-2600300D8 |
SF48T-2650300D8 |
SF48T-2700300D8 |
SF48T-2800300D8 |
|
0.2A |
SF48T-2500200D8 |
SF48T-2550200D8 |
SF48T-2600200D8 |
SF48T-2650200D8 |
SF48T-2700200D8 |
SF48T-2800200D8 |
|
0.1A |
|
|
SF48T-2600100D8 |
SF48T-2650100D8 |
SF48T-2700100D8 |
SF48T-2800100D8 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48T-2200900D8 |
SF48T-2250900D8 |
SF48T-2300900D8 |
SF48T-2350900D8 |
SF48T-2400900D8 |
|
|
0.8A |
SF48T-2200800D8 |
SF48T-2250800D8 |
SF48T-2300800D8 |
SF48T-2350800D8 |
SF48T-2400800D8 |
SF48T-2450800D8 |
|
0.7A |
SF48T-2200700D8 |
SF48T-2250700D8 |
SF48T-2300700D8 |
SF48T-2350700D8 |
SF48T-2400700D8 |
SF48T-2450700D8 |
|
0.6A |
SF48T-2200600D8 |
SF48T-2250600D8 |
SF48T-2300600D8 |
SF48T-2350600D8 |
SF48T-2400600D8 |
SF48T-2450600D8 |
|
0.5A |
SF48T-2200500D8 |
SF48T-2250500D8 |
SF48T-2300500D8 |
SF48T-2350500D8 |
SF48T-2400500D8 |
SF48T-2450500D8 |
|
0.4A |
SF48T-2200400D8 |
SF48T-2250400D8 |
SF48T-2300400D8 |
SF48T-2350400D8 |
SF48T-2400400D8 |
SF48T-2450400D8 |
|
0.3A |
SF48T-2200300D8 |
SF48T-2250300D8 |
SF48T-2300300D8 |
SF48T-2350300D8 |
SF48T-2400300D8 |
SF48T-2450300D8 |
|
0.2A |
SF48T-2200200D8 |
SF48T-2250200D8 |
SF48T-2300200D8 |
SF48T-2350200D8 |
SF48T-2400200D8 |
SF48T-2450200D8 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48T-1901100D8 |
SF48T-1951100D8 |
|
|
|
|
|
1.0A |
SF48T-1901000D8 |
SF48T-1951000D8 |
SF48T-2001000D8 |
SF48T-2051000D8 |
SF48T-2101000D8 |
|
|
0.9A |
SF48T-1900900D8 |
SF48T-1950900D8 |
SF48T-2000900D8 |
SF48T-2050900D8 |
SF48T-2100900D8 |
SF48T-2150900D8 |
|
0.8A |
SF48T-1900800D8 |
SF48T-1950800D8 |
SF48T-2000800D8 |
SF48T-2050800D8 |
SF48T-2100800D8 |
SF48T-2150800D8 |
|
0.7A |
SF48T-1900700D8 |
SF48T-1950700D8 |
SF48T-2000700D8 |
SF48T-2050700D8 |
SF48T-2100700D8 |
SF48T-2150700D8 |
|
0.6A |
SF48T-1900600D8 |
SF48T-1950600D8 |
SF48T-2000600D8 |
SF48T-2050600D8 |
SF48T-2100600D8 |
SF48T-2150600D8 |
|
0.5A |
SF48T-1900500D8 |
SF48T-1950500D8 |
SF48T-2000500D8 |
SF48T-2050500D8 |
SF48T-2100500D8 |
SF48T-2150500D8 |
|
0.4A |
SF48T-1900400D8 |
SF48T-1950400D8 |
SF48T-2000400D8 |
SF48T-2050400D8 |
SF48T-2100400D8 |
SF48T-2150400D8 |
|
0.3A |
SF48T-1900300D8 |
SF48T-1950300D8 |
SF48T-2000300D8 |
SF48T-2050300D8 |
SF48T-2100300D8 |
SF48T-2150300D8 |
|
0.2A |
|
|
SF48T-2000200D8 |
SF48T-2050200D8 |
SF48T-2100200D8 |
SF48T-2150200D8 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48T-1601200D8 |
SF48T-1651200D8 |
SF48T-1701200D8 |
SF48T-1751200D8 |
SF48T-1801200D8 |
|
|
1.1A |
SF48T-1601100D8 |
SF48T-1651100D8 |
SF48T-1701100D8 |
SF48T-1751100D8 |
SF48T-1801100D8 |
SF48T-1851100D8 |
|
1.0A |
SF48T-1601000D8 |
SF48T-1651000D8 |
SF48T-1701000D8 |
SF48T-1751000D8 |
SF48T-1801000D8 |
SF48T-1851000D8 |
|
0.9A |
SF48T-1600900D8 |
SF48T-1650900D8 |
SF48T-1700900D8 |
SF48T-1750900D8 |
SF48T-1800900D8 |
SF48T-1850900D8 |
|
0.8A |
SF48T-1600800D8 |
SF48T-1650800D8 |
SF48T-1700800D8 |
SF48T-1750800D8 |
SF48T-1800800D8 |
SF48T-1850800D8 |
|
0.7A |
SF48T-1600700D8 |
SF48T-1650700D8 |
SF48T-1700700D8 |
SF48T-1750700D8 |
SF48T-1800700D8 |
SF48T-1850700D8 |
|
0.6A |
SF48T-1600600D8 |
SF48T-1650600D8 |
SF48T-1700600D8 |
SF48T-1750600D8 |
SF48T-1800600D8 |
SF48T-1850600D8 |
|
0.5A |
SF48T-1600500D8 |
SF48T-1650500D8 |
SF48T-1700500D8 |
SF48T-1750500D8 |
SF48T-1800500D8 |
SF48T-1850500D8 |
|
0.4A |
SF48T-1600400D8 |
SF48T-1650400D8 |
SF48T-1700400D8 |
SF48T-1750400D8 |
SF48T-1800400D8 |
SF48T-1850400D8 |
|
0.3A |
|
|
|
SF48T-1750300D8 |
SF48T-1800300D8 |
SF48T-1850300D8 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48T-1301400D8 |
SF48T-1351400D8 |
|
|
|
|
|
1.3A |
SF48T-1301300D8 |
SF48T-1351300D8 |
SF48T-1401300D8 |
SF48T-1451300D8 |
SF48T-1501300D8 |
|
|
1.2A |
SF48T-1301200D8 |
SF48T-1351200D8 |
SF48T-1401200D8 |
SF48T-1451200D8 |
SF48T-1501200D8 |
SF48T-1551200D8 |
|
1.1A |
SF48T-1301100D8 |
SF48T-1351100D8 |
SF48T-1401100D8 |
SF48T-1451100D8 |
SF48T-1501100D8 |
SF48T-1551100D8 |
|
1.0A |
SF48T-1301000D8 |
SF48T-1351000D8 |
SF48T-1401000D8 |
SF48T-1451000D8 |
SF48T-1501000D8 |
SF48T-1551000D8 |
|
0.9A |
SF48T-1300900D8 |
SF48T-1350900D8 |
SF48T-1400900D8 |
SF48T-1450900D8 |
SF48T-1500900D8 |
SF48T-1550900D8 |
|
0.8A |
SF48T-1300800D8 |
SF48T-1350800D8 |
SF48T-1400800D8 |
SF48T-1450800D8 |
SF48T-1500800D8 |
SF48T-1550800D8 |
|
0.7A |
SF48T-1300700D8 |
SF48T-1350700D8 |
SF48T-1400700D8 |
SF48T-1450700D8 |
SF48T-1500700D8 |
SF48T-1550700D8 |
|
0.6A |
|
|
SF48T-1400600D8 |
SF48T-1450600D8 |
SF48T-1500600D8 |
SF48T-1550600D8 |
|
0.5A |
|
|
|
|
SF48T-1500500D8 |
SF48T-1550500D8 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48T-1001900D8 |
|
|
|
|
|
|
1.8A |
SF48T-1001800D8 |
SF48T-1051800D8 |
|
|
|
|
|
1.7A |
SF48T-1001700D8 |
SF48T-1051700D8 |
SF48T-1101700D8 |
|
|
|
|
1.6A |
SF48T-1001600D8 |
SF48T-1051600D8 |
SF48T-1101600D8 |
SF48T-1151600D8 |
|
|
|
1.5A |
SF48T-1001500D8 |
SF48T-1051500D8 |
SF48T-1101500D8 |
SF48T-1151500D8 |
SF48T-1201500D8 |
|
|
1.4A |
SF48T-1001400D8 |
SF48T-1051400D8 |
SF48T-1101400D8 |
SF48T-1151400D8 |
SF48T-1201400D8 |
SF48T-1251400D8 |
|
1.3A |
SF48T-1001300D8 |
SF48T-1051300D8 |
SF48T-1101300D8 |
SF48T-1151300D8 |
SF48T-1201300D8 |
SF48T-1251300D8 |
|
1.2A |
SF48T-1001200D8 |
SF48T-1051200D8 |
SF48T-1101200D8 |
SF48T-1151200D8 |
SF48T-1201200D8 |
SF48T-1251200D8 |
|
1.1A |
SF48T-1001100D8 |
SF48T-1051100D8 |
SF48T-1101100D8 |
SF48T-1151100D8 |
SF48T-1201100D8 |
SF48T-1251100D8 |
|
1.0A |
SF48T-1001000D8 |
SF48T-1051000D8 |
SF48T-1101000D8 |
SF48T-1151000D8 |
SF48T-1201000D8 |
SF48T-1251000D8 |
|
0.9A |
SF48T-1000900D8 |
SF48T-1050900D8 |
SF48T-1100900D8 |
SF48T-1150900D8 |
SF48T-1200900D8 |
SF48T-1250900D8 |
|
0.8A |
SF48T-1000800D8 |
SF48T-1050800D8 |
SF48T-1100800D8 |
SF48T-1150800D8 |
SF48T-1200800D8 |
SF48T-1250800D8 |
|
0.7A |
|
|
SF48T-1100700D8 |
SF48T-1150700D8 |
SF48T-1200700D8 |
SF48T-1250700D8 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48T-0402800D8 |
|
|
|
|
|
|
2.7A |
SF48T-0402700D8 |
SF48T-0452700D8 |
SF48T-0502700D8 |
|
|
|
|
2.6A |
SF48T-0402600D8 |
SF48T-0452600D8 |
SF48T-0502600D8 |
SF48T-0552600D8 |
SF48T-0602600D8 |
|
|
2.5A |
SF48T-0402500D8 |
SF48T-0452500D8 |
SF48T-0502500D8 |
SF48T-0552500D8 |
SF48T-0602500D8 |
SF48T-0652500D8 |
|
2.4A |
SF48T-0402400D8 |
SF48T-0452400D8 |
SF48T-0502400D8 |
SF48T-0552400D8 |
SF48T-0602400D8 |
SF48T-0652400D8 |
|
2.3A |
SF48T-0402300D8 |
SF48T-0452300D8 |
SF48T-0502300D8 |
SF48T-0552300D8 |
SF48T-0602300D8 |
SF48T-0652300D8 |
|
2.2A |
SF48T-0402200D8 |
SF48T-0452200D8 |
SF48T-0502200D8 |
SF48T-0552200D8 |
SF48T-0602200D8 |
SF48T-0652200D8 |
|
2.1A |
SF48T-0402100D8 |
SF48T-0452100D8 |
SF48T-0502100D8 |
SF48T-0552100D8 |
SF48T-0602100D8 |
SF48T-0652100D8 |
|
2.0A |
SF48T-0402000D8 |
SF48T-0452000D8 |
SF48T-0502000D8 |
SF48T-0552000D8 |
SF48T-0602000D8 |
SF48T-0652000D8 |
|
1.9A |
SF48T-0401900D8 |
SF48T-0451900D8 |
SF48T-0501900D8 |
SF48T-0551900D8 |
SF48T-0601900D8 |
SF48T-0651900D8 |
|
1.8A |
SF48T-0401800D8 |
SF48T-0451800D8 |
SF48T-0501800D8 |
SF48T-0551800D8 |
SF48T-0601800D8 |
SF48T-0651800D8 |
|
1.7A |
SF48T-0401700D8 |
SF48T-0451700D8 |
SF48T-0501700D8 |
SF48T-0551700D8 |
SF48T-0601700D8 |
SF48T-0651700D8 |
|
1.6A |
SF48T-0401600D8 |
SF48T-0451600D8 |
SF48T-0501600D8 |
SF48T-0551600D8 |
SF48T-0601600D8 |
SF48T-0651600D8 |
|
1.5A |
SF48T-0401500D8 |
SF48T-0451500D8 |
SF48T-0501500D8 |
SF48T-0551500D8 |
SF48T-0601500D8 |
SF48T-0651500D8 |
|
1.4A |
SF48T-0401400D8 |
SF48T-0451400D8 |
SF48T-0501400D8 |
SF48T-0551400D8 |
SF48T-0601400D8 |
SF48T-0651400D8 |
|
1.3A |
|
|
SF48T-0501300D8 |
SF48T-0551300D8 |
SF48T-0601400D8 |
SF48T-0651400D8 |
|
1.2A |
|
|
|
|
SF48T-0601200D8 |
SF48T-0651200D8 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48T-0104000D8 |
SF48T-0154000D8 |
|
|
|
|
|
3.7A |
SF48T-0103700D8 |
SF48T-0153700D8 |
SF48T-0203700D8 |
|
|
|
|
3.5A |
SF48T-0103500D8 |
SF48T-0153500D8 |
SF48T-0203500D8 |
SF48T-0253500D8 |
|
|
|
3.2A |
SF48T-0103200D8 |
SF48T-0153200D8 |
SF48T-0203200D8 |
SF48T-0253200D8 |
SF48T-0303200D8 |
|
|
3.0A |
SF48T-0103000D8 |
SF48T-0153000D8 |
SF48T-0203000D8 |
SF48T-0253000D8 |
SF48T-0303000D8 |
SF48T-0353000D8 |
|
2.9A |
SF48T-0102900D8 |
SF48T-0152900D8 |
SF48T-0202900D8 |
SF48T-0252900D8 |
SF48T-0302900D8 |
SF48T-0352900D8 |
|
2.8A |
SF48T-0102800D8 |
SF48T-0152800D8 |
SF48T-0202800D8 |
SF48T-0252800D8 |
SF48T-0302800D8 |
SF48T-0352800D8 |
|
2.7A |
SF48T-0102700D8 |
SF48T-0152700D8 |
SF48T-0202700D8 |
SF48T-0252700D8 |
SF48T-0302700D8 |
SF48T-0352700D8 |
|
2.6A |
SF48T-0102600D8 |
SF48T-0152600D8 |
SF48T-0202600D8 |
SF48T-0252600D8 |
SF48T-0302600D8 |
SF48T-0352600D8 |
|
2.5A |
SF48T-0102500D8 |
SF48T-0152500D8 |
SF48T-0202500D8 |
SF48T-0252500D8 |
SF48T-0302500D8 |
SF48T-0352500D8 |
|
2.4A |
SF48T-0102400D8 |
SF48T-0152400D8 |
SF48T-0202400D8 |
SF48T-0252400D8 |
SF48T-0302400D8 |
SF48T-0352400D8 |
|
2.3A |
SF48T-0102300D8 |
SF48T-0152300D8 |
SF48T-0202300D8 |
SF48T-0252300D8 |
SF48T-0302300D8 |
SF48T-0352300D8 |
|
2.2A |
SF48T-0102200D8 |
SF48T-0152200D8 |
SF48T-0202200D8 |
SF48T-0252200D8 |
SF48T-0302200D8 |
SF48T-0352200D8 |
|
2.1A |
SF48T-0102100D8 |
SF48T-0152100D8 |
SF48T-0202100D8 |
SF48T-0252100D8 |
SF48T-0302100D8 |
SF48T-0352100D8 |
|
2.0A |
SF48T-0102000D8 |
SF48T-0152000D8 |
SF48T-0202000D8 |
SF48T-0252000D8 |
SF48T-0302000D8 |
SF48T-0352000D8 |
|
1.9A |
SF48T-0101900D8 |
SF48T-0151900D8 |
SF48T-0201900D8 |
SF48T-0251900D8 |
SF48T-0301900D8 |
SF48T-0351900D8 |
|
1.8A |
SF48T-0101800D8 |
SF48T-0151800D8 |
SF48T-0201800D8 |
SF48T-0251800D8 |
SF48T-0301800D8 |
SF48T-0351800D8 |
|
1.7A |
SF48T-0101700D8 |
SF48T-0151700D8 |
SF48T-0201700D8 |
SF48T-0251700D8 |
SF48T-0301700D8 |
SF48T-0351700D8 |
|
1.6A |
SF48T-0101600D8 |
SF48T-0151600D8 |
SF48T-0201600D8 |
SF48T-0251600D8 |
SF48T-0301600D8 |
SF48T-0351600D8 |
|
1.5A |
SF48T-0101500D8 |
SF48T-0151500D8 |
SF48T-0201500D8 |
SF48T-0251500D8 |
SF48T-0301500D8 |
SF48T-0351500D8 |
|
1.4A |
|
|
|
|
SF48T-0301400D8 |
SF48T-0351400D8 |

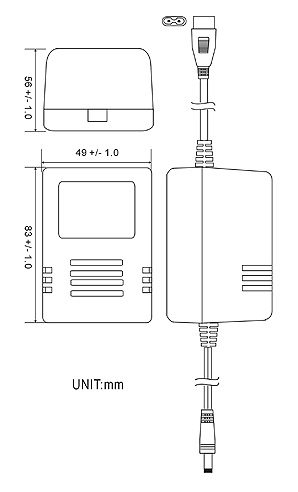

CORD IN/OUT

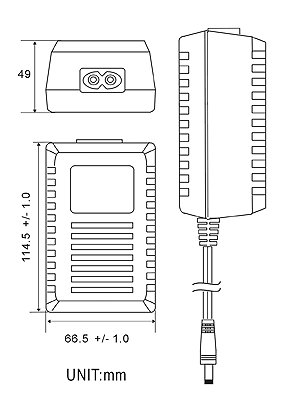

INPUT IEC SOCKET
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48T-0702400D8 |
|
|
|
|
|
|
2.3A |
SF48T-0702300D8 |
SF48T-0752300D8 |
|
|
|
|
|
2.2A |
SF48T-0702200D8 |
SF48T-0752200D8 |
SF48T-0802200D8 |
|
|
|
|
2.1A |
SF48T-0702100D8 |
SF48T-0752100D8 |
SF48T-0802100D8 |
SF48T-0852100D8 |
|
|
|
2.0A |
SF48T-0702000D8 |
SF48T-0752000D8 |
SF48T-0802000D8 |
SF48T-0852000D8 |
SF48T-0902000D8 |
|
|
1.9A |
SF48T-0701900D8 |
SF48T-0751900D8 |
SF48T-0801900D8 |
SF48T-0851900D8 |
SF48T-0901900D8 |
SF48T-0951900D8 |
|
1.8A |
SF48T-0701800D8 |
SF48T-0751800D8 |
SF48T-0801800D8 |
SF48T-0851800D8 |
SF48T-0901800D8 |
SF48T-0951800D8 |
|
1.7A |
SF48T-0701700D8 |
SF48T-0751700D8 |
SF48T-0801700D8 |
SF48T-0851700D8 |
SF48T-0901700D8 |
SF48T-0951700D8 |
|
1.6A |
SF48T-0701600D8 |
SF48T-0751600D8 |
SF48T-0801600D8 |
SF48T-0851600D8 |
SF48T-0901600D8 |
SF48T-0951600D8 |
|
1.5A |
SF48T-0701500D8 |
SF48T-0751500D8 |
SF48T-0801500D8 |
SF48T-0851500D8 |
SF48T-0901500D8 |
SF48T-0951500D8 |
|
1.4A |
SF48T-0701400D8 |
SF48T-0751400D8 |
SF48T-0801400D8 |
SF48T-0851400D8 |
SF48T-0901400D8 |
SF48T-0951400D8 |
|
1.3A |
SF48T-0701300D8 |
SF48T-0751300D8 |
SF48T-0801300D8 |
SF48T-0851300D8 |
SF48T-0901300D8 |
SF48T-0951300D8 |
|
1.2A |
SF48T-0701200D8 |
SF48T-0751200D8 |
SF48T-0801200D8 |
SF48T-0851200D8 |
SF48T-0901200D8 |
SF48T-0951200D8 |
|
1.1A |
|
|
SF48T-0801100D8 |
SF48T-0851100D8 |
SF48T-0901100D8 |
SF48T-0951100D8 |
|
1.0A |
|
|
|
|
SF48T-0901000D8 |
SF48T-0951000D8 |
 |
 |
 |
 |
 |
 |
