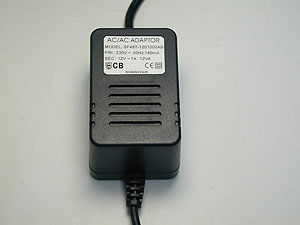

LINEAR ADAPTOR
DESKTOP
EI 48 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-3A |
|
|
|
Output Watt |
24.7VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
BS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.1A |
SF48T-2101100AB |
SF48T-2201100AB |
|
|
|
|
|
1.0A |
SF48T-2101000AB |
SF48T-2201000AB |
SF48T-2301000AB |
SF48T-2401000AB |
|
|
|
0.9A |
SF48T-2100900AB |
SF48T-2200900AB |
SF48T-2300900AB |
SF48T-2400900AB |
|
|
|
0.8A |
SF48T-2100800AB |
SF48T-2200800AB |
SF48T-2300800AB |
SF48T-2400800AB |
|
|
|
0.7A |
SF48T-2100700AB |
SF48T-2200700AB |
SF48T-2300700AB |
SF48T-2400700AB |
|
|
|
0.6A |
SF48T-2100600AB |
SF48T-2200600AB |
SF48T-2300600AB |
SF48T-2400600AB |
|
|
|
0.5A |
SF48T-2100500AB |
SF48T-2200500AB |
SF48T-2300500AB |
SF48T-2400500AB |
|
|
|
0.4A |
SF48T-2100400AB |
SF48T-2200400AB |
SF48T-2300400AB |
SF48T-2400400AB |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF48T-1501600AB |
|
|
|
|
|
|
1.5A |
SF48T-1501500AB |
SF48T-1601500AB |
|
|
|
|
|
1.4A |
SF48T-1501400AB |
SF48T-1601400AB |
SF48T-1701400AB |
|
|
|
|
1.3A |
SF48T-1501300AB |
SF48T-1601300AB |
SF48T-1701300AB |
SF48T-1801300AB |
SF48T-1901300AB |
|
|
1.2A |
SF48T-1501200AB |
SF48T-1601200AB |
SF48T-1701200AB |
SF48T-1801200AB |
SF48T-1901200AB |
SF48T-2001200AB |
|
1.1A |
SF48T-1501100AB |
SF48T-1601100AB |
SF48T-1701100AB |
SF48T-1801100AB |
SF48T-1901100AB |
SF48T-2001100AB |
|
1.0A |
SF48T-1501000AB |
SF48T-1601000AB |
SF48T-1701000AB |
SF48T-1801000AB |
SF48T-1901000AB |
SF48T-2001000AB |
|
0.9A |
SF48T-1500900AB |
SF48T-1600900AB |
SF48T-1700900AB |
SF48T-1800900AB |
SF48T-1900900AB |
SF48T-2000900AB |
|
0.8A |
SF48T-1500800AB |
SF48T-1600800AB |
SF48T-1700800AB |
SF48T-1800800AB |
SF48T-1900800AB |
SF48T-2000800AB |
|
0.7A |
SF48T-1500700AB |
SF48T-1600700AB |
SF48T-1700700AB |
SF48T-1800700AB |
SF48T-1900700AB |
SF48T-2000700AB |
|
0.6A |
SF48T-1500600AB |
SF48T-1600600AB |
SF48T-1700600AB |
SF48T-1800600AB |
SF48T-1900600AB |
SF48T-2000600AB |
|
0.5A |
|
|
SF48T-1700500AB |
SF48T-1800500AB |
SF48T-1900500AB |
SF48T-2000500AB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF48T-1202000AB |
|
|
|
|
|
|
1.9A |
SF48T-1201900AB |
SF48T-1251900AB |
|
|
|
|
|
1.8A |
SF48T-1201800AB |
SF48T-1251800AB |
SF48T-1301800AB |
|
|
|
|
1.7A |
SF48T-1201700AB |
SF48T-1251700AB |
SF48T-1301700AB |
SF48T-1351700AB |
SF48T-1401700AB |
|
|
1.6A |
SF48T-1201600AB |
SF48T-1251600AB |
SF48T-1301600AB |
SF48T-1351600AB |
SF48T-1401600AB |
SF48T-1451600AB |
|
1.5A |
SF48T-1201500AB |
SF48T-1251500AB |
SF48T-1301500AB |
SF48T-1351500AB |
SF48T-1401500AB |
SF48T-1451500AB |
|
1.4A |
SF48T-1201400AB |
SF48T-1251400AB |
SF48T-1301400AB |
SF48T-1351400AB |
SF48T-1401400AB |
SF48T-1451400AB |
|
1.3A |
SF48T-1201300AB |
SF48T-1251300AB |
SF48T-1301300AB |
SF48T-1351300AB |
SF48T-1401300AB |
SF48T-1451300AB |
|
1.2A |
SF48T-1201200AB |
SF48T-1251200AB |
SF48T-1301200AB |
SF48T-1351200AB |
SF48T-1401200AB |
SF48T-1451200AB |
|
1.1A |
SF48T-1201100AB |
SF48T-1251100AB |
SF48T-1301100AB |
SF48T-1351100AB |
SF48T-1401100AB |
SF48T-1451100AB |
|
1.0A |
SF48T-1201000AB |
SF48T-1251000AB |
SF48T-1301000AB |
SF48T-1351000AB |
SF48T-1401000AB |
SF48T-1451000AB |
|
0.9A |
SF48T-1200900AB |
SF48T-1250900AB |
SF48T-1300900AB |
SF48T-1350900AB |
SF48T-1400900AB |
SF48T-1450900AB |
|
0.8A |
SF48T-1200800AB |
SF48T-1250800AB |
SF48T-1300800AB |
SF48T-1350800AB |
SF48T-1400800AB |
SF48T-1450800AB |
|
0.7A |
|
|
SF48T-1300700AB |
SF48T-1350700AB |
SF48T-1400700AB |
SF48T-1450700AB |
|
0.6A |
|
|
|
|
|
SF48T-1450600AB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF48T-0902500AB |
|
|
|
|
|
|
2.4A |
SF48T-0902400AB |
SF48T-0952400AB |
|
|
|
|
|
2.3A |
SF48T-0902300AB |
SF48T-0952300AB |
SF48T-1002300AB |
|
|
|
|
2.2A |
SF48T-0902200AB |
SF48T-0952200AB |
SF48T-1002200AB |
SF48T-1052200AB |
|
|
|
2.1A |
SF48T-0902100AB |
SF48T-0952100AB |
SF48T-1002100AB |
SF48T-1052100AB |
SF48T-1102100AB |
|
|
2.0A |
SF48T-0902000AB |
SF48T-0952000AB |
SF48T-1002000AB |
SF48T-1052000AB |
SF48T-1102000AB |
SF48T-1152000AB |
|
1.9A |
SF48T-0901900AB |
SF48T-0951900AB |
SF48T-1001900AB |
SF48T-1051900AB |
SF48T-1101900AB |
SF48T-1151900AB |
|
1.8A |
SF48T-0901800AB |
SF48T-0951800AB |
SF48T-1001800AB |
SF48T-1051800AB |
SF48T-1101800AB |
SF48T-1151800AB |
|
1.7A |
SF48T-0901700AB |
SF48T-0951700AB |
SF48T-1001700AB |
SF48T-1051700AB |
SF48T-1101700AB |
SF48T-1151700AB |
|
1.6A |
SF48T-0901600AB |
SF48T-0951600AB |
SF48T-1001600AB |
SF48T-1051600AB |
SF48T-1101600AB |
SF48T-1151600AB |
|
1.5A |
SF48T-0901500AB |
SF48T-0951500AB |
SF48T-1001500AB |
SF48T-1051500AB |
SF48T-1101500AB |
SF48T-1151500AB |
|
1.4A |
SF48T-0901400AB |
SF48T-0951400AB |
SF48T-1001400AB |
SF48T-1051400AB |
SF48T-1101400AB |
SF48T-1151400AB |
|
1.3A |
SF48T-0901300AB |
SF48T-0951300AB |
SF48T-1001300AB |
SF48T-1051300AB |
SF48T-1101300AB |
SF48T-1151300AB |
|
1.2A |
SF48T-0901200AB |
SF48T-0951200AB |
SF48T-1001200AB |
SF48T-1051200AB |
SF48T-1101200AB |
SF48T-1151200AB |
|
1.1A |
SF48T-0901100AB |
SF48T-0951100AB |
SF48T-1001100AB |
SF48T-1051100AB |
SF48T-1101100AB |
SF48T-1151100AB |
|
1.0A |
|
SF48T-0951000AB |
SF48T-1001000AB |
SF48T-1051000AB |
SF48T-1101000AB |
SF48T-1151000AB |
|
0.9A |
|
|
SF48T-1000900AB |
SF48T-1050900AB |
SF48T-1100900AB |
SF48T-1150900AB |
|
0.8A |
|
|
|
|
|
SF48T-1150800AB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF48T-0603000AB |
SF48T-0653000AB |
|
|
|
|
|
2.9A |
SF48T-0602900AB |
SF48T-0652900AB |
SF48T-0702900AB |
|
|
|
|
2.8A |
SF48T-0602800AB |
SF48T-0652800AB |
SF48T-0702800AB |
SF48T-0752800AB |
|
|
|
2.7A |
SF48T-0602700AB |
SF48T-0652700AB |
SF48T-0702700AB |
SF48T-0752700AB |
SF48T-0802700AB |
|
|
2.6A |
SF48T-0602600AB |
SF48T-0652600AB |
SF48T-0702600AB |
SF48T-0752600AB |
SF48T-0802600AB |
SF48T-0852600AB |
|
2.5A |
SF48T-0602500AB |
SF48T-0652500AB |
SF48T-0702500AB |
SF48T-0752500AB |
SF48T-0802500AB |
SF48T-0852500AB |
|
2.4A |
SF48T-0602400AB |
SF48T-0652400AB |
SF48T-0702400AB |
SF48T-0752400AB |
SF48T-0802400AB |
SF48T-0852400AB |
|
2.3A |
SF48T-0602300AB |
SF48T-0652300AB |
SF48T-0702300AB |
SF48T-0752300AB |
SF48T-0802300AB |
SF48T-0852300AB |
|
2.2A |
SF48T-0602200AB |
SF48T-0652200AB |
SF48T-0702200AB |
SF48T-0752200AB |
SF48T-0802200AB |
SF48T-0852200AB |
|
2.1A |
SF48T-0602100AB |
SF48T-0652100AB |
SF48T-0702100AB |
SF48T-0752100AB |
SF48T-0802100AB |
SF48T-0852100AB |
|
2.0A |
SF48T-0602000AB |
SF48T-0652000AB |
SF48T-0702000AB |
SF48T-0752000AB |
SF48T-0802000AB |
SF48T-0852000AB |
|
1.9A |
SF48T-0601900AB |
SF48T-0651900AB |
SF48T-0701900AB |
SF48T-0751900AB |
SF48T-0801900AB |
SF48T-0851900AB |
|
1.8A |
SF48T-0601800AB |
SF48T-0651800AB |
SF48T-0701800AB |
SF48T-0751800AB |
SF48T-0801800AB |
SF48T-0851800AB |
|
1.7A |
SF48T-0601700AB |
SF48T-0651700AB |
SF48T-0701700AB |
SF48T-0751700AB |
SF48T-0801700AB |
SF48T-0851700AB |
|
1.6A |
SF48T-0601600AB |
SF48T-0651600AB |
SF48T-0701600AB |
SF48T-0751600AB |
SF48T-0801600AB |
SF48T-0851600AB |
|
1.5A |
SF48T-0601500AB |
SF48T-0651500AB |
SF48T-0701500AB |
SF48T-0751500AB |
SF48T-0801500AB |
SF48T-0851500AB |
|
1.4A |
SF48T-0601400AB |
SF48T-0651400AB |
SF48T-0701400AB |
SF48T-0751400AB |
SF48T-0801400AB |
SF48T-0851400AB |
|
1.3A |
SF48T-0601300AB |
SF48T-0651300AB |
SF48T-0701300AB |
SF48T-0751300AB |
SF48T-0801300AB |
SF48T-0851300AB |
|
1.2A |
SF48T-0601200AB |
SF48T-0651200AB |
SF48T-0701200AB |
SF48T-0751200AB |
SF48T-0801200AB |
SF48T-0851200AB |
|
1.1A |
|
|
|
|
SF48T-0801100AB |
SF48T-0851100AB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF48T-0303000AB |
SF48T-0353000AB |
SF48T-0403000AB |
SF48T-0453000AB |
SF48T-0503000AB |
SF48T-0553000AB |
|
2.9A |
SF48T-0302900AB |
SF48T-0352900AB |
SF48T-0402900AB |
SF48T-0452900AB |
SF48T-0502900AB |
SF48T-0552900AB |
|
2.8A |
SF48T-0302800AB |
SF48T-0352800AB |
SF48T-0402800AB |
SF48T-0452800AB |
SF48T-0502800AB |
SF48T-0552800AB |
|
2.7A |
SF48T-0302700AB |
SF48T-0352700AB |
SF48T-0402700AB |
SF48T-0452700AB |
SF48T-0502700AB |
SF48T-0552700AB |
|
2.6A |
SF48T-0302600AB |
SF48T-0352600AB |
SF48T-0402600AB |
SF48T-0452600AB |
SF48T-0502600AB |
SF48T-0552600AB |
|
2.5A |
SF48T-0302500AB |
SF48T-0352500AB |
SF48T-0402500AB |
SF48T-0452500AB |
SF48T-0502500AB |
SF48T-0552500AB |
|
2.4A |
SF48T-0302400AB |
SF48T-0352400AB |
SF48T-0402400AB |
SF48T-0452400AB |
SF48T-0502400AB |
SF48T-0552400AB |
|
2.3A |
SF48T-0302300AB |
SF48T-0352300AB |
SF48T-0402300AB |
SF48T-0452300AB |
SF48T-0502300AB |
SF48T-0552300AB |
|
2.2A |
SF48T-0302200AB |
SF48T-0352200AB |
SF48T-0402200AB |
SF48T-0452200AB |
SF48T-0502200AB |
SF48T-0552200AB |
|
2.1A |
SF48T-0302100AB |
SF48T-0352100AB |
SF48T-0402100AB |
SF48T-0452100AB |
SF48T-0502100AB |
SF48T-0552100AB |
|
2.0A |
SF48T-0302000AB |
SF48T-0352000AB |
SF48T-0402000AB |
SF48T-0452000AB |
SF48T-0502000AB |
SF48T-0552000AB |
|
1.9A |
SF48T-0301900AB |
SF48T-0351900AB |
SF48T-0401900AB |
SF48T-0451900AB |
SF48T-0501900AB |
SF48T-0551900AB |
|
1.8A |
SF48T-0301800AB |
SF48T-0351800AB |
SF48T-0401800AB |
SF48T-0451800AB |
SF48T-0501800AB |
SF48T-0551800AB |
|
1.7A |
SF48T-0301700AB |
SF48T-0351700AB |
SF48T-0401700AB |
SF48T-0451700AB |
SF48T-0501700AB |
SF48T-0551700AB |
|
1.6A |
SF48T-0301600AB |
SF48T-0351600AB |
SF48T-0401600AB |
SF48T-0451600AB |
SF48T-0501600AB |
SF48T-0551600AB |
|
1.5A |
|
SF48T-0351500AB |
SF48T-0401500AB |
SF48T-0451500AB |
SF48T-0501500AB |
SF48T-0551500AB |
|
1.4A |
|
|
|
SF48T-0451400AB |
SF48T-0501400AB |
SF48T-0551400AB |
|
1.3A |
|
|
|
SF48T-0451300AB |
SF48T-0501300AB |
SF48T-0551300AB |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
