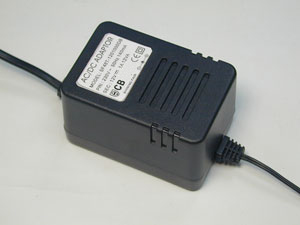

LINEAR ADAPTOR
DESKTOP
EI 48 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.2-2.2A |
|
|
|
Output Watt |
19.2VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
BS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
0.8A |
SF48T-2100800DB |
SF48T-2200800DB |
SF48T-2300800DB |
SF48T-2400800DB |
|
|
|
0.7A |
SF48T-2100700DB |
SF48T-2200700DB |
SF48T-2300700DB |
SF48T-2400700DB |
|
|
|
0.6A |
SF48T-2100600DB |
SF48T-2200600DB |
SF48T-2300600DB |
SF48T-2400600DB |
|
|
|
0.5A |
SF48T-2100500DB |
SF48T-2200500DB |
SF48T-2300500DB |
SF48T-2400500DB |
|
|
|
0.4A |
SF48T-2100400DB |
SF48T-2200400DB |
SF48T-2300400DB |
SF48T-2400400DB |
|
|
|
0.3A |
SF48T-2100300DB |
SF48T-2200300DB |
SF48T-2300300DB |
SF48T-2400300DB |
|
|
|
0.2A |
SF48T-2100200DB |
SF48T-2200200DB |
SF48T-2300200DB |
SF48T-2400200DB |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.1A |
SF48T-1501100DB |
|
|
|
|
|
|
1.0A |
SF48T-1501000DB |
SF48T-1601000DB |
SF48T-1701000DB |
SF48T-1801000DB |
|
|
|
0.9A |
SF48T-1500900DB |
SF48T-1600900DB |
SF48T-1700900DB |
SF48T-1800900DB |
SF48T-1900900DB |
SF48T-2000900DB |
|
0.8A |
SF48T-1500800DB |
SF48T-1600800DB |
SF48T-1700800DB |
SF48T-1800800DB |
SF48T-1900800DB |
SF48T-2000800DB |
|
0.7A |
SF48T-1500700DB |
SF48T-1600700DB |
SF48T-1700700DB |
SF48T-1800700DB |
SF48T-1900700DB |
SF48T-2000700DB |
|
0.6A |
SF48T-1500600DB |
SF48T-1600600DB |
SF48T-1700600DB |
SF48T-1800600DB |
SF48T-1900600DB |
SF48T-2000600DB |
|
0.5A |
SF48T-1500500DB |
SF48T-1600500DB |
SF48T-1700500DB |
SF48T-1800500DB |
SF48T-1900500DB |
SF48T-2000500DB |
|
0.4A |
SF48T-1500400DB |
SF48T-1600400DB |
SF48T-1700400DB |
SF48T-1800400DB |
SF48T-1900400DB |
SF48T-2000400DB |
|
0.3A |
|
SF48T-1600300DB |
SF48T-1700300DB |
SF48T-1800300DB |
SF48T-1900300DB |
SF48T-2000300DB |
|
0.2A |
|
|
|
|
|
SF48T-2000200DB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.4A |
SF48T-1201400DB |
|
|
|
|
|
|
1.3A |
SF48T-1201300DB |
SF48T-1251300DB |
|
|
|
|
|
1.2A |
SF48T-1201200DB |
SF48T-1251200DB |
SF48T-1301200DB |
SF48T-1351200DB |
|
|
|
1.1A |
SF48T-1201100DB |
SF48T-1251100DB |
SF48T-1301100DB |
SF48T-1351100DB |
SF48T-1401100DB |
SF48T-1451100DB |
|
1.0A |
SF48T-1201000DB |
SF48T-1251000DB |
SF48T-1301000DB |
SF48T-1351000DB |
SF48T-1401000DB |
SF48T-1451000DB |
|
0.9A |
SF48T-1200900DB |
SF48T-1250900DB |
SF48T-1300900DB |
SF48T-1350900DB |
SF48T-1400900DB |
SF48T-1450900DB |
|
0.8A |
SF48T-1200800DB |
SF48T-1250800DB |
SF48T-1300800DB |
SF48T-1350800DB |
SF48T-1400800DB |
SF48T-1450800DB |
|
0.7A |
SF48T-1200700DB |
SF48T-1250700DB |
SF48T-1300700DB |
SF48T-1350700DB |
SF48T-1400700DB |
SF48T-1450700DB |
|
0.6A |
SF48T-1200600DB |
SF48T-1250600DB |
SF48T-1300600DB |
SF48T-1350600DB |
SF48T-1400600DB |
SF48T-1450600DB |
|
0.5A |
SF48T-1200500DB |
SF48T-1250500DB |
SF48T-1300500DB |
SF48T-1350500DB |
SF48T-1400500DB |
SF48T-1450500DB |
|
0.4A |
|
SF48T-1250400DB |
SF48T-1300400DB |
SF48T-1350400DB |
SF48T-1400400DB |
SF48T-1450400DB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.7A |
SF48T-0901700DB |
|
|
|
|
|
|
1.6A |
SF48T-0901600DB |
SF48T-0951600DB |
|
|
|
|
|
1.5A |
SF48T-0901500DB |
SF48T-0951500DB |
SF48T-1001500DB |
SF48T-1051500DB |
|
|
|
1.4A |
SF48T-0901400DB |
SF48T-0951400DB |
SF48T-1001400DB |
SF48T-1051400DB |
SF48T-1101400DB |
SF48T-1151400DB |
|
1.3A |
SF48T-0901300DB |
SF48T-0951300DB |
SF48T-1001300DB |
SF48T-1051300DB |
SF48T-1101300DB |
SF48T-1151300DB |
|
1.2A |
SF48T-0901200DB |
SF48T-0951200DB |
SF48T-1001200DB |
SF48T-1051200DB |
SF48T-1101200DB |
SF48T-1151200DB |
|
1.1A |
SF48T-0901100DB |
SF48T-0951100DB |
SF48T-1001100DB |
SF48T-1051100DB |
SF48T-1101100DB |
SF48T-1151100DB |
|
1.0A |
SF48T-0901000DB |
SF48T-0951000DB |
SF48T-1001000DB |
SF48T-1051000DB |
SF48T-1101000DB |
SF48T-1151000DB |
|
0.9A |
SF48T-0900900DB |
SF48T-0950900DB |
SF48T-1000900DB |
SF48T-1050900DB |
SF48T-1100900DB |
SF48T-1150900DB |
|
0.8A |
SF48T-0900800DB |
SF48T-0950800DB |
SF48T-1000800DB |
SF48T-1050800DB |
SF48T-1100800DB |
SF48T-1150800DB |
|
0.7A |
SF48T-0900700DB |
SF48T-0950700DB |
SF48T-1000700DB |
SF48T-1050700DB |
SF48T-1100700DB |
SF48T-1150700DB |
|
0.6A |
SF48T-0900600DB |
SF48T-0950600DB |
SF48T-1000600DB |
SF48T-1050600DB |
SF48T-1100600DB |
SF48T-1150600DB |
|
0.5A |
|
SF48T-0950500DB |
SF48T-1000500DB |
SF48T-1050500DB |
SF48T-1100500DB |
SF48T-1150500DB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.0A |
SF48T-0602000DB |
SF48T-0652000DB |
SF48T-0702000DB |
SF48T-0752000DB |
|
|
|
1.9A |
SF48T-0601900DB |
SF48T-0651900DB |
SF48T-0701900DB |
SF48T-0751900DB |
SF48T-0801900DB |
|
|
1.8A |
SF48T-0601800DB |
SF48T-0651800DB |
SF48T-0701800DB |
SF48T-0751800DB |
SF48T-0801800DB |
SF48T-0851800DB |
|
1.7A |
SF48T-0601700DB |
SF48T-0651700DB |
SF48T-0701700DB |
SF48T-0751700DB |
SF48T-0801700DB |
SF48T-0851700DB |
|
1.6A |
SF48T-0601600DB |
SF48T-0651600DB |
SF48T-0701600DB |
SF48T-0751600DB |
SF48T-0801600DB |
SF48T-0851600DB |
|
1.5A |
SF48T-0601500DB |
SF48T-0651500DB |
SF48T-0701500DB |
SF48T-0751500DB |
SF48T-0801500DB |
SF48T-0851500DB |
|
1.4A |
SF48T-0601400DB |
SF48T-0651400DB |
SF48T-0701400DB |
SF48T-0751400DB |
SF48T-0801400DB |
SF48T-0851400DB |
|
1.3A |
SF48T-0601300DB |
SF48T-0651300DB |
SF48T-0701300DB |
SF48T-0751300DB |
SF48T-0801300DB |
SF48T-0851300DB |
|
1.2A |
SF48T-0601200DB |
SF48T-0651200DB |
SF48T-0701200DB |
SF48T-0751200DB |
SF48T-0801200DB |
SF48T-0851200DB |
|
1.1A |
SF48T-0601100DB |
SF48T-0651100DB |
SF48T-0701100DB |
SF48T-0751100DB |
SF48T-0801100DB |
SF48T-0851100DB |
|
1.0A |
SF48T-0601000DB |
SF48T-0651000DB |
SF48T-0701000DB |
SF48T-0751000DB |
SF48T-0801000DB |
SF48T-0851000DB |
|
0.9A |
|
SF48T-0650900DB |
SF48T-0700900DB |
SF48T-0750900DB |
SF48T-0800900DB |
SF48T-0850900DB |
|
0.8A |
|
|
SF48T-0700800DB |
SF48T-0750800DB |
SF48T-0800800DB |
SF48T-0850800DB |
|
0.7A |
|
|
|
|
SF48T-0800700DB |
SF48T-0850700DB |
|
0.6A |
|
|
|
|
|
SF48T-0850600DB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.2A |
|
SF48T-0352200DB |
SF48T-0402200DB |
SF48T-0452200DB |
|
|
|
2.1A |
SF48T-0302100DB |
SF48T-0352100DB |
SF48T-0402100DB |
SF48T-0452100DB |
|
|
|
2.0A |
SF48T-0302000DB |
SF48T-0352000DB |
SF48T-0402000DB |
SF48T-0452000DB |
SF48T-0502000DB |
SF48T-0552000DB |
|
1.9A |
SF48T-0301900DB |
SF48T-0351900DB |
SF48T-0401900DB |
SF48T-0451900DB |
SF48T-0501900DB |
SF48T-0551900DB |
|
1.8A |
SF48T-0301800DB |
SF48T-0351800DB |
SF48T-0401800DB |
SF48T-0451800DB |
SF48T-0501800DB |
SF48T-0551800DB |
|
1.7A |
SF48T-0301700DB |
SF48T-0351700DB |
SF48T-0401700DB |
SF48T-0451700DB |
SF48T-0501700DB |
SF48T-0551700DB |
|
1.6A |
SF48T-0301600DB |
SF48T-0351600DB |
SF48T-0401600DB |
SF48T-0451600DB |
SF48T-0501600DB |
SF48T-0551600DB |
|
1.5A |
SF48T-0301500DB |
SF48T-0351500DB |
SF48T-0401500DB |
SF48T-0451500DB |
SF48T-0501500DB |
SF48T-0551500DB |
|
1.4A |
|
|
SF48T-0401400DB |
SF48T-0451400DB |
SF48T-0501400DB |
SF48T-0551400DB |
|
1.3A |
|
|
|
SF48T-0451300DB |
SF48T-0501300DB |
SF48T-0551300DB |
|
1.2A |
|
|
|
|
SF48T-0501200DB |
SF48T-0551200DB |
|
1.1A |
|
|
|
|
|
SF48T-0551100DB |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
