LINEAR ADAPTOR
WALLMOUNT - DUAL OUTPUT
EI 48 AC TO AC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-24V AC, S2:1-24V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-1.7A, S2:0.1-1.7A |
|
|
|
Output Watt |
24VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to AC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
The options of the dual output is limited to each output value |
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF48-aaaYYaaaYYAU |
3V AC |
1.7A |
3V AC |
1.7A |
10.2VA |
|
x = b |
SF48-bbbYYbbbYYAU |
6V AC |
1.5A |
6V AC |
1.5A |
18VA |
|
x = c |
SF48-cccYYcccYYAU |
9V AC |
1.1A |
9V AC |
1.1A |
19.8VA |
|
x = d |
SF48-dddYYdddYYAU |
12V AC |
0.9A |
12V AC |
0.9A |
21.6VA |
|
x = e |
SF48-eeeYYeeeYYAU |
14V AC |
0.8A |
14V AC |
0.8A |
22.4VA |
|
x = f |
SF48-fffYYfffYYAU |
17V AC |
0.7A |
17V AC |
0.7A |
23.8VA |
|
x = g |
SF48-gggYYgggYYAU |
19V AC |
0.6A |
19V AC |
0.6A |
22.8VA |
|
x = h |
SF48-hhhYYhhhYYAU |
24V AC |
0.4A |
24V AC |
0.5A |
24VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF48-0151003007AU |
1.5V AC |
1A |
3V AC |
0.7A |
3.6VA |
|
|
SF48-0301703017AU |
3V AC |
1.7A |
3V AC |
1.7A |
10.2VA |
|
|
SF48-0301706015AU |
3V AC |
1.7A |
6V AC |
1.5A |
14.1VA |
|
|
SF48-0501505015AU |
5V AC |
1.5A |
5V AC |
1.5A |
15VA |
|
|
SF48-0301709011AU |
3V AC |
1.7A |
9V AC |
1.1A |
15VA |
|
|
SF48-0751112009AU |
7.5V AC |
1.1A |
12V AC |
0.9A |
19.05VA |
|
|
SF48-0451524004AU |
4.5V AC |
1.5A |
24V AC |
0.4A |
16.35VA |
|
|
SF48-1350722005AU |
13.5V AC |
0.7A |
22V AC |
0.5A |
20.45VA |
|
|
SF48-2400424005AU |
24V AC |
0.4A |
24V AC |
0.5A |
21.6VA |
|

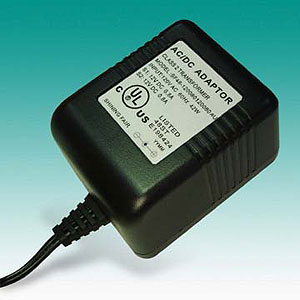

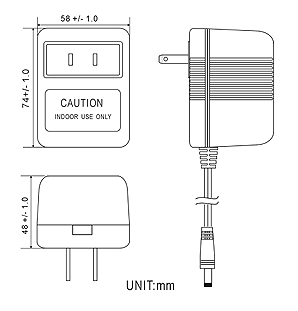

A-TYPE

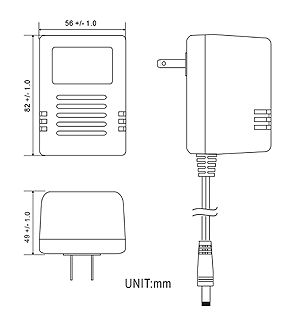

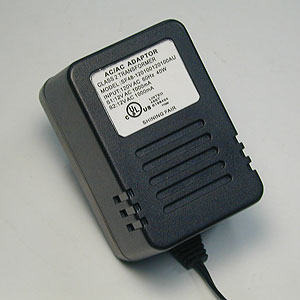

B-TYPE
 |
 |
 |
 |
 |
 |
