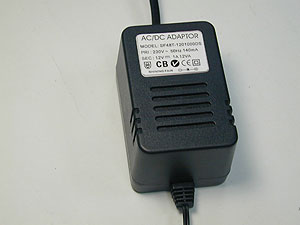

LINEAR ADAPTOR
DESKTOP
EI 48 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-2.2A |
|
|
|
Output Watt |
19.2VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
SAA/C-tick/CB |
AS/NZS 60950/AS/NZS 61558 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
0.8A |
SF48T-2100800DS |
SF48T-2200800DS |
SF48T-2300800DS |
SF48T-2400800DS |
|
|
|
0.7A |
SF48T-2100700DS |
SF48T-2200700DS |
SF48T-2300700DS |
SF48T-2400700DS |
|
|
|
0.6A |
SF48T-2100600DS |
SF48T-2200600DS |
SF48T-2300600DS |
SF48T-2400600DS |
|
|
|
0.5A |
SF48T-2100500DS |
SF48T-2200500DS |
SF48T-2300500DS |
SF48T-2400500DS |
|
|
|
0.4A |
SF48T-2100400DS |
SF48T-2200400DS |
SF48T-2300400DS |
SF48T-2400400DS |
|
|
|
0.3A |
SF48T-2100300DS |
SF48T-2200300DS |
SF48T-2300300DS |
SF48T-2400300DS |
|
|
|
0.2A |
SF48T-2100200DS |
SF48T-2200200DS |
SF48T-2300200DS |
SF48T-2400200DS |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.1A |
SF48T-1501100DS |
|
|
|
|
|
|
1.0A |
SF48T-1501000DS |
SF48T-1601000DS |
SF48T-1701000DS |
SF48T-1801000DS |
|
|
|
0.9A |
SF48T-1500900DS |
SF48T-1600900DS |
SF48T-1700900DS |
SF48T-1800900DS |
SF48T-1900900DS |
SF48T-2000900DS |
|
0.8A |
SF48T-1500800DS |
SF48T-1600800DS |
SF48T-1700800DS |
SF48T-1800800DS |
SF48T-1900800DS |
SF48T-2000800DS |
|
0.7A |
SF48T-1500700DS |
SF48T-1600700DS |
SF48T-1700700DS |
SF48T-1800700DS |
SF48T-1900700DS |
SF48T-2000700DS |
|
0.6A |
SF48T-1500600DS |
SF48T-1600600DS |
SF48T-1700600DS |
SF48T-1800600DS |
SF48T-1900600DS |
SF48T-2000600DS |
|
0.5A |
SF48T-1500500DS |
SF48T-1600500DS |
SF48T-1700500DS |
SF48T-1800500DS |
SF48T-1900500DS |
SF48T-2000500DS |
|
0.4A |
SF48T-1500400DS |
SF48T-1600400DS |
SF48T-1700400DS |
SF48T-1800400DS |
SF48T-1900400DS |
SF48T-2000400DS |
|
0.3A |
|
SF48T-1600300DS |
SF48T-1700300DS |
SF48T-1800300DS |
SF48T-1900300DS |
SF48T-2000300DS |
|
0.2A |
|
|
|
|
|
SF48T-2000200DS |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.4A |
SF48T-1201400DS |
|
|
|
|
|
|
1.3A |
SF48T-1201300DS |
SF48T-1251300DS |
|
|
|
|
|
1.2A |
SF48T-1201200DS |
SF48T-1251200DS |
SF48T-1301200DS |
SF48T-1351200DS |
|
|
|
1.1A |
SF48T-1201100DS |
SF48T-1251100DS |
SF48T-1301100DS |
SF48T-1351100DS |
SF48T-1401100DS |
SF48T-1451100DS |
|
1.0A |
SF48T-1201000DS |
SF48T-1251000DS |
SF48T-1301000DS |
SF48T-1351000DS |
SF48T-1401000DS |
SF48T-1451000DS |
|
0.9A |
SF48T-1200900DS |
SF48T-1250900DS |
SF48T-1300900DS |
SF48T-1350900DS |
SF48T-1400900DS |
SF48T-1450900DS |
|
0.8A |
SF48T-1200800DS |
SF48T-1250800DS |
SF48T-1300800DS |
SF48T-1350800DS |
SF48T-1400800DS |
SF48T-1450800DS |
|
0.7A |
SF48T-1200700DS |
SF48T-1250700DS |
SF48T-1300700DS |
SF48T-1350700DS |
SF48T-1400700DS |
SF48T-1450700DS |
|
0.6A |
SF48T-1200600DS |
SF48T-1250600DS |
SF48T-1300600DS |
SF48T-1350600DS |
SF48T-1400600DS |
SF48T-1450600DS |
|
0.5A |
SF48T-1200500DS |
SF48T-1250500DS |
SF48T-1300500DS |
SF48T-1350500DS |
SF48T-1400500DS |
SF48T-1450500DS |
|
0.4A |
|
SF48T-1250400DS |
SF48T-1300400DS |
SF48T-1350400DS |
SF48T-1400400DS |
SF48T-1450400DS |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.7A |
SF48T-0901700DS |
|
|
|
|
|
|
1.6A |
SF48T-0901600DS |
SF48T-0951600DS |
|
|
|
|
|
1.5A |
SF48T-0901500DS |
SF48T-0951500DS |
SF48T-1001500DS |
SF48T-1051500DS |
|
|
|
1.4A |
SF48T-0901400DS |
SF48T-0951400DS |
SF48T-1001400DS |
SF48T-1051400DS |
SF48T-1101400DS |
SF48T-1151400DS |
|
1.3A |
SF48T-0901300DS |
SF48T-0951300DS |
SF48T-1001300DS |
SF48T-1051300DS |
SF48T-1101300DS |
SF48T-1151300DS |
|
1.2A |
SF48T-0901200DS |
SF48T-0951200DS |
SF48T-1001200DS |
SF48T-1051200DS |
SF48T-1101200DS |
SF48T-1151200DS |
|
1.1A |
SF48T-0901100DS |
SF48T-0951100DS |
SF48T-1001100DS |
SF48T-1051100DS |
SF48T-1101100DS |
SF48T-1151100DS |
|
1.0A |
SF48T-0901000DS |
SF48T-0951000DS |
SF48T-1001000DS |
SF48T-1051000DS |
SF48T-1101000DS |
SF48T-1151000DS |
|
0.9A |
SF48T-0900900DS |
SF48T-0950900DS |
SF48T-1000900DS |
SF48T-1050900DS |
SF48T-1100900DS |
SF48T-1150900DS |
|
0.8A |
SF48T-0900800DS |
SF48T-0950800DS |
SF48T-1000800DS |
SF48T-1050800DS |
SF48T-1100800DS |
SF48T-1150800DS |
|
0.7A |
SF48T-0900700DS |
SF48T-0950700DS |
SF48T-1000700DS |
SF48T-1050700DS |
SF48T-1100700DS |
SF48T-1150700DS |
|
0.6A |
SF48T-0900600DS |
SF48T-0950600DS |
SF48T-1000600DS |
SF48T-1050600DS |
SF48T-1100600DS |
SF48T-1150600DS |
|
0.5A |
|
SF48T-0950500DS |
SF48T-1000500DS |
SF48T-1050500DS |
SF48T-1100500DS |
SF48T-1150500DS |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.0A |
SF48T-0602000DS |
SF48T-0652000DS |
SF48T-0702000DS |
SF48T-0752000DS |
|
|
|
1.9A |
SF48T-0601900DS |
SF48T-0651900DS |
SF48T-0701900DS |
SF48T-0751900DS |
SF48T-0801900DS |
|
|
1.8A |
SF48T-0601800DS |
SF48T-0651800DS |
SF48T-0701800DS |
SF48T-0751800DS |
SF48T-0801800DS |
SF48T-0851800DS |
|
1.7A |
SF48T-0601700DS |
SF48T-0651700DS |
SF48T-0701700DS |
SF48T-0751700DS |
SF48T-0801700DS |
SF48T-0851700DS |
|
1.6A |
SF48T-0601600DS |
SF48T-0651600DS |
SF48T-0701600DS |
SF48T-0751600DS |
SF48T-0801600DS |
SF48T-0851600DS |
|
1.5A |
SF48T-0601500DS |
SF48T-0651500DS |
SF48T-0701500DS |
SF48T-0751500DS |
SF48T-0801500DS |
SF48T-0851500DS |
|
1.4A |
SF48T-0601400DS |
SF48T-0651400DS |
SF48T-0701400DS |
SF48T-0751400DS |
SF48T-0801400DS |
SF48T-0851400DS |
|
1.3A |
SF48T-0601300DS |
SF48T-0651300DS |
SF48T-0701300DS |
SF48T-0751300DS |
SF48T-0801300DS |
SF48T-0851300DS |
|
1.2A |
SF48T-0601200DS |
SF48T-0651200DS |
SF48T-0701200DS |
SF48T-0751200DS |
SF48T-0801200DS |
SF48T-0851200DS |
|
1.1A |
SF48T-0601100DS |
SF48T-0651100DS |
SF48T-0701100DS |
SF48T-0751100DS |
SF48T-0801100DS |
SF48T-0851100DS |
|
1.0A |
SF48T-0601000DS |
SF48T-0651000DS |
SF48T-0701000DS |
SF48T-0751000DS |
SF48T-0801000DS |
SF48T-0851000DS |
|
0.9A |
|
SF48T-0650900DS |
SF48T-0700900DS |
SF48T-0750900DS |
SF48T-0800900DS |
SF48T-0850900DS |
|
0.8A |
|
|
SF48T-0700800DS |
SF48T-0750800DS |
SF48T-0800800DS |
SF48T-0850800DS |
|
0.7A |
|
|
|
|
SF48T-0800700DS |
SF48T-0850700DS |
|
0.6A |
|
|
|
|
|
SF48T-0850600DS |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.2A |
|
SF48T-0352200DS |
SF48T-0402200DS |
SF48T-0452200DS |
|
|
|
2.1A |
SF48T-0302100DS |
SF48T-0352100DS |
SF48T-0402100DS |
SF48T-0452100DS |
|
|
|
2.0A |
SF48T-0302000DS |
SF48T-0352000DS |
SF48T-0402000DS |
SF48T-0452000DS |
SF48T-0502000DS |
SF48T-0552000DS |
|
1.9A |
SF48T-0301900DS |
SF48T-0351900DS |
SF48T-0401900DS |
SF48T-0451900DS |
SF48T-0501900DS |
SF48T-0551900DS |
|
1.8A |
SF48T-0301800DS |
SF48T-0351800DS |
SF48T-0401800DS |
SF48T-0451800DS |
SF48T-0501800DS |
SF48T-0551800DS |
|
1.7A |
SF48T-0301700DS |
SF48T-0351700DS |
SF48T-0401700DS |
SF48T-0451700DS |
SF48T-0501700DS |
SF48T-0551700DS |
|
1.6A |
SF48T-0301600DS |
SF48T-0351600DS |
SF48T-0401600DS |
SF48T-0451600DS |
SF48T-0501600DS |
SF48T-0551600DS |
|
1.5A |
SF48T-0301500DS |
SF48T-0351500DS |
SF48T-0401500DS |
SF48T-0451500DS |
SF48T-0501500DS |
SF48T-0551500DS |
|
1.4A |
|
|
SF48T-0401400DS |
SF48T-0451400DS |
SF48T-0501400DS |
SF48T-0551400DS |
|
1.3A |
|
|
|
SF48T-0451300DS |
SF48T-0501300DS |
SF48T-0551300DS |
|
1.2A |
|
|
|
|
SF48T-0501200DS |
SF48T-0551200DS |
|
1.1A |
|
|
|
|
|
SF48T-0551100DS |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
