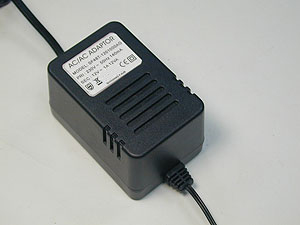

LINEAR ADAPTOR
DESKTOP
EI 48 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-3A |
|
|
|
Output Watt |
24.7VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
GS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.1A |
SF48T-2101100AG |
SF48T-2201100AG |
|
|
|
|
|
1.0A |
SF48T-2101000AG |
SF48T-2201000AG |
SF48T-2301000AG |
SF48T-2401000AG |
|
|
|
0.9A |
SF48T-2100900AG |
SF48T-2200900AG |
SF48T-2300900AG |
SF48T-2400900AG |
|
|
|
0.8A |
SF48T-2100800AG |
SF48T-2200800AG |
SF48T-2300800AG |
SF48T-2400800AG |
|
|
|
0.7A |
SF48T-2100700AG |
SF48T-2200700AG |
SF48T-2300700AG |
SF48T-2400700AG |
|
|
|
0.6A |
SF48T-2100600AG |
SF48T-2200600AG |
SF48T-2300600AG |
SF48T-2400600AG |
|
|
|
0.5A |
SF48T-2100500AG |
SF48T-2200500AG |
SF48T-2300500AG |
SF48T-2400500AG |
|
|
|
0.4A |
SF48T-2100400AG |
SF48T-2200400AG |
SF48T-2300400AG |
SF48T-2400400AG |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF48T-1501600AG |
|
|
|
|
|
|
1.5A |
SF48T-1501500AG |
SF48T-1601500AG |
|
|
|
|
|
1.4A |
SF48T-1501400AG |
SF48T-1601400AG |
SF48T-1701400AG |
|
|
|
|
1.3A |
SF48T-1501300AG |
SF48T-1601300AG |
SF48T-1701300AG |
SF48T-1801300AG |
SF48T-1901300AG |
|
|
1.2A |
SF48T-1501200AG |
SF48T-1601200AG |
SF48T-1701200AG |
SF48T-1801200AG |
SF48T-1901200AG |
SF48T-2001200AG |
|
1.1A |
SF48T-1501100AG |
SF48T-1601100AG |
SF48T-1701100AG |
SF48T-1801100AG |
SF48T-1901100AG |
SF48T-2001100AG |
|
1.0A |
SF48T-1501000AG |
SF48T-1601000AG |
SF48T-1701000AG |
SF48T-1801000AG |
SF48T-1901000AG |
SF48T-2001000AG |
|
0.9A |
SF48T-1500900AG |
SF48T-1600900AG |
SF48T-1700900AG |
SF48T-1800900AG |
SF48T-1900900AG |
SF48T-2000900AG |
|
0.8A |
SF48T-1500800AG |
SF48T-1600800AG |
SF48T-1700800AG |
SF48T-1800800AG |
SF48T-1900800AG |
SF48T-2000800AG |
|
0.7A |
SF48T-1500700AG |
SF48T-1600700AG |
SF48T-1700700AG |
SF48T-1800700AG |
SF48T-1900700AG |
SF48T-2000700AG |
|
0.6A |
SF48T-1500600AG |
SF48T-1600600AG |
SF48T-1700600AG |
SF48T-1800600AG |
SF48T-1900600AG |
SF48T-2000600AG |
|
0.5A |
|
|
SF48T-1700500AG |
SF48T-1800500AG |
SF48T-1900500AG |
SF48T-2000500AG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF48T-1202000AG |
|
|
|
|
|
|
1.9A |
SF48T-1201900AG |
SF48T-1251900AG |
|
|
|
|
|
1.8A |
SF48T-1201800AG |
SF48T-1251800AG |
SF48T-1301800AG |
|
|
|
|
1.7A |
SF48T-1201700AG |
SF48T-1251700AG |
SF48T-1301700AG |
SF48T-1351700AG |
SF48T-1401700AG |
|
|
1.6A |
SF48T-1201600AG |
SF48T-1251600AG |
SF48T-1301600AG |
SF48T-1351600AG |
SF48T-1401600AG |
SF48T-1451600AG |
|
1.5A |
SF48T-1201500AG |
SF48T-1251500AG |
SF48T-1301500AG |
SF48T-1351500AG |
SF48T-1401500AG |
SF48T-1451500AG |
|
1.4A |
SF48T-1201400AG |
SF48T-1251400AG |
SF48T-1301400AG |
SF48T-1351400AG |
SF48T-1401400AG |
SF48T-1451400AG |
|
1.3A |
SF48T-1201300AG |
SF48T-1251300AG |
SF48T-1301300AG |
SF48T-1351300AG |
SF48T-1401300AG |
SF48T-1451300AG |
|
1.2A |
SF48T-1201200AG |
SF48T-1251200AG |
SF48T-1301200AG |
SF48T-1351200AG |
SF48T-1401200AG |
SF48T-1451200AG |
|
1.1A |
SF48T-1201100AG |
SF48T-1251100AG |
SF48T-1301100AG |
SF48T-1351100AG |
SF48T-1401100AG |
SF48T-1451100AG |
|
1.0A |
SF48T-1201000AG |
SF48T-1251000AG |
SF48T-1301000AG |
SF48T-1351000AG |
SF48T-1401000AG |
SF48T-1451000AG |
|
0.9A |
SF48T-1200900AG |
SF48T-1250900AG |
SF48T-1300900AG |
SF48T-1350900AG |
SF48T-1400900AG |
SF48T-1450900AG |
|
0.8A |
SF48T-1200800AG |
SF48T-1250800AG |
SF48T-1300800AG |
SF48T-1350800AG |
SF48T-1400800AG |
SF48T-1450800AG |
|
0.7A |
|
|
SF48T-1300700AG |
SF48T-1350700AG |
SF48T-1400700AG |
SF48T-1450700AG |
|
0.6A |
|
|
|
|
|
SF48T-1450600AG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF48T-0902500AG |
|
|
|
|
|
|
2.4A |
SF48T-0902400AG |
SF48T-0952400AG |
|
|
|
|
|
2.3A |
SF48T-0902300AG |
SF48T-0952300AG |
SF48T-1002300AG |
|
|
|
|
2.2A |
SF48T-0902200AG |
SF48T-0952200AG |
SF48T-1002200AG |
SF48T-1052200AG |
|
|
|
2.1A |
SF48T-0902100AG |
SF48T-0952100AG |
SF48T-1002100AG |
SF48T-1052100AG |
SF48T-1102100AG |
|
|
2.0A |
SF48T-0902000AG |
SF48T-0952000AG |
SF48T-1002000AG |
SF48T-1052000AG |
SF48T-1102000AG |
SF48T-1152000AG |
|
1.9A |
SF48T-0901900AG |
SF48T-0951900AG |
SF48T-1001900AG |
SF48T-1051900AG |
SF48T-1101900AG |
SF48T-1151900AG |
|
1.8A |
SF48T-0901800AG |
SF48T-0951800AG |
SF48T-1001800AG |
SF48T-1051800AG |
SF48T-1101800AG |
SF48T-1151800AG |
|
1.7A |
SF48T-0901700AG |
SF48T-0951700AG |
SF48T-1001700AG |
SF48T-1051700AG |
SF48T-1101700AG |
SF48T-1151700AG |
|
1.6A |
SF48T-0901600AG |
SF48T-0951600AG |
SF48T-1001600AG |
SF48T-1051600AG |
SF48T-1101600AG |
SF48T-1151600AG |
|
1.5A |
SF48T-0901500AG |
SF48T-0951500AG |
SF48T-1001500AG |
SF48T-1051500AG |
SF48T-1101500AG |
SF48T-1151500AG |
|
1.4A |
SF48T-0901400AG |
SF48T-0951400AG |
SF48T-1001400AG |
SF48T-1051400AG |
SF48T-1101400AG |
SF48T-1151400AG |
|
1.3A |
SF48T-0901300AG |
SF48T-0951300AG |
SF48T-1001300AG |
SF48T-1051300AG |
SF48T-1101300AG |
SF48T-1151300AG |
|
1.2A |
SF48T-0901200AG |
SF48T-0951200AG |
SF48T-1001200AG |
SF48T-1051200AG |
SF48T-1101200AG |
SF48T-1151200AG |
|
1.1A |
SF48T-0901100AG |
SF48T-0951100AG |
SF48T-1001100AG |
SF48T-1051100AG |
SF48T-1101100AG |
SF48T-1151100AG |
|
1.0A |
|
SF48T-0951000AG |
SF48T-1001000AG |
SF48T-1051000AG |
SF48T-1101000AG |
SF48T-1151000AG |
|
0.9A |
|
|
SF48T-1000900AG |
SF48T-1050900AG |
SF48T-1100900AG |
SF48T-1150900AG |
|
0.8A |
|
|
|
|
|
SF48T-1150800AG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF48T-0603000AG |
SF48T-0653000AG |
|
|
|
|
|
2.9A |
SF48T-0602900AG |
SF48T-0652900AG |
SF48T-0702900AG |
|
|
|
|
2.8A |
SF48T-0602800AG |
SF48T-0652800AG |
SF48T-0702800AG |
SF48T-0752800AG |
|
|
|
2.7A |
SF48T-0602700AG |
SF48T-0652700AG |
SF48T-0702700AG |
SF48T-0752700AG |
SF48T-0802700AG |
|
|
2.6A |
SF48T-0602600AG |
SF48T-0652600AG |
SF48T-0702600AG |
SF48T-0752600AG |
SF48T-0802600AG |
SF48T-0852600AG |
|
2.5A |
SF48T-0602500AG |
SF48T-0652500AG |
SF48T-0702500AG |
SF48T-0752500AG |
SF48T-0802500AG |
SF48T-0852500AG |
|
2.4A |
SF48T-0602400AG |
SF48T-0652400AG |
SF48T-0702400AG |
SF48T-0752400AG |
SF48T-0802400AG |
SF48T-0852400AG |
|
2.3A |
SF48T-0602300AG |
SF48T-0652300AG |
SF48T-0702300AG |
SF48T-0752300AG |
SF48T-0802300AG |
SF48T-0852300AG |
|
2.2A |
SF48T-0602200AG |
SF48T-0652200AG |
SF48T-0702200AG |
SF48T-0752200AG |
SF48T-0802200AG |
SF48T-0852200AG |
|
2.1A |
SF48T-0602100AG |
SF48T-0652100AG |
SF48T-0702100AG |
SF48T-0752100AG |
SF48T-0802100AG |
SF48T-0852100AG |
|
2.0A |
SF48T-0602000AG |
SF48T-0652000AG |
SF48T-0702000AG |
SF48T-0752000AG |
SF48T-0802000AG |
SF48T-0852000AG |
|
1.9A |
SF48T-0601900AG |
SF48T-0651900AG |
SF48T-0701900AG |
SF48T-0751900AG |
SF48T-0801900AG |
SF48T-0851900AG |
|
1.8A |
SF48T-0601800AG |
SF48T-0651800AG |
SF48T-0701800AG |
SF48T-0751800AG |
SF48T-0801800AG |
SF48T-0851800AG |
|
1.7A |
SF48T-0601700AG |
SF48T-0651700AG |
SF48T-0701700AG |
SF48T-0751700AG |
SF48T-0801700AG |
SF48T-0851700AG |
|
1.6A |
SF48T-0601600AG |
SF48T-0651600AG |
SF48T-0701600AG |
SF48T-0751600AG |
SF48T-0801600AG |
SF48T-0851600AG |
|
1.5A |
SF48T-0601500AG |
SF48T-0651500AG |
SF48T-0701500AG |
SF48T-0751500AG |
SF48T-0801500AG |
SF48T-0851500AG |
|
1.4A |
SF48T-0601400AG |
SF48T-0651400AG |
SF48T-0701400AG |
SF48T-0751400AG |
SF48T-0801400AG |
SF48T-0851400AG |
|
1.3A |
SF48T-0601300AG |
SF48T-0651300AG |
SF48T-0701300AG |
SF48T-0751300AG |
SF48T-0801300AG |
SF48T-0851300AG |
|
1.2A |
SF48T-0601200AG |
SF48T-0651200AG |
SF48T-0701200AG |
SF48T-0751200AG |
SF48T-0801200AG |
SF48T-0851200AG |
|
1.1A |
|
|
|
|
SF48T-0801100AG |
SF48T-0851100AG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF48T-0303000AG |
SF48T-0353000AG |
SF48T-0403000AG |
SF48T-0453000AG |
SF48T-0503000AG |
SF48T-0553000AG |
|
2.9A |
SF48T-0302900AG |
SF48T-0352900AG |
SF48T-0402900AG |
SF48T-0452900AG |
SF48T-0502900AG |
SF48T-0552900AG |
|
2.8A |
SF48T-0302800AG |
SF48T-0352800AG |
SF48T-0402800AG |
SF48T-0452800AG |
SF48T-0502800AG |
SF48T-0552800AG |
|
2.7A |
SF48T-0302700AG |
SF48T-0352700AG |
SF48T-0402700AG |
SF48T-0452700AG |
SF48T-0502700AG |
SF48T-0552700AG |
|
2.6A |
SF48T-0302600AG |
SF48T-0352600AG |
SF48T-0402600AG |
SF48T-0452600AG |
SF48T-0502600AG |
SF48T-0552600AG |
|
2.5A |
SF48T-0302500AG |
SF48T-0352500AG |
SF48T-0402500AG |
SF48T-0452500AG |
SF48T-0502500AG |
SF48T-0552500AG |
|
2.4A |
SF48T-0302400AG |
SF48T-0352400AG |
SF48T-0402400AG |
SF48T-0452400AG |
SF48T-0502400AG |
SF48T-0552400AG |
|
2.3A |
SF48T-0302300AG |
SF48T-0352300AG |
SF48T-0402300AG |
SF48T-0452300AG |
SF48T-0502300AG |
SF48T-0552300AG |
|
2.2A |
SF48T-0302200AG |
SF48T-0352200AG |
SF48T-0402200AG |
SF48T-0452200AG |
SF48T-0502200AG |
SF48T-0552200AG |
|
2.1A |
SF48T-0302100AG |
SF48T-0352100AG |
SF48T-0402100AG |
SF48T-0452100AG |
SF48T-0502100AG |
SF48T-0552100AG |
|
2.0A |
SF48T-0302000AG |
SF48T-0352000AG |
SF48T-0402000AG |
SF48T-0452000AG |
SF48T-0502000AG |
SF48T-0552000AG |
|
1.9A |
SF48T-0301900AG |
SF48T-0351900AG |
SF48T-0401900AG |
SF48T-0451900AG |
SF48T-0501900AG |
SF48T-0551900AG |
|
1.8A |
SF48T-0301800AG |
SF48T-0351800AG |
SF48T-0401800AG |
SF48T-0451800AG |
SF48T-0501800AG |
SF48T-0551800AG |
|
1.7A |
SF48T-0301700AG |
SF48T-0351700AG |
SF48T-0401700AG |
SF48T-0451700AG |
SF48T-0501700AG |
SF48T-0551700AG |
|
1.6A |
SF48T-0301600AG |
SF48T-0351600AG |
SF48T-0401600AG |
SF48T-0451600AG |
SF48T-0501600AG |
SF48T-0551600AG |
|
1.5A |
|
SF48T-0351500AG |
SF48T-0401500AG |
SF48T-0451500AG |
SF48T-0501500AG |
SF48T-0551500AG |
|
1.4A |
|
|
|
SF48T-0451400AG |
SF48T-0501400AG |
SF48T-0551400AG |
|
1.3A |
|
|
|
SF48T-0451300AG |
SF48T-0501300AG |
SF48T-0551300AG |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
