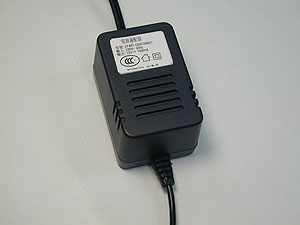

LINEAR ADAPTOR
DESKTOP
EI 48 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.2-2.2A |
|
|
|
Output Watt |
19.2VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CCC/CB |
IEC 60950 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
0.8A |
SF48T-2100800DC |
SF48T-2200800DC |
SF48T-2300800DC |
SF48T-2400800DC |
|
|
|
0.7A |
SF48T-2100700DC |
SF48T-2200700DC |
SF48T-2300700DC |
SF48T-2400700DC |
|
|
|
0.6A |
SF48T-2100600DC |
SF48T-2200600DC |
SF48T-2300600DC |
SF48T-2400600DC |
|
|
|
0.5A |
SF48T-2100500DC |
SF48T-2200500DC |
SF48T-2300500DC |
SF48T-2400500DC |
|
|
|
0.4A |
SF48T-2100400DC |
SF48T-2200400DC |
SF48T-2300400DC |
SF48T-2400400DC |
|
|
|
0.3A |
SF48T-2100300DC |
SF48T-2200300DC |
SF48T-2300300DC |
SF48T-2400300DC |
|
|
|
0.2A |
SF48T-2100200DC |
SF48T-2200200DC |
SF48T-2300200DC |
SF48T-2400200DC |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.1A |
SF48T-1501100DC |
|
|
|
|
|
|
1.0A |
SF48T-1501000DC |
SF48T-1601000DC |
SF48T-1701000DC |
SF48T-1801000DC |
|
|
|
0.9A |
SF48T-1500900DC |
SF48T-1600900DC |
SF48T-1700900DC |
SF48T-1800900DC |
SF48T-1900900DC |
SF48T-2000900DC |
|
0.8A |
SF48T-1500800DC |
SF48T-1600800DC |
SF48T-1700800DC |
SF48T-1800800DC |
SF48T-1900800DC |
SF48T-2000800DC |
|
0.7A |
SF48T-1500700DC |
SF48T-1600700DC |
SF48T-1700700DC |
SF48T-1800700DC |
SF48T-1900700DC |
SF48T-2000700DC |
|
0.6A |
SF48T-1500600DC |
SF48T-1600600DC |
SF48T-1700600DC |
SF48T-1800600DC |
SF48T-1900600DC |
SF48T-2000600DC |
|
0.5A |
SF48T-1500500DC |
SF48T-1600500DC |
SF48T-1700500DC |
SF48T-1800500DC |
SF48T-1900500DC |
SF48T-2000500DC |
|
0.4A |
SF48T-1500400DC |
SF48T-1600400DC |
SF48T-1700400DC |
SF48T-1800400DC |
SF48T-1900400DC |
SF48T-2000400DC |
|
0.3A |
|
SF48T-1600300DC |
SF48T-1700300DC |
SF48T-1800300DC |
SF48T-1900300DC |
SF48T-2000300DC |
|
0.2A |
|
|
|
|
|
SF48T-2000200DC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.4A |
SF48T-1201400DC |
|
|
|
|
|
|
1.3A |
SF48T-1201300DC |
SF48T-1251300DC |
|
|
|
|
|
1.2A |
SF48T-1201200DC |
SF48T-1251200DC |
SF48T-1301200DC |
SF48T-1351200DC |
|
|
|
1.1A |
SF48T-1201100DC |
SF48T-1251100DC |
SF48T-1301100DC |
SF48T-1351100DC |
SF48T-1401100DC |
SF48T-1451100DC |
|
1.0A |
SF48T-1201000DC |
SF48T-1251000DC |
SF48T-1301000DC |
SF48T-1351000DC |
SF48T-1401000DC |
SF48T-1451000DC |
|
0.9A |
SF48T-1200900DC |
SF48T-1250900DC |
SF48T-1300900DC |
SF48T-1350900DC |
SF48T-1400900DC |
SF48T-1450900DC |
|
0.8A |
SF48T-1200800DC |
SF48T-1250800DC |
SF48T-1300800DC |
SF48T-1350800DC |
SF48T-1400800DC |
SF48T-1450800DC |
|
0.7A |
SF48T-1200700DC |
SF48T-1250700DC |
SF48T-1300700DC |
SF48T-1350700DC |
SF48T-1400700DC |
SF48T-1450700DC |
|
0.6A |
SF48T-1200600DC |
SF48T-1250600DC |
SF48T-1300600DC |
SF48T-1350600DC |
SF48T-1400600DC |
SF48T-1450600DC |
|
0.5A |
SF48T-1200500DC |
SF48T-1250500DC |
SF48T-1300500DC |
SF48T-1350500DC |
SF48T-1400500DC |
SF48T-1450500DC |
|
0.4A |
|
SF48T-1250400DC |
SF48T-1300400DC |
SF48T-1350400DC |
SF48T-1400400DC |
SF48T-1450400DC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.7A |
SF48T-0901700DC |
|
|
|
|
|
|
1.6A |
SF48T-0901600DC |
SF48T-0951600DC |
|
|
|
|
|
1.5A |
SF48T-0901500DC |
SF48T-0951500DC |
SF48T-1001500DC |
SF48T-1051500DC |
|
|
|
1.4A |
SF48T-0901400DC |
SF48T-0951400DC |
SF48T-1001400DC |
SF48T-1051400DC |
SF48T-1101400DC |
SF48T-1151400DC |
|
1.3A |
SF48T-0901300DC |
SF48T-0951300DC |
SF48T-1001300DC |
SF48T-1051300DC |
SF48T-1101300DC |
SF48T-1151300DC |
|
1.2A |
SF48T-0901200DC |
SF48T-0951200DC |
SF48T-1001200DC |
SF48T-1051200DC |
SF48T-1101200DC |
SF48T-1151200DC |
|
1.1A |
SF48T-0901100DC |
SF48T-0951100DC |
SF48T-1001100DC |
SF48T-1051100DC |
SF48T-1101100DC |
SF48T-1151100DC |
|
1.0A |
SF48T-0901000DC |
SF48T-0951000DC |
SF48T-1001000DC |
SF48T-1051000DC |
SF48T-1101000DC |
SF48T-1151000DC |
|
0.9A |
SF48T-0900900DC |
SF48T-0950900DC |
SF48T-1000900DC |
SF48T-1050900DC |
SF48T-1100900DC |
SF48T-1150900DC |
|
0.8A |
SF48T-0900800DC |
SF48T-0950800DC |
SF48T-1000800DC |
SF48T-1050800DC |
SF48T-1100800DC |
SF48T-1150800DC |
|
0.7A |
SF48T-0900700DC |
SF48T-0950700DC |
SF48T-1000700DC |
SF48T-1050700DC |
SF48T-1100700DC |
SF48T-1150700DC |
|
0.6A |
SF48T-0900600DC |
SF48T-0950600DC |
SF48T-1000600DC |
SF48T-1050600DC |
SF48T-1100600DC |
SF48T-1150600DC |
|
0.5A |
|
SF48T-0950500DC |
SF48T-1000500DC |
SF48T-1050500DC |
SF48T-1100500DC |
SF48T-1150500DC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.0A |
SF48T-0602000DC |
SF48T-0652000DC |
SF48T-0702000DC |
SF48T-0752000DC |
|
|
|
1.9A |
SF48T-0601900DC |
SF48T-0651900DC |
SF48T-0701900DC |
SF48T-0751900DC |
SF48T-0801900DC |
|
|
1.8A |
SF48T-0601800DC |
SF48T-0651800DC |
SF48T-0701800DC |
SF48T-0751800DC |
SF48T-0801800DC |
SF48T-0851800DC |
|
1.7A |
SF48T-0601700DC |
SF48T-0651700DC |
SF48T-0701700DC |
SF48T-0751700DC |
SF48T-0801700DC |
SF48T-0851700DC |
|
1.6A |
SF48T-0601600DC |
SF48T-0651600DC |
SF48T-0701600DC |
SF48T-0751600DC |
SF48T-0801600DC |
SF48T-0851600DC |
|
1.5A |
SF48T-0601500DC |
SF48T-0651500DC |
SF48T-0701500DC |
SF48T-0751500DC |
SF48T-0801500DC |
SF48T-0851500DC |
|
1.4A |
SF48T-0601400DC |
SF48T-0651400DC |
SF48T-0701400DC |
SF48T-0751400DC |
SF48T-0801400DC |
SF48T-0851400DC |
|
1.3A |
SF48T-0601300DC |
SF48T-0651300DC |
SF48T-0701300DC |
SF48T-0751300DC |
SF48T-0801300DC |
SF48T-0851300DC |
|
1.2A |
SF48T-0601200DC |
SF48T-0651200DC |
SF48T-0701200DC |
SF48T-0751200DC |
SF48T-0801200DC |
SF48T-0851200DC |
|
1.1A |
SF48T-0601100DC |
SF48T-0651100DC |
SF48T-0701100DC |
SF48T-0751100DC |
SF48T-0801100DC |
SF48T-0851100DC |
|
1.0A |
SF48T-0601000DC |
SF48T-0651000DC |
SF48T-0701000DC |
SF48T-0751000DC |
SF48T-0801000DC |
SF48T-0851000DC |
|
0.9A |
|
SF48T-0650900DC |
SF48T-0700900DC |
SF48T-0750900DC |
SF48T-0800900DC |
SF48T-0850900DC |
|
0.8A |
|
|
SF48T-0700800DC |
SF48T-0750800DC |
SF48T-0800800DC |
SF48T-0850800DC |
|
0.7A |
|
|
|
|
SF48T-0800700DC |
SF48T-0850700DC |
|
0.6A |
|
|
|
|
|
SF48T-0850600DC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.2A |
|
SF48T-0352200DC |
SF48T-0402200DC |
SF48T-0452200DC |
|
|
|
2.1A |
SF48T-0302100DC |
SF48T-0352100DC |
SF48T-0402100DC |
SF48T-0452100DC |
|
|
|
2.0A |
SF48T-0302000DC |
SF48T-0352000DC |
SF48T-0402000DC |
SF48T-0452000DC |
SF48T-0502000DC |
SF48T-0552000DC |
|
1.9A |
SF48T-0301900DC |
SF48T-0351900DC |
SF48T-0401900DC |
SF48T-0451900DC |
SF48T-0501900DC |
SF48T-0551900DC |
|
1.8A |
SF48T-0301800DC |
SF48T-0351800DC |
SF48T-0401800DC |
SF48T-0451800DC |
SF48T-0501800DC |
SF48T-0551800DC |
|
1.7A |
SF48T-0301700DC |
SF48T-0351700DC |
SF48T-0401700DC |
SF48T-0451700DC |
SF48T-0501700DC |
SF48T-0551700DC |
|
1.6A |
SF48T-0301600DC |
SF48T-0351600DC |
SF48T-0401600DC |
SF48T-0451600DC |
SF48T-0501600DC |
SF48T-0551600DC |
|
1.5A |
SF48T-0301500DC |
SF48T-0351500DC |
SF48T-0401500DC |
SF48T-0451500DC |
SF48T-0501500DC |
SF48T-0551500DC |
|
1.4A |
|
|
SF48T-0401400DC |
SF48T-0451400DC |
SF48T-0501400DC |
SF48T-0551400DC |
|
1.3A |
|
|
|
SF48T-0451300DC |
SF48T-0501300DC |
SF48T-0551300DC |
|
1.2A |
|
|
|
|
SF48T-0501200DC |
SF48T-0551200DC |
|
1.1A |
|
|
|
|
|
SF48T-0551100DC |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
