LINEAR ADAPTOR
DESKTOP

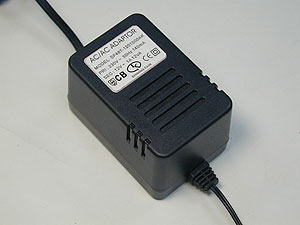

EI 48 AC TO AC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-24V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-3A |
|
|
|
Output Watt |
24.7VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CB |
IEC 60950 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.1A |
SF48T-2101100AK |
SF48T-2201100AK |
|
|
|
|
|
1.0A |
SF48T-2101000AK |
SF48T-2201000AK |
SF48T-2301000AK |
SF48T-2401000AK |
|
|
|
0.9A |
SF48T-2100900AK |
SF48T-2200900AK |
SF48T-2300900AK |
SF48T-2400900AK |
|
|
|
0.8A |
SF48T-2100800AK |
SF48T-2200800AK |
SF48T-2300800AK |
SF48T-2400800AK |
|
|
|
0.7A |
SF48T-2100700AK |
SF48T-2200700AK |
SF48T-2300700AK |
SF48T-2400700AK |
|
|
|
0.6A |
SF48T-2100600AK |
SF48T-2200600AK |
SF48T-2300600AK |
SF48T-2400600AK |
|
|
|
0.5A |
SF48T-2100500AK |
SF48T-2200500AK |
SF48T-2300500AK |
SF48T-2400500AK |
|
|
|
0.4A |
SF48T-2100400AK |
SF48T-2200400AK |
SF48T-2300400AK |
SF48T-2400400AK |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF48T-1501600AK |
|
|
|
|
|
|
1.5A |
SF48T-1501500AK |
SF48T-1601500AK |
|
|
|
|
|
1.4A |
SF48T-1501400AK |
SF48T-1601400AK |
SF48T-1701400AK |
|
|
|
|
1.3A |
SF48T-1501300AK |
SF48T-1601300AK |
SF48T-1701300AK |
SF48T-1801300AK |
SF48T-1901300AK |
|
|
1.2A |
SF48T-1501200AK |
SF48T-1601200AK |
SF48T-1701200AK |
SF48T-1801200AK |
SF48T-1901200AK |
SF48T-2001200AK |
|
1.1A |
SF48T-1501100AK |
SF48T-1601100AK |
SF48T-1701100AK |
SF48T-1801100AK |
SF48T-1901100AK |
SF48T-2001100AK |
|
1.0A |
SF48T-1501000AK |
SF48T-1601000AK |
SF48T-1701000AK |
SF48T-1801000AK |
SF48T-1901000AK |
SF48T-2001000AK |
|
0.9A |
SF48T-1500900AK |
SF48T-1600900AK |
SF48T-1700900AK |
SF48T-1800900AK |
SF48T-1900900AK |
SF48T-2000900AK |
|
0.8A |
SF48T-1500800AK |
SF48T-1600800AK |
SF48T-1700800AK |
SF48T-1800800AK |
SF48T-1900800AK |
SF48T-2000800AK |
|
0.7A |
SF48T-1500700AK |
SF48T-1600700AK |
SF48T-1700700AK |
SF48T-1800700AK |
SF48T-1900700AK |
SF48T-2000700AK |
|
0.6A |
SF48T-1500600AK |
SF48T-1600600AK |
SF48T-1700600AK |
SF48T-1800600AK |
SF48T-1900600AK |
SF48T-2000600AK |
|
0.5A |
|
|
SF48T-1700500AK |
SF48T-1800500AK |
SF48T-1900500AK |
SF48T-2000500AK |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF48T-1202000AK |
|
|
|
|
|
|
1.9A |
SF48T-1201900AK |
SF48T-1251900AK |
|
|
|
|
|
1.8A |
SF48T-1201800AK |
SF48T-1251800AK |
SF48T-1301800AK |
|
|
|
|
1.7A |
SF48T-1201700AK |
SF48T-1251700AK |
SF48T-1301700AK |
SF48T-1351700AK |
SF48T-1401700AK |
|
|
1.6A |
SF48T-1201600AK |
SF48T-1251600AK |
SF48T-1301600AK |
SF48T-1351600AK |
SF48T-1401600AK |
SF48T-1451600AK |
|
1.5A |
SF48T-1201500AK |
SF48T-1251500AK |
SF48T-1301500AK |
SF48T-1351500AK |
SF48T-1401500AK |
SF48T-1451500AK |
|
1.4A |
SF48T-1201400AK |
SF48T-1251400AK |
SF48T-1301400AK |
SF48T-1351400AK |
SF48T-1401400AK |
SF48T-1451400AK |
|
1.3A |
SF48T-1201300AK |
SF48T-1251300AK |
SF48T-1301300AK |
SF48T-1351300AK |
SF48T-1401300AK |
SF48T-1451300AK |
|
1.2A |
SF48T-1201200AK |
SF48T-1251200AK |
SF48T-1301200AK |
SF48T-1351200AK |
SF48T-1401200AK |
SF48T-1451200AK |
|
1.1A |
SF48T-1201100AK |
SF48T-1251100AK |
SF48T-1301100AK |
SF48T-1351100AK |
SF48T-1401100AK |
SF48T-1451100AK |
|
1.0A |
SF48T-1201000AK |
SF48T-1251000AK |
SF48T-1301000AK |
SF48T-1351000AK |
SF48T-1401000AK |
SF48T-1451000AK |
|
0.9A |
SF48T-1200900AK |
SF48T-1250900AK |
SF48T-1300900AK |
SF48T-1350900AK |
SF48T-1400900AK |
SF48T-1450900AK |
|
0.8A |
SF48T-1200800AK |
SF48T-1250800AK |
SF48T-1300800AK |
SF48T-1350800AK |
SF48T-1400800AK |
SF48T-1450800AK |
|
0.7A |
|
|
SF48T-1300700AK |
SF48T-1350700AK |
SF48T-1400700AK |
SF48T-1450700AK |
|
0.6A |
|
|
|
|
|
SF48T-1450600AK |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF48T-0902500AK |
|
|
|
|
|
|
2.4A |
SF48T-0902400AK |
SF48T-0952400AK |
|
|
|
|
|
2.3A |
SF48T-0902300AK |
SF48T-0952300AK |
SF48T-1002300AK |
|
|
|
|
2.2A |
SF48T-0902200AK |
SF48T-0952200AK |
SF48T-1002200AK |
SF48T-1052200AK |
|
|
|
2.1A |
SF48T-0902100AK |
SF48T-0952100AK |
SF48T-1002100AK |
SF48T-1052100AK |
SF48T-1102100AK |
|
|
2.0A |
SF48T-0902000AK |
SF48T-0952000AK |
SF48T-1002000AK |
SF48T-1052000AK |
SF48T-1102000AK |
SF48T-1152000AK |
|
1.9A |
SF48T-0901900AK |
SF48T-0951900AK |
SF48T-1001900AK |
SF48T-1051900AK |
SF48T-1101900AK |
SF48T-1151900AK |
|
1.8A |
SF48T-0901800AK |
SF48T-0951800AK |
SF48T-1001800AK |
SF48T-1051800AK |
SF48T-1101800AK |
SF48T-1151800AK |
|
1.7A |
SF48T-0901700AK |
SF48T-0951700AK |
SF48T-1001700AK |
SF48T-1051700AK |
SF48T-1101700AK |
SF48T-1151700AK |
|
1.6A |
SF48T-0901600AK |
SF48T-0951600AK |
SF48T-1001600AK |
SF48T-1051600AK |
SF48T-1101600AK |
SF48T-1151600AK |
|
1.5A |
SF48T-0901500AK |
SF48T-0951500AK |
SF48T-1001500AK |
SF48T-1051500AK |
SF48T-1101500AK |
SF48T-1151500AK |
|
1.4A |
SF48T-0901400AK |
SF48T-0951400AK |
SF48T-1001400AK |
SF48T-1051400AK |
SF48T-1101400AK |
SF48T-1151400AK |
|
1.3A |
SF48T-0901300AK |
SF48T-0951300AK |
SF48T-1001300AK |
SF48T-1051300AK |
SF48T-1101300AK |
SF48T-1151300AK |
|
1.2A |
SF48T-0901200AK |
SF48T-0951200AK |
SF48T-1001200AK |
SF48T-1051200AK |
SF48T-1101200AK |
SF48T-1151200AK |
|
1.1A |
SF48T-0901100AK |
SF48T-0951100AK |
SF48T-1001100AK |
SF48T-1051100AK |
SF48T-1101100AK |
SF48T-1151100AK |
|
1.0A |
|
SF48T-0951000AK |
SF48T-1001000AK |
SF48T-1051000AK |
SF48T-1101000AK |
SF48T-1151000AK |
|
0.9A |
|
|
SF48T-1000900AK |
SF48T-1050900AK |
SF48T-1100900AK |
SF48T-1150900AK |
|
0.8A |
|
|
|
|
|
SF48T-1150800AK |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF48T-0603000AK |
SF48T-0653000AK |
|
|
|
|
|
2.9A |
SF48T-0602900AK |
SF48T-0652900AK |
SF48T-0702900AK |
|
|
|
|
2.8A |
SF48T-0602800AK |
SF48T-0652800AK |
SF48T-0702800AK |
SF48T-0752800AK |
|
|
|
2.7A |
SF48T-0602700AK |
SF48T-0652700AK |
SF48T-0702700AK |
SF48T-0752700AK |
SF48T-0802700AK |
|
|
2.6A |
SF48T-0602600AK |
SF48T-0652600AK |
SF48T-0702600AK |
SF48T-0752600AK |
SF48T-0802600AK |
SF48T-0852600AK |
|
2.5A |
SF48T-0602500AK |
SF48T-0652500AK |
SF48T-0702500AK |
SF48T-0752500AK |
SF48T-0802500AK |
SF48T-0852500AK |
|
2.4A |
SF48T-0602400AK |
SF48T-0652400AK |
SF48T-0702400AK |
SF48T-0752400AK |
SF48T-0802400AK |
SF48T-0852400AK |
|
2.3A |
SF48T-0602300AK |
SF48T-0652300AK |
SF48T-0702300AK |
SF48T-0752300AK |
SF48T-0802300AK |
SF48T-0852300AK |
|
2.2A |
SF48T-0602200AK |
SF48T-0652200AK |
SF48T-0702200AK |
SF48T-0752200AK |
SF48T-0802200AK |
SF48T-0852200AK |
|
2.1A |
SF48T-0602100AK |
SF48T-0652100AK |
SF48T-0702100AK |
SF48T-0752100AK |
SF48T-0802100AK |
SF48T-0852100AK |
|
2.0A |
SF48T-0602000AK |
SF48T-0652000AK |
SF48T-0702000AK |
SF48T-0752000AK |
SF48T-0802000AK |
SF48T-0852000AK |
|
1.9A |
SF48T-0601900AK |
SF48T-0651900AK |
SF48T-0701900AK |
SF48T-0751900AK |
SF48T-0801900AK |
SF48T-0851900AK |
|
1.8A |
SF48T-0601800AK |
SF48T-0651800AK |
SF48T-0701800AK |
SF48T-0751800AK |
SF48T-0801800AK |
SF48T-0851800AK |
|
1.7A |
SF48T-0601700AK |
SF48T-0651700AK |
SF48T-0701700AK |
SF48T-0751700AK |
SF48T-0801700AK |
SF48T-0851700AK |
|
1.6A |
SF48T-0601600AK |
SF48T-0651600AK |
SF48T-0701600AK |
SF48T-0751600AK |
SF48T-0801600AK |
SF48T-0851600AK |
|
1.5A |
SF48T-0601500AK |
SF48T-0651500AK |
SF48T-0701500AK |
SF48T-0751500AK |
SF48T-0801500AK |
SF48T-0851500AK |
|
1.4A |
SF48T-0601400AK |
SF48T-0651400AK |
SF48T-0701400AK |
SF48T-0751400AK |
SF48T-0801400AK |
SF48T-0851400AK |
|
1.3A |
SF48T-0601300AK |
SF48T-0651300AK |
SF48T-0701300AK |
SF48T-0751300AK |
SF48T-0801300AK |
SF48T-0851300AK |
|
1.2A |
SF48T-0601200AK |
SF48T-0651200AK |
SF48T-0701200AK |
SF48T-0751200AK |
SF48T-0801200AK |
SF48T-0851200AK |
|
1.1A |
|
|
|
|
SF48T-0801100AK |
SF48T-0851100AK |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF48T-0303000AK |
SF48T-0353000AK |
SF48T-0403000AK |
SF48T-0453000AK |
SF48T-0503000AK |
SF48T-0553000AK |
|
2.9A |
SF48T-0302900AK |
SF48T-0352900AK |
SF48T-0402900AK |
SF48T-0452900AK |
SF48T-0502900AK |
SF48T-0552900AK |
|
2.8A |
SF48T-0302800AK |
SF48T-0352800AK |
SF48T-0402800AK |
SF48T-0452800AK |
SF48T-0502800AK |
SF48T-0552800AK |
|
2.7A |
SF48T-0302700AK |
SF48T-0352700AK |
SF48T-0402700AK |
SF48T-0452700AK |
SF48T-0502700AK |
SF48T-0552700AK |
|
2.6A |
SF48T-0302600AK |
SF48T-0352600AK |
SF48T-0402600AK |
SF48T-0452600AK |
SF48T-0502600AK |
SF48T-0552600AK |
|
2.5A |
SF48T-0302500AK |
SF48T-0352500AK |
SF48T-0402500AK |
SF48T-0452500AK |
SF48T-0502500AK |
SF48T-0552500AK |
|
2.4A |
SF48T-0302400AK |
SF48T-0352400AK |
SF48T-0402400AK |
SF48T-0452400AK |
SF48T-0502400AK |
SF48T-0552400AK |
|
2.3A |
SF48T-0302300AK |
SF48T-0352300AK |
SF48T-0402300AK |
SF48T-0452300AK |
SF48T-0502300AK |
SF48T-0552300AK |
|
2.2A |
SF48T-0302200AK |
SF48T-0352200AK |
SF48T-0402200AK |
SF48T-0452200AK |
SF48T-0502200AK |
SF48T-0552200AK |
|
2.1A |
SF48T-0302100AK |
SF48T-0352100AK |
SF48T-0402100AK |
SF48T-0452100AK |
SF48T-0502100AK |
SF48T-0552100AK |
|
2.0A |
SF48T-0302000AK |
SF48T-0352000AK |
SF48T-0402000AK |
SF48T-0452000AK |
SF48T-0502000AK |
SF48T-0552000AK |
|
1.9A |
SF48T-0301900AK |
SF48T-0351900AK |
SF48T-0401900AK |
SF48T-0451900AK |
SF48T-0501900AK |
SF48T-0551900AK |
|
1.8A |
SF48T-0301800AK |
SF48T-0351800AK |
SF48T-0401800AK |
SF48T-0451800AK |
SF48T-0501800AK |
SF48T-0551800AK |
|
1.7A |
SF48T-0301700AK |
SF48T-0351700AK |
SF48T-0401700AK |
SF48T-0451700AK |
SF48T-0501700AK |
SF48T-0551700AK |
|
1.6A |
SF48T-0301600AK |
SF48T-0351600AK |
SF48T-0401600AK |
SF48T-0451600AK |
SF48T-0501600AK |
SF48T-0551600AK |
|
1.5A |
|
SF48T-0351500AK |
SF48T-0401500AK |
SF48T-0451500AK |
SF48T-0501500AK |
SF48T-0551500AK |
|
1.4A |
|
|
|
SF48T-0451400AK |
SF48T-0501400AK |
SF48T-0551400AK |
|
1.3A |
|
|
|
SF48T-0451300AK |
SF48T-0501300AK |
SF48T-0551300AK |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
