LINEAR ADAPTOR
DESKTOP

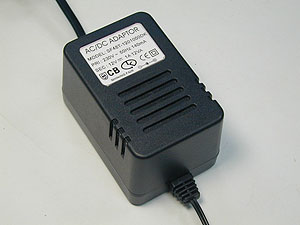

EI 48 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.2-2.2A |
|
|
|
Output Watt |
19.2VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CB |
IEC 60950 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
0.8A |
SF48T-2100800DK |
SF48T-2200800DK |
SF48T-2300800DK |
SF48T-2400800DK |
|
|
|
0.7A |
SF48T-2100700DK |
SF48T-2200700DK |
SF48T-2300700DK |
SF48T-2400700DK |
|
|
|
0.6A |
SF48T-2100600DK |
SF48T-2200600DK |
SF48T-2300600DK |
SF48T-2400600DK |
|
|
|
0.5A |
SF48T-2100500DK |
SF48T-2200500DK |
SF48T-2300500DK |
SF48T-2400500DK |
|
|
|
0.4A |
SF48T-2100400DK |
SF48T-2200400DK |
SF48T-2300400DK |
SF48T-2400400DK |
|
|
|
0.3A |
SF48T-2100300DK |
SF48T-2200300DK |
SF48T-2300300DK |
SF48T-2400300DK |
|
|
|
0.2A |
SF48T-2100200DK |
SF48T-2200200DK |
SF48T-2300200DK |
SF48T-2400200DK |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.1A |
SF48T-1501100DK |
|
|
|
|
|
|
1.0A |
SF48T-1501000DK |
SF48T-1601000DK |
SF48T-1701000DK |
SF48T-1801000DK |
|
|
|
0.9A |
SF48T-1500900DK |
SF48T-1600900DK |
SF48T-1700900DK |
SF48T-1800900DK |
SF48T-1900900DK |
SF48T-2000900DK |
|
0.8A |
SF48T-1500800DK |
SF48T-1600800DK |
SF48T-1700800DK |
SF48T-1800800DK |
SF48T-1900800DK |
SF48T-2000800DK |
|
0.7A |
SF48T-1500700DK |
SF48T-1600700DK |
SF48T-1700700DK |
SF48T-1800700DK |
SF48T-1900700DK |
SF48T-2000700DK |
|
0.6A |
SF48T-1500600DK |
SF48T-1600600DK |
SF48T-1700600DK |
SF48T-1800600DK |
SF48T-1900600DK |
SF48T-2000600DK |
|
0.5A |
SF48T-1500500DK |
SF48T-1600500DK |
SF48T-1700500DK |
SF48T-1800500DK |
SF48T-1900500DK |
SF48T-2000500DK |
|
0.4A |
SF48T-1500400DK |
SF48T-1600400DK |
SF48T-1700400DK |
SF48T-1800400DK |
SF48T-1900400DK |
SF48T-2000400DK |
|
0.3A |
|
SF48T-1600300DK |
SF48T-1700300DK |
SF48T-1800300DK |
SF48T-1900300DK |
SF48T-2000300DK |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.4A |
SF48T-1201400DK |
|
|
|
|
|
|
1.3A |
SF48T-1201300DK |
SF48T-1251300DK |
|
|
|
|
|
1.2A |
SF48T-1201200DK |
SF48T-1251200DK |
SF48T-1301200DK |
SF48T-1351200DK |
|
|
|
1.1A |
SF48T-1201100DK |
SF48T-1251100DK |
SF48T-1301100DK |
SF48T-1351100DK |
SF48T-1401100DK |
SF48T-1451100DK |
|
1.0A |
SF48T-1201000DK |
SF48T-1251000DK |
SF48T-1301000DK |
SF48T-1351000DK |
SF48T-1401000DK |
SF48T-1451000DK |
|
0.9A |
SF48T-1200900DK |
SF48T-1250900DK |
SF48T-1300900DK |
SF48T-1350900DK |
SF48T-1400900DK |
SF48T-1450900DK |
|
0.8A |
SF48T-1200800DK |
SF48T-1250800DK |
SF48T-1300800DK |
SF48T-1350800DK |
SF48T-1400800DK |
SF48T-1450800DK |
|
0.7A |
SF48T-1200700DK |
SF48T-1250700DK |
SF48T-1300700DK |
SF48T-1350700DK |
SF48T-1400700DK |
SF48T-1450700DK |
|
0.6A |
SF48T-1200600DK |
SF48T-1250600DK |
SF48T-1300600DK |
SF48T-1350600DK |
SF48T-1400600DK |
SF48T-1450600DK |
|
0.5A |
SF48T-1200500DK |
SF48T-1250500DK |
SF48T-1300500DK |
SF48T-1350500DK |
SF48T-1400500DK |
SF48T-1450500DK |
|
0.4A |
|
SF48T-1250400DK |
SF48T-1300400DK |
SF48T-1350400DK |
SF48T-1400400DK |
SF48T-1450400DK |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.7A |
SF48T-0901700DK |
|
|
|
|
|
|
1.6A |
SF48T-0901600DK |
SF48T-0951600DK |
|
|
|
|
|
1.5A |
SF48T-0901500DK |
SF48T-0951500DK |
SF48T-1001500DK |
SF48T-1051500DK |
|
|
|
1.3A |
SF48T-0901300DK |
SF48T-0951300DK |
SF48T-1001300DK |
SF48T-1051300DK |
SF48T-1101300DK |
SF48T-1151300DK |
|
1.4A |
SF48T-0901400DK |
SF48T-0951400DK |
SF48T-1001400DK |
SF48T-1051400DK |
SF48T-1101400DK |
SF48T-1151400DK |
|
1.2A |
SF48T-0901200DK |
SF48T-0951200DK |
SF48T-1001200DK |
SF48T-1051200DK |
SF48T-1101200DK |
SF48T-1151200DK |
|
1.1A |
SF48T-0901100DK |
SF48T-0951100DK |
SF48T-1001100DK |
SF48T-1051100DK |
SF48T-1101100DK |
SF48T-1151100DK |
|
1.0A |
SF48T-0901000DK |
SF48T-0951000DK |
SF48T-1001000DK |
SF48T-1051000DK |
SF48T-1101000DK |
SF48T-1151000DK |
|
0.9A |
SF48T-0900900DK |
SF48T-0950900DK |
SF48T-1000900DK |
SF48T-1050900DK |
SF48T-1100900DK |
SF48T-1150900DK |
|
0.8A |
SF48T-0900800DK |
SF48T-0950800DK |
SF48T-1000800DK |
SF48T-1050800DK |
SF48T-1100800DK |
SF48T-1150800DK |
|
0.7A |
SF48T-0900700DK |
SF48T-0950700DK |
SF48T-1000700DK |
SF48T-1050700DK |
SF48T-1100700DK |
SF48T-1150700DK |
|
0.6A |
SF48T-0900600DK |
SF48T-0950600DK |
SF48T-1000600DK |
SF48T-1050600DK |
SF48T-1100600DK |
SF48T-1150600DK |
|
0.5A |
|
SF48T-0950500DK |
SF48T-1000500DK |
SF48T-1050500DK |
SF48T-1100500DK |
SF48T-1150500DK |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.0A |
SF48T-0602000DK |
SF48T-0652000DK |
SF48T-0702000DK |
SF48T-0752000DK |
|
|
|
1.9A |
SF48T-0601900DK |
SF48T-0651900DK |
SF48T-0701900DK |
SF48T-0751900DK |
SF48T-0801900DK |
|
|
1.8A |
SF48T-0601800DK |
SF48T-0651800DK |
SF48T-0701800DK |
SF48T-0751800DK |
SF48T-0801800DK |
SF48T-0851800DK |
|
1.7A |
SF48T-0601700DK |
SF48T-0651700DK |
SF48T-0701700DK |
SF48T-0751700DK |
SF48T-0801700DK |
SF48T-0851700DK |
|
1.6A |
SF48T-0601600DK |
SF48T-0651600DK |
SF48T-0701600DK |
SF48T-0751600DK |
SF48T-0801600DK |
SF48T-0851600DK |
|
1.5A |
SF48T-0601500DK |
SF48T-0651500DK |
SF48T-0701500DK |
SF48T-0751500DK |
SF48T-0801500DK |
SF48T-0851500DK |
|
1.4A |
SF48T-0601400DK |
SF48T-0651400DK |
SF48T-0701400DK |
SF48T-0751400DK |
SF48T-0801400DK |
SF48T-0851400DK |
|
1.3A |
SF48T-0601300DK |
SF48T-0651300DK |
SF48T-0701300DK |
SF48T-0751300DK |
SF48T-0801300DK |
SF48T-0851300DK |
|
1.2A |
SF48T-0601200DK |
SF48T-0651200DK |
SF48T-0701200DK |
SF48T-0751200DK |
SF48T-0801200DK |
SF48T-0851200DK |
|
1.1A |
SF48T-0601100DK |
SF48T-0651100DK |
SF48T-0701100DK |
SF48T-0751100DK |
SF48T-0801100DK |
SF48T-0851100DK |
|
1.0A |
SF48T-0601000DK |
SF48T-0651000DK |
SF48T-0701000DK |
SF48T-0751000DK |
SF48T-0801000DK |
SF48T-0851000DK |
|
0.9A |
|
SF48T-0650900DK |
SF48T-0700900DK |
SF48T-0750900DK |
SF48T-0800900DK |
SF48T-0850900DK |
|
0.8A |
|
|
SF48T-0700800DK |
SF48T-0750800DK |
SF48T-0800800DK |
SF48T-0850800DK |
|
0.7A |
|
|
|
|
SF48T-0800700DK |
SF48T-0850700DK |
|
0.6A |
|
|
|
|
|
SF48T-0850600DK |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.2A |
|
SF48T-0352200DK |
SF48T-0402200DK |
SF48T-0452200DK |
|
|
|
2.1A |
SF48T-0302100DK |
SF48T-0352100DK |
SF48T-0402100DK |
SF48T-0452100DK |
|
|
|
2.0A |
SF48T-0302000DK |
SF48T-0352000DK |
SF48T-0402000DK |
SF48T-0452000DK |
SF48T-0502000DK |
SF48T-0552000DK |
|
1.9A |
SF48T-0301900DK |
SF48T-0351900DK |
SF48T-0401900DK |
SF48T-0451900DK |
SF48T-0501900DK |
SF48T-0551900DK |
|
1.8A |
SF48T-0301800DK |
SF48T-0351800DK |
SF48T-0401800DK |
SF48T-0451800DK |
SF48T-0501800DK |
SF48T-0551800DK |
|
1.7A |
SF48T-0301700DK |
SF48T-0351700DK |
SF48T-0401700DK |
SF48T-0451700DK |
SF48T-0501700DK |
SF48T-0551700DK |
|
1.6A |
SF48T-0301600DK |
SF48T-0351600DK |
SF48T-0401600DK |
SF48T-0451600DK |
SF48T-0501600DK |
SF48T-0551600DK |
|
1.5A |
SF48T-0301500DK |
SF48T-0351500DK |
SF48T-0401500DK |
SF48T-0451500DK |
SF48T-0501500DK |
SF48T-0551500DK |
|
1.4A |
|
|
SF48T-0401400DK |
SF48T-0451400DK |
SF48T-0501400DK |
SF48T-0551400DK |
|
1.3A |
|
|
|
SF48T-0451300DK |
SF48T-0501300DK |
SF48T-0551300DK |
|
1.2A |
|
|
|
|
SF48T-0501200DK |
SF48T-0551200DK |
|
1.1A |
|
|
|
|
|
SF48T-0551100DK |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
