LINEAR ADAPTOR
WALLMOUNT
EI 48 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
21.6VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48-2500800DU |
SF48-2550800DU |
|
|
|
|
|
0.7A |
SF48-2500700DU |
SF48-2550700DU |
SF48-2600700DU |
SF48-2650700DU |
SF48-2700700DU |
SF48-2800700DU |
|
0.6A |
SF48-2500600DU |
SF48-2550600DU |
SF48-2600600DU |
SF48-2650600DU |
SF48-2700600DU |
SF48-2800600DU |
|
0.5A |
SF48-2500500DU |
SF48-2550500DU |
SF48-2600500DU |
SF48-2650500DU |
SF48-2700500DU |
SF48-2800500DU |
|
0.4A |
SF48-2500400DU |
SF48-2550400DU |
SF48-2600400DU |
SF48-2650400DU |
SF48-2700400DU |
SF48-2800400DU |
|
0.3A |
SF48-2500300DU |
SF48-2550300DU |
SF48-2600300DU |
SF48-2650300DU |
SF48-2700300DU |
SF48-2800300DU |
|
0.2A |
SF48-2500200DU |
SF48-2550200DU |
SF48-2600200DU |
SF48-2650200DU |
SF48-2700200DU |
SF48-2800200DU |
|
0.1A |
|
|
SF48-2600100DU |
SF48-2650100DU |
SF48-2700100DU |
SF48-2800100DU |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48-2200900DU |
SF48-2250900DU |
SF48-2300900DU |
SF48-2350900DU |
SF48-2400900DU |
|
|
0.8A |
SF48-2200800DU |
SF48-2250800DU |
SF48-2300800DU |
SF48-2350800DU |
SF48-2400800DU |
SF48-2450800DU |
|
0.7A |
SF48-2200700DU |
SF48-2250700DU |
SF48-2300700DU |
SF48-2350700DU |
SF48-2400700DU |
SF48-2450700DU |
|
0.6A |
SF48-2200600DU |
SF48-2250600DU |
SF48-2300600DU |
SF48-2350600DU |
SF48-2400600DU |
SF48-2450600DU |
|
0.5A |
SF48-2200500DU |
SF48-2250500DU |
SF48-2300500DU |
SF48-2350500DU |
SF48-2400500DU |
SF48-2450500DU |
|
0.4A |
SF48-2200400DU |
SF48-2250400DU |
SF48-2300400DU |
SF48-2350400DU |
SF48-2400400DU |
SF48-2450400DU |
|
0.3A |
SF48-2200300DU |
SF48-2250300DU |
SF48-2300300DU |
SF48-2350300DU |
SF48-2400300DU |
SF48-2450300DU |
|
0.2A |
SF48-2200200DU |
SF48-2250200DU |
SF48-2300200DU |
SF48-2350200DU |
SF48-2400200DU |
SF48-2450200DU |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48-1901100DU |
SF48-1951100DU |
|
|
|
|
|
1.0A |
SF48-1901000DU |
SF48-1951000DU |
SF48-2001000DU |
SF48-2051000DU |
SF48-2101000DU |
|
|
0.9A |
SF48-1900900DU |
SF48-1950900DU |
SF48-2000900DU |
SF48-2050900DU |
SF48-2100900DU |
SF48-2150900DU |
|
0.8A |
SF48-1900800DU |
SF48-1950800DU |
SF48-2000800DU |
SF48-2050800DU |
SF48-2100800DU |
SF48-2150800DU |
|
0.7A |
SF48-1900700DU |
SF48-1950700DU |
SF48-2000700DU |
SF48-2050700DU |
SF48-2100700DU |
SF48-2150700DU |
|
0.6A |
SF48-1900600DU |
SF48-1950600DU |
SF48-2000600DU |
SF48-2050600DU |
SF48-2100600DU |
SF48-2150600DU |
|
0.5A |
SF48-1900500DU |
SF48-1950500DU |
SF48-2000500DU |
SF48-2050500DU |
SF48-2100500DU |
SF48-2150500DU |
|
0.4A |
SF48-1900400DU |
SF48-1950400DU |
SF48-2000400DU |
SF48-2050400DU |
SF48-2100400DU |
SF48-2150400DU |
|
0.3A |
SF48-1900300DU |
SF48-1950300DU |
SF48-2000300DU |
SF48-2050300DU |
SF48-2100300DU |
SF48-2150300DU |
|
0.2A |
|
|
SF48-2000200DU |
SF48-2050200DU |
SF48-2100200DU |
SF48-2150200DU |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48-1601200DU |
SF48-1651200DU |
SF48-1701200DU |
SF48-1751200DU |
SF48-1801200DU |
|
|
1.1A |
SF48-1601100DU |
SF48-1651100DU |
SF48-1701100DU |
SF48-1751100DU |
SF48-1801100DU |
SF48-1851100DU |
|
1.0A |
SF48-1601000DU |
SF48-1651000DU |
SF48-1701000DU |
SF48-1751000DU |
SF48-1801000DU |
SF48-1851000DU |
|
0.9A |
SF48-1600900DU |
SF48-1650900DU |
SF48-1700900DU |
SF48-1750900DU |
SF48-1800900DU |
SF48-1850900DU |
|
0.8A |
SF48-1600800DU |
SF48-1650800DU |
SF48-1700800DU |
SF48-1750800DU |
SF48-1800800DU |
SF48-1850800DU |
|
0.7A |
SF48-1600700DU |
SF48-1650700DU |
SF48-1700700DU |
SF48-1750700DU |
SF48-1800700DU |
SF48-1850700DU |
|
0.6A |
SF48-1600600DU |
SF48-1650600DU |
SF48-1700600DU |
SF48-1750600DU |
SF48-1800600DU |
SF48-1850600DU |
|
0.5A |
SF48-1600500DU |
SF48-1650500DU |
SF48-1700500DU |
SF48-1750500DU |
SF48-1800500DU |
SF48-1850500DU |
|
0.4A |
SF48-1600400DU |
SF48-1650400DU |
SF48-1700400DU |
SF48-1750400DU |
SF48-1800400DU |
SF48-1850400DU |
|
0.3A |
|
|
|
SF48-1750300DU |
SF48-1800300DU |
SF48-1850300DU |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48-1301400DU |
SF48-1351400DU |
|
|
|
|
|
1.3A |
SF48-1301300DU |
SF48-1351300DU |
SF48-1401300DU |
SF48-1451300DU |
SF48-1501300DU |
|
|
1.2A |
SF48-1301200DU |
SF48-1351200DU |
SF48-1401200DU |
SF48-1451200DU |
SF48-1501200DU |
SF48-1551200DU |
|
1.1A |
SF48-1301100DU |
SF48-1351100DU |
SF48-1401100DU |
SF48-1451100DU |
SF48-1501100DU |
SF48-1551100DU |
|
1.0A |
SF48-1301000DU |
SF48-1351000DU |
SF48-1401000DU |
SF48-1451000DU |
SF48-1501000DU |
SF48-1551000DU |
|
0.9A |
SF48-1300900DU |
SF48-1350900DU |
SF48-1400900DU |
SF48-1450900DU |
SF48-1500900DU |
SF48-1550900DU |
|
0.8A |
SF48-1300800DU |
SF48-1350800DU |
SF48-1400800DU |
SF48-1450800DU |
SF48-1500800DU |
SF48-1550800DU |
|
0.7A |
SF48-1300700DU |
SF48-1350700DU |
SF48-1400700DU |
SF48-1450700DU |
SF48-1500700DU |
SF48-1550700DU |
|
0.6A |
|
|
SF48-1400600DU |
SF48-1450600DU |
SF48-1500600DU |
SF48-1550600DU |
|
0.5A |
|
|
|
|
SF48-1500500DU |
SF48-1550500DU |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48-1001900DU |
|
|
|
|
|
|
1.8A |
SF48-1001800DU |
SF48-1051800DU |
|
|
|
|
|
1.7A |
SF48-1001700DU |
SF48-1051700DU |
SF48-1101700DU |
|
|
|
|
1.6A |
SF48-1001600DU |
SF48-1051600DU |
SF48-1101600DU |
SF48-1151600DU |
|
|
|
1.5A |
SF48-1001500DU |
SF48-1051500DU |
SF48-1101500DU |
SF48-1151500DU |
SF48-1201500DU |
|
|
1.4A |
SF48-1001400DU |
SF48-1051400DU |
SF48-1101400DU |
SF48-1151400DU |
SF48-1201400DU |
SF48-1251400DU |
|
1.3A |
SF48-1001300DU |
SF48-1051300DU |
SF48-1101300DU |
SF48-1151300DU |
SF48-1201300DU |
SF48-1251300DU |
|
1.2A |
SF48-1001200DU |
SF48-1051200DU |
SF48-1101200DU |
SF48-1151200DU |
SF48-1201200DU |
SF48-1251200DU |
|
1.1A |
SF48-1001100DU |
SF48-1051100DU |
SF48-1101100DU |
SF48-1151100DU |
SF48-1201100DU |
SF48-1251100DU |
|
1.0A |
SF48-1001000DU |
SF48-1051000DU |
SF48-1101000DU |
SF48-1151000DU |
SF48-1201000DU |
SF48-1251000DU |
|
0.9A |
SF48-1000900DU |
SF48-1050900DU |
SF48-1100900DU |
SF48-1150900DU |
SF48-1200900DU |
SF48-1250900DU |
|
0.8A |
SF48-1000800DU |
SF48-1050800DU |
SF48-1100800DU |
SF48-1150800DU |
SF48-1200800DU |
SF48-1250800DU |
|
0.7A |
|
|
SF48-1100700DU |
SF48-1150700DU |
SF48-1200700DU |
SF48-1250700DU |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48-0702400DU |
|
|
|
|
|
|
2.3A |
SF48-0702300DU |
SF48-0752300DU |
|
|
|
|
|
2.2A |
SF48-0702200DU |
SF48-0752200DU |
SF48-0802200DU |
|
|
|
|
2.1A |
SF48-0702100DU |
SF48-0752100DU |
SF48-0802100DU |
SF48-0852100DU |
|
|
|
2.0A |
SF48-0702000DU |
SF48-0752000DU |
SF48-0802000DU |
SF48-0852000DU |
SF48-0902000DU |
|
|
1.9A |
SF48-0701900DU |
SF48-0751900DU |
SF48-0801900DU |
SF48-0851900DU |
SF48-0901900DU |
SF48-0951900DU |
|
1.8A |
SF48-0701800DU |
SF48-0751800DU |
SF48-0801800DU |
SF48-0851800DU |
SF48-0901800DU |
SF48-0951800DU |
|
1.7A |
SF48-0701700DU |
SF48-0751700DU |
SF48-0801700DU |
SF48-0851700DU |
SF48-0901700DU |
SF48-0951700DU |
|
1.6A |
SF48-0701600DU |
SF48-0751600DU |
SF48-0801600DU |
SF48-0851600DU |
SF48-0901600DU |
SF48-0951600DU |
|
1.5A |
SF48-0701500DU |
SF48-0751500DU |
SF48-0801500DU |
SF48-0851500DU |
SF48-0901500DU |
SF48-0951500DU |
|
1.4A |
SF48-0701400DU |
SF48-0751400DU |
SF48-0801400DU |
SF48-0851400DU |
SF48-0901400DU |
SF48-0951400DU |
|
1.3A |
SF48-0701300DU |
SF48-0751300DU |
SF48-0801300DU |
SF48-0851300DU |
SF48-0901300DU |
SF48-0951300DU |
|
1.2A |
SF48-0701200DU |
SF48-0751200DU |
SF48-0801200DU |
SF48-0851200DU |
SF48-0901200DU |
SF48-0951200DU |
|
1.1A |
|
|
SF48-0801100DU |
SF48-0851100DU |
SF48-0901100DU |
SF48-0951100DU |
|
1.0A |
|
|
|
|
SF48-0901000DU |
SF48-0951000DU |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48-0402800DU |
|
|
|
|
|
|
2.7A |
SF48-0402700DU |
SF48-0452700DU |
SF48-0502700DU |
|
|
|
|
2.6A |
SF48-0402600DU |
SF48-0452600DU |
SF48-0502600DU |
SF48-0552600DU |
SF48-0602600DU |
|
|
2.5A |
SF48-0402500DU |
SF48-0452500DU |
SF48-0502500DU |
SF48-0552500DU |
SF48-0602500DU |
SF48-0652500DU |
|
2.4A |
SF48-0402400DU |
SF48-0452400DU |
SF48-0502400DU |
SF48-0552400DU |
SF48-0602400DU |
SF48-0652400DU |
|
2.3A |
SF48-0402300DU |
SF48-0452300DU |
SF48-0502300DU |
SF48-0552300DU |
SF48-0602300DU |
SF48-0652300DU |
|
2.2A |
SF48-0402200DU |
SF48-0452200DU |
SF48-0502200DU |
SF48-0552200DU |
SF48-0602200DU |
SF48-0652200DU |
|
2.1A |
SF48-0402100DU |
SF48-0452100DU |
SF48-0502100DU |
SF48-0552100DU |
SF48-0602100DU |
SF48-0652100DU |
|
2.0A |
SF48-0402000DU |
SF48-0452000DU |
SF48-0502000DU |
SF48-0552000DU |
SF48-0602000DU |
SF48-0652000DU |
|
1.9A |
SF48-0401900DU |
SF48-0451900DU |
SF48-0501900DU |
SF48-0551900DU |
SF48-0601900DU |
SF48-0651900DU |
|
1.8A |
SF48-0401800DU |
SF48-0451800DU |
SF48-0501800DU |
SF48-0551800DU |
SF48-0601800DU |
SF48-0651800DU |
|
1.7A |
SF48-0401700DU |
SF48-0451700DU |
SF48-0501700DU |
SF48-0551700DU |
SF48-0601700DU |
SF48-0651700DU |
|
1.6A |
SF48-0401600DU |
SF48-0451600DU |
SF48-0501600DU |
SF48-0551600DU |
SF48-0601600DU |
SF48-0651600DU |
|
1.5A |
SF48-0401500DU |
SF48-0451500DU |
SF48-0501500DU |
SF48-0551500DU |
SF48-0601500DU |
SF48-0651500DU |
|
1.4A |
SF48-0401400DU |
SF48-0451400DU |
SF48-0501400DU |
SF48-0551400DU |
SF48-0601400DU |
SF48-0651400DU |
|
1.3A |
|
|
SF48-0501300DU |
SF48-0551300DU |
SF48-0601400DU |
SF48-0651400DU |
|
1.2A |
|
|
|
|
SF48-0601200DU |
SF48-0651200DU |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48-0104000DU |
SF48-0154000DU |
|
|
|
|
|
3.7A |
SF48-0103700DU |
SF48-0153700DU |
SF48-0203700DU |
|
|
|
|
3.5A |
SF48-0103500DU |
SF48-0153500DU |
SF48-0203500DU |
SF48-0253500DU |
|
|
|
3.2A |
SF48-0103200DU |
SF48-0153200DU |
SF48-0203200DU |
SF48-0253200DU |
SF48-0303200DU |
|
|
3.0A |
SF48-0103000DU |
SF48-0153000DU |
SF48-0203000DU |
SF48-0253000DU |
SF48-0303000DU |
SF48-0353000DU |
|
2.9A |
SF48-0102900DU |
SF48-0152900DU |
SF48-0202900DU |
SF48-0252900DU |
SF48-0302900DU |
SF48-0352900DU |
|
2.8A |
SF48-0102800DU |
SF48-0152800DU |
SF48-0202800DU |
SF48-0252800DU |
SF48-0302800DU |
SF48-0352800DU |
|
2.7A |
SF48-0102700DU |
SF48-0152700DU |
SF48-0202700DU |
SF48-0252700DU |
SF48-0302700DU |
SF48-0352700DU |
|
2.6A |
SF48-0102600DU |
SF48-0152600DU |
SF48-0202600DU |
SF48-0252600DU |
SF48-0302600DU |
SF48-0352600DU |
|
2.5A |
SF48-0102500DU |
SF48-0152500DU |
SF48-0202500DU |
SF48-0252500DU |
SF48-0302500DU |
SF48-0352500DU |
|
2.4A |
SF48-0102400DU |
SF48-0152400DU |
SF48-0202400DU |
SF48-0252400DU |
SF48-0302400DU |
SF48-0352400DU |
|
2.3A |
SF48-0102300DU |
SF48-0152300DU |
SF48-0202300DU |
SF48-0252300DU |
SF48-0302300DU |
SF48-0352300DU |
|
2.2A |
SF48-0102200DU |
SF48-0152200DU |
SF48-0202200DU |
SF48-0252200DU |
SF48-0302200DU |
SF48-0352200DU |
|
2.1A |
SF48-0102100DU |
SF48-0152100DU |
SF48-0202100DU |
SF48-0252100DU |
SF48-0302100DU |
SF48-0352100DU |
|
2.0A |
SF48-0102000DU |
SF48-0152000DU |
SF48-0202000DU |
SF48-0252000DU |
SF48-0302000DU |
SF48-0352000DU |
|
1.9A |
SF48-0101900DU |
SF48-0151900DU |
SF48-0201900DU |
SF48-0251900DU |
SF48-0301900DU |
SF48-0351900DU |
|
1.8A |
SF48-0101800DU |
SF48-0151800DU |
SF48-0201800DU |
SF48-0251800DU |
SF48-0301800DU |
SF48-0351800DU |
|
1.7A |
SF48-0101700DU |
SF48-0151700DU |
SF48-0201700DU |
SF48-0251700DU |
SF48-0301700DU |
SF48-0351700DU |
|
1.6A |
SF48-0101600DU |
SF48-0151600DU |
SF48-0201600DU |
SF48-0251600DU |
SF48-0301600DU |
SF48-0351600DU |
|
1.5A |
SF48-0101500DU |
SF48-0151500DU |
SF48-0201500DU |
SF48-0251500DU |
SF48-0301500DU |
SF48-0351500DU |
|
1.4A |
|
|
|
|
SF48-0301400DU |
SF48-0351400DU |

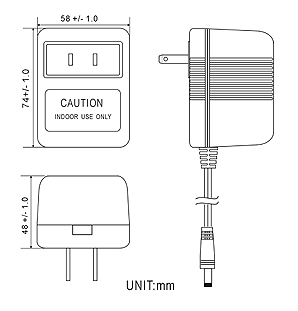

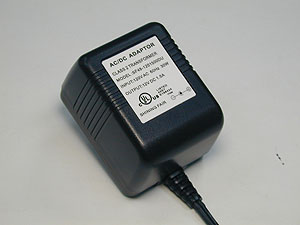

A-TYPE

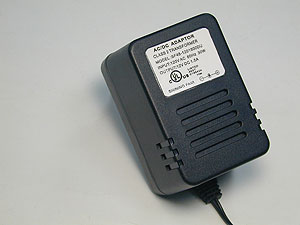

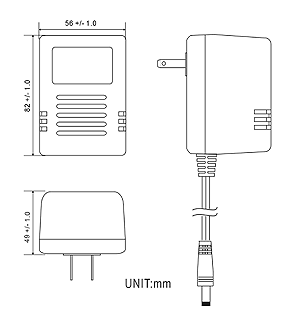

B-TYPE
 |
 |
 |
 |
 |
 |
