LINEAR ADAPTOR
WALLMOUNT

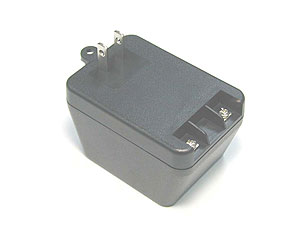

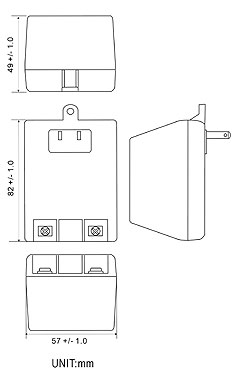

EI 48 AC TO DC ADAPTOR (US 2 PIN+SCREWED)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
21.6VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48-2500800DUW |
SF48-2550800DUW |
|
|
|
|
|
0.7A |
SF48-2500700DUW |
SF48-2550700DUW |
SF48-2600700DUW |
SF48-2650700DUW |
SF48-2700700DUW |
SF48-2800700DUW |
|
0.6A |
SF48-2500600DUW |
SF48-2550600DUW |
SF48-2600600DUW |
SF48-2650600DUW |
SF48-2700600DUW |
SF48-2800600DUW |
|
0.5A |
SF48-2500500DUW |
SF48-2550500DUW |
SF48-2600500DUW |
SF48-2650500DUW |
SF48-2700500DUW |
SF48-2800500DUW |
|
0.4A |
SF48-2500400DUW |
SF48-2550400DUW |
SF48-2600400DUW |
SF48-2650400DUW |
SF48-2700400DUW |
SF48-2800400DUW |
|
0.3A |
SF48-2500300DUW |
SF48-2550300DUW |
SF48-2600300DUW |
SF48-2650300DUW |
SF48-2700300DUW |
SF48-2800300DUW |
|
0.2A |
SF48-2500200DUW |
SF48-2550200DUW |
SF48-2600200DUW |
SF48-2650200DUW |
SF48-2700200DUW |
SF48-2800200DUW |
|
0.1A |
|
|
SF48-2600100DUW |
SF48-2650100DUW |
SF48-2700100DUW |
SF48-2800100DUW |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48-2200900DUW |
SF48-2250900DUW |
SF48-2300900DUW |
SF48-2350900DUW |
SF48-2400900DUW |
|
|
0.8A |
SF48-2200800DUW |
SF48-2250800DUW |
SF48-2300800DUW |
SF48-2350800DUW |
SF48-2400800DUW |
SF48-2450800DUW |
|
0.7A |
SF48-2200700DUW |
SF48-2250700DUW |
SF48-2300700DUW |
SF48-2350700DUW |
SF48-2400700DUW |
SF48-2450700DUW |
|
0.6A |
SF48-2200600DUW |
SF48-2250600DUW |
SF48-2300600DUW |
SF48-2350600DUW |
SF48-2400600DUW |
SF48-2450600DUW |
|
0.5A |
SF48-2200500DUW |
SF48-2250500DUW |
SF48-2300500DUW |
SF48-2350500DUW |
SF48-2400500DUW |
SF48-2450500DUW |
|
0.4A |
SF48-2200400DUW |
SF48-2250400DUW |
SF48-2300400DUW |
SF48-2350400DUW |
SF48-2400400DUW |
SF48-2450400DUW |
|
0.3A |
SF48-2200300DUW |
SF48-2250300DUW |
SF48-2300300DUW |
SF48-2350300DUW |
SF48-2400300DUW |
SF48-2450300DUW |
|
0.2A |
SF48-2200200DUW |
SF48-2250200DUW |
SF48-2300200DUW |
SF48-2350200DUW |
SF48-2400200DUW |
SF48-2450200DUW |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48-1901100DUW |
SF48-1951100DUW |
|
|
|
|
|
1.0A |
SF48-1901000DUW |
SF48-1951000DUW |
SF48-2001000DUW |
SF48-2051000DUW |
SF48-2101000DUW |
|
|
0.9A |
SF48-1900900DUW |
SF48-1950900DUW |
SF48-2000900DUW |
SF48-2050900DUW |
SF48-2100900DUW |
SF48-2150900DUW |
|
0.8A |
SF48-1900800DUW |
SF48-1950800DUW |
SF48-2000800DUW |
SF48-2050800DUW |
SF48-2100800DUW |
SF48-2150800DUW |
|
0.7A |
SF48-1900700DUW |
SF48-1950700DUW |
SF48-2000700DUW |
SF48-2050700DUW |
SF48-2100700DUW |
SF48-2150700DUW |
|
0.6A |
SF48-1900600DUW |
SF48-1950600DUW |
SF48-2000600DUW |
SF48-2050600DUW |
SF48-2100600DUW |
SF48-2150600DUW |
|
0.5A |
SF48-1900500DUW |
SF48-1950500DUW |
SF48-2000500DUW |
SF48-2050500DUW |
SF48-2100500DUW |
SF48-2150500DUW |
|
0.4A |
SF48-1900400DUW |
SF48-1950400DUW |
SF48-2000400DUW |
SF48-2050400DUW |
SF48-2100400DUW |
SF48-2150400DUW |
|
0.3A |
SF48-1900300DUW |
SF48-1950300DUW |
SF48-2000300DUW |
SF48-2050300DUW |
SF48-2100300DUW |
SF48-2150300DUW |
|
0.2A |
|
|
SF48-2000200DUW |
SF48-2050200DUW |
SF48-2100200DUW |
SF48-2150200DUW |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48-1601200DUW |
SF48-1651200DUW |
SF48-1701200DUW |
SF48-1751200DUW |
SF48-1801200DUW |
|
|
1.1A |
SF48-1601100DUW |
SF48-1651100DUW |
SF48-1701100DUW |
SF48-1751100DUW |
SF48-1801100DUW |
SF48-1851100DUW |
|
1.0A |
SF48-1601000DUW |
SF48-1651000DUW |
SF48-1701000DUW |
SF48-1751000DUW |
SF48-1801000DUW |
SF48-1851000DUW |
|
0.9A |
SF48-1600900DUW |
SF48-1650900DUW |
SF48-1700900DUW |
SF48-1750900DUW |
SF48-1800900DUW |
SF48-1850900DUW |
|
0.8A |
SF48-1600800DUW |
SF48-1650800DUW |
SF48-1700800DUW |
SF48-1750800DUW |
SF48-1800800DUW |
SF48-1850800DUW |
|
0.7A |
SF48-1600700DUW |
SF48-1650700DUW |
SF48-1700700DUW |
SF48-1750700DUW |
SF48-1800700DUW |
SF48-1850700DUW |
|
0.6A |
SF48-1600600DUW |
SF48-1650600DUW |
SF48-1700600DUW |
SF48-1750600DUW |
SF48-1800600DUW |
SF48-1850600DUW |
|
0.5A |
SF48-1600500DUW |
SF48-1650500DUW |
SF48-1700500DUW |
SF48-1750500DUW |
SF48-1800500DUW |
SF48-1850500DUW |
|
0.4A |
SF48-1600400DUW |
SF48-1650400DUW |
SF48-1700400DUW |
SF48-1750400DUW |
SF48-1800400DUW |
SF48-1850400DUW |
|
0.3A |
|
|
|
SF48-1750300DUW |
SF48-1800300DUW |
SF48-1850300DUW |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48-1301400DUW |
SF48-1351400DUW |
|
|
|
|
|
1.3A |
SF48-1301300DUW |
SF48-1351300DUW |
SF48-1401300DUW |
SF48-1451300DUW |
SF48-1501300DUW |
|
|
1.2A |
SF48-1301200DUW |
SF48-1351200DUW |
SF48-1401200DUW |
SF48-1451200DUW |
SF48-1501200DUW |
SF48-1551200DUW |
|
1.1A |
SF48-1301100DUW |
SF48-1351100DUW |
SF48-1401100DUW |
SF48-1451100DUW |
SF48-1501100DUW |
SF48-1551100DUW |
|
1.0A |
SF48-1301000DUW |
SF48-1351000DUW |
SF48-1401000DUW |
SF48-1451000DUW |
SF48-1501000DUW |
SF48-1551000DUW |
|
0.9A |
SF48-1300900DUW |
SF48-1350900DUW |
SF48-1400900DUW |
SF48-1450900DUW |
SF48-1500900DUW |
SF48-1550900DUW |
|
0.8A |
SF48-1300800DUW |
SF48-1350800DUW |
SF48-1400800DUW |
SF48-1450800DUW |
SF48-1500800DUW |
SF48-1550800DUW |
|
0.7A |
SF48-1300700DUW |
SF48-1350700DUW |
SF48-1400700DUW |
SF48-1450700DUW |
SF48-1500700DUW |
SF48-1550700DUW |
|
0.6A |
|
|
SF48-1400600DUW |
SF48-1450600DUW |
SF48-1500600DUW |
SF48-1550600DUW |
|
0.5A |
|
|
|
|
SF48-1500500DUW |
SF48-1550500DUW |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48-1001900DUW |
|
|
|
|
|
|
1.8A |
SF48-1001800DUW |
SF48-1051800DUW |
|
|
|
|
|
1.7A |
SF48-1001700DUW |
SF48-1051700DUW |
SF48-1101700DUW |
|
|
|
|
1.6A |
SF48-1001600DUW |
SF48-1051600DUW |
SF48-1101600DUW |
SF48-1151600DUW |
|
|
|
1.5A |
SF48-1001500DUW |
SF48-1051500DUW |
SF48-1101500DUW |
SF48-1151500DUW |
SF48-1201500DUW |
|
|
1.4A |
SF48-1001400DUW |
SF48-1051400DUW |
SF48-1101400DUW |
SF48-1151400DUW |
SF48-1201400DUW |
SF48-1251400DUW |
|
1.3A |
SF48-1001300DUW |
SF48-1051300DUW |
SF48-1101300DUW |
SF48-1151300DUW |
SF48-1201300DUW |
SF48-1251300DUW |
|
1.2A |
SF48-1001200DUW |
SF48-1051200DUW |
SF48-1101200DUW |
SF48-1151200DUW |
SF48-1201200DUW |
SF48-1251200DUW |
|
1.1A |
SF48-1001100DUW |
SF48-1051100DUW |
SF48-1101100DUW |
SF48-1151100DUW |
SF48-1201100DUW |
SF48-1251100DUW |
|
1.0A |
SF48-1001000DUW |
SF48-1051000DUW |
SF48-1101000DUW |
SF48-1151000DUW |
SF48-1201000DUW |
SF48-1251000DUW |
|
0.9A |
SF48-1000900DUW |
SF48-1050900DUW |
SF48-1100900DUW |
SF48-1150900DUW |
SF48-1200900DUW |
SF48-1250900DUW |
|
0.8A |
SF48-1000800DUW |
SF48-1050800DUW |
SF48-1100800DUW |
SF48-1150800DUW |
SF48-1200800DUW |
SF48-1250800DUW |
|
0.7A |
|
|
SF48-1100700DUW |
SF48-1150700DUW |
SF48-1200700DUW |
SF48-1250700DUW |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48-0702400DUW |
|
|
|
|
|
|
2.3A |
SF48-0702300DUW |
SF48-0752300DUW |
|
|
|
|
|
2.2A |
SF48-0702200DUW |
SF48-0752200DUW |
SF48-0802200DUW |
|
|
|
|
2.1A |
SF48-0702100DUW |
SF48-0752100DUW |
SF48-0802100DUW |
SF48-0852100DUW |
|
|
|
2.0A |
SF48-0702000DUW |
SF48-0752000DUW |
SF48-0802000DUW |
SF48-0852000DUW |
SF48-0902000DUW |
|
|
1.9A |
SF48-0701900DUW |
SF48-0751900DUW |
SF48-0801900DUW |
SF48-0851900DUW |
SF48-0901900DUW |
SF48-0951900DUW |
|
1.8A |
SF48-0701800DUW |
SF48-0751800DUW |
SF48-0801800DUW |
SF48-0851800DUW |
SF48-0901800DUW |
SF48-0951800DUW |
|
1.7A |
SF48-0701700DUW |
SF48-0751700DUW |
SF48-0801700DUW |
SF48-0851700DUW |
SF48-0901700DUW |
SF48-0951700DUW |
|
1.6A |
SF48-0701600DUW |
SF48-0751600DUW |
SF48-0801600DUW |
SF48-0851600DUW |
SF48-0901600DUW |
SF48-0951600DUW |
|
1.5A |
SF48-0701500DUW |
SF48-0751500DUW |
SF48-0801500DUW |
SF48-0851500DUW |
SF48-0901500DUW |
SF48-0951500DUW |
|
1.4A |
SF48-0701400DUW |
SF48-0751400DUW |
SF48-0801400DUW |
SF48-0851400DUW |
SF48-0901400DUW |
SF48-0951400DUW |
|
1.3A |
SF48-0701300DUW |
SF48-0751300DUW |
SF48-0801300DUW |
SF48-0851300DUW |
SF48-0901300DUW |
SF48-0951300DUW |
|
1.2A |
SF48-0701200DUW |
SF48-0751200DUW |
SF48-0801200DUW |
SF48-0851200DUW |
SF48-0901200DUW |
SF48-0951200DUW |
|
1.1A |
|
|
SF48-0801100DUW |
SF48-0851100DUW |
SF48-0901100DUW |
SF48-0951100DUW |
|
1.0A |
|
|
|
|
SF48-0901000DUW |
SF48-0951000DUW |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48-0402800DUW |
|
|
|
|
|
|
2.7A |
SF48-0402700DUW |
SF48-0452700DUW |
SF48-0502700DUW |
|
|
|
|
2.6A |
SF48-0402600DUW |
SF48-0452600DUW |
SF48-0502600DUW |
SF48-0552600DUW |
SF48-0602600DUW |
|
|
2.5A |
SF48-0402500DUW |
SF48-0452500DUW |
SF48-0502500DUW |
SF48-0552500DUW |
SF48-0602500DUW |
SF48-0652500DUW |
|
2.4A |
SF48-0402400DUW |
SF48-0452400DUW |
SF48-0502400DUW |
SF48-0552400DUW |
SF48-0602400DUW |
SF48-0652400DUW |
|
2.3A |
SF48-0402300DUW |
SF48-0452300DUW |
SF48-0502300DUW |
SF48-0552300DUW |
SF48-0602300DUW |
SF48-0652300DUW |
|
2.2A |
SF48-0402200DUW |
SF48-0452200DUW |
SF48-0502200DUW |
SF48-0552200DUW |
SF48-0602200DUW |
SF48-0652200DUW |
|
2.1A |
SF48-0402100DUW |
SF48-0452100DUW |
SF48-0502100DUW |
SF48-0552100DUW |
SF48-0602100DUW |
SF48-0652100DUW |
|
2.0A |
SF48-0402000DUW |
SF48-0452000DUW |
SF48-0502000DUW |
SF48-0552000DUW |
SF48-0602000DUW |
SF48-0652000DUW |
|
1.9A |
SF48-0401900DUW |
SF48-0451900DUW |
SF48-0501900DUW |
SF48-0551900DUW |
SF48-0601900DUW |
SF48-0651900DUW |
|
1.8A |
SF48-0401800DUW |
SF48-0451800DUW |
SF48-0501800DUW |
SF48-0551800DUW |
SF48-0601800DUW |
SF48-0651800DUW |
|
1.7A |
SF48-0401700DUW |
SF48-0451700DUW |
SF48-0501700DUW |
SF48-0551700DUW |
SF48-0601700DUW |
SF48-0651700DUW |
|
1.6A |
SF48-0401600DUW |
SF48-0451600DUW |
SF48-0501600DUW |
SF48-0551600DUW |
SF48-0601600DUW |
SF48-0651600DUW |
|
1.5A |
SF48-0401500DUW |
SF48-0451500DUW |
SF48-0501500DUW |
SF48-0551500DUW |
SF48-0601500DUW |
SF48-0651500DUW |
|
1.4A |
SF48-0401400DUW |
SF48-0451400DUW |
SF48-0501400DUW |
SF48-0551400DUW |
SF48-0601400DUW |
SF48-0651400DUW |
|
1.3A |
|
|
SF48-0501300DUW |
SF48-0551300DUW |
SF48-0601400DUW |
SF48-0651400DUW |
|
1.2A |
|
|
|
|
SF48-0601200DUW |
SF48-0651200DUW |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48-0104000DUW |
SF48-0154000DUW |
|
|
|
|
|
3.7A |
SF48-0103700DUW |
SF48-0153700DUW |
SF48-0203700DUW |
|
|
|
|
3.5A |
SF48-0103500DUW |
SF48-0153500DUW |
SF48-0203500DUW |
SF48-0253500DUW |
|
|
|
3.2A |
SF48-0103200DUW |
SF48-0153200DUW |
SF48-0203200DUW |
SF48-0253200DUW |
SF48-0303200DUW |
|
|
3.0A |
SF48-0103000DUW |
SF48-0153000DUW |
SF48-0203000DUW |
SF48-0253000DUW |
SF48-0303000DUW |
SF48-0353000DUW |
|
2.9A |
SF48-0102900DUW |
SF48-0152900DUW |
SF48-0202900DUW |
SF48-0252900DUW |
SF48-0302900DUW |
SF48-0352900DUW |
|
2.8A |
SF48-0102800DUW |
SF48-0152800DUW |
SF48-0202800DUW |
SF48-0252800DUW |
SF48-0302800DUW |
SF48-0352800DUW |
|
2.7A |
SF48-0102700DUW |
SF48-0152700DUW |
SF48-0202700DUW |
SF48-0252700DUW |
SF48-0302700DUW |
SF48-0352700DUW |
|
2.6A |
SF48-0102600DUW |
SF48-0152600DUW |
SF48-0202600DUW |
SF48-0252600DUW |
SF48-0302600DUW |
SF48-0352600DUW |
|
2.5A |
SF48-0102500DUW |
SF48-0152500DUW |
SF48-0202500DUW |
SF48-0252500DUW |
SF48-0302500DUW |
SF48-0352500DUW |
|
2.4A |
SF48-0102400DUW |
SF48-0152400DUW |
SF48-0202400DUW |
SF48-0252400DUW |
SF48-0302400DUW |
SF48-0352400DUW |
|
2.3A |
SF48-0102300DUW |
SF48-0152300DUW |
SF48-0202300DUW |
SF48-0252300DUW |
SF48-0302300DUW |
SF48-0352300DUW |
|
2.2A |
SF48-0102200DUW |
SF48-0152200DUW |
SF48-0202200DUW |
SF48-0252200DUW |
SF48-0302200DUW |
SF48-0352200DUW |
|
2.1A |
SF48-0102100DUW |
SF48-0152100DUW |
SF48-0202100DUW |
SF48-0252100DUW |
SF48-0302100DUW |
SF48-0352100DUW |
|
2.0A |
SF48-0102000DUW |
SF48-0152000DUW |
SF48-0202000DUW |
SF48-0252000DUW |
SF48-0302000DUW |
SF48-0352000DUW |
|
1.9A |
SF48-0101900DUW |
SF48-0151900DUW |
SF48-0201900DUW |
SF48-0251900DUW |
SF48-0301900DUW |
SF48-0351900DUW |
|
1.8A |
SF48-0101800DUW |
SF48-0151800DUW |
SF48-0201800DUW |
SF48-0251800DUW |
SF48-0301800DUW |
SF48-0351800DUW |
|
1.7A |
SF48-0101700DUW |
SF48-0151700DUW |
SF48-0201700DUW |
SF48-0251700DUW |
SF48-0301700DUW |
SF48-0351700DUW |
|
1.6A |
SF48-0101600DUW |
SF48-0151600DUW |
SF48-0201600DUW |
SF48-0251600DUW |
SF48-0301600DUW |
SF48-0351600DUW |
|
1.5A |
SF48-0101500DUW |
SF48-0151500DUW |
SF48-0201500DUW |
SF48-0251500DUW |
SF48-0301500DUW |
SF48-0351500DUW |
|
1.4A |
|
|
|
|
SF48-0301400DUW |
SF48-0351400DUW |
 |
 |
 |
 |
 |
 |
