LINEAR ADAPTOR
WALLMOUNT

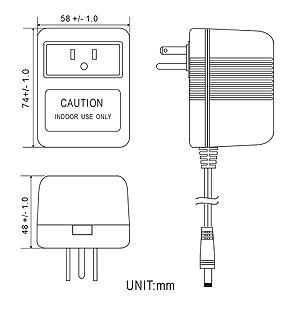

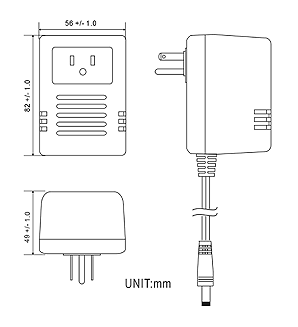

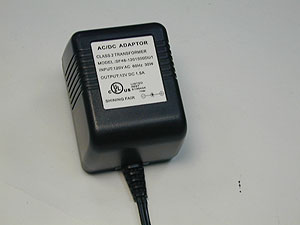

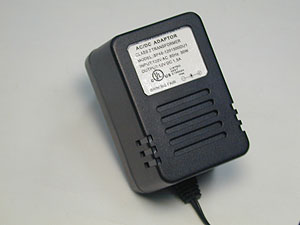

EI 48 AC TO DC ADAPTOR (US 3 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.1-4A |
|
|
|
Output Watt |
21.6VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.8A |
SF48-2500800DU-1 |
SF48-2550800DU-1 |
|
|
|
|
|
0.7A |
SF48-2500700DU-1 |
SF48-2550700DU-1 |
SF48-2600700DU-1 |
SF48-2650700DU-1 |
SF48-2700700DU-1 |
SF48-2800700DU-1 |
|
0.6A |
SF48-2500600DU-1 |
SF48-2550600DU-1 |
SF48-2600600DU-1 |
SF48-2650600DU-1 |
SF48-2700600DU-1 |
SF48-2800600DU-1 |
|
0.5A |
SF48-2500500DU-1 |
SF48-2550500DU-1 |
SF48-2600500DU-1 |
SF48-2650500DU-1 |
SF48-2700500DU-1 |
SF48-2800500DU-1 |
|
0.4A |
SF48-2500400DU-1 |
SF48-2550400DU-1 |
SF48-2600400DU-1 |
SF48-2650400DU-1 |
SF48-2700400DU-1 |
SF48-2800400DU-1 |
|
0.3A |
SF48-2500300DU-1 |
SF48-2550300DU-1 |
SF48-2600300DU-1 |
SF48-2650300DU-1 |
SF48-2700300DU-1 |
SF48-2800300DU-1 |
|
0.2A |
SF48-2500200DU-1 |
SF48-2550200DU-1 |
SF48-2600200DU-1 |
SF48-2650200DU-1 |
SF48-2700200DU-1 |
SF48-2800200DU-1 |
|
0.1A |
|
|
SF48-2600100DU-1 |
SF48-2650100DU-1 |
SF48-2700100DU-1 |
SF48-2800100DU-1 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.9A |
SF48-2200900DU-1 |
SF48-2250900DU-1 |
SF48-2300900DU-1 |
SF48-2350900DU-1 |
SF48-2400900DU-1 |
|
|
0.8A |
SF48-2200800DU-1 |
SF48-2250800DU-1 |
SF48-2300800DU-1 |
SF48-2350800DU-1 |
SF48-2400800DU-1 |
SF48-2450800DU-1 |
|
0.7A |
SF48-2200700DU-1 |
SF48-2250700DU-1 |
SF48-2300700DU-1 |
SF48-2350700DU-1 |
SF48-2400700DU-1 |
SF48-2450700DU-1 |
|
0.6A |
SF48-2200600DU-1 |
SF48-2250600DU-1 |
SF48-2300600DU-1 |
SF48-2350600DU-1 |
SF48-2400600DU-1 |
SF48-2450600DU-1 |
|
0.5A |
SF48-2200500DU-1 |
SF48-2250500DU-1 |
SF48-2300500DU-1 |
SF48-2350500DU-1 |
SF48-2400500DU-1 |
SF48-2450500DU-1 |
|
0.4A |
SF48-2200400DU-1 |
SF48-2250400DU-1 |
SF48-2300400DU-1 |
SF48-2350400DU-1 |
SF48-2400400DU-1 |
SF48-2450400DU-1 |
|
0.3A |
SF48-2200300DU-1 |
SF48-2250300DU-1 |
SF48-2300300DU-1 |
SF48-2350300DU-1 |
SF48-2400300DU-1 |
SF48-2450300DU-1 |
|
0.2A |
SF48-2200200DU-1 |
SF48-2250200DU-1 |
SF48-2300200DU-1 |
SF48-2350200DU-1 |
SF48-2400200DU-1 |
SF48-2450200DU-1 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.1A |
SF48-1901100DU-1 |
SF48-1951100DU-1 |
|
|
|
|
|
1.0A |
SF48-1901000DU-1 |
SF48-1951000DU-1 |
SF48-2001000DU-1 |
SF48-2051000DU-1 |
SF48-2101000DU-1 |
|
|
0.9A |
SF48-1900900DU-1 |
SF48-1950900DU-1 |
SF48-2000900DU-1 |
SF48-2050900DU-1 |
SF48-2100900DU-1 |
SF48-2150900DU-1 |
|
0.8A |
SF48-1900800DU-1 |
SF48-1950800DU-1 |
SF48-2000800DU-1 |
SF48-2050800DU-1 |
SF48-2100800DU-1 |
SF48-2150800DU-1 |
|
0.7A |
SF48-1900700DU-1 |
SF48-1950700DU-1 |
SF48-2000700DU-1 |
SF48-2050700DU-1 |
SF48-2100700DU-1 |
SF48-2150700DU-1 |
|
0.6A |
SF48-1900600DU-1 |
SF48-1950600DU-1 |
SF48-2000600DU-1 |
SF48-2050600DU-1 |
SF48-2100600DU-1 |
SF48-2150600DU-1 |
|
0.5A |
SF48-1900500DU-1 |
SF48-1950500DU-1 |
SF48-2000500DU-1 |
SF48-2050500DU-1 |
SF48-2100500DU-1 |
SF48-2150500DU-1 |
|
0.4A |
SF48-1900400DU-1 |
SF48-1950400DU-1 |
SF48-2000400DU-1 |
SF48-2050400DU-1 |
SF48-2100400DU-1 |
SF48-2150400DU-1 |
|
0.3A |
SF48-1900300DU-1 |
SF48-1950300DU-1 |
SF48-2000300DU-1 |
SF48-2050300DU-1 |
SF48-2100300DU-1 |
SF48-2150300DU-1 |
|
0.2A |
|
|
SF48-2000200DU-1 |
SF48-2050200DU-1 |
SF48-2100200DU-1 |
SF48-2150200DU-1 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
1.2A |
SF48-1601200DU-1 |
SF48-1651200DU-1 |
SF48-1701200DU-1 |
SF48-1751200DU-1 |
SF48-1801200DU-1 |
|
|
1.1A |
SF48-1601100DU-1 |
SF48-1651100DU-1 |
SF48-1701100DU-1 |
SF48-1751100DU-1 |
SF48-1801100DU-1 |
SF48-1851100DU-1 |
|
1.0A |
SF48-1601000DU-1 |
SF48-1651000DU-1 |
SF48-1701000DU-1 |
SF48-1751000DU-1 |
SF48-1801000DU-1 |
SF48-1851000DU-1 |
|
0.9A |
SF48-1600900DU-1 |
SF48-1650900DU-1 |
SF48-1700900DU-1 |
SF48-1750900DU-1 |
SF48-1800900DU-1 |
SF48-1850900DU-1 |
|
0.8A |
SF48-1600800DU-1 |
SF48-1650800DU-1 |
SF48-1700800DU-1 |
SF48-1750800DU-1 |
SF48-1800800DU-1 |
SF48-1850800DU-1 |
|
0.7A |
SF48-1600700DU-1 |
SF48-1650700DU-1 |
SF48-1700700DU-1 |
SF48-1750700DU-1 |
SF48-1800700DU-1 |
SF48-1850700DU-1 |
|
0.6A |
SF48-1600600DU-1 |
SF48-1650600DU-1 |
SF48-1700600DU-1 |
SF48-1750600DU-1 |
SF48-1800600DU-1 |
SF48-1850600DU-1 |
|
0.5A |
SF48-1600500DU-1 |
SF48-1650500DU-1 |
SF48-1700500DU-1 |
SF48-1750500DU-1 |
SF48-1800500DU-1 |
SF48-1850500DU-1 |
|
0.4A |
SF48-1600400DU-1 |
SF48-1650400DU-1 |
SF48-1700400DU-1 |
SF48-1750400DU-1 |
SF48-1800400DU-1 |
SF48-1850400DU-1 |
|
0.3A |
|
|
|
SF48-1750300DU-1 |
SF48-1800300DU-1 |
SF48-1850300DU-1 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.9A |
SF48-1001900DU-1 |
|
|
|
|
|
|
1.8A |
SF48-1001800DU-1 |
SF48-1051800DU-1 |
|
|
|
|
|
1.7A |
SF48-1001700DU-1 |
SF48-1051700DU-1 |
SF48-1101700DU-1 |
|
|
|
|
1.6A |
SF48-1001600DU-1 |
SF48-1051600DU-1 |
SF48-1101600DU-1 |
SF48-1151600DU-1 |
|
|
|
1.5A |
SF48-1001500DU-1 |
SF48-1051500DU-1 |
SF48-1101500DU-1 |
SF48-1151500DU-1 |
SF48-1201500DU-1 |
|
|
1.4A |
SF48-1001400DU-1 |
SF48-1051400DU-1 |
SF48-1101400DU-1 |
SF48-1151400DU-1 |
SF48-1201400DU-1 |
SF48-1251400DU-1 |
|
1.3A |
SF48-1001300DU-1 |
SF48-1051300DU-1 |
SF48-1101300DU-1 |
SF48-1151300DU-1 |
SF48-1201300DU-1 |
SF48-1251300DU-1 |
|
1.2A |
SF48-1001200DU-1 |
SF48-1051200DU-1 |
SF48-1101200DU-1 |
SF48-1151200DU-1 |
SF48-1201200DU-1 |
SF48-1251200DU-1 |
|
1.1A |
SF48-1001100DU-1 |
SF48-1051100DU-1 |
SF48-1101100DU-1 |
SF48-1151100DU-1 |
SF48-1201100DU-1 |
SF48-1251100DU-1 |
|
1.0A |
SF48-1001000DU-1 |
SF48-1051000DU-1 |
SF48-1101000DU-1 |
SF48-1151000DU-1 |
SF48-1201000DU-1 |
SF48-1251000DU-1 |
|
0.9A |
SF48-1000900DU-1 |
SF48-1050900DU-1 |
SF48-1100900DU-1 |
SF48-1150900DU-1 |
SF48-1200900DU-1 |
SF48-1250900DU-1 |
|
0.8A |
SF48-1000800DU-1 |
SF48-1050800DU-1 |
SF48-1100800DU-1 |
SF48-1150800DU-1 |
SF48-1200800DU-1 |
SF48-1250800DU-1 |
|
0.7A |
|
|
SF48-1100700DU-1 |
SF48-1150700DU-1 |
SF48-1200700DU-1 |
SF48-1250700DU-1 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.4A |
SF48-0702400DU-1 |
|
|
|
|
|
|
2.3A |
SF48-0702300DU-1 |
SF48-0752300DU-1 |
|
|
|
|
|
2.2A |
SF48-0702200DU-1 |
SF48-0752200DU-1 |
SF48-0802200DU-1 |
|
|
|
|
2.1A |
SF48-0702100DU-1 |
SF48-0752100DU-1 |
SF48-0802100DU-1 |
SF48-0852100DU-1 |
|
|
|
2.0A |
SF48-0702000DU-1 |
SF48-0752000DU-1 |
SF48-0802000DU-1 |
SF48-0852000DU-1 |
SF48-0902000DU-1 |
|
|
1.9A |
SF48-0701900DU-1 |
SF48-0751900DU-1 |
SF48-0801900DU-1 |
SF48-0851900DU-1 |
SF48-0901900DU-1 |
SF48-0951900DU-1 |
|
1.8A |
SF48-0701800DU-1 |
SF48-0751800DU-1 |
SF48-0801800DU-1 |
SF48-0851800DU-1 |
SF48-0901800DU-1 |
SF48-0951800DU-1 |
|
1.7A |
SF48-0701700DU-1 |
SF48-0751700DU-1 |
SF48-0801700DU-1 |
SF48-0851700DU-1 |
SF48-0901700DU-1 |
SF48-0951700DU-1 |
|
1.6A |
SF48-0701600DU-1 |
SF48-0751600DU-1 |
SF48-0801600DU-1 |
SF48-0851600DU-1 |
SF48-0901600DU-1 |
SF48-0951600DU-1 |
|
1.5A |
SF48-0701500DU-1 |
SF48-0751500DU-1 |
SF48-0801500DU-1 |
SF48-0851500DU-1 |
SF48-0901500DU-1 |
SF48-0951500DU-1 |
|
1.4A |
SF48-0701400DU-1 |
SF48-0751400DU-1 |
SF48-0801400DU-1 |
SF48-0851400DU-1 |
SF48-0901400DU-1 |
SF48-0951400DU-1 |
|
1.3A |
SF48-0701300DU-1 |
SF48-0751300DU-1 |
SF48-0801300DU-1 |
SF48-0851300DU-1 |
SF48-0901300DU-1 |
SF48-0951300DU-1 |
|
1.2A |
SF48-0701200DU-1 |
SF48-0751200DU-1 |
SF48-0801200DU-1 |
SF48-0851200DU-1 |
SF48-0901200DU-1 |
SF48-0951200DU-1 |
|
1.1A |
|
|
SF48-0801100DU-1 |
SF48-0851100DU-1 |
SF48-0901100DU-1 |
SF48-0951100DU-1 |
|
1.0A |
|
|
|
|
SF48-0901000DU-1 |
SF48-0951000DU-1 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.8A |
SF48-0402800DU-1 |
|
|
|
|
|
|
2.7A |
SF48-0402700DU-1 |
SF48-0452700DU-1 |
SF48-0502700DU-1 |
|
|
|
|
2.6A |
SF48-0402600DU-1 |
SF48-0452600DU-1 |
SF48-0502600DU-1 |
SF48-0552600DU-1 |
SF48-0602600DU-1 |
|
|
2.5A |
SF48-0402500DU-1 |
SF48-0452500DU-1 |
SF48-0502500DU-1 |
SF48-0552500DU-1 |
SF48-0602500DU-1 |
SF48-0652500DU-1 |
|
2.4A |
SF48-0402400DU-1 |
SF48-0452400DU-1 |
SF48-0502400DU-1 |
SF48-0552400DU-1 |
SF48-0602400DU-1 |
SF48-0652400DU-1 |
|
2.3A |
SF48-0402300DU-1 |
SF48-0452300DU-1 |
SF48-0502300DU-1 |
SF48-0552300DU-1 |
SF48-0602300DU-1 |
SF48-0652300DU-1 |
|
2.2A |
SF48-0402200DU-1 |
SF48-0452200DU-1 |
SF48-0502200DU-1 |
SF48-0552200DU-1 |
SF48-0602200DU-1 |
SF48-0652200DU-1 |
|
2.1A |
SF48-0402100DU-1 |
SF48-0452100DU-1 |
SF48-0502100DU-1 |
SF48-0552100DU-1 |
SF48-0602100DU-1 |
SF48-0652100DU-1 |
|
2.0A |
SF48-0402000DU-1 |
SF48-0452000DU-1 |
SF48-0502000DU-1 |
SF48-0552000DU-1 |
SF48-0602000DU-1 |
SF48-0652000DU-1 |
|
1.9A |
SF48-0401900DU-1 |
SF48-0451900DU-1 |
SF48-0501900DU-1 |
SF48-0551900DU-1 |
SF48-0601900DU-1 |
SF48-0651900DU-1 |
|
1.8A |
SF48-0401800DU-1 |
SF48-0451800DU-1 |
SF48-0501800DU-1 |
SF48-0551800DU-1 |
SF48-0601800DU-1 |
SF48-0651800DU-1 |
|
1.7A |
SF48-0401700DU-1 |
SF48-0451700DU-1 |
SF48-0501700DU-1 |
SF48-0551700DU-1 |
SF48-0601700DU-1 |
SF48-0651700DU-1 |
|
1.6A |
SF48-0401600DU-1 |
SF48-0451600DU-1 |
SF48-0501600DU-1 |
SF48-0551600DU-1 |
SF48-0601600DU-1 |
SF48-0651600DU-1 |
|
1.5A |
SF48-0401500DU-1 |
SF48-0451500DU-1 |
SF48-0501500DU-1 |
SF48-0551500DU-1 |
SF48-0601500DU-1 |
SF48-0651500DU-1 |
|
1.4A |
SF48-0401400DU-1 |
SF48-0451400DU-1 |
SF48-0501400DU-1 |
SF48-0551400DU-1 |
SF48-0601400DU-1 |
SF48-0651400DU-1 |
|
1.3A |
|
|
SF48-0501300DU-1 |
SF48-0551300DU-1 |
SF48-0601400DU-1 |
SF48-0651400DU-1 |
|
1.2A |
|
|
|
|
SF48-0601200DU-1 |
SF48-0651200DU-1 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48-0104000DU-1 |
SF48-0154000DU-1 |
|
|
|
|
|
3.7A |
SF48-0103700DU-1 |
SF48-0153700DU-1 |
SF48-0203700DU-1 |
|
|
|
|
3.5A |
SF48-0103500DU-1 |
SF48-0153500DU-1 |
SF48-0203500DU-1 |
SF48-0253500DU-1 |
|
|
|
3.2A |
SF48-0103200DU-1 |
SF48-0153200DU-1 |
SF48-0203200DU-1 |
SF48-0253200DU-1 |
SF48-0303200DU-1 |
|
|
3.0A |
SF48-0103000DU-1 |
SF48-0153000DU-1 |
SF48-0203000DU-1 |
SF48-0253000DU-1 |
SF48-0303000DU-1 |
SF48-0353000DU-1 |
|
2.9A |
SF48-0102900DU-1 |
SF48-0152900DU-1 |
SF48-0202900DU-1 |
SF48-0252900DU-1 |
SF48-0302900DU-1 |
SF48-0352900DU-1 |
|
2.8A |
SF48-0102800DU-1 |
SF48-0152800DU-1 |
SF48-0202800DU-1 |
SF48-0252800DU-1 |
SF48-0302800DU-1 |
SF48-0352800DU-1 |
|
2.7A |
SF48-0102700DU-1 |
SF48-0152700DU-1 |
SF48-0202700DU-1 |
SF48-0252700DU-1 |
SF48-0302700DU-1 |
SF48-0352700DU-1 |
|
2.6A |
SF48-0102600DU-1 |
SF48-0152600DU-1 |
SF48-0202600DU-1 |
SF48-0252600DU-1 |
SF48-0302600DU-1 |
SF48-0352600DU-1 |
|
2.5A |
SF48-0102500DU-1 |
SF48-0152500DU-1 |
SF48-0202500DU-1 |
SF48-0252500DU-1 |
SF48-0302500DU-1 |
SF48-0352500DU-1 |
|
2.4A |
SF48-0102400DU-1 |
SF48-0152400DU-1 |
SF48-0202400DU-1 |
SF48-0252400DU-1 |
SF48-0302400DU-1 |
SF48-0352400DU-1 |
|
2.3A |
SF48-0102300DU-1 |
SF48-0152300DU-1 |
SF48-0202300DU-1 |
SF48-0252300DU-1 |
SF48-0302300DU-1 |
SF48-0352300DU-1 |
|
2.2A |
SF48-0102200DU-1 |
SF48-0152200DU-1 |
SF48-0202200DU-1 |
SF48-0252200DU-1 |
SF48-0302200DU-1 |
SF48-0352200DU-1 |
|
2.1A |
SF48-0102100DU-1 |
SF48-0152100DU-1 |
SF48-0202100DU-1 |
SF48-0252100DU-1 |
SF48-0302100DU-1 |
SF48-0352100DU-1 |
|
2.0A |
SF48-0102000DU-1 |
SF48-0152000DU-1 |
SF48-0202000DU-1 |
SF48-0252000DU-1 |
SF48-0302000DU-1 |
SF48-0352000DU-1 |
|
1.9A |
SF48-0101900DU-1 |
SF48-0151900DU-1 |
SF48-0201900DU-1 |
SF48-0251900DU-1 |
SF48-0301900DU-1 |
SF48-0351900DU-1 |
|
1.8A |
SF48-0101800DU-1 |
SF48-0151800DU-1 |
SF48-0201800DU-1 |
SF48-0251800DU-1 |
SF48-0301800DU-1 |
SF48-0351800DU-1 |
|
1.7A |
SF48-0101700DU-1 |
SF48-0151700DU-1 |
SF48-0201700DU-1 |
SF48-0251700DU-1 |
SF48-0301700DU-1 |
SF48-0351700DU-1 |
|
1.6A |
SF48-0101600DU-1 |
SF48-0151600DU-1 |
SF48-0201600DU-1 |
SF48-0251600DU-1 |
SF48-0301600DU-1 |
SF48-0351600DU-1 |
|
1.5A |
SF48-0101500DU-1 |
SF48-0151500DU-1 |
SF48-0201500DU-1 |
SF48-0251500DU-1 |
SF48-0301500DU-1 |
SF48-0351500DU-1 |
|
1.4A |
|
|
|
|
SF48-0301400DU-1 |
SF48-0351400DU-1 |
A-TYPE
B-TYPE
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
1.4A |
SF48-1301400DU-1 |
SF48-1351400DU-1 |
|
|
|
|
|
1.3A |
SF48-1301300DU-1 |
SF48-1351300DU-1 |
SF48-1401300DU-1 |
SF48-1451300DU-1 |
SF48-1501300DU-1 |
|
|
1.2A |
SF48-1301200DU-1 |
SF48-1351200DU-1 |
SF48-1401200DU-1 |
SF48-1451200DU-1 |
SF48-1501200DU-1 |
SF48-1551200DU-1 |
|
1.1A |
SF48-1301100DU-1 |
SF48-1351100DU-1 |
SF48-1401100DU-1 |
SF48-1451100DU-1 |
SF48-1501100DU-1 |
SF48-1551100DU-1 |
|
1.0A |
SF48-1301000DU-1 |
SF48-1351000DU-1 |
SF48-1401000DU-1 |
SF48-1451000DU-1 |
SF48-1501000DU-1 |
SF48-1551000DU-1 |
|
0.9A |
SF48-1300900DU-1 |
SF48-1350900DU-1 |
SF48-1400900DU-1 |
SF48-1450900DU-1 |
SF48-1500900DU-1 |
SF48-1550900DU-1 |
|
0.8A |
SF48-1300800DU-1 |
SF48-1350800DU-1 |
SF48-1400800DU-1 |
SF48-1450800DU-1 |
SF48-1500800DU-1 |
SF48-1550800DU-1 |
|
0.7A |
SF48-1300700DU-1 |
SF48-1350700DU-1 |
SF48-1400700DU-1 |
SF48-1450700DU-1 |
SF48-1500700DU-1 |
SF48-1550700DU-1 |
|
0.6A |
|
|
SF48-1400600DU-1 |
SF48-1450600DU-1 |
SF48-1500600DU-1 |
SF48-1550600DU-1 |
|
0.5A |
|
|
|
|
SF48-1500500DU-1 |
SF48-1550500DU-1 |
 |
 |
 |
 |
 |
 |
