LINEAR ADAPTOR
DESKTOP

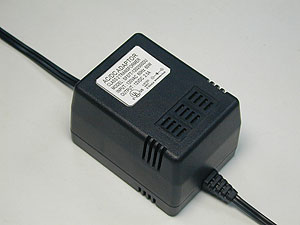

EI 57 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz

00title405a

OUTPUT SPECIFICATION

 1-3.5V

4-6.5V

7-9.5V

10-12.5V

13-15.5V

16-18.5V

19-21.5V

22-24.5V

25-28V

00002
00002
00002
00002
00002
00002
00002
00002
40-UL

GENERAL SPECIFICATION

Temperatures

Humidity

Operating Temperatures

-10 to +30oC

Operating Humidity

10 to 90% RH

Storage Temperatures

-10 to +70oC

Storage Humidity

5 to 95% RH

Hi-Pot Test

Safety

Compliance With

Primary to Core

1800V AC, one second

UL/CUL

UL 1310/
CAN/CSA C22.2 No.223

Primary to Secondary

1800V AC, one second

ELECTRICAL SPECIFICATION

INPUT

OUTPUT

Input Voltage

120V AC

Output Voltage

1-28V DC

Input Frequency

60Hz

Output Tolerance (Load)

5%





Output Current

0.5-6A





Output Watt

38.4VA max

00002

name5txt

25V

25.5V

26V

26.5V

27V

28V

1.5A

SF57T-2501500DU

SF57T-2551500DU

SF57T-2601500DU







1.4A

SF57T-2501400DU

SF57T-2551400DU

SF57T-2601400DU

SF57T-2651400DU

SF57T-2701400DU



1.3A

SF57T-2501300DU

SF57T-2551300DU

SF57T-2601300DU

SF57T-2651300DU

SF57T-2701300DU

SF57T-2801300DU

1.2A

SF57T-2501200DU

SF57T-2551200DU

SF57T-2601200DU

SF57T-2651200DU

SF57T-2701200DU

SF57T-2801200DU

1.1A

SF57T-2501100DU

SF57T-2551100DU

SF57T-2601100DU

SF57T-2651100DU

SF57T-2701100DU

SF57T-2801100DU

1.0A

SF57T-2501000DU

SF57T-2551000DU

SF57T-2601000DU

SF57T-2651000DU

SF57T-2701000DU

SF57T-2801000DU

0.9A

SF57T-2500900DU

SF57T-2550900DU

SF57T-2600900DU

SF57T-2650900DU

SF57T-2700900DU

SF57T-2800900DU

0.8A

SF57T-2500800DU

SF57T-2550800DU

SF57T-2600800DU

SF57T-2650800DU

SF57T-2700800DU

SF57T-2800800DU

0.7A

SF57T-2500700DU

SF57T-2550700DU

SF57T-2600700DU

SF57T-2650700DU

SF57T-2700700DU

SF57T-2800700DU

0.6A

SF57T-2500600DU

SF57T-2550600DU

SF57T-2600600DU

SF57T-2650600DU

SF57T-2700600DU

SF57T-2800600DU

0.5A









SF57T-2700500DU

SF57T-2800500DU

name5txt

22V

22.5V

23V

23.5V

24V

24.5V

1.6A

SF57T-2201600DU

SF57T-2251600DU

SF57T-2301600DU

SF57T-2351600DU

SF57T-2401600DU



1.5A

SF57T-2201500DU

SF57T-2251500DU

SF57T-2301500DU

SF57T-2351500DU

SF57T-2401500DU

SF57T-2451500DU

1.4A

SF57T-2201400DU

SF57T-2251400DU

SF57T-2301400DU

SF57T-2351400DU

SF57T-2401400DU

SF57T-2451400DU

1.3A

SF57T-2201300DU

SF57T-2251300DU

SF57T-2301300DU

SF57T-2351300DU

SF57T-2401300DU

SF57T-2451300DU

1.2A

SF57T-2201200DU

SF57T-2251200DU

SF57T-2301200DU

SF57T-2351200DU

SF57T-2401200DU

SF57T-2451200DU

1.1A

SF57T-2201100DU

SF57T-2251100DU

SF57T-2301100DU

SF57T-2351100DU

SF57T-2401100DU

SF57T-2451100DU

1.0A

SF57T-2201000DU

SF57T-2251000DU

SF57T-2301000DU

SF57T-2351000DU

SF57T-2401000DU

SF57T-2451000DU

0.9A

SF57T-2200900DU

SF57T-2250900DU

SF57T-2300900DU

SF57T-2350900DU

SF57T-2400900DU

SF57T-2450900DU

0.8A

SF57T-2200800DU

SF57T-2250800DU

SF57T-2300800DU

SF57T-2350800DU

SF57T-2400800DU

SF57T-2450800DU

0.7A





SF57T-2300700DU

SF57T-2350700DU

SF57T-2400700DU

SF57T-2450700DU

0.6A









SF57T-2400600DU

SF57T-2450600DU

name5txt

19V

19.5V

20V

20.5V

21V

21.5V

1.8A

SF57T-1901800DU











1.7A

SF57T-1901700DU

SF57T-1951700DU

SF57T-2001700DU

SF57T-2051700DU

SF57T-2101700DU



1.6A

SF57T-1901600DU

SF57T-1951600DU

SF57T-2001600DU

SF57T-2051600DU

SF57T-2101600DU

SF57T-2151600DU

1.5A

SF57T-1901500DU

SF57T-1951500DU

SF57T-2001500DU

SF57T-2051500DU

SF57T-2101500DU

SF57T-2151500DU

1.4A

SF57T-1901400DU

SF57T-1951400DU

SF57T-2001400DU

SF57T-2051400DU

SF57T-2101400DU

SF57T-2151400DU

1.3A

SF57T-1901300DU

SF57T-1951300DU

SF57T-2001300DU

SF57T-2051300DU

SF57T-2101300DU

SF57T-2151300DU

1.2A

SF57T-1901200DU

SF57T-1951200DU

SF57T-2001200DU

SF57T-2051200DU

SF57T-2101200DU

SF57T-2151200DU

1.1A

SF57T-1901100DU

SF57T-1951100DU

SF57T-2001100DU

SF57T-2051100DU

SF57T-2101100DU

SF57T-2151100DU

1.0A

SF57T-1901000DU

SF57T-1951000DU

SF57T-2001000DU

SF57T-2051000DU

SF57T-2101000DU

SF57T-2151000DU

0.9A

SF57T-1900900DU

SF57T-1950900DU

SF57T-2000900DU

SF57T-2050900DU

SF57T-2100900DU

SF57T-2150900DU

0.8A





SF57T-2000800DU

SF57T-2050800DU

SF57T-2100800DU

SF57T-2150800DU

0.7A









SF57T-2100700DU

SF57T-2150700DU

name5txt

16V

16.5V

17V

17.5V

18V

18.5V

2.0A

SF57T-1602000DU

SF57T-1652000DU









1.9A

SF57T-1601900DU

SF57T-1651900DU

SF57T-1701900DU

SF57T-1751900DU

SF57T-1801900DU



1.8A

SF57T-1601800DU

SF57T-1651800DU

SF57T-1701800DU

SF57T-1751800DU

SF57T-1801800DU

SF57T-1851800DU

1.7A

SF57T-1601700DU

SF57T-1651700DU

SF57T-1701700DU

SF57T-1751700DU

SF57T-1801700DU

SF57T-1851700DU

1.6A

SF57T-1601600DU

SF57T-1651600DU

SF57T-1701600DU

SF57T-1751600DU

SF57T-1801600DU

SF57T-1851600DU

1.5A

SF57T-1601500DU

SF57T-1651500DU

SF57T-1701500DU

SF57T-1751500DU

SF57T-1801500DU

SF57T-1851500DU

1.4A

SF57T-1601400DU

SF57T-1651400DU

SF57T-1701400DU

SF57T-1751400DU

SF57T-1801400DU

SF57T-1851400DU

1.3A

SF57T-1601300DU

SF57T-1651300DU

SF57T-1701300DU

SF57T-1751300DU

SF57T-1801300DU

SF57T-1851300DU

1.2A

SF57T-1601200DU

SF57T-1651200DU

SF57T-1701200DU

SF57T-1751200DU

SF57T-1801200DU

SF57T-1851200DU

1.1A

SF57T-1601100DU

SF57T-1651100DU

SF57T-1701100DU

SF57T-1751100DU

SF57T-1801100DU

SF57T-1851100DU

1.0A

SF57T-1601000DU

SF57T-1651000DU

SF57T-1701000DU

SF57T-1751000DU

SF57T-1801000DU

SF57T-1851000DU

0.9A

SF57T-1600900DU

SF57T-1650900DU

SF57T-1700900DU

SF57T-1750900DU

SF57T-1800900DU

SF57T-1850900DU

0.8A





SF57T-1700800DU

SF57T-1750800DU

SF57T-1800800DU

SF57T-1850800DU

name5txt

13V

13.5V

14V

14.5V

15V

15.5V

2.4A

SF57T-1302400DU











2.3A

SF57T-1302300DU

SF57T-1352300DU









2.2A

SF57T-1302200DU

SF57T-1352200DU

SF57T-1402200DU

SF57T-1452200DU





2.1A

SF57T-1302100DU

SF57T-1352100DU

SF57T-1402100DU

SF57T-1452100DU

SF57T-1502100DU



2.0A

SF57T-1302000DU

SF57T-1352000DU

SF57T-1402000DU

SF57T-1452000DU

SF57T-1502000DU

SF57T-1552000DU

1.9A

SF57T-1301900DU

SF57T-1351900DU

SF57T-1401900DU

SF57T-1451900DU

SF57T-1501900DU

SF57T-1551900DU

1.8A

SF57T-1301800DU

SF57T-1351800DU

SF57T-1401800DU

SF57T-1451800DU

SF57T-1501800DU

SF57T-1551800DU

1.7A

SF57T-1301700DU

SF57T-1351700DU

SF57T-1401700DU

SF57T-1451700DU

SF57T-1501700DU

SF57T-1551700DU

1.6A

SF57T-1301600DU

SF57T-1351600DU

SF57T-1401600DU

SF57T-1451600DU

SF57T-1501600DU

SF57T-1551600DU

1.5A

SF57T-1301500DU

SF57T-1351500DU

SF57T-1401500DU

SF57T-1451500DU

SF57T-1501500DU

SF57T-1551500DU

1.4A

SF57T-1301400DU

SF57T-1351400DU

SF57T-1401400DU

SF57T-1451400DU

SF57T-1501400DU

SF57T-1551400DU

1.3A

SF57T-1301300DU

SF57T-1351300DU

SF57T-1401300DU

SF57T-1451300DU

SF57T-1501300DU

SF57T-1551300DU

1.2A

SF57T-1301200DU

SF57T-1351200DU

SF57T-1401200DU

SF57T-1451200DU

SF57T-1501200DU

SF57T-1551200DU

1.1A

SF57T-1301100DU

SF57T-1351100DU

SF57T-1401100DU

SF57T-1451100DU

SF57T-1501100DU

SF57T-1551100DU

1.0A

SF57T-1301000DU

SF57T-1351000DU

SF57T-1401000DU

SF57T-1451000DU

SF57T-1501000DU

SF57T-1551000DU

0.9A





SF57T-1400900DU

SF57T-1450900DU

SF57T-1500900DU

SF57T-1550900DU

name5txt

10V

10.5V

11V

11.5V

12V

12.5V

2.9A

SF57T-1002900DU











2.8A

SF57T-1002800DU











2.7A

SF57T-1002700DU

SF57T-1052700DU

SF57T-1102700DU







2.6A

SF57T-1002600DU

SF57T-1052600DU

SF57T-1102600DU

SF57T-1152600DU





2.5A

SF57T-1002500DU

SF57T-1052500DU

SF57T-1102500DU

SF57T-1152500DU

SF57T-1202500DU



2.4A

SF57T-1002400DU

SF57T-1052400DU

SF57T-1102400DU

SF57T-1152400DU

SF57T-1202400DU

SF57T-1252400DU

2.3A

SF57T-1002300DU

SF57T-1052300DU

SF57T-1102300DU

SF57T-1152300DU

SF57T-1202300DU

SF57T-1252300DU

2.2A

SF57T-1002200DU

SF57T-1052200DU

SF57T-1102200DU

SF57T-1152200DU

SF57T-1202200DU

SF57T-1252200DU

2.1A

SF57T-1002100DU

SF57T-1052100DU

SF57T-1102100DU

SF57T-1152100DU

SF57T-1202100DU

SF57T-1252100DU

2.0A

SF57T-1002000DU

SF57T-1052000DU

SF57T-1102000DU

SF57T-1152000DU

SF57T-1202000DU

SF57T-1252000DU

1.9A

SF57T-1001900DU

SF57T-1051900DU

SF57T-1101900DU

SF57T-1151900DU

SF57T-1201900DU

SF57T-1251900DU

1.8A

SF57T-1001800DU

SF57T-1051800DU

SF57T-1101800DU

SF57T-1151800DU

SF57T-1201800DU

SF57T-1251800DU

1.7A

SF57T-1001700DU

SF57T-1051700DU

SF57T-1101700DU

SF57T-1151700DU

SF57T-1201700DU

SF57T-1251700DU

1.6A

SF57T-1001600DU

SF57T-1051600DU

SF57T-1101600DU

SF57T-1151600DU

SF57T-1201600DU

SF57T-1251600DU

1.5A

SF57T-1001500DU

SF57T-1051500DU

SF57T-1101500DU

SF57T-1151500DU

SF57T-1201500DU

SF57T-1251500DU

1.4A





SF57T-1101400DU

SF57T-1151400DU

SF57T-1201400DU

SF57T-1251400DU

1.3A









SF57T-1201300DU

SF57T-1251300DU

name5txt

7V

7.5V

8V

8.5V

9V

9.5V

4.0A

SF57T-0704000DU











3.9A

SF57T-0703900DU











3.8A

SF57T-0703800DU

SF57T-0753800DU









3.7A

SF57T-0703700DU

SF57T-0753700DU









3.6A

SF57T-0703600DU

SF57T-0753600DU

SF57T-0803600DU







3.5A

SF57T-0703500DU

SF57T-0753500DU

SF57T-0803500DU







3.4A

SF57T-0703400DU

SF57T-0753400DU

SF57T-0803400DU

SF57T-0853400DU





3.3A

SF57T-0703300DU

SF57T-0753300DU

SF57T-0803300DU

SF57T-0853300DU





3.2A

SF57T-0703200DU

SF57T-0753200DU

SF57T-0803200DU

SF57T-0853200DU

SF57T-0903200DU



3.1A

SF57T-0703100DU

SF57T-0753100DU

SF57T-0803100DU

SF57T-0853100DU

SF57T-0903100DU



3.0A

SF57T-0703000DU

SF57T-0753000DU

SF57T-0803000DU

SF57T-0853000DU

SF57T-0903000DU

SF57T-0953000DU

2.9A

SF57T-0702900DU

SF57T-0752900DU

SF57T-0802900DU

SF57T-0852900DU

SF57T-0902900DU

SF57T-0952900DU

2.8A

SF57T-0702800DU

SF57T-0752800DU

SF57T-0802800DU

SF57T-0852800DU

SF57T-0902800DU

SF57T-0952800DU

2.7A

SF57T-0702700DU

SF57T-0752700DU

SF57T-0802700DU

SF57T-0852700DU

SF57T-0902700DU

SF57T-0952700DU

2.6A

SF57T-0702600DU

SF57T-0752600DU

SF57T-0802600DU

SF57T-0852600DU

SF57T-0902600DU

SF57T-0952600DU

2.5A

SF57T-0702500DU

SF57T-0752500DU

SF57T-0802500DU

SF57T-0852500DU

SF57T-0902500DU

SF57T-0952500DU

2.4A

SF57T-0702400DU

SF57T-0752400DU

SF57T-0802400DU

SF57T-0852400DU

SF57T-0902400DU

SF57T-0952400DU

2.3A

SF57T-0702300DU

SF57T-0752300DU

SF57T-0802300DU

SF57T-0852300DU

SF57T-0902300DU

SF57T-0952300DU

2.2A

SF57T-0702200DU

SF57T-0752200DU

SF57T-0802200DU

SF57T-0852200DU

SF57T-0902200DU

SF57T-0952200DU

2.1A

SF57T-0702100DU

SF57T-0752100DU

SF57T-0802100DU

SF57T-0852100DU

SF57T-0902100DU

SF57T-0952100DU

2.0A

SF57T-0702000DU

SF57T-0752000DU

SF57T-0802000DU

SF57T-0852000DU

SF57T-0902000DU

SF57T-0952000DU

1.9A

SF57T-0701900DU

SF57T-0751900DU

SF57T-0801900DU

SF57T-0851900DU

SF57T-0901900DU

SF57T-0951900DU

1.8A





SF57T-0801800DU

SF57T-0851800DU

SF57T-0901800DU

SF57T-0951800DU

1.7A









SF57T-0901700DU

SF57T-0951700DU

name5txt

4V

4.5V

5V

5.5V

6V

6.5V

5.3A

SF57T-0405300DU











5.2A

SF57T-0405200DU











5.1A

SF57T-0405100DU

SF57T-0455100DU









5.0A

SF57T-0405000DU

SF57T-0455000DU









4.9A

SF57T-0404900DU

SF57T-0454900DU

SF57T-0504900DU







4.8A

SF57T-0404800DU

SF57T-0454800DU

SF57T-0504800DU







4.7A

SF57T-0404700DU

SF57T-0454700DU

SF57T-0504700DU

SF57T-0554700DU





4.6A

SF57T-0404600DU

SF57T-0454600DU

SF57T-0504600DU

SF57T-0554600DU





4.5A

SF57T-0404500DU

SF57T-0454500DU

SF57T-0504500DU

SF57T-0554500DU

SF57T-0604500DU



4.4A

SF57T-0404400DU

SF57T-0454400DU

SF57T-0504400DU

SF57T-0554400DU

SF57T-0604400DU



4.3A

SF57T-0404300DU

SF57T-0454300DU

SF57T-0504300DU

SF57T-0554300DU

SF57T-0604300DU

SF57T-0654300DU

4.2A

SF57T-0404200DU

SF57T-0454200DU

SF57T-0504200DU

SF57T-0554200DU

SF57T-0604200DU

SF57T-0654200DU

4.1A

SF57T-0404100DU

SF57T-0454100DU

SF57T-0504100DU

SF57T-0554100DU

SF57T-0604100DU

SF57T-0654100DU

4.0A

SF57T-0404000DU

SF57T-0454000DU

SF57T-0504000DU

SF57T-0554000DU

SF57T-0604000DU

SF57T-0654000DU

3.9A

SF57T-0403900DU

SF57T-0453900DU

SF57T-0503900DU

SF57T-0553900DU

SF57T-0603900DU

SF57T-0653900DU

3.8A

SF57T-0403800DU

SF57T-0453800DU

SF57T-0503800DU

SF57T-0553800DU

SF57T-0603800DU

SF57T-0653800DU

3.7A

SF57T-0403700DU

SF57T-0453700DU

SF57T-0503700DU

SF57T-0553700DU

SF57T-0603700DU

SF57T-0653700DU

3.6A

SF57T-0403600DU

SF57T-0453600DU

SF57T-0503600DU

SF57T-0553600DU

SF57T-0603600DU

SF57T-0653600DU

3.5A

SF57T-0403500DU

SF57T-0453500DU

SF57T-0503500DU

SF57T-0553500DU

SF57T-0603500DU

SF57T-0653500DU

3.4A

SF57T-0403400DU

SF57T-0453400DU

SF57T-0503400DU

SF57T-0553400DU

SF57T-0603400DU

SF57T-0653400DU

3.3A

SF57T-0403300DU

SF57T-0453300DU

SF57T-0503300DU

SF57T-0553300DU

SF57T-0603300DU

SF57T-0653300DU

3.2A

SF57T-0403200DU

SF57T-0453200DU

SF57T-0503200DU

SF57T-0553200DU

SF57T-0603200DU

SF57T-0653200DU

3.1A

SF57T-0403100DU

SF57T-0453100DU

SF57T-0503100DU

SF57T-0553100DU

SF57T-0603100DU

SF57T-0653100DU

3.0A

SF57T-0403000DU

SF57T-0453000DU

SF57T-0503000DU

SF57T-0553000DU

SF57T-0603000DU

SF57T-0653000DU

2.9A

SF57T-0402900DU

SF57T-0452900DU

SF57T-0502900DU

SF57T-0552900DU

SF57T-0602900DU

SF57T-0652900DU

2.8A

SF57T-0402800DU

SF57T-0452800DU

SF57T-0502800DU

SF57T-0552800DU

SF57T-0602800DU

SF57T-0652800DU

2.7A

SF57T-0402700DU

SF57T-0452700DU

SF57T-0502700DU

SF57T-0552700DU

SF57T-0602700DU

SF57T-0652700DU

2.6A

SF57T-0402600DU

SF57T-0452600DU

SF57T-0502600DU

SF57T-0552600DU

SF57T-0602600DU

SF57T-0652600DU

2.5A





SF57T-0502500DU

SF57T-0552500DU

SF57T-0602500DU

SF57T-0652500DU

2.4A





SF57T-0502400DU

SF57T-0552400DU

SF57T-0602400DU

SF57T-0652400DU

2.3A









SF57T-0602300DU

SF57T-0652300DU

2.2A









SF57T-0602200DU

SF57T-0652200DU

name5txt

1V

1.5V

2V

2.5V

3V

3.5V

6.0A

SF57T-0106000DU

SF57T-0156000DU

SF57T-0206000DU







5.9A

SF57T-0105900DU

SF57T-0155900DU

SF57T-0205900DU







5.8A

SF57T-0105800DU

SF57T-0155800DU

SF57T-0205800DU

SF57T-0255800DU





5.7A

SF57T-0105700DU

SF57T-0155700DU

SF57T-0205700DU

SF57T-0255700DU





5.6A

SF57T-0105600DU

SF57T-0155600DU

SF57T-0205600DU

SF57T-0255600DU

SF57T-0305600DU



5.5A

SF57T-0105500DU

SF57T-0155500DU

SF57T-0205500DU

SF57T-0255500DU

SF57T-0305500DU

SF57T-0355500DU

5.4A

SF57T-0105400DU

SF57T-0155400DU

SF57T-0205400DU

SF57T-0255400DU

SF57T-0305400DU

SF57T-0355400DU

5.3A

SF57T-0105300DU

SF57T-0155300DU

SF57T-0205300DU

SF57T-0255300DU

SF57T-0305300DU

SF57T-0355300DU

5.2A

SF57T-0105200DU

SF57T-0155200DU

SF57T-0205200DU

SF57T-0255200DU

SF57T-0305200DU

SF57T-0355200DU

5.1A

SF57T-0105100DU

SF57T-0155100DU

SF57T-0205100DU

SF57T-0255100DU

SF57T-0305100DU

SF57T-0355100DU

5.0A

SF57T-0105000DU

SF57T-0155000DU

SF57T-0205000DU

SF57T-0255000DU

SF57T-0305000DU

SF57T-0355000DU

4.9A

SF57T-0104900DU

SF57T-0154900DU

SF57T-0204900DU

SF57T-0254900DU

SF57T-0304900DU

SF57T-0354900DU

4.8A

SF57T-0104800DU

SF57T-0154800DU

SF57T-0204800DU

SF57T-0254800DU

SF57T-0304800DU

SF57T-0354800DU

4.7A

SF57T-0104700DU

SF57T-0154700DU

SF57T-0204700DU

SF57T-0254700DU

SF57T-0304700DU

SF57T-0354700DU

4.6A

SF57T-0104600DU

SF57T-0154600DU

SF57T-0204600DU

SF57T-0254600DU

SF57T-0304600DU

SF57T-0354600DU

4.5A

SF57T-0104500DU

SF57T-0154500DU

SF57T-0204500DU

SF57T-0254500DU

SF57T-0304500DU

SF57T-0354500DU

4.4A

SF57T-0104400DU

SF57T-0154400DU

SF57T-0204400DU

SF57T-0254400DU

SF57T-0304400DU

SF57T-0354400DU

4.3A

SF57T-0104300DU

SF57T-0154300DU

SF57T-0204300DU

SF57T-0254300DU

SF57T-0304300DU

SF57T-0354300DU

4.2A

SF57T-0104200DU

SF57T-0154200DU

SF57T-0204200DU

SF57T-0254200DU

SF57T-0304200DU

SF57T-0354200DU

4.1A

SF57T-0104100DU

SF57T-0154100DU

SF57T-0204100DU

SF57T-0254100DU

SF57T-0304100DU

SF57T-0354100DU

4.0A

SF57T-0104000DU

SF57T-0154000DU

SF57T-0204000DU

SF57T-0254000DU

SF57T-0304000DU

SF57T-0354000DU

3.9A

SF57T-0103900DU

SF57T-0153900DU

SF57T-0203900DU

SF57T-0253900DU

SF57T-0303900DU

SF57T-0353900DU

3.8A

SF57T-0103800DU

SF57T-0153800DU

SF57T-0203800DU

SF57T-0253800DU

SF57T-0303800DU

SF57T-0353800DU

3.7A

SF57T-0103700DU

SF57T-0153700DU

SF57T-0203700DU

SF57T-0253700DU

SF57T-0303700DU

SF57T-0353700DU

3.6A

SF57T-0103600DU

SF57T-0153600DU

SF57T-0203600DU

SF57T-0253600DU

SF57T-0303600DU

SF57T-0353600DU

3.5A

SF57T-0103500DU

SF57T-0153500DU

SF57T-0203500DU

SF57T-0253500DU

SF57T-0303500DU

SF57T-0353500DU

3.4A





SF57T-0203400DU

SF57T-0253400DU

SF57T-0303400DU

SF57T-0353400DU

3.3A





SF57T-0203300DU

SF57T-0253300DU

SF57T-0303300DU

SF57T-0353300DU

3.2A





SF57T-0203200DU

SF57T-0253200DU

SF57T-0303200DU

SF57T-0353200DU

3.1A









SF57T-0303100DU

SF57T-0353100DU

3.0A









SF57T-0303000DU

SF57T-0353000DU

2.9A









SF57T-0302900DU

SF57T-0352900DU

2.8A









SF57T-0302800DU

SF57T-0352800DU

01-US-DC-EI57-PRODUCT-D

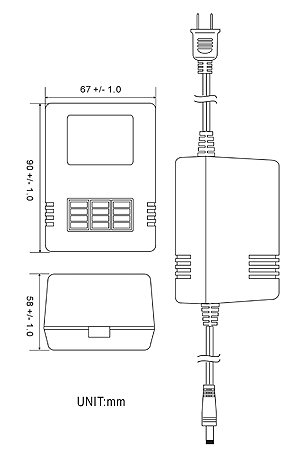

01-US-DC-EI57-DIMENSION-D
side-bg11b
side-bg11
side-bg12
side-bg-crn1
page4s1
btn-blk
side-bg11
side-bg-crn
btn-co-j1
00002
