LINEAR ADAPTOR
DESKTOP

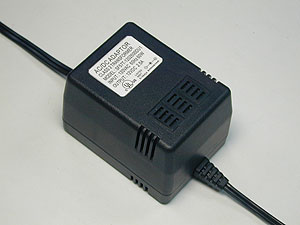

EI 57 AC TO DC ADAPTOR (US 3 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.5-6A |
|
|
|
Output Watt |
38.4VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
1.5A |
SF57T-2501500DU1 |
SF57T-2551500DU1 |
SF57T-2601500DU1 |
|
|
|
|
1.4A |
SF57T-2501400DU1 |
SF57T-2551400DU1 |
SF57T-2601400DU1 |
SF57T-2651400DU1 |
SF57T-2701400DU1 |
|
|
1.3A |
SF57T-2501300DU1 |
SF57T-2551300DU1 |
SF57T-2601300DU1 |
SF57T-2651300DU1 |
SF57T-2701300DU1 |
SF57T-2801300DU1 |
|
1.2A |
SF57T-2501200DU1 |
SF57T-2551200DU1 |
SF57T-2601200DU1 |
SF57T-2651200DU1 |
SF57T-2701200DU1 |
SF57T-2801200DU1 |
|
1.1A |
SF57T-2501100DU1 |
SF57T-2551100DU1 |
SF57T-2601100DU1 |
SF57T-2651100DU1 |
SF57T-2701100DU1 |
SF57T-2801100DU1 |
|
1.0A |
SF57T-2501000DU1 |
SF57T-2551000DU1 |
SF57T-2601000DU1 |
SF57T-2651000DU1 |
SF57T-2701000DU1 |
SF57T-2801000DU1 |
|
0.9A |
SF57T-2500900DU1 |
SF57T-2550900DU1 |
SF57T-2600900DU1 |
SF57T-2650900DU1 |
SF57T-2700900DU1 |
SF57T-2800900DU1 |
|
0.8A |
SF57T-2500800DU1 |
SF57T-2550800DU1 |
SF57T-2600800DU1 |
SF57T-2650800DU1 |
SF57T-2700800DU1 |
SF57T-2800800DU1 |
|
0.7A |
SF57T-2500700DU1 |
SF57T-2550700DU1 |
SF57T-2600700DU1 |
SF57T-2650700DU1 |
SF57T-2700700DU1 |
SF57T-2800700DU1 |
|
0.6A |
SF57T-2500600DU1 |
SF57T-2550600DU1 |
SF57T-2600600DU1 |
SF57T-2650600DU1 |
SF57T-2700600DU1 |
SF57T-2800600DU1 |
|
0.5A |
|
|
|
|
SF57T-2700500DU1 |
SF57T-2800500DU1 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
1.6A |
SF57T-2201600DU1 |
SF57T-2251600DU1 |
SF57T-2301600DU1 |
SF57T-2351600DU1 |
SF57T-2401600DU1 |
|
|
1.5A |
SF57T-2201500DU1 |
SF57T-2251500DU1 |
SF57T-2301500DU1 |
SF57T-2351500DU1 |
SF57T-2401500DU1 |
SF57T-2451500DU1 |
|
1.4A |
SF57T-2201400DU1 |
SF57T-2251400DU1 |
SF57T-2301400DU1 |
SF57T-2351400DU1 |
SF57T-2401400DU1 |
SF57T-2451400DU1 |
|
1.3A |
SF57T-2201300DU1 |
SF57T-2251300DU1 |
SF57T-2301300DU1 |
SF57T-2351300DU1 |
SF57T-2401300DU1 |
SF57T-2451300DU1 |
|
1.2A |
SF57T-2201200DU1 |
SF57T-2251200DU1 |
SF57T-2301200DU1 |
SF57T-2351200DU1 |
SF57T-2401200DU1 |
SF57T-2451200DU1 |
|
1.1A |
SF57T-2201100DU1 |
SF57T-2251100DU1 |
SF57T-2301100DU1 |
SF57T-2351100DU1 |
SF57T-2401100DU1 |
SF57T-2451100DU1 |
|
1.0A |
SF57T-2201000DU1 |
SF57T-2251000DU1 |
SF57T-2301000DU1 |
SF57T-2351000DU1 |
SF57T-2401000DU1 |
SF57T-2451000DU1 |
|
0.9A |
SF57T-2200900DU1 |
SF57T-2250900DU1 |
SF57T-2300900DU1 |
SF57T-2350900DU1 |
SF57T-2400900DU1 |
SF57T-2450900DU1 |
|
0.8A |
SF57T-2200800DU1 |
SF57T-2250800DU1 |
SF57T-2300800DU1 |
SF57T-2350800DU1 |
SF57T-2400800DU1 |
SF57T-2450800DU1 |
|
0.7A |
|
|
SF57T-2300700DU1 |
SF57T-2350700DU1 |
SF57T-2400700DU1 |
SF57T-2450700DU1 |
|
0.6A |
|
|
|
|
SF57T-2400600DU1 |
SF57T-2450600DU1 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.8A |
SF57T-1901800DU1 |
|
|
|
|
|
|
1.7A |
SF57T-1901700DU1 |
SF57T-1951700DU1 |
SF57T-2001700DU1 |
SF57T-2051700DU1 |
SF57T-2101700DU1 |
|
|
1.6A |
SF57T-1901600DU1 |
SF57T-1951600DU1 |
SF57T-2001600DU1 |
SF57T-2051600DU1 |
SF57T-2101600DU1 |
SF57T-2151600DU1 |
|
1.5A |
SF57T-1901500DU1 |
SF57T-1951500DU1 |
SF57T-2001500DU1 |
SF57T-2051500DU1 |
SF57T-2101500DU1 |
SF57T-2151500DU1 |
|
1.4A |
SF57T-1901400DU1 |
SF57T-1951400DU1 |
SF57T-2001400DU1 |
SF57T-2051400DU1 |
SF57T-2101400DU1 |
SF57T-2151400DU1 |
|
1.3A |
SF57T-1901300DU1 |
SF57T-1951300DU1 |
SF57T-2001300DU1 |
SF57T-2051300DU1 |
SF57T-2101300DU1 |
SF57T-2151300DU1 |
|
1.2A |
SF57T-1901200DU1 |
SF57T-1951200DU1 |
SF57T-2001200DU1 |
SF57T-2051200DU1 |
SF57T-2101200DU1 |
SF57T-2151200DU1 |
|
1.1A |
SF57T-1901100DU1 |
SF57T-1951100DU1 |
SF57T-2001100DU1 |
SF57T-2051100DU1 |
SF57T-2101100DU1 |
SF57T-2151100DU1 |
|
1.0A |
SF57T-1901000DU1 |
SF57T-1951000DU1 |
SF57T-2001000DU1 |
SF57T-2051000DU1 |
SF57T-2101000DU1 |
SF57T-2151000DU1 |
|
0.9A |
SF57T-1900900DU1 |
SF57T-1950900DU1 |
SF57T-2000900DU1 |
SF57T-2050900DU1 |
SF57T-2100900DU1 |
SF57T-2150900DU1 |
|
0.8A |
|
|
SF57T-2000800DU1 |
SF57T-2050800DU1 |
SF57T-2100800DU1 |
SF57T-2150800DU1 |
|
0.7A |
|
|
|
|
SF57T-2100700DU1 |
SF57T-2150700DU1 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
2.0A |
SF57T-1602000DU1 |
SF57T-1652000DU1 |
|
|
|
|
|
1.9A |
SF57T-1601900DU1 |
SF57T-1651900DU1 |
SF57T-1701900DU1 |
SF57T-1751900DU1 |
SF57T-1801900DU1 |
|
|
1.8A |
SF57T-1601800DU1 |
SF57T-1651800DU1 |
SF57T-1701800DU1 |
SF57T-1751800DU1 |
SF57T-1801800DU1 |
SF57T-1851800DU1 |
|
1.7A |
SF57T-1601700DU1 |
SF57T-1651700DU1 |
SF57T-1701700DU1 |
SF57T-1751700DU1 |
SF57T-1801700DU1 |
SF57T-1851700DU1 |
|
1.6A |
SF57T-1601600DU1 |
SF57T-1651600DU1 |
SF57T-1701600DU1 |
SF57T-1751600DU1 |
SF57T-1801600DU1 |
SF57T-1851600DU1 |
|
1.5A |
SF57T-1601500DU1 |
SF57T-1651500DU1 |
SF57T-1701500DU1 |
SF57T-1751500DU1 |
SF57T-1801500DU1 |
SF57T-1851500DU1 |
|
1.4A |
SF57T-1601400DU1 |
SF57T-1651400DU1 |
SF57T-1701400DU1 |
SF57T-1751400DU1 |
SF57T-1801400DU1 |
SF57T-1851400DU1 |
|
1.3A |
SF57T-1601300DU1 |
SF57T-1651300DU1 |
SF57T-1701300DU1 |
SF57T-1751300DU1 |
SF57T-1801300DU1 |
SF57T-1851300DU1 |
|
1.2A |
SF57T-1601200DU1 |
SF57T-1651200DU1 |
SF57T-1701200DU1 |
SF57T-1751200DU1 |
SF57T-1801200DU1 |
SF57T-1851200DU1 |
|
1.1A |
SF57T-1601100DU1 |
SF57T-1651100DU1 |
SF57T-1701100DU1 |
SF57T-1751100DU1 |
SF57T-1801100DU1 |
SF57T-1851100DU1 |
|
1.0A |
SF57T-1601000DU1 |
SF57T-1651000DU1 |
SF57T-1701000DU1 |
SF57T-1751000DU1 |
SF57T-1801000DU1 |
SF57T-1851000DU1 |
|
0.9A |
SF57T-1600900DU1 |
SF57T-1650900DU1 |
SF57T-1700900DU1 |
SF57T-1750900DU1 |
SF57T-1800900DU1 |
SF57T-1850900DU1 |
|
0.8A |
|
|
SF57T-1700800DU1 |
SF57T-1750800DU1 |
SF57T-1800800DU1 |
SF57T-1850800DU1 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
2.4A |
SF57T-1302400DU1 |
|
|
|
|
|
|
2.3A |
SF57T-1302300DU1 |
SF57T-1352300DU1 |
|
|
|
|
|
2.2A |
SF57T-1302200DU1 |
SF57T-1352200DU1 |
SF57T-1402200DU1 |
SF57T-1452200DU1 |
|
|
|
2.1A |
SF57T-1302100DU1 |
SF57T-1352100DU1 |
SF57T-1402100DU1 |
SF57T-1452100DU1 |
SF57T-1502100DU1 |
|
|
2.0A |
SF57T-1302000DU1 |
SF57T-1352000DU1 |
SF57T-1402000DU1 |
SF57T-1452000DU1 |
SF57T-1502000DU1 |
SF57T-1552000DU1 |
|
1.9A |
SF57T-1301900DU1 |
SF57T-1351900DU1 |
SF57T-1401900DU1 |
SF57T-1451900DU1 |
SF57T-1501900DU1 |
SF57T-1551900DU1 |
|
1.8A |
SF57T-1301800DU1 |
SF57T-1351800DU1 |
SF57T-1401800DU1 |
SF57T-1451800DU1 |
SF57T-1501800DU1 |
SF57T-1551800DU1 |
|
1.7A |
SF57T-1301700DU1 |
SF57T-1351700DU1 |
SF57T-1401700DU1 |
SF57T-1451700DU1 |
SF57T-1501700DU1 |
SF57T-1551700DU1 |
|
1.6A |
SF57T-1301600DU1 |
SF57T-1351600DU1 |
SF57T-1401600DU1 |
SF57T-1451600DU1 |
SF57T-1501600DU1 |
SF57T-1551600DU1 |
|
1.5A |
SF57T-1301500DU1 |
SF57T-1351500DU1 |
SF57T-1401500DU1 |
SF57T-1451500DU1 |
SF57T-1501500DU1 |
SF57T-1551500DU1 |
|
1.4A |
SF57T-1301400DU1 |
SF57T-1351400DU1 |
SF57T-1401400DU1 |
SF57T-1451400DU1 |
SF57T-1501400DU1 |
SF57T-1551400DU1 |
|
1.3A |
SF57T-1301300DU1 |
SF57T-1351300DU1 |
SF57T-1401300DU1 |
SF57T-1451300DU1 |
SF57T-1501300DU1 |
SF57T-1551300DU1 |
|
1.2A |
SF57T-1301200DU1 |
SF57T-1351200DU1 |
SF57T-1401200DU1 |
SF57T-1451200DU1 |
SF57T-1501200DU1 |
SF57T-1551200DU1 |
|
1.1A |
SF57T-1301100DU1 |
SF57T-1351100DU1 |
SF57T-1401100DU1 |
SF57T-1451100DU1 |
SF57T-1501100DU1 |
SF57T-1551100DU1 |
|
1.0A |
SF57T-1301000DU1 |
SF57T-1351000DU1 |
SF57T-1401000DU1 |
SF57T-1451000DU1 |
SF57T-1501000DU1 |
SF57T-1551000DU1 |
|
0.9A |
|
|
SF57T-1400900DU1 |
SF57T-1450900DU1 |
SF57T-1500900DU1 |
SF57T-1550900DU1 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.9A |
SF57T-1002900DU1 |
|
|
|
|
|
|
2.8A |
SF57T-1002800DU1 |
|
|
|
|
|
|
2.7A |
SF57T-1002700DU1 |
SF57T-1052700DU1 |
SF57T-1102700DU1 |
|
|
|
|
2.6A |
SF57T-1002600DU1 |
SF57T-1052600DU1 |
SF57T-1102600DU1 |
SF57T-1152600DU1 |
|
|
|
2.5A |
SF57T-1002500DU1 |
SF57T-1052500DU1 |
SF57T-1102500DU1 |
SF57T-1152500DU1 |
SF57T-1202500DU1 |
|
|
2.4A |
SF57T-1002400DU1 |
SF57T-1052400DU1 |
SF57T-1102400DU1 |
SF57T-1152400DU1 |
SF57T-1202400DU1 |
SF57T-1252400DU1 |
|
2.3A |
SF57T-1002300DU1 |
SF57T-1052300DU1 |
SF57T-1102300DU1 |
SF57T-1152300DU1 |
SF57T-1202300DU1 |
SF57T-1252300DU1 |
|
2.2A |
SF57T-1002200DU1 |
SF57T-1052200DU1 |
SF57T-1102200DU1 |
SF57T-1152200DU1 |
SF57T-1202200DU1 |
SF57T-1252200DU1 |
|
2.1A |
SF57T-1002100DU1 |
SF57T-1052100DU1 |
SF57T-1102100DU1 |
SF57T-1152100DU1 |
SF57T-1202100DU1 |
SF57T-1252100DU1 |
|
2.0A |
SF57T-1002000DU1 |
SF57T-1052000DU1 |
SF57T-1102000DU1 |
SF57T-1152000DU1 |
SF57T-1202000DU1 |
SF57T-1252000DU1 |
|
1.9A |
SF57T-1001900DU1 |
SF57T-1051900DU1 |
SF57T-1101900DU1 |
SF57T-1151900DU1 |
SF57T-1201900DU1 |
SF57T-1251900DU1 |
|
1.8A |
SF57T-1001800DU1 |
SF57T-1051800DU1 |
SF57T-1101800DU1 |
SF57T-1151800DU1 |
SF57T-1201800DU1 |
SF57T-1251800DU1 |
|
1.7A |
SF57T-1001700DU1 |
SF57T-1051700DU1 |
SF57T-1101700DU1 |
SF57T-1151700DU1 |
SF57T-1201700DU1 |
SF57T-1251700DU1 |
|
1.6A |
SF57T-1001600DU1 |
SF57T-1051600DU1 |
SF57T-1101600DU1 |
SF57T-1151600DU1 |
SF57T-1201600DU1 |
SF57T-1251600DU1 |
|
1.5A |
SF57T-1001500DU1 |
SF57T-1051500DU1 |
SF57T-1101500DU1 |
SF57T-1151500DU1 |
SF57T-1201500DU1 |
SF57T-1251500DU1 |
|
1.4A |
|
|
SF57T-1101400DU1 |
SF57T-1151400DU1 |
SF57T-1201400DU1 |
SF57T-1251400DU1 |
|
1.3A |
|
|
|
|
SF57T-1201300DU1 |
SF57T-1251300DU1 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
4.0A |
SF57T-0704000DU1 |
|
|
|
|
|
|
3.9A |
SF57T-0703900DU1 |
|
|
|
|
|
|
3.8A |
SF57T-0703800DU1 |
SF57T-0753800DU1 |
|
|
|
|
|
3.7A |
SF57T-0703700DU1 |
SF57T-0753700DU1 |
|
|
|
|
|
3.6A |
SF57T-0703600DU1 |
SF57T-0753600DU1 |
SF57T-0803600DU1 |
|
|
|
|
3.5A |
SF57T-0703500DU1 |
SF57T-0753500DU1 |
SF57T-0803500DU1 |
|
|
|
|
3.4A |
SF57T-0703400DU1 |
SF57T-0753400DU1 |
SF57T-0803400DU1 |
SF57T-0853400DU1 |
|
|
|
3.3A |
SF57T-0703300DU1 |
SF57T-0753300DU1 |
SF57T-0803300DU1 |
SF57T-0853300DU1 |
|
|
|
3.2A |
SF57T-0703200DU1 |
SF57T-0753200DU1 |
SF57T-0803200DU1 |
SF57T-0853200DU1 |
SF57T-0903200DU1 |
|
|
3.1A |
SF57T-0703100DU1 |
SF57T-0753100DU1 |
SF57T-0803100DU1 |
SF57T-0853100DU1 |
SF57T-0903100DU1 |
|
|
3.0A |
SF57T-0703000DU1 |
SF57T-0753000DU1 |
SF57T-0803000DU1 |
SF57T-0853000DU1 |
SF57T-0903000DU1 |
SF57T-0953000DU1 |
|
2.9A |
SF57T-0702900DU1 |
SF57T-0752900DU1 |
SF57T-0802900DU1 |
SF57T-0852900DU1 |
SF57T-0902900DU1 |
SF57T-0952900DU1 |
|
2.8A |
SF57T-0702800DU1 |
SF57T-0752800DU1 |
SF57T-0802800DU1 |
SF57T-0852800DU1 |
SF57T-0902800DU1 |
SF57T-0952800DU1 |
|
2.7A |
SF57T-0702700DU1 |
SF57T-0752700DU1 |
SF57T-0802700DU1 |
SF57T-0852700DU1 |
SF57T-0902700DU1 |
SF57T-0952700DU1 |
|
2.6A |
SF57T-0702600DU1 |
SF57T-0752600DU1 |
SF57T-0802600DU1 |
SF57T-0852600DU1 |
SF57T-0902600DU1 |
SF57T-0952600DU1 |
|
2.5A |
SF57T-0702500DU1 |
SF57T-0752500DU1 |
SF57T-0802500DU1 |
SF57T-0852500DU1 |
SF57T-0902500DU1 |
SF57T-0952500DU1 |
|
2.4A |
SF57T-0702400DU1 |
SF57T-0752400DU1 |
SF57T-0802400DU1 |
SF57T-0852400DU1 |
SF57T-0902400DU1 |
SF57T-0952400DU1 |
|
2.3A |
SF57T-0702300DU1 |
SF57T-0752300DU1 |
SF57T-0802300DU1 |
SF57T-0852300DU1 |
SF57T-0902300DU1 |
SF57T-0952300DU1 |
|
2.2A |
SF57T-0702200DU1 |
SF57T-0752200DU1 |
SF57T-0802200DU1 |
SF57T-0852200DU1 |
SF57T-0902200DU1 |
SF57T-0952200DU1 |
|
2.1A |
SF57T-0702100DU1 |
SF57T-0752100DU1 |
SF57T-0802100DU1 |
SF57T-0852100DU1 |
SF57T-0902100DU1 |
SF57T-0952100DU1 |
|
2.0A |
SF57T-0702000DU1 |
SF57T-0752000DU1 |
SF57T-0802000DU1 |
SF57T-0852000DU1 |
SF57T-0902000DU1 |
SF57T-0952000DU1 |
|
1.9A |
SF57T-0701900DU1 |
SF57T-0751900DU1 |
SF57T-0801900DU1 |
SF57T-0851900DU1 |
SF57T-0901900DU1 |
SF57T-0951900DU1 |
|
1.8A |
|
|
SF57T-0801800DU1 |
SF57T-0851800DU1 |
SF57T-0901800DU1 |
SF57T-0951800DU1 |
|
1.7A |
|
|
|
|
SF57T-0901700DU1 |
SF57T-0951700DU1 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
5.3A |
SF57T-0405300DU1 |
|
|
|
|
|
|
5.2A |
SF57T-0405200DU1 |
|
|
|
|
|
|
5.1A |
SF57T-0405100DU1 |
SF57T-0455100DU1 |
|
|
|
|
|
5.0A |
SF57T-0405000DU1 |
SF57T-0455000DU1 |
|
|
|
|
|
4.9A |
SF57T-0404900DU1 |
SF57T-0454900DU1 |
SF57T-0504900DU1 |
|
|
|
|
4.8A |
SF57T-0404800DU1 |
SF57T-0454800DU1 |
SF57T-0504800DU1 |
|
|
|
|
4.7A |
SF57T-0404700DU1 |
SF57T-0454700DU1 |
SF57T-0504700DU1 |
SF57T-0554700DU1 |
|
|
|
4.6A |
SF57T-0404600DU1 |
SF57T-0454600DU1 |
SF57T-0504600DU1 |
SF57T-0554600DU1 |
|
|
|
4.5A |
SF57T-0404500DU1 |
SF57T-0454500DU1 |
SF57T-0504500DU1 |
SF57T-0554500DU1 |
SF57T-0604500DU1 |
|
|
4.4A |
SF57T-0404400DU1 |
SF57T-0454400DU1 |
SF57T-0504400DU1 |
SF57T-0554400DU1 |
SF57T-0604400DU1 |
|
|
4.3A |
SF57T-0404300DU1 |
SF57T-0454300DU1 |
SF57T-0504300DU1 |
SF57T-0554300DU1 |
SF57T-0604300DU1 |
SF57T-0654300DU1 |
|
4.2A |
SF57T-0404200DU1 |
SF57T-0454200DU1 |
SF57T-0504200DU1 |
SF57T-0554200DU1 |
SF57T-0604200DU1 |
SF57T-0654200DU1 |
|
4.1A |
SF57T-0404100DU1 |
SF57T-0454100DU1 |
SF57T-0504100DU1 |
SF57T-0554100DU1 |
SF57T-0604100DU1 |
SF57T-0654100DU1 |
|
4.0A |
SF57T-0404000DU1 |
SF57T-0454000DU1 |
SF57T-0504000DU1 |
SF57T-0554000DU1 |
SF57T-0604000DU1 |
SF57T-0654000DU1 |
|
3.9A |
SF57T-0403900DU1 |
SF57T-0453900DU1 |
SF57T-0503900DU1 |
SF57T-0553900DU1 |
SF57T-0603900DU1 |
SF57T-0653900DU1 |
|
3.8A |
SF57T-0403800DU1 |
SF57T-0453800DU1 |
SF57T-0503800DU1 |
SF57T-0553800DU1 |
SF57T-0603800DU1 |
SF57T-0653800DU1 |
|
3.7A |
SF57T-0403700DU1 |
SF57T-0453700DU1 |
SF57T-0503700DU1 |
SF57T-0553700DU1 |
SF57T-0603700DU1 |
SF57T-0653700DU1 |
|
3.6A |
SF57T-0403600DU1 |
SF57T-0453600DU1 |
SF57T-0503600DU1 |
SF57T-0553600DU1 |
SF57T-0603600DU1 |
SF57T-0653600DU1 |
|
3.5A |
SF57T-0403500DU1 |
SF57T-0453500DU1 |
SF57T-0503500DU1 |
SF57T-0553500DU1 |
SF57T-0603500DU1 |
SF57T-0653500DU1 |
|
3.4A |
SF57T-0403400DU1 |
SF57T-0453400DU1 |
SF57T-0503400DU1 |
SF57T-0553400DU1 |
SF57T-0603400DU1 |
SF57T-0653400DU1 |
|
3.3A |
SF57T-0403300DU1 |
SF57T-0453300DU1 |
SF57T-0503300DU1 |
SF57T-0553300DU1 |
SF57T-0603300DU1 |
SF57T-0653300DU1 |
|
3.2A |
SF57T-0403200DU1 |
SF57T-0453200DU1 |
SF57T-0503200DU1 |
SF57T-0553200DU1 |
SF57T-0603200DU1 |
SF57T-0653200DU1 |
|
3.1A |
SF57T-0403100DU1 |
SF57T-0453100DU1 |
SF57T-0503100DU1 |
SF57T-0553100DU1 |
SF57T-0603100DU1 |
SF57T-0653100DU1 |
|
3.0A |
SF57T-0403000DU1 |
SF57T-0453000DU1 |
SF57T-0503000DU1 |
SF57T-0553000DU1 |
SF57T-0603000DU1 |
SF57T-0653000DU1 |
|
2.9A |
SF57T-0402900DU1 |
SF57T-0452900DU1 |
SF57T-0502900DU1 |
SF57T-0552900DU1 |
SF57T-0602900DU1 |
SF57T-0652900DU1 |
|
2.8A |
SF57T-0402800DU1 |
SF57T-0452800DU1 |
SF57T-0502800DU1 |
SF57T-0552800DU1 |
SF57T-0602800DU1 |
SF57T-0652800DU1 |
|
2.7A |
SF57T-0402700DU1 |
SF57T-0452700DU1 |
SF57T-0502700DU1 |
SF57T-0552700DU1 |
SF57T-0602700DU1 |
SF57T-0652700DU1 |
|
2.6A |
SF57T-0402600DU1 |
SF57T-0452600DU1 |
SF57T-0502600DU1 |
SF57T-0552600DU1 |
SF57T-0602600DU1 |
SF57T-0652600DU1 |
|
2.5A |
|
|
SF57T-0502500DU1 |
SF57T-0552500DU1 |
SF57T-0602500DU1 |
SF57T-0652500DU1 |
|
2.4A |
|
|
SF57T-0502400DU1 |
SF57T-0552400DU1 |
SF57T-0602400DU1 |
SF57T-0652400DU1 |
|
2.3A |
|
|
|
|
SF57T-0602300DU1 |
SF57T-0652300DU1 |
|
2.2A |
|
|
|
|
SF57T-0602200DU1 |
SF57T-0652200DU1 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
6.0A |
SF57T-0106000DU1 |
SF57T-0156000DU1 |
SF57T-0206000DU1 |
|
|
|
|
5.9A |
SF57T-0105900DU1 |
SF57T-0155900DU1 |
SF57T-0205900DU1 |
|
|
|
|
5.8A |
SF57T-0105800DU1 |
SF57T-0155800DU1 |
SF57T-0205800DU1 |
SF57T-0255800DU1 |
|
|
|
5.7A |
SF57T-0105700DU1 |
SF57T-0155700DU1 |
SF57T-0205700DU1 |
SF57T-0255700DU1 |
|
|
|
5.6A |
SF57T-0105600DU1 |
SF57T-0155600DU1 |
SF57T-0205600DU1 |
SF57T-0255600DU1 |
SF57T-0305600DU1 |
|
|
5.5A |
SF57T-0105500DU1 |
SF57T-0155500DU1 |
SF57T-0205500DU1 |
SF57T-0255500DU1 |
SF57T-0305500DU1 |
SF57T-0355500DU1 |
|
5.4A |
SF57T-0105400DU1 |
SF57T-0155400DU1 |
SF57T-0205400DU1 |
SF57T-0255400DU1 |
SF57T-0305400DU1 |
SF57T-0355400DU1 |
|
5.3A |
SF57T-0105300DU1 |
SF57T-0155300DU1 |
SF57T-0205300DU1 |
SF57T-0255300DU1 |
SF57T-0305300DU1 |
SF57T-0355300DU1 |
|
5.2A |
SF57T-0105200DU1 |
SF57T-0155200DU1 |
SF57T-0205200DU1 |
SF57T-0255200DU1 |
SF57T-0305200DU1 |
SF57T-0355200DU1 |
|
5.1A |
SF57T-0105100DU1 |
SF57T-0155100DU1 |
SF57T-0205100DU1 |
SF57T-0255100DU1 |
SF57T-0305100DU1 |
SF57T-0355100DU1 |
|
5.0A |
SF57T-0105000DU1 |
SF57T-0155000DU1 |
SF57T-0205000DU1 |
SF57T-0255000DU1 |
SF57T-0305000DU1 |
SF57T-0355000DU1 |
|
4.9A |
SF57T-0104900DU1 |
SF57T-0154900DU1 |
SF57T-0204900DU1 |
SF57T-0254900DU1 |
SF57T-0304900DU1 |
SF57T-0354900DU1 |
|
4.8A |
SF57T-0104800DU1 |
SF57T-0154800DU1 |
SF57T-0204800DU1 |
SF57T-0254800DU1 |
SF57T-0304800DU1 |
SF57T-0354800DU1 |
|
4.7A |
SF57T-0104700DU1 |
SF57T-0154700DU1 |
SF57T-0204700DU1 |
SF57T-0254700DU1 |
SF57T-0304700DU1 |
SF57T-0354700DU1 |
|
4.6A |
SF57T-0104600DU1 |
SF57T-0154600DU1 |
SF57T-0204600DU1 |
SF57T-0254600DU1 |
SF57T-0304600DU1 |
SF57T-0354600DU1 |
|
4.5A |
SF57T-0104500DU1 |
SF57T-0154500DU1 |
SF57T-0204500DU1 |
SF57T-0254500DU1 |
SF57T-0304500DU1 |
SF57T-0354500DU1 |
|
4.4A |
SF57T-0104400DU1 |
SF57T-0154400DU1 |
SF57T-0204400DU1 |
SF57T-0254400DU1 |
SF57T-0304400DU1 |
SF57T-0354400DU1 |
|
4.3A |
SF57T-0104300DU1 |
SF57T-0154300DU1 |
SF57T-0204300DU1 |
SF57T-0254300DU1 |
SF57T-0304300DU1 |
SF57T-0354300DU1 |
|
4.2A |
SF57T-0104200DU1 |
SF57T-0154200DU1 |
SF57T-0204200DU1 |
SF57T-0254200DU1 |
SF57T-0304200DU1 |
SF57T-0354200DU1 |
|
4.1A |
SF57T-0104100DU1 |
SF57T-0154100DU1 |
SF57T-0204100DU1 |
SF57T-0254100DU1 |
SF57T-0304100DU1 |
SF57T-0354100DU1 |
|
4.0A |
SF57T-0104000DU1 |
SF57T-0154000DU1 |
SF57T-0204000DU1 |
SF57T-0254000DU1 |
SF57T-0304000DU1 |
SF57T-0354000DU1 |
|
3.9A |
SF57T-0103900DU1 |
SF57T-0153900DU1 |
SF57T-0203900DU1 |
SF57T-0253900DU1 |
SF57T-0303900DU1 |
SF57T-0353900DU1 |
|
3.8A |
SF57T-0103800DU1 |
SF57T-0153800DU1 |
SF57T-0203800DU1 |
SF57T-0253800DU1 |
SF57T-0303800DU1 |
SF57T-0353800DU1 |
|
3.7A |
SF57T-0103700DU1 |
SF57T-0153700DU1 |
SF57T-0203700DU1 |
SF57T-0253700DU1 |
SF57T-0303700DU1 |
SF57T-0353700DU1 |
|
3.6A |
SF57T-0103600DU1 |
SF57T-0153600DU1 |
SF57T-0203600DU1 |
SF57T-0253600DU1 |
SF57T-0303600DU1 |
SF57T-0353600DU1 |
|
3.5A |
SF57T-0103500DU1 |
SF57T-0153500DU1 |
SF57T-0203500DU1 |
SF57T-0253500DU1 |
SF57T-0303500DU1 |
SF57T-0353500DU1 |
|
3.4A |
|
|
SF57T-0203400DU1 |
SF57T-0253400DU1 |
SF57T-0303400DU1 |
SF57T-0353400DU1 |
|
3.3A |
|
|
SF57T-0203300DU1 |
SF57T-0253300DU1 |
SF57T-0303300DU1 |
SF57T-0353300DU1 |
|
3.2A |
|
|
SF57T-0203200DU1 |
SF57T-0253200DU1 |
SF57T-0303200DU1 |
SF57T-0353200DU1 |
|
3.1A |
|
|
|
|
SF57T-0303100DU1 |
SF57T-0353100DU1 |
|
3.0A |
|
|
|
|
SF57T-0303000DU1 |
SF57T-0353000DU1 |
|
2.9A |
|
|
|
|
SF57T-0302900DU1 |
SF57T-0352900DU1 |
|
2.8A |
|
|
|
|
SF57T-0302800DU1 |
SF57T-0352800DU1 |
 |
 |
 |
 |
 |
 |
