LINEAR ADAPTOR
DESKTOP - DUAL OUTPUT

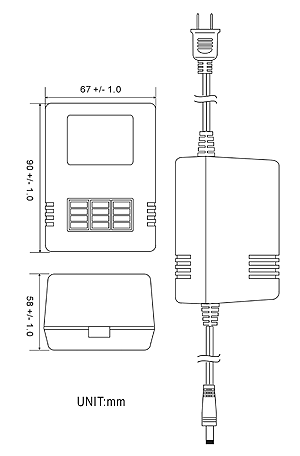

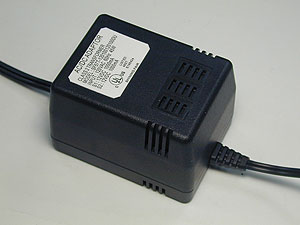

EI 57 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-24V DC, S2:1-24V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-2.5A, S2:0.1-2.5A |
|
|
|
Output Watt |
28VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to DC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
The options of the dual output is limited to each output value |
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF57T-aaaYYaaaYYDU |
2V DC |
2.5A |
2V DC |
2.5A |
10VA |
|
x = b |
SF57T-bbbYYbbbYYDU |
3V DC |
2.2A |
3V DC |
2.2A |
13.2VA |
|
x = c |
SF57T-cccYYcccYYDU |
4V DC |
2.1A |
4V DC |
2.1A |
16.8VA |
|
x = d |
SF57T-dddYYdddYYDU |
5V DC |
2A |
5V DC |
2A |
20VA |
|
x = e |
SF57T-eeeYYeeeYYDU |
6V DC |
1.9A |
6V DC |
1.9A |
22.8VA |
|
x = f |
SF57T-fffYYfffYYDU |
9V DC |
1.5A |
9V DC |
1.5A |
27VA |
|
x = g |
SF57T-gggYYgggYYDU |
12V DC |
1.1A |
12V DC |
1.1A |
26.4VA |
|
x = h |
SF57T-hhhYYhhhYYAU |
15V DC |
0.9A |
15V DC |
0.9A |
27VA |
|
x = i |
SF57T-iiiYYiiiYYDU |
17V DC |
0.8A |
17V DC |
0.8A |
27.2VA |
|
x = j |
SF57T-jjjYYjjjYYDU |
20V DC |
0.7A |
20V DC |
0.7A |
28VA |
|
x =k |
SF57T-kkkYYkkkYYDU |
24V DC |
0.5A |
24V DC |
0.5A |
24VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF57T-0152503022DU |
1.5V DC |
2.5A |
3V DC |
2.2A |
10.35VA |
|
|
SF57T-0302203022DU |
3V DC |
2.2A |
3V DC |
2.2A |
13.2VA |
|
|
SF57T-0502006019DU |
5V DC |
2A |
6V DC |
1.9A |
21.4VA |
|
|
SF57T-0501512011DU |
5V DC |
1.5A |
12V DC |
1.1A |
20.7VA |
|
|
SF57T-1300924004DU |
13V DC |
0.9A |
24V DC |
0.4A |
21.3VA |
|
|
SF57T-1201124003DU |
12V DC |
1.1A |
24V DC |
0.3A |
20.4VA |
|
 |
 |
 |
 |
 |
 |
