LINEAR ADAPTOR
DESKTOP

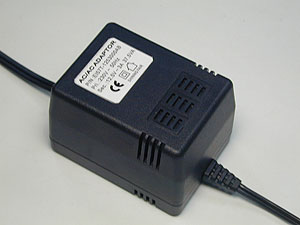

EI 57 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-25V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.7-4A |
|
|
|
Output Watt |
37.5VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.5A |
SF57T-1502500AB |
|
|
|
|
|
|
2.4A |
SF57T-1502400AB |
|
|
|
|
|
|
2.3A |
SF57T-1502300AB |
SF57T-1602300AB |
|
|
|
|
|
2.2A |
SF57T-1502200AB |
SF57T-1602200AB |
SF57T-1702200AB |
|
|
|
|
2.1A |
SF57T-1502100AB |
SF57T-1602100AB |
SF57T-1702100AB |
|
|
|
|
2.0A |
SF57T-1502000AB |
SF57T-1602000AB |
SF57T-1702000AB |
SF57T-1802000AB |
|
|
|
1.9A |
SF57T-1501900AB |
SF57T-1601900AB |
SF57T-1701900AB |
SF57T-1801900AB |
SF57T-1901900AB |
|
|
1.8A |
SF57T-1501800AB |
SF57T-1601800AB |
SF57T-1701800AB |
SF57T-1801800AB |
SF57T-1901800AB |
SF57T-2001800AB |
|
1.7A |
SF57T-1501700AB |
SF57T-1601700AB |
SF57T-1701700AB |
SF57T-1801700AB |
SF57T-1901700AB |
SF57T-2001700AB |
|
1.6A |
SF57T-1501600AB |
SF57T-1601600AB |
SF57T-1701600AB |
SF57T-1801600AB |
SF57T-1901600AB |
SF57T-2001600AB |
|
1.5A |
SF57T-1501500AB |
SF57T-1601500AB |
SF57T-1701500AB |
SF57T-1801500AB |
SF57T-1901500AB |
SF57T-2001500AB |
|
1.4A |
SF57T-1501400AB |
SF57T-1601400AB |
SF57T-1701400AB |
SF57T-1801400AB |
SF57T-1901400AB |
SF57T-2001400AB |
|
1.3A |
SF57T-1501300AB |
SF57T-1601300AB |
SF57T-1701300AB |
SF57T-1801300AB |
SF57T-1901300AB |
SF57T-2001300AB |
|
1.2A |
|
SF57T-1601200AB |
SF57T-1701200AB |
SF57T-1801200AB |
SF57T-1901200AB |
SF57T-2001200AB |
|
1.1A |
|
|
|
SF57T-1801100AB |
SF57T-1901100AB |
SF57T-2001100AB |
|
1.0A |
|
|
|
|
SF57T-1901000AB |
SF57T-2001000AB |
|
0.9A |
|
|
|
|
|
SF57T-2000900AB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.1A |
SF57T-1203100AB |
|
|
|
|
|
|
3.0A |
SF57T-1203000AB |
SF57T-1253000AB |
|
|
|
|
|
2.9A |
SF57T-1202900AB |
SF57T-1252900AB |
|
|
|
|
|
2.8A |
SF57T-1202800AB |
SF57T-1252800AB |
SF57T-1302800AB |
|
|
|
|
2.7A |
SF57T-1202700AB |
SF57T-1252700AB |
SF57T-1302700AB |
SF57T-1352700AB |
|
|
|
2.6A |
SF57T-1202600AB |
SF57T-1252600AB |
SF57T-1302600AB |
SF57T-1352600AB |
SF57T-1402600AB |
|
|
2.5A |
SF57T-1202500AB |
SF57T-1252500AB |
SF57T-1302500AB |
SF57T-1352500AB |
SF57T-1402500AB |
SF57T-1452500AB |
|
2.4A |
SF57T-1202400AB |
SF57T-1252400AB |
SF57T-1302400AB |
SF57T-1352400AB |
SF57T-1402400AB |
SF57T-1452400AB |
|
2.3A |
SF57T-1202300AB |
SF57T-1252300AB |
SF57T-1302300AB |
SF57T-1352300AB |
SF57T-1402300AB |
SF57T-1452300AB |
|
2.2A |
SF57T-1202200AB |
SF57T-1252200AB |
SF57T-1302200AB |
SF57T-1352200AB |
SF57T-1402200AB |
SF57T-1452200AB |
|
2.1A |
SF57T-1202100AB |
SF57T-1252100AB |
SF57T-1302100AB |
SF57T-1352100AB |
SF57T-1402100AB |
SF57T-1452100AB |
|
2.0A |
SF57T-1202000AB |
SF57T-1252000AB |
SF57T-1302000AB |
SF57T-1352000AB |
SF57T-1402000AB |
SF57T-1452000AB |
|
1.9A |
SF57T-1201900AB |
SF57T-1251900AB |
SF57T-1301900AB |
SF57T-1351900AB |
SF57T-1401900AB |
SF57T-1451900AB |
|
1.8A |
SF57T-1201800AB |
SF57T-1251800AB |
SF57T-1301800AB |
SF57T-1351800AB |
SF57T-1401800AB |
SF57T-1451800AB |
|
1.7A |
SF57T-1201700AB |
SF57T-1251700AB |
SF57T-1301700AB |
SF57T-1351700AB |
SF57T-1401700AB |
SF57T-1451700AB |
|
1.6A |
SF57T-1201600AB |
SF57T-1251600AB |
SF57T-1301600AB |
SF57T-1351600AB |
SF57T-1401600AB |
SF57T-1451600AB |
|
1.5A |
SF57T-1201500AB |
SF57T-1251500AB |
SF57T-1301500AB |
SF57T-1351500AB |
SF57T-1401500AB |
SF57T-1451500AB |
|
1.4A |
|
|
SF57T-1301400AB |
SF57T-1351400AB |
SF57T-1401400AB |
SF57T-1451400AB |
|
1.3A |
|
|
|
|
SF57T-1401300AB |
SF57T-1451300AB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.9A |
SF57T-0903900AB |
|
|
|
|
|
|
3.8A |
SF57T-0903800AB |
SF57T-0953800AB |
|
|
|
|
|
3.7A |
SF57T-0903700AB |
SF57T-0953700AB |
SF57T-1003700AB |
|
|
|
|
3.6A |
SF57T-0903600AB |
SF57T-0953600AB |
SF57T-1003600AB |
|
|
|
|
3.5A |
SF57T-0903500AB |
SF57T-0953500AB |
SF57T-1003500AB |
SF57T-1053500AB |
|
|
|
3.4A |
SF57T-0903400AB |
SF57T-0953400AB |
SF57T-1003400AB |
SF57T-1053400AB |
SF57T-1103400AB |
|
|
3.3A |
SF57T-0903300AB |
SF57T-0953300AB |
SF57T-1003300AB |
SF57T-1053300AB |
SF57T-1103300AB |
|
|
3.2A |
SF57T-0903200AB |
SF57T-0953200AB |
SF57T-1003200AB |
SF57T-1053200AB |
SF57T-1103200AB |
SF57T-1153200AB |
|
3.1A |
SF57T-0903100AB |
SF57T-0953100AB |
SF57T-1003100AB |
SF57T-1053100AB |
SF57T-1103100AB |
SF57T-1153100AB |
|
3.0A |
SF57T-0903000AB |
SF57T-0953000AB |
SF57T-1003000AB |
SF57T-1053000AB |
SF57T-1103000AB |
SF57T-1153000AB |
|
2.9A |
SF57T-0902900AB |
SF57T-0952900AB |
SF57T-1002900AB |
SF57T-1052900AB |
SF57T-1102900AB |
SF57T-1152900AB |
|
2.8A |
SF57T-0902800AB |
SF57T-0952800AB |
SF57T-1002800AB |
SF57T-1052800AB |
SF57T-1102800AB |
SF57T-1152800AB |
|
2.7A |
SF57T-0902700AB |
SF57T-0952700AB |
SF57T-1002700AB |
SF57T-1052700AB |
SF57T-1102700AB |
SF57T-1152700AB |
|
2.6A |
SF57T-0902600AB |
SF57T-0952600AB |
SF57T-1002600AB |
SF57T-1052600AB |
SF57T-1102600AB |
SF57T-1152600AB |
|
2.5A |
SF57T-0902500AB |
SF57T-0952500AB |
SF57T-1002500AB |
SF57T-1052500AB |
SF57T-1102500AB |
SF57T-1152500AB |
|
2.4A |
SF57T-0902400AB |
SF57T-0952400AB |
SF57T-1002400AB |
SF57T-1052400AB |
SF57T-1102400AB |
SF57T-1152400AB |
|
2.3A |
SF57T-0902300AB |
SF57T-0952300AB |
SF57T-1002300AB |
SF57T-1052300AB |
SF57T-1102300AB |
SF57T-1152300AB |
|
2.2A |
SF57T-0902200AB |
SF57T-0952200AB |
SF57T-1002200AB |
SF57T-1052200AB |
SF57T-1102200AB |
SF57T-1152200AB |
|
2.1A |
SF57T-0902100AB |
SF57T-0952100AB |
SF57T-1002100AB |
SF57T-1052100AB |
SF57T-1102100AB |
SF57T-1152100AB |
|
2.0A |
SF57T-0902000AB |
SF57T-0952000AB |
SF57T-1002000AB |
SF57T-1052000AB |
SF57T-1102000AB |
SF57T-1152000AB |
|
1.9A |
SF57T-0901900AB |
SF57T-0951900AB |
SF57T-1001900AB |
SF57T-1051900AB |
SF57T-1101900AB |
SF57T-1151900AB |
|
1.8A |
|
|
SF57T-1001800AB |
SF57T-1051800AB |
SF57T-1101800AB |
SF57T-1151800AB |
|
1.7A |
|
|
|
|
SF57T-1101700AB |
SF57T-1151700AB |
|
1.6A |
|
|
|
|
|
SF57T-1151600AB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
4.0A |
SF57T-0604000AB |
SF57T-0654000AB |
SF57T-0704000AB |
SF57T-0754000AB |
SF57T-0804000AB |
|
|
3.9A |
SF57T-0603900AB |
SF57T-0653900AB |
SF57T-0703900AB |
SF57T-0753900AB |
SF57T-0803900AB |
SF57T-0853900AB |
|
3.8A |
SF57T-0603800AB |
SF57T-0653800AB |
SF57T-0703800AB |
SF57T-0753800AB |
SF57T-0803800AB |
SF57T-0853800AB |
|
3.7A |
SF57T-0603700AB |
SF57T-0653700AB |
SF57T-0703700AB |
SF57T-0753700AB |
SF57T-0803700AB |
SF57T-0853700AB |
|
3.6A |
SF57T-0603600AB |
SF57T-0653600AB |
SF57T-0703600AB |
SF57T-0753600AB |
SF57T-0803600AB |
SF57T-0853600AB |
|
3.5A |
SF57T-0603500AB |
SF57T-0653500AB |
SF57T-0703500AB |
SF57T-0753500AB |
SF57T-0803500AB |
SF57T-0853500AB |
|
3.4A |
SF57T-0603400AB |
SF57T-0653400AB |
SF57T-0703400AB |
SF57T-0753400AB |
SF57T-0803400AB |
SF57T-0853400AB |
|
3.3A |
SF57T-0603300AB |
SF57T-0653300AB |
SF57T-0703300AB |
SF57T-0753300AB |
SF57T-0803300AB |
SF57T-0853300AB |
|
3.2A |
SF57T-0603200AB |
SF57T-0653200AB |
SF57T-0703200AB |
SF57T-0753200AB |
SF57T-0803200AB |
SF57T-0853200AB |
|
3.1A |
SF57T-0603100AB |
SF57T-0653100AB |
SF57T-0703100AB |
SF57T-0753100AB |
SF57T-0803100AB |
SF57T-0853100AB |
|
3.0A |
SF57T-0603000AB |
SF57T-0653000AB |
SF57T-0703000AB |
SF57T-0753000AB |
SF57T-0803000AB |
SF57T-0853000AB |
|
2.9A |
SF57T-0602900AB |
SF57T-0652900AB |
SF57T-0702900AB |
SF57T-0752900AB |
SF57T-0802900AB |
SF57T-0852900AB |
|
2.8A |
SF57T-0602800AB |
SF57T-0652800AB |
SF57T-0702800AB |
SF57T-0752800AB |
SF57T-0802800AB |
SF57T-0852800AB |
|
2.7A |
SF57T-0602700AB |
SF57T-0652700AB |
SF57T-0702700AB |
SF57T-0752700AB |
SF57T-0802700AB |
SF57T-0852700AB |
|
2.6A |
SF57T-0602600AB |
SF57T-0652600AB |
SF57T-0702600AB |
SF57T-0752600AB |
SF57T-0802600AB |
SF57T-0852600AB |
|
2.5A |
SF57T-0602500AB |
SF57T-0652500AB |
SF57T-0702500AB |
SF57T-0752500AB |
SF57T-0802500AB |
SF57T-0852500AB |
|
2.4A |
SF57T-0602400AB |
SF57T-0652400AB |
SF57T-0702400AB |
SF57T-0752400AB |
SF57T-0802400AB |
SF57T-0852400AB |
|
2.3A |
SF57T-0602300AB |
SF57T-0652300AB |
SF57T-0702300AB |
SF57T-0752300AB |
SF57T-0802300AB |
SF57T-0852300AB |
|
2.2A |
SF57T-0602200AB |
SF57T-0652200AB |
SF57T-0702200AB |
SF57T-0752200AB |
SF57T-0802200AB |
SF57T-0852200AB |
|
2.1A |
SF57T-0602100AB |
SF57T-0652100AB |
SF57T-0702100AB |
SF57T-0752100AB |
SF57T-0802100AB |
SF57T-0852100AB |
|
2.0A |
SF57T-0602000AB |
SF57T-0652000AB |
SF57T-0702000AB |
SF57T-0752000AB |
SF57T-0802000AB |
SF57T-0852000AB |
|
1.9A |
|
|
|
|
|
SF57T-0851900AB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
4.0A |
SF57T-0304000AB |
SF57T-0354000AB |
SF57T-0404000AB |
SF57T-0454000AB |
SF57T-0504000AB |
SF57T-0554000AB |
|
3.9A |
SF57T-0303900AB |
SF57T-0353900AB |
SF57T-0403900AB |
SF57T-0453900AB |
SF57T-0503900AB |
SF57T-0553900AB |
|
3.8A |
SF57T-0303800AB |
SF57T-0353800AB |
SF57T-0403800AB |
SF57T-0453800AB |
SF57T-0503800AB |
SF57T-0553800AB |
|
3.7A |
SF57T-0303700AB |
SF57T-0353700AB |
SF57T-0403700AB |
SF57T-0453700AB |
SF57T-0503700AB |
SF57T-0553700AB |
|
3.6A |
SF57T-0303600AB |
SF57T-0353600AB |
SF57T-0403600AB |
SF57T-0453600AB |
SF57T-0503600AB |
SF57T-0553600AB |
|
3.5A |
SF57T-0303500AB |
SF57T-0353500AB |
SF57T-0403500AB |
SF57T-0453500AB |
SF57T-0503500AB |
SF57T-0553500AB |
|
3.4A |
SF57T-0303400AB |
SF57T-0353400AB |
SF57T-0403400AB |
SF57T-0453400AB |
SF57T-0503400AB |
SF57T-0553400AB |
|
3.3A |
SF57T-0303300AB |
SF57T-0353300AB |
SF57T-0403300AB |
SF57T-0453300AB |
SF57T-0503300AB |
SF57T-0553300AB |
|
3.2A |
SF57T-0303200AB |
SF57T-0353200AB |
SF57T-0403200AB |
SF57T-0453200AB |
SF57T-0503200AB |
SF57T-0553200AB |
|
3.1A |
SF57T-0303100AB |
SF57T-0353100AB |
SF57T-0403100AB |
SF57T-0453100AB |
SF57T-0503100AB |
SF57T-0553100AB |
|
3.0A |
SF57T-0303000AB |
SF57T-0353000AB |
SF57T-0403000AB |
SF57T-0453000AB |
SF57T-0503000AB |
SF57T-0553000AB |
|
2.9A |
SF57T-0302900AB |
SF57T-0352900AB |
SF57T-0402900AB |
SF57T-0452900AB |
SF57T-0502900AB |
SF57T-0552900AB |
|
2.8A |
SF57T-0302800AB |
SF57T-0352800AB |
SF57T-0402800AB |
SF57T-0452800AB |
SF57T-0502800AB |
SF57T-0552800AB |
|
2.7A |
SF57T-0302700AB |
SF57T-0352700AB |
SF57T-0402700AB |
SF57T-0452700AB |
SF57T-0502700AB |
SF57T-0552700AB |
|
2.6A |
SF57T-0302600AB |
SF57T-0352600AB |
SF57T-0402600AB |
SF57T-0452600AB |
SF57T-0502600AB |
SF57T-0552600AB |
|
2.5A |
SF57T-0302500AB |
SF57T-0352500AB |
SF57T-0402500AB |
SF57T-0452500AB |
SF57T-0502500AB |
SF57T-0552500AB |
|
2.4A |
SF57T-0302400AB |
SF57T-0352400AB |
SF57T-0402400AB |
SF57T-0452400AB |
SF57T-0502400AB |
SF57T-0552400AB |
|
2.3A |
SF57T-0302300AB |
SF57T-0352300AB |
SF57T-0402300AB |
SF57T-0452300AB |
SF57T-0502300AB |
SF57T-0552300AB |
|
2.2A |
SF57T-0302200AB |
SF57T-0352200AB |
SF57T-0402200AB |
SF57T-0452200AB |
SF57T-0502200AB |
SF57T-0552200AB |
|
2.1A |
SF57T-0302100AB |
SF57T-0352100AB |
SF57T-0402100AB |
SF57T-0452100AB |
SF57T-0502100AB |
SF57T-0552100AB |
|
2.0A |
SF57T-0302000AB |
SF57T-0352000AB |
SF57T-0402000AB |
SF57T-0452000AB |
SF57T-0502000AB |
SF57T-0552000AB |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-25V |
|
21V |
22V |
23V |
24V |
25V |
|
|
|
1.7A |
SF57T-2101700AB |
SF57T-2201700AB |
|
|
|
|
|
1.6A |
SF57T-2101600AB |
SF57T-2201600AB |
SF57T-2301600AB |
|
|
|
|
1.5A |
SF57T-2101500AB |
SF57T-2201500AB |
SF57T-2301500AB |
SF57T-2401500AB |
SF57T-2501500AB |
|
|
1.4A |
SF57T-2101400AB |
SF57T-2201400AB |
SF57T-2301400AB |
SF57T-2401400AB |
SF57T-2501400AB |
|
|
1.3A |
SF57T-2101300AB |
SF57T-2201300AB |
SF57T-2301300AB |
SF57T-2401300AB |
SF57T-2501300AB |
|
|
1.2A |
SF57T-2101200AB |
SF57T-2201200AB |
SF57T-2301200AB |
SF57T-2401200AB |
SF57T-2501200AB |
|
|
1.1A |
SF57T-2101100AB |
SF57T-2201100AB |
SF57T-2301100AB |
SF57T-2401100AB |
SF57T-2501100AB |
|
|
1.0A |
SF57T-2101000AB |
SF57T-2201000AB |
SF57T-2301000AB |
SF57T-2401000AB |
SF57T-2501000AB |
|
|
0.9A |
SF57T-2100900AB |
SF57T-2200900AB |
SF57T-2300900AB |
SF57T-2400900AB |
SF57T-2500900AB |
|
|
0.8A |
SF57T-2100800AB |
SF57T-2200800AB |
SF57T-2300800AB |
SF57T-2400800AB |
SF57T-2500800AB |
|
|
0.7A |
|
|
|
SF57T-2400700AB |
SF57T-2500700AB |
|
 |
 |
 |
 |
 |
 |
