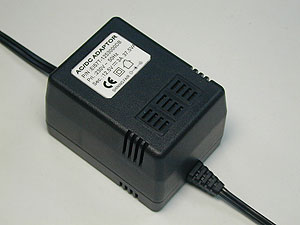

LINEAR ADAPTOR
DESKTOP
EI 57 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-2.5A |
|
|
|
Output Watt |
24VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
27V |
28V |
29V |
30V |
|
|
|
|
0.8A |
SF57T-2700800DB |
SF57T-2800800DB |
SF57T-2900800DB |
SF57T-3000800DB |
|
|
|
0.7A |
SF57T-2700700DB |
SF57T-2800700DB |
SF57T-2900700DB |
SF57T-3000700DB |
|
|
|
0.6A |
SF57T-2700600DB |
SF57T-2800600DB |
SF57T-2900600DB |
SF57T-3000600DB |
|
|
|
0.5A |
SF57T-2700500DB |
SF57T-2800500DB |
SF57T-2900500DB |
SF57T-3000500DB |
|
|
|
0.4A |
SF57T-2700400DB |
SF57T-2800400DB |
SF57T-2900400DB |
SF57T-3000400DB |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
1.1A |
SF57T-2101100DB |
|
|
|
|
|
|
1.0A |
SF57T-2101000DB |
SF57T-2201000DB |
SF57T-2301000DB |
SF57T-2401000DB |
SF57T-2501000DB |
SF57T-2601000DB |
|
0.9A |
SF57T-2100900DB |
SF57T-2200900DB |
SF57T-2300900DB |
SF57T-2400900DB |
SF57T-2500900DB |
SF57T-2600900DB |
|
0.8A |
SF57T-2100800DB |
SF57T-2200800DB |
SF57T-2300800DB |
SF57T-2400800DB |
SF57T-2500800DB |
SF57T-2600800DB |
|
0.7A |
SF57T-2100700DB |
SF57T-2200700DB |
SF57T-2300700DB |
SF57T-2400700DB |
SF57T-2500700DB |
SF57T-2600700DB |
|
0.6A |
SF57T-2100600DB |
SF57T-2200600DB |
SF57T-2300600DB |
SF57T-2400600DB |
SF57T-2500600DB |
SF57T-2600600DB |
|
0.5A |
SF57T-2100500DB |
SF57T-2200500DB |
SF57T-2300500DB |
SF57T-2400500DB |
SF57T-2500500DB |
SF57T-2600500DB |
|
0.4A |
|
|
|
|
SF57T-2500400DB |
SF57T-2600400DB |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF57T-1501600DB |
|
|
|
|
|
|
1.5A |
SF57T-1501500DB |
SF57T-1601500DB |
|
|
|
|
|
1.4A |
SF57T-1501400DB |
SF57T-1601400DB |
SF57T-1701400DB |
|
|
|
|
1.3A |
SF57T-1501300DB |
SF57T-1601300DB |
SF57T-1701300DB |
SF57T-1801300DB |
|
|
|
1.2A |
SF57T-1501200DB |
SF57T-1601200DB |
SF57T-1701200DB |
SF57T-1801200DB |
SF57T-1901200DB |
SF57T-2001200DB |
|
1.1A |
SF57T-1501100DB |
SF57T-1601100DB |
SF57T-1701100DB |
SF57T-1801100DB |
SF57T-1901100DB |
SF57T-2001100DB |
|
1.0A |
SF57T-1501000DB |
SF57T-1601000DB |
SF57T-1701000DB |
SF57T-1801000DB |
SF57T-1901000DB |
SF57T-2001000DB |
|
0.9A |
SF57T-1500900DB |
SF57T-1600900DB |
SF57T-1700900DB |
SF57T-1800900DB |
SF57T-1900900DB |
SF57T-2000900DB |
|
0.8A |
SF57T-1500800DB |
SF57T-1600800DB |
SF57T-1700800DB |
SF57T-1800800DB |
SF57T-1900800DB |
SF57T-2000800DB |
|
0.7A |
|
SF57T-1600700DB |
SF57T-1700700DB |
SF57T-1800700DB |
SF57T-1900700DB |
SF57T-2000700DB |
|
0.6A |
|
|
|
SF57T-1800600DB |
SF57T-1900600DB |
SF57T-2000600DB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF57T-1202000DB |
|
|
|
|
|
|
1.9A |
SF57T-1201900DB |
SF57T-1251900DB |
|
|
|
|
|
1.8A |
SF57T-1201800DB |
SF57T-1251800DB |
SF57T-1301800DB |
|
|
|
|
1.7A |
SF57T-1201700DB |
SF57T-1251700DB |
SF57T-1301700DB |
SF57T-1351700DB |
SF57T-1401700DB |
|
|
1.6A |
SF57T-1201600DB |
SF57T-1251600DB |
SF57T-1301600DB |
SF57T-1351600DB |
SF57T-1401600DB |
SF57T-1451600DB |
|
1.5A |
SF57T-1201500DB |
SF57T-1251500DB |
SF57T-1301500DB |
SF57T-1351500DB |
SF57T-1401500DB |
SF57T-1451500DB |
|
1.4A |
SF57T-1201400DB |
SF57T-1251400DB |
SF57T-1301400DB |
SF57T-1351400DB |
SF57T-1401400DB |
SF57T-1451400DB |
|
1.3A |
SF57T-1201300DB |
SF57T-1251300DB |
SF57T-1301300DB |
SF57T-1351300DB |
SF57T-1401300DB |
SF57T-1451300DB |
|
1.2A |
SF57T-1201200DB |
SF57T-1251200DB |
SF57T-1301200DB |
SF57T-1351200DB |
SF57T-1401200DB |
SF57T-1451200DB |
|
1.1A |
SF57T-1201100DB |
SF57T-1251100DB |
SF57T-1301100DB |
SF57T-1351100DB |
SF57T-1401100DB |
SF57T-1451100DB |
|
1.0A |
SF57T-1201000DB |
SF57T-1251000DB |
SF57T-1301000DB |
SF57T-1351000DB |
SF57T-1401000DB |
SF57T-1451000DB |
|
0.9A |
|
SF57T-1250900DB |
SF57T-1300900DB |
SF57T-1350900DB |
SF57T-1400900DB |
SF57T-1450900DB |
|
0.8A |
|
|
|
SF57T-1350800DB |
SF57T-1400800DB |
SF57T-1450800DB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF57T-0902500DB |
SF57T-0952500DB |
|
|
|
|
|
2.4A |
SF57T-0902400DB |
SF57T-0952400DB |
SF57T-1002400DB |
|
|
|
|
2.3A |
SF57T-0902300DB |
SF57T-0952300DB |
SF57T-1002300DB |
|
|
|
|
2.2A |
SF57T-0902200DB |
SF57T-0952200DB |
SF57T-1002200DB |
SF57T-1052200DB |
|
|
|
2.1A |
SF57T-0902100DB |
SF57T-0952100DB |
SF57T-1002100DB |
SF57T-1052100DB |
SF57T-1102100DB |
|
|
2.0A |
SF57T-0902000DB |
SF57T-0952000DB |
SF57T-1002000DB |
SF57T-1052000DB |
SF57T-1102000DB |
SF57T-1152000DB |
|
1.9A |
SF57T-0901900DB |
SF57T-0951900DB |
SF57T-1001900DB |
SF57T-1051900DB |
SF57T-1101900DB |
SF57T-1151900DB |
|
1.8A |
SF57T-0901800DB |
SF57T-0951800DB |
SF57T-1001800DB |
SF57T-1051800DB |
SF57T-1101800DB |
SF57T-1151800DB |
|
1.7A |
SF57T-0901700DB |
SF57T-0951700DB |
SF57T-1001700DB |
SF57T-1051700DB |
SF57T-1101700DB |
SF57T-1151700DB |
|
1.6A |
SF57T-0901600DB |
SF57T-0951600DB |
SF57T-1001600DB |
SF57T-1051600DB |
SF57T-1101600DB |
SF57T-1151600DB |
|
1.5A |
SF57T-0901500DB |
SF57T-0951500DB |
SF57T-1001500DB |
SF57T-1051500DB |
SF57T-1101500DB |
SF57T-1151500DB |
|
1.4A |
SF57T-0901400DB |
SF57T-0951400DB |
SF57T-1001400DB |
SF57T-1051400DB |
SF57T-1101400DB |
SF57T-1151400DB |
|
1.3A |
SF57T-0901300DB |
SF57T-0951300DB |
SF57T-1001300DB |
SF57T-1051300DB |
SF57T-1101300DB |
SF57T-1151300DB |
|
1.2A |
SF57T-0901200DB |
SF57T-0951200DB |
SF57T-1001200DB |
SF57T-1051200DB |
SF57T-1101200DB |
SF57T-1151200DB |
|
1.1A |
|
|
SF57T-1001100DB |
SF57T-1051100DB |
SF57T-1101100DB |
SF57T-1151100DB |
|
1.0A |
|
|
|
|
SF57T-1101000DB |
SF57T-1151000DB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.5A |
SF57T-0602500DB |
SF57T-0652500DB |
SF57T-0702500DB |
SF57T-0752500DB |
SF57T-0802500DB |
SF57T-0852500DB |
|
2.4A |
SF57T-0602400DB |
SF57T-0652400DB |
SF57T-0702400DB |
SF57T-0752400DB |
SF57T-0802400DB |
SF57T-0852400DB |
|
2.3A |
SF57T-0602300DB |
SF57T-0652300DB |
SF57T-0702300DB |
SF57T-0752300DB |
SF57T-0802300DB |
SF57T-0852300DB |
|
2.2A |
SF57T-0602200DB |
SF57T-0652200DB |
SF57T-0702200DB |
SF57T-0752200DB |
SF57T-0802200DB |
SF57T-0852200DB |
|
2.1A |
SF57T-0602100DB |
SF57T-0652100DB |
SF57T-0702100DB |
SF57T-0752100DB |
SF57T-0802100DB |
SF57T-0852100DB |
|
2.0A |
SF57T-0602000DB |
SF57T-0652000DB |
SF57T-0702000DB |
SF57T-0752000DB |
SF57T-0802000DB |
SF57T-0852000DB |
|
1.9A |
SF57T-0601900DB |
SF57T-0651900DB |
SF57T-0701900DB |
SF57T-0751900DB |
SF57T-0801900DB |
SF57T-0851900DB |
|
1.8A |
SF57T-0601800DB |
SF57T-0651800DB |
SF57T-0701800DB |
SF57T-0751800DB |
SF57T-0801800DB |
SF57T-0851800DB |
|
1.7A |
SF57T-0601700DB |
SF57T-0651700DB |
SF57T-0701700DB |
SF57T-0751700DB |
SF57T-0801700DB |
SF57T-0851700DB |
|
1.6A |
SF57T-0601600DB |
SF57T-0651600DB |
SF57T-0701600DB |
SF57T-0751600DB |
SF57T-0801600DB |
SF57T-0851600DB |
|
1.5A |
SF57T-0601500DB |
SF57T-0651500DB |
SF57T-0701500DB |
SF57T-0751500DB |
SF57T-0801500DB |
SF57T-0851500DB |
|
1.4A |
SF57T-0601400DB |
SF57T-0651400DB |
SF57T-0701400DB |
SF57T-0751400DB |
SF57T-0801400DB |
SF57T-0851400DB |
|
1.3A |
SF57T-0601300DB |
SF57T-0651300DB |
SF57T-0701300DB |
SF57T-0751300DB |
SF57T-0801300DB |
SF57T-0851300DB |
|
1.2A |
SF57T-0601200DB |
SF57T-0651200DB |
SF57T-0701200DB |
SF57T-0751200DB |
SF57T-0801200DB |
SF57T-0851200DB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.5A |
SF57T-0302500DB |
SF57T-0352500DB |
SF57T-0402500DB |
SF57T-0452500DB |
SF57T-0502500DB |
SF57T-0552500DB |
|
2.4A |
SF57T-0302400DB |
SF57T-0352400DB |
SF57T-0402400DB |
SF57T-0452400DB |
SF57T-0502400DB |
SF57T-0552400DB |
|
2.3A |
SF57T-0302300DB |
SF57T-0352300DB |
SF57T-0402300DB |
SF57T-0452300DB |
SF57T-0502300DB |
SF57T-0552300DB |
|
2.2A |
SF57T-0302200DB |
SF57T-0352200DB |
SF57T-0402200DB |
SF57T-0452200DB |
SF57T-0502200DB |
SF57T-0552200DB |
|
2.1A |
SF57T-0302100DB |
SF57T-0352100DB |
SF57T-0402100DB |
SF57T-0452100DB |
SF57T-0502100DB |
SF57T-0552100DB |
|
2.0A |
SF57T-0302000DB |
SF57T-0352000DB |
SF57T-0402000DB |
SF57T-0452000DB |
SF57T-0502000DB |
SF57T-0552000DB |
|
1.9A |
SF57T-0301900DB |
SF57T-0351900DB |
SF57T-0401900DB |
SF57T-0451900DB |
SF57T-0501900DB |
SF57T-0551900DB |
|
1.8A |
SF57T-0301800DB |
SF57T-0351800DB |
SF57T-0401800DB |
SF57T-0451800DB |
SF57T-0501800DB |
SF57T-0551800DB |
|
1.7A |
SF57T-0301700DB |
SF57T-0351700DB |
SF57T-0401700DB |
SF57T-0451700DB |
SF57T-0501700DB |
SF57T-0551700DB |
|
1.6A |
SF57T-0301600DB |
SF57T-0351600DB |
SF57T-0401600DB |
SF57T-0451600DB |
SF57T-0501600DB |
SF57T-0551600DB |
|
1.5A |
SF57T-0301500DB |
SF57T-0351500DB |
SF57T-0401500DB |
SF57T-0451500DB |
SF57T-0501500DB |
SF57T-0551500DB |
|
1.4A |
SF57T-0301400DB |
SF57T-0351400DB |
SF57T-0401400DB |
SF57T-0451400DB |
SF57T-0501400DB |
SF57T-0551400DB |
|
1.3A |
SF57T-0301300DB |
SF57T-0351300DB |
SF57T-0401300DB |
SF57T-0451300DB |
SF57T-0501300DB |
SF57T-0551300DB |
|
1.2A |
SF57T-0301200DB |
SF57T-0351200DB |
SF57T-0401200DB |
SF57T-0451200DB |
SF57T-0501200DB |
SF57T-0551200DB |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
 |
 |
 |
 |
 |
 |
