LINEAR ADAPTOR
DESKTOP

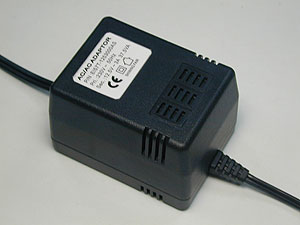

EI 57 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-25V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.7-4A |
|
|
|
Output Watt |
37.5VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
C-tick |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
25V |
|
|
|
1.7A |
SF57T-2101700AS |
SF57T-2201700AS |
|
|
|
|
|
1.6A |
SF57T-2101600AS |
SF57T-2201600AS |
SF57T-2301600AS |
|
|
|
|
1.5A |
SF57T-2101500AS |
SF57T-2201500AS |
SF57T-2301500AS |
SF57T-2401500AS |
SF57T-2501500AS |
|
|
1.4A |
SF57T-2101400AS |
SF57T-2201400AS |
SF57T-2301400AS |
SF57T-2401400AS |
SF57T-2501400AS |
|
|
1.3A |
SF57T-2101300AS |
SF57T-2201300AS |
SF57T-2301300AS |
SF57T-2401300AS |
SF57T-2501300AS |
|
|
1.2A |
SF57T-2101200AS |
SF57T-2201200AS |
SF57T-2301200AS |
SF57T-2401200AS |
SF57T-2501200AS |
|
|
1.1A |
SF57T-2101100AS |
SF57T-2201100AS |
SF57T-2301100AS |
SF57T-2401100AS |
SF57T-2501100AS |
|
|
1.0A |
SF57T-2101000AS |
SF57T-2201000AS |
SF57T-2301000AS |
SF57T-2401000AS |
SF57T-2501000AS |
|
|
0.9A |
SF57T-2100900AS |
SF57T-2200900AS |
SF57T-2300900AS |
SF57T-2400900AS |
SF57T-2500900AS |
|
|
0.8A |
SF57T-2100800AS |
SF57T-2200800AS |
SF57T-2300800AS |
SF57T-2400800AS |
SF57T-2500800AS |
|
|
0.7A |
|
|
|
SF57T-2400700AS |
SF57T-2500700AS |
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.5A |
SF57T-1502500AS |
|
|
|
|
|
|
2.4A |
SF57T-1502400AS |
|
|
|
|
|
|
2.3A |
SF57T-1502300AS |
SF57T-1602300AS |
|
|
|
|
|
2.2A |
SF57T-1502200AS |
SF57T-1602200AS |
SF57T-1702200AS |
|
|
|
|
2.1A |
SF57T-1502100AS |
SF57T-1602100AS |
SF57T-1702100AS |
|
|
|
|
2.0A |
SF57T-1502000AS |
SF57T-1602000AS |
SF57T-1702000AS |
SF57T-1802000AS |
|
|
|
1.9A |
SF57T-1501900AS |
SF57T-1601900AS |
SF57T-1701900AS |
SF57T-1801900AS |
SF57T-1901900AS |
|
|
1.8A |
SF57T-1501800AS |
SF57T-1601800AS |
SF57T-1701800AS |
SF57T-1801800AS |
SF57T-1901800AS |
SF57T-2001800AS |
|
1.7A |
SF57T-1501700AS |
SF57T-1601700AS |
SF57T-1701700AS |
SF57T-1801700AS |
SF57T-1901700AS |
SF57T-2001700AS |
|
1.6A |
SF57T-1501600AS |
SF57T-1601600AS |
SF57T-1701600AS |
SF57T-1801600AS |
SF57T-1901600AS |
SF57T-2001600AS |
|
1.5A |
SF57T-1501500AS |
SF57T-1601500AS |
SF57T-1701500AS |
SF57T-1801500AS |
SF57T-1901500AS |
SF57T-2001500AS |
|
1.4A |
SF57T-1501400AS |
SF57T-1601400AS |
SF57T-1701400AS |
SF57T-1801400AS |
SF57T-1901400AS |
SF57T-2001400AS |
|
1.3A |
SF57T-1501300AS |
SF57T-1601300AS |
SF57T-1701300AS |
SF57T-1801300AS |
SF57T-1901300AS |
SF57T-2001300AS |
|
1.2A |
|
SF57T-1601200AS |
SF57T-1701200AS |
SF57T-1801200AS |
SF57T-1901200AS |
SF57T-2001200AS |
|
1.1A |
|
|
|
SF57T-1801100AS |
SF57T-1901100AS |
SF57T-2001100AS |
|
1.0A |
|
|
|
|
SF57T-1901000AS |
SF57T-2001000AS |
|
0.9A |
|
|
|
|
|
SF57T-2000900AS |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.1A |
SF57T-1203100AS |
|
|
|
|
|
|
3.0A |
SF57T-1203000AS |
SF57T-1253000AS |
|
|
|
|
|
2.9A |
SF57T-1202900AS |
SF57T-1252900AS |
|
|
|
|
|
2.8A |
SF57T-1202800AS |
SF57T-1252800AS |
SF57T-1302800AS |
|
|
|
|
2.7A |
SF57T-1202700AS |
SF57T-1252700AS |
SF57T-1302700AS |
SF57T-1352700AS |
|
|
|
2.6A |
SF57T-1202600AS |
SF57T-1252600AS |
SF57T-1302600AS |
SF57T-1352600AS |
SF57T-1402600AS |
|
|
2.5A |
SF57T-1202500AS |
SF57T-1252500AS |
SF57T-1302500AS |
SF57T-1352500AS |
SF57T-1402500AS |
SF57T-1452500AS |
|
2.4A |
SF57T-1202400AS |
SF57T-1252400AS |
SF57T-1302400AS |
SF57T-1352400AS |
SF57T-1402400AS |
SF57T-1452400AS |
|
2.3A |
SF57T-1202300AS |
SF57T-1252300AS |
SF57T-1302300AS |
SF57T-1352300AS |
SF57T-1402300AS |
SF57T-1452300AS |
|
2.2A |
SF57T-1202200AS |
SF57T-1252200AS |
SF57T-1302200AS |
SF57T-1352200AS |
SF57T-1402200AS |
SF57T-1452200AS |
|
2.1A |
SF57T-1202100AS |
SF57T-1252100AS |
SF57T-1302100AS |
SF57T-1352100AS |
SF57T-1402100AS |
SF57T-1452100AS |
|
2.0A |
SF57T-1202000AS |
SF57T-1252000AS |
SF57T-1302000AS |
SF57T-1352000AS |
SF57T-1402000AS |
SF57T-1452000AS |
|
1.9A |
SF57T-1201900AS |
SF57T-1251900AS |
SF57T-1301900AS |
SF57T-1351900AS |
SF57T-1401900AS |
SF57T-1451900AS |
|
1.8A |
SF57T-1201800AS |
SF57T-1251800AS |
SF57T-1301800AS |
SF57T-1351800AS |
SF57T-1401800AS |
SF57T-1451800AS |
|
1.7A |
SF57T-1201700AS |
SF57T-1251700AS |
SF57T-1301700AS |
SF57T-1351700AS |
SF57T-1401700AS |
SF57T-1451700AS |
|
1.6A |
SF57T-1201600AS |
SF57T-1251600AS |
SF57T-1301600AS |
SF57T-1351600AS |
SF57T-1401600AS |
SF57T-1451600AS |
|
1.5A |
SF57T-1201500AS |
SF57T-1251500AS |
SF57T-1301500AS |
SF57T-1351500AS |
SF57T-1401500AS |
SF57T-1451500AS |
|
1.4A |
|
|
SF57T-1301400AS |
SF57T-1351400AS |
SF57T-1401400AS |
SF57T-1451400AS |
|
1.3A |
|
|
|
|
SF57T-1401300AS |
SF57T-1451300AS |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.9A |
SF57T-0903900AS |
|
|
|
|
|
|
3.8A |
SF57T-0903800AS |
SF57T-0953800AS |
|
|
|
|
|
3.7A |
SF57T-0903700AS |
SF57T-0953700AS |
SF57T-1003700AS |
|
|
|
|
3.6A |
SF57T-0903600AS |
SF57T-0953600AS |
SF57T-1003600AS |
|
|
|
|
3.5A |
SF57T-0903500AS |
SF57T-0953500AS |
SF57T-1003500AS |
SF57T-1053500AS |
|
|
|
3.4A |
SF57T-0903400AS |
SF57T-0953400AS |
SF57T-1003400AS |
SF57T-1053400AS |
SF57T-1103400AS |
|
|
3.3A |
SF57T-0903300AS |
SF57T-0953300AS |
SF57T-1003300AS |
SF57T-1053300AS |
SF57T-1103300AS |
|
|
3.2A |
SF57T-0903200AS |
SF57T-0953200AS |
SF57T-1003200AS |
SF57T-1053200AS |
SF57T-1103200AS |
SF57T-1153200AS |
|
3.1A |
SF57T-0903100AS |
SF57T-0953100AS |
SF57T-1003100AS |
SF57T-1053100AS |
SF57T-1103100AS |
SF57T-1153100AS |
|
3.0A |
SF57T-0903000AS |
SF57T-0953000AS |
SF57T-1003000AS |
SF57T-1053000AS |
SF57T-1103000AS |
SF57T-1153000AS |
|
2.9A |
SF57T-0902900AS |
SF57T-0952900AS |
SF57T-1002900AS |
SF57T-1052900AS |
SF57T-1102900AS |
SF57T-1152900AS |
|
2.8A |
SF57T-0902800AS |
SF57T-0952800AS |
SF57T-1002800AS |
SF57T-1052800AS |
SF57T-1102800AS |
SF57T-1152800AS |
|
2.7A |
SF57T-0902700AS |
SF57T-0952700AS |
SF57T-1002700AS |
SF57T-1052700AS |
SF57T-1102700AS |
SF57T-1152700AS |
|
2.6A |
SF57T-0902600AS |
SF57T-0952600AS |
SF57T-1002600AS |
SF57T-1052600AS |
SF57T-1102600AS |
SF57T-1152600AS |
|
2.5A |
SF57T-0902500AS |
SF57T-0952500AS |
SF57T-1002500AS |
SF57T-1052500AS |
SF57T-1102500AS |
SF57T-1152500AS |
|
2.4A |
SF57T-0902400AS |
SF57T-0952400AS |
SF57T-1002400AS |
SF57T-1052400AS |
SF57T-1102400AS |
SF57T-1152400AS |
|
2.3A |
SF57T-0902300AS |
SF57T-0952300AS |
SF57T-1002300AS |
SF57T-1052300AS |
SF57T-1102300AS |
SF57T-1152300AS |
|
2.2A |
SF57T-0902200AS |
SF57T-0952200AS |
SF57T-1002200AS |
SF57T-1052200AS |
SF57T-1102200AS |
SF57T-1152200AS |
|
2.1A |
SF57T-0902100AS |
SF57T-0952100AS |
SF57T-1002100AS |
SF57T-1052100AS |
SF57T-1102100AS |
SF57T-1152100AS |
|
2.0A |
SF57T-0902000AS |
SF57T-0952000AS |
SF57T-1002000AS |
SF57T-1052000AS |
SF57T-1102000AS |
SF57T-1152000AS |
|
1.9A |
SF57T-0901900AS |
SF57T-0951900AS |
SF57T-1001900AS |
SF57T-1051900AS |
SF57T-1101900AS |
SF57T-1151900AS |
|
1.8A |
|
|
SF57T-1001800AS |
SF57T-1051800AS |
SF57T-1101800AS |
SF57T-1151800AS |
|
1.7A |
|
|
|
|
SF57T-1101700AS |
SF57T-1151700AS |
|
1.6A |
|
|
|
|
|
SF57T-1151600AS |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
4.0A |
SF57T-0604000AS |
SF57T-0654000AS |
SF57T-0704000AS |
SF57T-0754000AS |
SF57T-0804000AS |
|
|
3.9A |
SF57T-0603900AS |
SF57T-0653900AS |
SF57T-0703900AS |
SF57T-0753900AS |
SF57T-0803900AS |
SF57T-0853900AS |
|
3.8A |
SF57T-0603800AS |
SF57T-0653800AS |
SF57T-0703800AS |
SF57T-0753800AS |
SF57T-0803800AS |
SF57T-0853800AS |
|
3.7A |
SF57T-0603700AS |
SF57T-0653700AS |
SF57T-0703700AS |
SF57T-0753700AS |
SF57T-0803700AS |
SF57T-0853700AS |
|
3.6A |
SF57T-0603600AS |
SF57T-0653600AS |
SF57T-0703600AS |
SF57T-0753600AS |
SF57T-0803600AS |
SF57T-0853600AS |
|
3.5A |
SF57T-0603500AS |
SF57T-0653500AS |
SF57T-0703500AS |
SF57T-0753500AS |
SF57T-0803500AS |
SF57T-0853500AS |
|
3.4A |
SF57T-0603400AS |
SF57T-0653400AS |
SF57T-0703400AS |
SF57T-0753400AS |
SF57T-0803400AS |
SF57T-0853400AS |
|
3.3A |
SF57T-0603300AS |
SF57T-0653300AS |
SF57T-0703300AS |
SF57T-0753300AS |
SF57T-0803300AS |
SF57T-0853300AS |
|
3.2A |
SF57T-0603200AS |
SF57T-0653200AS |
SF57T-0703200AS |
SF57T-0753200AS |
SF57T-0803200AS |
SF57T-0853200AS |
|
3.1A |
SF57T-0603100AS |
SF57T-0653100AS |
SF57T-0703100AS |
SF57T-0753100AS |
SF57T-0803100AS |
SF57T-0853100AS |
|
3.0A |
SF57T-0603000AS |
SF57T-0653000AS |
SF57T-0703000AS |
SF57T-0753000AS |
SF57T-0803000AS |
SF57T-0853000AS |
|
2.9A |
SF57T-0602900AS |
SF57T-0652900AS |
SF57T-0702900AS |
SF57T-0752900AS |
SF57T-0802900AS |
SF57T-0852900AS |
|
2.8A |
SF57T-0602800AS |
SF57T-0652800AS |
SF57T-0702800AS |
SF57T-0752800AS |
SF57T-0802800AS |
SF57T-0852800AS |
|
2.7A |
SF57T-0602700AS |
SF57T-0652700AS |
SF57T-0702700AS |
SF57T-0752700AS |
SF57T-0802700AS |
SF57T-0852700AS |
|
2.6A |
SF57T-0602600AS |
SF57T-0652600AS |
SF57T-0702600AS |
SF57T-0752600AS |
SF57T-0802600AS |
SF57T-0852600AS |
|
2.5A |
SF57T-0602500AS |
SF57T-0652500AS |
SF57T-0702500AS |
SF57T-0752500AS |
SF57T-0802500AS |
SF57T-0852500AS |
|
2.4A |
SF57T-0602400AS |
SF57T-0652400AS |
SF57T-0702400AS |
SF57T-0752400AS |
SF57T-0802400AS |
SF57T-0852400AS |
|
2.3A |
SF57T-0602300AS |
SF57T-0652300AS |
SF57T-0702300AS |
SF57T-0752300AS |
SF57T-0802300AS |
SF57T-0852300AS |
|
2.2A |
SF57T-0602200AS |
SF57T-0652200AS |
SF57T-0702200AS |
SF57T-0752200AS |
SF57T-0802200AS |
SF57T-0852200AS |
|
2.1A |
SF57T-0602100AS |
SF57T-0652100AS |
SF57T-0702100AS |
SF57T-0752100AS |
SF57T-0802100AS |
SF57T-0852100AS |
|
2.0A |
SF57T-0602000AS |
SF57T-0652000AS |
SF57T-0702000AS |
SF57T-0752000AS |
SF57T-0802000AS |
SF57T-0852000AS |
|
1.9A |
|
|
|
|
|
SF57T-0851900AS |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
4.0A |
SF57T-0304000AS |
SF57T-0354000AS |
SF57T-0404000AS |
SF57T-0454000AS |
SF57T-0504000AS |
SF57T-0554000AS |
|
3.9A |
SF57T-0303900AS |
SF57T-0353900AS |
SF57T-0403900AS |
SF57T-0453900AS |
SF57T-0503900AS |
SF57T-0553900AS |
|
3.8A |
SF57T-0303800AS |
SF57T-0353800AS |
SF57T-0403800AS |
SF57T-0453800AS |
SF57T-0503800AS |
SF57T-0553800AS |
|
3.7A |
SF57T-0303700AS |
SF57T-0353700AS |
SF57T-0403700AS |
SF57T-0453700AS |
SF57T-0503700AS |
SF57T-0553700AS |
|
3.6A |
SF57T-0303600AS |
SF57T-0353600AS |
SF57T-0403600AS |
SF57T-0453600AS |
SF57T-0503600AS |
SF57T-0553600AS |
|
3.5A |
SF57T-0303500AS |
SF57T-0353500AS |
SF57T-0403500AS |
SF57T-0453500AS |
SF57T-0503500AS |
SF57T-0553500AS |
|
3.4A |
SF57T-0303400AS |
SF57T-0353400AS |
SF57T-0403400AS |
SF57T-0453400AS |
SF57T-0503400AS |
SF57T-0553400AS |
|
3.3A |
SF57T-0303300AS |
SF57T-0353300AS |
SF57T-0403300AS |
SF57T-0453300AS |
SF57T-0503300AS |
SF57T-0553300AS |
|
3.2A |
SF57T-0303200AS |
SF57T-0353200AS |
SF57T-0403200AS |
SF57T-0453200AS |
SF57T-0503200AS |
SF57T-0553200AS |
|
3.1A |
SF57T-0303100AS |
SF57T-0353100AS |
SF57T-0403100AS |
SF57T-0453100AS |
SF57T-0503100AS |
SF57T-0553100AS |
|
3.0A |
SF57T-0303000AS |
SF57T-0353000AS |
SF57T-0403000AS |
SF57T-0453000AS |
SF57T-0503000AS |
SF57T-0553000AS |
|
2.9A |
SF57T-0302900AS |
SF57T-0352900AS |
SF57T-0402900AS |
SF57T-0452900AS |
SF57T-0502900AS |
SF57T-0552900AS |
|
2.8A |
SF57T-0302800AS |
SF57T-0352800AS |
SF57T-0402800AS |
SF57T-0452800AS |
SF57T-0502800AS |
SF57T-0552800AS |
|
2.7A |
SF57T-0302700AS |
SF57T-0352700AS |
SF57T-0402700AS |
SF57T-0452700AS |
SF57T-0502700AS |
SF57T-0552700AS |
|
2.6A |
SF57T-0302600AS |
SF57T-0352600AS |
SF57T-0402600AS |
SF57T-0452600AS |
SF57T-0502600AS |
SF57T-0552600AS |
|
2.5A |
SF57T-0302500AS |
SF57T-0352500AS |
SF57T-0402500AS |
SF57T-0452500AS |
SF57T-0502500AS |
SF57T-0552500AS |
|
2.4A |
SF57T-0302400AS |
SF57T-0352400AS |
SF57T-0402400AS |
SF57T-0452400AS |
SF57T-0502400AS |
SF57T-0552400AS |
|
2.3A |
SF57T-0302300AS |
SF57T-0352300AS |
SF57T-0402300AS |
SF57T-0452300AS |
SF57T-0502300AS |
SF57T-0552300AS |
|
2.2A |
SF57T-0302200AS |
SF57T-0352200AS |
SF57T-0402200AS |
SF57T-0452200AS |
SF57T-0502200AS |
SF57T-0552200AS |
|
2.1A |
SF57T-0302100AS |
SF57T-0352100AS |
SF57T-0402100AS |
SF57T-0452100AS |
SF57T-0502100AS |
SF57T-0552100AS |
|
2.0A |
SF57T-0302000AS |
SF57T-0352000AS |
SF57T-0402000AS |
SF57T-0452000AS |
SF57T-0502000AS |
SF57T-0552000AS |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-25V |
 |
 |
 |
 |
 |
 |
