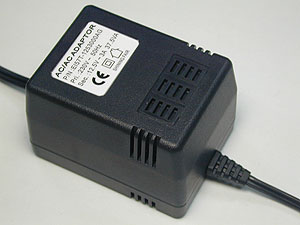

LINEAR ADAPTOR
DESKTOP
EI 57 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-25V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.7-4A |
|
|
|
Output Watt |
37.5VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
25V |
|
|
|
1.7A |
SF57T-2101700AG |
SF57T-2201700AG |
|
|
|
|
|
1.6A |
SF57T-2101600AG |
SF57T-2201600AG |
SF57T-2301600AG |
|
|
|
|
1.5A |
SF57T-2101500AG |
SF57T-2201500AG |
SF57T-2301500AG |
SF57T-2401500AG |
SF57T-2501500AG |
|
|
1.4A |
SF57T-2101400AG |
SF57T-2201400AG |
SF57T-2301400AG |
SF57T-2401400AG |
SF57T-2501400AG |
|
|
1.3A |
SF57T-2101300AG |
SF57T-2201300AG |
SF57T-2301300AG |
SF57T-2401300AG |
SF57T-2501300AG |
|
|
1.2A |
SF57T-2101200AG |
SF57T-2201200AG |
SF57T-2301200AG |
SF57T-2401200AG |
SF57T-2501200AG |
|
|
1.1A |
SF57T-2101100AG |
SF57T-2201100AG |
SF57T-2301100AG |
SF57T-2401100AG |
SF57T-2501100AG |
|
|
1.0A |
SF57T-2101000AG |
SF57T-2201000AG |
SF57T-2301000AG |
SF57T-2401000AG |
SF57T-2501000AG |
|
|
0.9A |
SF57T-2100900AG |
SF57T-2200900AG |
SF57T-2300900AG |
SF57T-2400900AG |
SF57T-2500900AG |
|
|
0.8A |
SF57T-2100800AG |
SF57T-2200800AG |
SF57T-2300800AG |
SF57T-2400800AG |
SF57T-2500800AG |
|
|
0.7A |
|
|
|
SF57T-2400700AG |
SF57T-2500700AG |
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.5A |
SF57T-1502500AG |
|
|
|
|
|
|
2.4A |
SF57T-1502400AG |
|
|
|
|
|
|
2.3A |
SF57T-1502300AG |
SF57T-1602300AG |
|
|
|
|
|
2.2A |
SF57T-1502200AG |
SF57T-1602200AG |
SF57T-1702200AG |
|
|
|
|
2.1A |
SF57T-1502100AG |
SF57T-1602100AG |
SF57T-1702100AG |
|
|
|
|
2.0A |
SF57T-1502000AG |
SF57T-1602000AG |
SF57T-1702000AG |
SF57T-1802000AG |
|
|
|
1.9A |
SF57T-1501900AG |
SF57T-1601900AG |
SF57T-1701900AG |
SF57T-1801900AG |
SF57T-1901900AG |
|
|
1.8A |
SF57T-1501800AG |
SF57T-1601800AG |
SF57T-1701800AG |
SF57T-1801800AG |
SF57T-1901800AG |
SF57T-2001800AG |
|
1.7A |
SF57T-1501700AG |
SF57T-1601700AG |
SF57T-1701700AG |
SF57T-1801700AG |
SF57T-1901700AG |
SF57T-2001700AG |
|
1.6A |
SF57T-1501600AG |
SF57T-1601600AG |
SF57T-1701600AG |
SF57T-1801600AG |
SF57T-1901600AG |
SF57T-2001600AG |
|
1.5A |
SF57T-1501500AG |
SF57T-1601500AG |
SF57T-1701500AG |
SF57T-1801500AG |
SF57T-1901500AG |
SF57T-2001500AG |
|
1.4A |
SF57T-1501400AG |
SF57T-1601400AG |
SF57T-1701400AG |
SF57T-1801400AG |
SF57T-1901400AG |
SF57T-2001400AG |
|
1.3A |
SF57T-1501300AG |
SF57T-1601300AG |
SF57T-1701300AG |
SF57T-1801300AG |
SF57T-1901300AG |
SF57T-2001300AG |
|
1.2A |
|
SF57T-1601200AG |
SF57T-1701200AG |
SF57T-1801200AG |
SF57T-1901200AG |
SF57T-2001200AG |
|
1.1A |
|
|
|
SF57T-1801100AG |
SF57T-1901100AG |
SF57T-2001100AG |
|
1.0A |
|
|
|
|
SF57T-1901000AG |
SF57T-2001000AG |
|
0.9A |
|
|
|
|
|
SF57T-2000900AG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.1A |
SF57T-1203100AG |
|
|
|
|
|
|
3.0A |
SF57T-1203000AG |
SF57T-1253000AG |
|
|
|
|
|
2.9A |
SF57T-1202900AG |
SF57T-1252900AG |
|
|
|
|
|
2.8A |
SF57T-1202800AG |
SF57T-1252800AG |
SF57T-1302800AG |
|
|
|
|
2.7A |
SF57T-1202700AG |
SF57T-1252700AG |
SF57T-1302700AG |
SF57T-1352700AG |
|
|
|
2.6A |
SF57T-1202600AG |
SF57T-1252600AG |
SF57T-1302600AG |
SF57T-1352600AG |
SF57T-1402600AG |
|
|
2.5A |
SF57T-1202500AG |
SF57T-1252500AG |
SF57T-1302500AG |
SF57T-1352500AG |
SF57T-1402500AG |
SF57T-1452500AG |
|
2.4A |
SF57T-1202400AG |
SF57T-1252400AG |
SF57T-1302400AG |
SF57T-1352400AG |
SF57T-1402400AG |
SF57T-1452400AG |
|
2.3A |
SF57T-1202300AG |
SF57T-1252300AG |
SF57T-1302300AG |
SF57T-1352300AG |
SF57T-1402300AG |
SF57T-1452300AG |
|
2.2A |
SF57T-1202200AG |
SF57T-1252200AG |
SF57T-1302200AG |
SF57T-1352200AG |
SF57T-1402200AG |
SF57T-1452200AG |
|
2.1A |
SF57T-1202100AG |
SF57T-1252100AG |
SF57T-1302100AG |
SF57T-1352100AG |
SF57T-1402100AG |
SF57T-1452100AG |
|
2.0A |
SF57T-1202000AG |
SF57T-1252000AG |
SF57T-1302000AG |
SF57T-1352000AG |
SF57T-1402000AG |
SF57T-1452000AG |
|
1.9A |
SF57T-1201900AG |
SF57T-1251900AG |
SF57T-1301900AG |
SF57T-1351900AG |
SF57T-1401900AG |
SF57T-1451900AG |
|
1.8A |
SF57T-1201800AG |
SF57T-1251800AG |
SF57T-1301800AG |
SF57T-1351800AG |
SF57T-1401800AG |
SF57T-1451800AG |
|
1.7A |
SF57T-1201700AG |
SF57T-1251700AG |
SF57T-1301700AG |
SF57T-1351700AG |
SF57T-1401700AG |
SF57T-1451700AG |
|
1.6A |
SF57T-1201600AG |
SF57T-1251600AG |
SF57T-1301600AG |
SF57T-1351600AG |
SF57T-1401600AG |
SF57T-1451600AG |
|
1.5A |
SF57T-1201500AG |
SF57T-1251500AG |
SF57T-1301500AG |
SF57T-1351500AG |
SF57T-1401500AG |
SF57T-1451500AG |
|
1.4A |
|
|
SF57T-1301400AG |
SF57T-1351400AG |
SF57T-1401400AG |
SF57T-1451400AG |
|
1.3A |
|
|
|
|
SF57T-1401300AG |
SF57T-1451300AG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.9A |
SF57T-0903900AG |
|
|
|
|
|
|
3.8A |
SF57T-0903800AG |
SF57T-0953800AG |
|
|
|
|
|
3.7A |
SF57T-0903700AG |
SF57T-0953700AG |
SF57T-1003700AG |
|
|
|
|
3.6A |
SF57T-0903600AG |
SF57T-0953600AG |
SF57T-1003600AG |
|
|
|
|
3.5A |
SF57T-0903500AG |
SF57T-0953500AG |
SF57T-1003500AG |
SF57T-1053500AG |
|
|
|
3.4A |
SF57T-0903400AG |
SF57T-0953400AG |
SF57T-1003400AG |
SF57T-1053400AG |
SF57T-1103400AG |
|
|
3.3A |
SF57T-0903300AG |
SF57T-0953300AG |
SF57T-1003300AG |
SF57T-1053300AG |
SF57T-1103300AG |
|
|
3.2A |
SF57T-0903200AG |
SF57T-0953200AG |
SF57T-1003200AG |
SF57T-1053200AG |
SF57T-1103200AG |
SF57T-1153200AG |
|
3.1A |
SF57T-0903100AG |
SF57T-0953100AG |
SF57T-1003100AG |
SF57T-1053100AG |
SF57T-1103100AG |
SF57T-1153100AG |
|
3.0A |
SF57T-0903000AG |
SF57T-0953000AG |
SF57T-1003000AG |
SF57T-1053000AG |
SF57T-1103000AG |
SF57T-1153000AG |
|
2.9A |
SF57T-0902900AG |
SF57T-0952900AG |
SF57T-1002900AG |
SF57T-1052900AG |
SF57T-1102900AG |
SF57T-1152900AG |
|
2.8A |
SF57T-0902800AG |
SF57T-0952800AG |
SF57T-1002800AG |
SF57T-1052800AG |
SF57T-1102800AG |
SF57T-1152800AG |
|
2.7A |
SF57T-0902700AG |
SF57T-0952700AG |
SF57T-1002700AG |
SF57T-1052700AG |
SF57T-1102700AG |
SF57T-1152700AG |
|
2.6A |
SF57T-0902600AG |
SF57T-0952600AG |
SF57T-1002600AG |
SF57T-1052600AG |
SF57T-1102600AG |
SF57T-1152600AG |
|
2.5A |
SF57T-0902500AG |
SF57T-0952500AG |
SF57T-1002500AG |
SF57T-1052500AG |
SF57T-1102500AG |
SF57T-1152500AG |
|
2.4A |
SF57T-0902400AG |
SF57T-0952400AG |
SF57T-1002400AG |
SF57T-1052400AG |
SF57T-1102400AG |
SF57T-1152400AG |
|
2.3A |
SF57T-0902300AG |
SF57T-0952300AG |
SF57T-1002300AG |
SF57T-1052300AG |
SF57T-1102300AG |
SF57T-1152300AG |
|
2.2A |
SF57T-0902200AG |
SF57T-0952200AG |
SF57T-1002200AG |
SF57T-1052200AG |
SF57T-1102200AG |
SF57T-1152200AG |
|
2.1A |
SF57T-0902100AG |
SF57T-0952100AG |
SF57T-1002100AG |
SF57T-1052100AG |
SF57T-1102100AG |
SF57T-1152100AG |
|
2.0A |
SF57T-0902000AG |
SF57T-0952000AG |
SF57T-1002000AG |
SF57T-1052000AG |
SF57T-1102000AG |
SF57T-1152000AG |
|
1.9A |
SF57T-0901900AG |
SF57T-0951900AG |
SF57T-1001900AG |
SF57T-1051900AG |
SF57T-1101900AG |
SF57T-1151900AG |
|
1.8A |
|
|
SF57T-1001800AG |
SF57T-1051800AG |
SF57T-1101800AG |
SF57T-1151800AG |
|
1.7A |
|
|
|
|
SF57T-1101700AG |
SF57T-1151700AG |
|
1.6A |
|
|
|
|
|
SF57T-1151600AG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
4.0A |
SF57T-0604000AG |
SF57T-0654000AG |
SF57T-0704000AG |
SF57T-0754000AG |
SF57T-0804000AG |
|
|
3.9A |
SF57T-0603900AG |
SF57T-0653900AG |
SF57T-0703900AG |
SF57T-0753900AG |
SF57T-0803900AG |
SF57T-0853900AG |
|
3.8A |
SF57T-0603800AG |
SF57T-0653800AG |
SF57T-0703800AG |
SF57T-0753800AG |
SF57T-0803800AG |
SF57T-0853800AG |
|
3.7A |
SF57T-0603700AG |
SF57T-0653700AG |
SF57T-0703700AG |
SF57T-0753700AG |
SF57T-0803700AG |
SF57T-0853700AG |
|
3.6A |
SF57T-0603600AG |
SF57T-0653600AG |
SF57T-0703600AG |
SF57T-0753600AG |
SF57T-0803600AG |
SF57T-0853600AG |
|
3.5A |
SF57T-0603500AG |
SF57T-0653500AG |
SF57T-0703500AG |
SF57T-0753500AG |
SF57T-0803500AG |
SF57T-0853500AG |
|
3.4A |
SF57T-0603400AG |
SF57T-0653400AG |
SF57T-0703400AG |
SF57T-0753400AG |
SF57T-0803400AG |
SF57T-0853400AG |
|
3.3A |
SF57T-0603300AG |
SF57T-0653300AG |
SF57T-0703300AG |
SF57T-0753300AG |
SF57T-0803300AG |
SF57T-0853300AG |
|
3.2A |
SF57T-0603200AG |
SF57T-0653200AG |
SF57T-0703200AG |
SF57T-0753200AG |
SF57T-0803200AG |
SF57T-0853200AG |
|
3.1A |
SF57T-0603100AG |
SF57T-0653100AG |
SF57T-0703100AG |
SF57T-0753100AG |
SF57T-0803100AG |
SF57T-0853100AG |
|
3.0A |
SF57T-0603000AG |
SF57T-0653000AG |
SF57T-0703000AG |
SF57T-0753000AG |
SF57T-0803000AG |
SF57T-0853000AG |
|
2.9A |
SF57T-0602900AG |
SF57T-0652900AG |
SF57T-0702900AG |
SF57T-0752900AG |
SF57T-0802900AG |
SF57T-0852900AG |
|
2.8A |
SF57T-0602800AG |
SF57T-0652800AG |
SF57T-0702800AG |
SF57T-0752800AG |
SF57T-0802800AG |
SF57T-0852800AG |
|
2.7A |
SF57T-0602700AG |
SF57T-0652700AG |
SF57T-0702700AG |
SF57T-0752700AG |
SF57T-0802700AG |
SF57T-0852700AG |
|
2.6A |
SF57T-0602600AG |
SF57T-0652600AG |
SF57T-0702600AG |
SF57T-0752600AG |
SF57T-0802600AG |
SF57T-0852600AG |
|
2.5A |
SF57T-0602500AG |
SF57T-0652500AG |
SF57T-0702500AG |
SF57T-0752500AG |
SF57T-0802500AG |
SF57T-0852500AG |
|
2.4A |
SF57T-0602400AG |
SF57T-0652400AG |
SF57T-0702400AG |
SF57T-0752400AG |
SF57T-0802400AG |
SF57T-0852400AG |
|
2.3A |
SF57T-0602300AG |
SF57T-0652300AG |
SF57T-0702300AG |
SF57T-0752300AG |
SF57T-0802300AG |
SF57T-0852300AG |
|
2.2A |
SF57T-0602200AG |
SF57T-0652200AG |
SF57T-0702200AG |
SF57T-0752200AG |
SF57T-0802200AG |
SF57T-0852200AG |
|
2.1A |
SF57T-0602100AG |
SF57T-0652100AG |
SF57T-0702100AG |
SF57T-0752100AG |
SF57T-0802100AG |
SF57T-0852100AG |
|
2.0A |
SF57T-0602000AG |
SF57T-0652000AG |
SF57T-0702000AG |
SF57T-0752000AG |
SF57T-0802000AG |
SF57T-0852000AG |
|
1.9A |
|
|
|
|
|
SF57T-0851900AG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
4.0A |
SF57T-0304000AG |
SF57T-0354000AG |
SF57T-0404000AG |
SF57T-0454000AG |
SF57T-0504000AG |
SF57T-0554000AG |
|
3.9A |
SF57T-0303900AG |
SF57T-0353900AG |
SF57T-0403900AG |
SF57T-0453900AG |
SF57T-0503900AG |
SF57T-0553900AG |
|
3.8A |
SF57T-0303800AG |
SF57T-0353800AG |
SF57T-0403800AG |
SF57T-0453800AG |
SF57T-0503800AG |
SF57T-0553800AG |
|
3.7A |
SF57T-0303700AG |
SF57T-0353700AG |
SF57T-0403700AG |
SF57T-0453700AG |
SF57T-0503700AG |
SF57T-0553700AG |
|
3.6A |
SF57T-0303600AG |
SF57T-0353600AG |
SF57T-0403600AG |
SF57T-0453600AG |
SF57T-0503600AG |
SF57T-0553600AG |
|
3.5A |
SF57T-0303500AG |
SF57T-0353500AG |
SF57T-0403500AG |
SF57T-0453500AG |
SF57T-0503500AG |
SF57T-0553500AG |
|
3.4A |
SF57T-0303400AG |
SF57T-0353400AG |
SF57T-0403400AG |
SF57T-0453400AG |
SF57T-0503400AG |
SF57T-0553400AG |
|
3.3A |
SF57T-0303300AG |
SF57T-0353300AG |
SF57T-0403300AG |
SF57T-0453300AG |
SF57T-0503300AG |
SF57T-0553300AG |
|
3.2A |
SF57T-0303200AG |
SF57T-0353200AG |
SF57T-0403200AG |
SF57T-0453200AG |
SF57T-0503200AG |
SF57T-0553200AG |
|
3.1A |
SF57T-0303100AG |
SF57T-0353100AG |
SF57T-0403100AG |
SF57T-0453100AG |
SF57T-0503100AG |
SF57T-0553100AG |
|
3.0A |
SF57T-0303000AG |
SF57T-0353000AG |
SF57T-0403000AG |
SF57T-0453000AG |
SF57T-0503000AG |
SF57T-0553000AG |
|
2.9A |
SF57T-0302900AG |
SF57T-0352900AG |
SF57T-0402900AG |
SF57T-0452900AG |
SF57T-0502900AG |
SF57T-0552900AG |
|
2.8A |
SF57T-0302800AG |
SF57T-0352800AG |
SF57T-0402800AG |
SF57T-0452800AG |
SF57T-0502800AG |
SF57T-0552800AG |
|
2.7A |
SF57T-0302700AG |
SF57T-0352700AG |
SF57T-0402700AG |
SF57T-0452700AG |
SF57T-0502700AG |
SF57T-0552700AG |
|
2.6A |
SF57T-0302600AG |
SF57T-0352600AG |
SF57T-0402600AG |
SF57T-0452600AG |
SF57T-0502600AG |
SF57T-0552600AG |
|
2.5A |
SF57T-0302500AG |
SF57T-0352500AG |
SF57T-0402500AG |
SF57T-0452500AG |
SF57T-0502500AG |
SF57T-0552500AG |
|
2.4A |
SF57T-0302400AG |
SF57T-0352400AG |
SF57T-0402400AG |
SF57T-0452400AG |
SF57T-0502400AG |
SF57T-0552400AG |
|
2.3A |
SF57T-0302300AG |
SF57T-0352300AG |
SF57T-0402300AG |
SF57T-0452300AG |
SF57T-0502300AG |
SF57T-0552300AG |
|
2.2A |
SF57T-0302200AG |
SF57T-0352200AG |
SF57T-0402200AG |
SF57T-0452200AG |
SF57T-0502200AG |
SF57T-0552200AG |
|
2.1A |
SF57T-0302100AG |
SF57T-0352100AG |
SF57T-0402100AG |
SF57T-0452100AG |
SF57T-0502100AG |
SF57T-0552100AG |
|
2.0A |
SF57T-0302000AG |
SF57T-0352000AG |
SF57T-0402000AG |
SF57T-0452000AG |
SF57T-0502000AG |
SF57T-0552000AG |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-25V |
 |
 |
 |
 |
 |
 |
