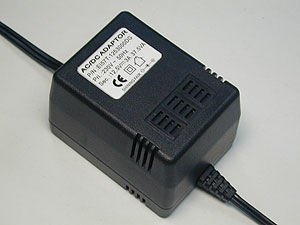

LINEAR ADAPTOR
DESKTOP
EI 57 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-2.5A |
|
|
|
Output Watt |
24VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
27V |
28V |
29V |
30V |
|
|
|
|
0.8A |
SF57T-2700800DG |
SF57T-2800800DG |
SF57T-2900800DG |
SF57T-3000800DG |
|
|
|
0.7A |
SF57T-2700700DG |
SF57T-2800700DG |
SF57T-2900700DG |
SF57T-3000700DG |
|
|
|
0.6A |
SF57T-2700600DG |
SF57T-2800600DG |
SF57T-2900600DG |
SF57T-3000600DG |
|
|
|
0.5A |
SF57T-2700500DG |
SF57T-2800500DG |
SF57T-2900500DG |
SF57T-3000500DG |
|
|
|
0.4A |
SF57T-2700400DG |
SF57T-2800400DG |
SF57T-2900400DG |
SF57T-3000400DG |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
1.1A |
SF57T-2101100DG |
|
|
|
|
|
|
1.0A |
SF57T-2101000DG |
SF57T-2201000DG |
SF57T-2301000DG |
SF57T-2401000DG |
SF57T-2501000DG |
SF57T-2601000DG |
|
0.9A |
SF57T-2100900DG |
SF57T-2200900DG |
SF57T-2300900DG |
SF57T-2400900DG |
SF57T-2500900DG |
SF57T-2600900DG |
|
0.8A |
SF57T-2100800DG |
SF57T-2200800DG |
SF57T-2300800DG |
SF57T-2400800DG |
SF57T-2500800DG |
SF57T-2600800DG |
|
0.7A |
SF57T-2100700DG |
SF57T-2200700DG |
SF57T-2300700DG |
SF57T-2400700DG |
SF57T-2500700DG |
SF57T-2600700DG |
|
0.6A |
SF57T-2100600DG |
SF57T-2200600DG |
SF57T-2300600DG |
SF57T-2400600DG |
SF57T-2500600DG |
SF57T-2600600DG |
|
0.5A |
SF57T-2100500DG |
SF57T-2200500DG |
SF57T-2300500DG |
SF57T-2400500DG |
SF57T-2500500DG |
SF57T-2600500DG |
|
0.4A |
|
|
|
|
SF57T-2500400DG |
SF57T-2600400DG |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF57T-1501600DG |
|
|
|
|
|
|
1.5A |
SF57T-1501500DG |
SF57T-1601500DG |
|
|
|
|
|
1.4A |
SF57T-1501400DG |
SF57T-1601400DG |
SF57T-1701400DG |
|
|
|
|
1.3A |
SF57T-1501300DG |
SF57T-1601300DG |
SF57T-1701300DG |
SF57T-1801300DG |
|
|
|
1.2A |
SF57T-1501200DG |
SF57T-1601200DG |
SF57T-1701200DG |
SF57T-1801200DG |
SF57T-1901200DG |
SF57T-2001200DG |
|
1.1A |
SF57T-1501100DG |
SF57T-1601100DG |
SF57T-1701100DG |
SF57T-1801100DG |
SF57T-1901100DG |
SF57T-2001100DG |
|
1.0A |
SF57T-1501000DG |
SF57T-1601000DG |
SF57T-1701000DG |
SF57T-1801000DG |
SF57T-1901000DG |
SF57T-2001000DG |
|
0.9A |
SF57T-1500900DG |
SF57T-1600900DG |
SF57T-1700900DG |
SF57T-1800900DG |
SF57T-1900900DG |
SF57T-2000900DG |
|
0.8A |
SF57T-1500800DG |
SF57T-1600800DG |
SF57T-1700800DG |
SF57T-1800800DG |
SF57T-1900800DG |
SF57T-2000800DG |
|
0.7A |
|
SF57T-1600700DG |
SF57T-1700700DG |
SF57T-1800700DG |
SF57T-1900700DG |
SF57T-2000700DG |
|
0.6A |
|
|
|
SF57T-1800600DG |
SF57T-1900600DG |
SF57T-2000600DG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF57T-1202000DG |
|
|
|
|
|
|
1.9A |
SF57T-1201900DG |
SF57T-1251900DG |
|
|
|
|
|
1.8A |
SF57T-1201800DG |
SF57T-1251800DG |
SF57T-1301800DG |
|
|
|
|
1.7A |
SF57T-1201700DG |
SF57T-1251700DG |
SF57T-1301700DG |
SF57T-1351700DG |
SF57T-1401700DG |
|
|
1.6A |
SF57T-1201600DG |
SF57T-1251600DG |
SF57T-1301600DG |
SF57T-1351600DG |
SF57T-1401600DG |
SF57T-1451600DG |
|
1.5A |
SF57T-1201500DG |
SF57T-1251500DG |
SF57T-1301500DG |
SF57T-1351500DG |
SF57T-1401500DG |
SF57T-1451500DG |
|
1.4A |
SF57T-1201400DG |
SF57T-1251400DG |
SF57T-1301400DG |
SF57T-1351400DG |
SF57T-1401400DG |
SF57T-1451400DG |
|
1.3A |
SF57T-1201300DG |
SF57T-1251300DG |
SF57T-1301300DG |
SF57T-1351300DG |
SF57T-1401300DG |
SF57T-1451300DG |
|
1.2A |
SF57T-1201200DG |
SF57T-1251200DG |
SF57T-1301200DG |
SF57T-1351200DG |
SF57T-1401200DG |
SF57T-1451200DG |
|
1.1A |
SF57T-1201100DG |
SF57T-1251100DG |
SF57T-1301100DG |
SF57T-1351100DG |
SF57T-1401100DG |
SF57T-1451100DG |
|
1.0A |
SF57T-1201000DG |
SF57T-1251000DG |
SF57T-1301000DG |
SF57T-1351000DG |
SF57T-1401000DG |
SF57T-1451000DG |
|
0.9A |
|
SF57T-1250900DG |
SF57T-1300900DG |
SF57T-1350900DG |
SF57T-1400900DG |
SF57T-1450900DG |
|
0.8A |
|
|
|
SF57T-1350800DG |
SF57T-1400800DG |
SF57T-1450800DG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF57T-0902500DG |
SF57T-0952500DG |
|
|
|
|
|
2.4A |
SF57T-0902400DG |
SF57T-0952400DG |
SF57T-1002400DG |
|
|
|
|
2.3A |
SF57T-0902300DG |
SF57T-0952300DG |
SF57T-1002300DG |
|
|
|
|
2.2A |
SF57T-0902200DG |
SF57T-0952200DG |
SF57T-1002200DG |
SF57T-1052200DG |
|
|
|
2.1A |
SF57T-0902100DG |
SF57T-0952100DG |
SF57T-1002100DG |
SF57T-1052100DG |
SF57T-1102100DG |
|
|
2.0A |
SF57T-0902000DG |
SF57T-0952000DG |
SF57T-1002000DG |
SF57T-1052000DG |
SF57T-1102000DG |
SF57T-1152000DG |
|
1.9A |
SF57T-0901900DG |
SF57T-0951900DG |
SF57T-1001900DG |
SF57T-1051900DG |
SF57T-1101900DG |
SF57T-1151900DG |
|
1.8A |
SF57T-0901800DG |
SF57T-0951800DG |
SF57T-1001800DG |
SF57T-1051800DG |
SF57T-1101800DG |
SF57T-1151800DG |
|
1.7A |
SF57T-0901700DG |
SF57T-0951700DG |
SF57T-1001700DG |
SF57T-1051700DG |
SF57T-1101700DG |
SF57T-1151700DG |
|
1.6A |
SF57T-0901600DG |
SF57T-0951600DG |
SF57T-1001600DG |
SF57T-1051600DG |
SF57T-1101600DG |
SF57T-1151600DG |
|
1.5A |
SF57T-0901500DG |
SF57T-0951500DG |
SF57T-1001500DG |
SF57T-1051500DG |
SF57T-1101500DG |
SF57T-1151500DG |
|
1.4A |
SF57T-0901400DG |
SF57T-0951400DG |
SF57T-1001400DG |
SF57T-1051400DG |
SF57T-1101400DG |
SF57T-1151400DG |
|
1.3A |
SF57T-0901300DG |
SF57T-0951300DG |
SF57T-1001300DG |
SF57T-1051300DG |
SF57T-1101300DG |
SF57T-1151300DG |
|
1.2A |
SF57T-0901200DG |
SF57T-0951200DG |
SF57T-1001200DG |
SF57T-1051200DG |
SF57T-1101200DG |
SF57T-1151200DG |
|
1.1A |
|
|
SF57T-1001100DG |
SF57T-1051100DG |
SF57T-1101100DG |
SF57T-1151100DG |
|
1.0A |
|
|
|
|
SF57T-1101000DG |
SF57T-1151000DG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.5A |
SF57T-0602500DG |
SF57T-0652500DG |
SF57T-0702500DG |
SF57T-0752500DG |
SF57T-0802500DG |
SF57T-0852500DG |
|
2.4A |
SF57T-0602400DG |
SF57T-0652400DG |
SF57T-0702400DG |
SF57T-0752400DG |
SF57T-0802400DG |
SF57T-0852400DG |
|
2.3A |
SF57T-0602300DG |
SF57T-0652300DG |
SF57T-0702300DG |
SF57T-0752300DG |
SF57T-0802300DG |
SF57T-0852300DG |
|
2.2A |
SF57T-0602200DG |
SF57T-0652200DG |
SF57T-0702200DG |
SF57T-0752200DG |
SF57T-0802200DG |
SF57T-0852200DG |
|
2.1A |
SF57T-0602100DG |
SF57T-0652100DG |
SF57T-0702100DG |
SF57T-0752100DG |
SF57T-0802100DG |
SF57T-0852100DG |
|
2.0A |
SF57T-0602000DG |
SF57T-0652000DG |
SF57T-0702000DG |
SF57T-0752000DG |
SF57T-0802000DG |
SF57T-0852000DG |
|
1.9A |
SF57T-0601900DG |
SF57T-0651900DG |
SF57T-0701900DG |
SF57T-0751900DG |
SF57T-0801900DG |
SF57T-0851900DG |
|
1.8A |
SF57T-0601800DG |
SF57T-0651800DG |
SF57T-0701800DG |
SF57T-0751800DG |
SF57T-0801800DG |
SF57T-0851800DG |
|
1.7A |
SF57T-0601700DG |
SF57T-0651700DG |
SF57T-0701700DG |
SF57T-0751700DG |
SF57T-0801700DG |
SF57T-0851700DG |
|
1.6A |
SF57T-0601600DG |
SF57T-0651600DG |
SF57T-0701600DG |
SF57T-0751600DG |
SF57T-0801600DG |
SF57T-0851600DG |
|
1.5A |
SF57T-0601500DG |
SF57T-0651500DG |
SF57T-0701500DG |
SF57T-0751500DG |
SF57T-0801500DG |
SF57T-0851500DG |
|
1.4A |
SF57T-0601400DG |
SF57T-0651400DG |
SF57T-0701400DG |
SF57T-0751400DG |
SF57T-0801400DG |
SF57T-0851400DG |
|
1.3A |
SF57T-0601300DG |
SF57T-0651300DG |
SF57T-0701300DG |
SF57T-0751300DG |
SF57T-0801300DG |
SF57T-0851300DG |
|
1.2A |
SF57T-0601200DG |
SF57T-0651200DG |
SF57T-0701200DG |
SF57T-0751200DG |
SF57T-0801200DG |
SF57T-0851200DG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.5A |
SF57T-0302500DG |
SF57T-0352500DG |
SF57T-0402500DG |
SF57T-0452500DG |
SF57T-0502500DG |
SF57T-0552500DG |
|
2.4A |
SF57T-0302400DG |
SF57T-0352400DG |
SF57T-0402400DG |
SF57T-0452400DG |
SF57T-0502400DG |
SF57T-0552400DG |
|
2.3A |
SF57T-0302300DG |
SF57T-0352300DG |
SF57T-0402300DG |
SF57T-0452300DG |
SF57T-0502300DG |
SF57T-0552300DG |
|
2.2A |
SF57T-0302200DG |
SF57T-0352200DG |
SF57T-0402200DG |
SF57T-0452200DG |
SF57T-0502200DG |
SF57T-0552200DG |
|
2.1A |
SF57T-0302100DG |
SF57T-0352100DG |
SF57T-0402100DG |
SF57T-0452100DG |
SF57T-0502100DG |
SF57T-0552100DG |
|
2.0A |
SF57T-0302000DG |
SF57T-0352000DG |
SF57T-0402000DG |
SF57T-0452000DG |
SF57T-0502000DG |
SF57T-0552000DG |
|
1.9A |
SF57T-0301900DG |
SF57T-0351900DG |
SF57T-0401900DG |
SF57T-0451900DG |
SF57T-0501900DG |
SF57T-0551900DG |
|
1.8A |
SF57T-0301800DG |
SF57T-0351800DG |
SF57T-0401800DG |
SF57T-0451800DG |
SF57T-0501800DG |
SF57T-0551800DG |
|
1.7A |
SF57T-0301700DG |
SF57T-0351700DG |
SF57T-0401700DG |
SF57T-0451700DG |
SF57T-0501700DG |
SF57T-0551700DG |
|
1.6A |
SF57T-0301600DG |
SF57T-0351600DG |
SF57T-0401600DG |
SF57T-0451600DG |
SF57T-0501600DG |
SF57T-0551600DG |
|
1.5A |
SF57T-0301500DG |
SF57T-0351500DG |
SF57T-0401500DG |
SF57T-0451500DG |
SF57T-0501500DG |
SF57T-0551500DG |
|
1.4A |
SF57T-0301400DG |
SF57T-0351400DG |
SF57T-0401400DG |
SF57T-0451400DG |
SF57T-0501400DG |
SF57T-0551400DG |
|
1.3A |
SF57T-0301300DG |
SF57T-0351300DG |
SF57T-0401300DG |
SF57T-0451300DG |
SF57T-0501300DG |
SF57T-0551300DG |
|
1.2A |
SF57T-0301200DG |
SF57T-0351200DG |
SF57T-0401200DG |
SF57T-0451200DG |
SF57T-0501200DG |
SF57T-0551200DG |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
 |
 |
 |
 |
 |
 |
