LINEAR ADAPTOR
DESKTOP

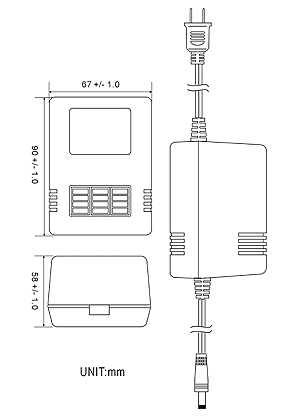

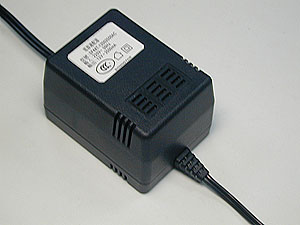

EI 57 AC TO AC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-25V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.7-4A |
|
|
|
Output Watt |
37.5VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CCC |
IEC 60950 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
25V |
|
|
|
1.7A |
SF57T-2101700AC |
SF57T-2201700AC |
|
|
|
|
|
1.6A |
SF57T-2101600AC |
SF57T-2201600AC |
SF57T-2301600AC |
|
|
|
|
1.5A |
SF57T-2101500AC |
SF57T-2201500AC |
SF57T-2301500AC |
SF57T-2401500AC |
SF57T-2501500AC |
|
|
1.4A |
SF57T-2101400AC |
SF57T-2201400AC |
SF57T-2301400AC |
SF57T-2401400AC |
SF57T-2501400AC |
|
|
1.3A |
SF57T-2101300AC |
SF57T-2201300AC |
SF57T-2301300AC |
SF57T-2401300AC |
SF57T-2501300AC |
|
|
1.2A |
SF57T-2101200AC |
SF57T-2201200AC |
SF57T-2301200AC |
SF57T-2401200AC |
SF57T-2501200AC |
|
|
1.1A |
SF57T-2101100AC |
SF57T-2201100AC |
SF57T-2301100AC |
SF57T-2401100AC |
SF57T-2501100AC |
|
|
1.0A |
SF57T-2101000AC |
SF57T-2201000AC |
SF57T-2301000AC |
SF57T-2401000AC |
SF57T-2501000AC |
|
|
0.9A |
SF57T-2100900AC |
SF57T-2200900AC |
SF57T-2300900AC |
SF57T-2400900AC |
SF57T-2500900AC |
|
|
0.8A |
SF57T-2100800AC |
SF57T-2200800AC |
SF57T-2300800AC |
SF57T-2400800AC |
SF57T-2500800AC |
|
|
0.7A |
|
|
|
SF57T-2400700AC |
SF57T-2500700AC |
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.5A |
SF57T-1502500AC |
|
|
|
|
|
|
2.4A |
SF57T-1502400AC |
|
|
|
|
|
|
2.3A |
SF57T-1502300AC |
SF57T-1602300AC |
|
|
|
|
|
2.2A |
SF57T-1502200AC |
SF57T-1602200AC |
SF57T-1702200AC |
|
|
|
|
2.1A |
SF57T-1502100AC |
SF57T-1602100AC |
SF57T-1702100AC |
|
|
|
|
2.0A |
SF57T-1502000AC |
SF57T-1602000AC |
SF57T-1702000AC |
SF57T-1802000AC |
|
|
|
1.9A |
SF57T-1501900AC |
SF57T-1601900AC |
SF57T-1701900AC |
SF57T-1801900AC |
SF57T-1901900AC |
|
|
1.8A |
SF57T-1501800AC |
SF57T-1601800AC |
SF57T-1701800AC |
SF57T-1801800AC |
SF57T-1901800AC |
SF57T-2001800AC |
|
1.7A |
SF57T-1501700AC |
SF57T-1601700AC |
SF57T-1701700AC |
SF57T-1801700AC |
SF57T-1901700AC |
SF57T-2001700AC |
|
1.6A |
SF57T-1501600AC |
SF57T-1601600AC |
SF57T-1701600AC |
SF57T-1801600AC |
SF57T-1901600AC |
SF57T-2001600AC |
|
1.5A |
SF57T-1501500AC |
SF57T-1601500AC |
SF57T-1701500AC |
SF57T-1801500AC |
SF57T-1901500AC |
SF57T-2001500AC |
|
1.4A |
SF57T-1501400AC |
SF57T-1601400AC |
SF57T-1701400AC |
SF57T-1801400AC |
SF57T-1901400AC |
SF57T-2001400AC |
|
1.3A |
SF57T-1501300AC |
SF57T-1601300AC |
SF57T-1701300AC |
SF57T-1801300AC |
SF57T-1901300AC |
SF57T-2001300AC |
|
1.2A |
|
SF57T-1601200AC |
SF57T-1701200AC |
SF57T-1801200AC |
SF57T-1901200AC |
SF57T-2001200AC |
|
1.1A |
|
|
|
SF57T-1801100AC |
SF57T-1901100AC |
SF57T-2001100AC |
|
1.0A |
|
|
|
|
SF57T-1901000AC |
SF57T-2001000AC |
|
0.9A |
|
|
|
|
|
SF57T-2000900AC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.1A |
SF57T-1203100AC |
|
|
|
|
|
|
3.0A |
SF57T-1203000AC |
SF57T-1253000AC |
|
|
|
|
|
2.9A |
SF57T-1202900AC |
SF57T-1252900AC |
|
|
|
|
|
2.8A |
SF57T-1202800AC |
SF57T-1252800AC |
SF57T-1302800AC |
|
|
|
|
2.7A |
SF57T-1202700AC |
SF57T-1252700AC |
SF57T-1302700AC |
SF57T-1352700AC |
|
|
|
2.6A |
SF57T-1202600AC |
SF57T-1252600AC |
SF57T-1302600AC |
SF57T-1352600AC |
SF57T-1402600AC |
|
|
2.5A |
SF57T-1202500AC |
SF57T-1252500AC |
SF57T-1302500AC |
SF57T-1352500AC |
SF57T-1402500AC |
SF57T-1452500AC |
|
2.4A |
SF57T-1202400AC |
SF57T-1252400AC |
SF57T-1302400AC |
SF57T-1352400AC |
SF57T-1402400AC |
SF57T-1452400AC |
|
2.3A |
SF57T-1202300AC |
SF57T-1252300AC |
SF57T-1302300AC |
SF57T-1352300AC |
SF57T-1402300AC |
SF57T-1452300AC |
|
2.2A |
SF57T-1202200AC |
SF57T-1252200AC |
SF57T-1302200AC |
SF57T-1352200AC |
SF57T-1402200AC |
SF57T-1452200AC |
|
2.1A |
SF57T-1202100AC |
SF57T-1252100AC |
SF57T-1302100AC |
SF57T-1352100AC |
SF57T-1402100AC |
SF57T-1452100AC |
|
2.0A |
SF57T-1202000AC |
SF57T-1252000AC |
SF57T-1302000AC |
SF57T-1352000AC |
SF57T-1402000AC |
SF57T-1452000AC |
|
1.9A |
SF57T-1201900AC |
SF57T-1251900AC |
SF57T-1301900AC |
SF57T-1351900AC |
SF57T-1401900AC |
SF57T-1451900AC |
|
1.8A |
SF57T-1201800AC |
SF57T-1251800AC |
SF57T-1301800AC |
SF57T-1351800AC |
SF57T-1401800AC |
SF57T-1451800AC |
|
1.7A |
SF57T-1201700AC |
SF57T-1251700AC |
SF57T-1301700AC |
SF57T-1351700AC |
SF57T-1401700AC |
SF57T-1451700AC |
|
1.6A |
SF57T-1201600AC |
SF57T-1251600AC |
SF57T-1301600AC |
SF57T-1351600AC |
SF57T-1401600AC |
SF57T-1451600AC |
|
1.5A |
SF57T-1201500AC |
SF57T-1251500AC |
SF57T-1301500AC |
SF57T-1351500AC |
SF57T-1401500AC |
SF57T-1451500AC |
|
1.4A |
|
|
SF57T-1301400AC |
SF57T-1351400AC |
SF57T-1401400AC |
SF57T-1451400AC |
|
1.3A |
|
|
|
|
SF57T-1401300AC |
SF57T-1451300AC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
4.0A |
SF57T-0604000AC |
SF57T-0654000AC |
SF57T-0704000AC |
SF57T-0754000AC |
SF57T-0804000AC |
|
|
3.9A |
SF57T-0603900AC |
SF57T-0653900AC |
SF57T-0703900AC |
SF57T-0753900AC |
SF57T-0803900AC |
SF57T-0853900AC |
|
3.8A |
SF57T-0603800AC |
SF57T-0653800AC |
SF57T-0703800AC |
SF57T-0753800AC |
SF57T-0803800AC |
SF57T-0853800AC |
|
3.7A |
SF57T-0603700AC |
SF57T-0653700AC |
SF57T-0703700AC |
SF57T-0753700AC |
SF57T-0803700AC |
SF57T-0853700AC |
|
3.6A |
SF57T-0603600AC |
SF57T-0653600AC |
SF57T-0703600AC |
SF57T-0753600AC |
SF57T-0803600AC |
SF57T-0853600AC |
|
3.5A |
SF57T-0603500AC |
SF57T-0653500AC |
SF57T-0703500AC |
SF57T-0753500AC |
SF57T-0803500AC |
SF57T-0853500AC |
|
3.4A |
SF57T-0603400AC |
SF57T-0653400AC |
SF57T-0703400AC |
SF57T-0753400AC |
SF57T-0803400AC |
SF57T-0853400AC |
|
3.3A |
SF57T-0603300AC |
SF57T-0653300AC |
SF57T-0703300AC |
SF57T-0753300AC |
SF57T-0803300AC |
SF57T-0853300AC |
|
3.2A |
SF57T-0603200AC |
SF57T-0653200AC |
SF57T-0703200AC |
SF57T-0753200AC |
SF57T-0803200AC |
SF57T-0853200AC |
|
3.1A |
SF57T-0603100AC |
SF57T-0653100AC |
SF57T-0703100AC |
SF57T-0753100AC |
SF57T-0803100AC |
SF57T-0853100AC |
|
3.0A |
SF57T-0603000AC |
SF57T-0653000AC |
SF57T-0703000AC |
SF57T-0753000AC |
SF57T-0803000AC |
SF57T-0853000AC |
|
2.9A |
SF57T-0602900AC |
SF57T-0652900AC |
SF57T-0702900AC |
SF57T-0752900AC |
SF57T-0802900AC |
SF57T-0852900AC |
|
2.8A |
SF57T-0602800AC |
SF57T-0652800AC |
SF57T-0702800AC |
SF57T-0752800AC |
SF57T-0802800AC |
SF57T-0852800AC |
|
2.7A |
SF57T-0602700AC |
SF57T-0652700AC |
SF57T-0702700AC |
SF57T-0752700AC |
SF57T-0802700AC |
SF57T-0852700AC |
|
2.6A |
SF57T-0602600AC |
SF57T-0652600AC |
SF57T-0702600AC |
SF57T-0752600AC |
SF57T-0802600AC |
SF57T-0852600AC |
|
2.5A |
SF57T-0602500AC |
SF57T-0652500AC |
SF57T-0702500AC |
SF57T-0752500AC |
SF57T-0802500AC |
SF57T-0852500AC |
|
2.4A |
SF57T-0602400AC |
SF57T-0652400AC |
SF57T-0702400AC |
SF57T-0752400AC |
SF57T-0802400AC |
SF57T-0852400AC |
|
2.3A |
SF57T-0602300AC |
SF57T-0652300AC |
SF57T-0702300AC |
SF57T-0752300AC |
SF57T-0802300AC |
SF57T-0852300AC |
|
2.2A |
SF57T-0602200AC |
SF57T-0652200AC |
SF57T-0702200AC |
SF57T-0752200AC |
SF57T-0802200AC |
SF57T-0852200AC |
|
2.1A |
SF57T-0602100AC |
SF57T-0652100AC |
SF57T-0702100AC |
SF57T-0752100AC |
SF57T-0802100AC |
SF57T-0852100AC |
|
2.0A |
SF57T-0602000AC |
SF57T-0652000AC |
SF57T-0702000AC |
SF57T-0752000AC |
SF57T-0802000AC |
SF57T-0852000AC |
|
1.9A |
|
|
|
|
|
SF57T-0851900AC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
4.0A |
SF57T-0304000AC |
SF57T-0354000AC |
SF57T-0404000AC |
SF57T-0454000AC |
SF57T-0504000AC |
SF57T-0554000AC |
|
3.9A |
SF57T-0303900AC |
SF57T-0353900AC |
SF57T-0403900AC |
SF57T-0453900AC |
SF57T-0503900AC |
SF57T-0553900AC |
|
3.8A |
SF57T-0303800AC |
SF57T-0353800AC |
SF57T-0403800AC |
SF57T-0453800AC |
SF57T-0503800AC |
SF57T-0553800AC |
|
3.7A |
SF57T-0303700AC |
SF57T-0353700AC |
SF57T-0403700AC |
SF57T-0453700AC |
SF57T-0503700AC |
SF57T-0553700AC |
|
3.6A |
SF57T-0303600AC |
SF57T-0353600AC |
SF57T-0403600AC |
SF57T-0453600AC |
SF57T-0503600AC |
SF57T-0553600AC |
|
3.5A |
SF57T-0303500AC |
SF57T-0353500AC |
SF57T-0403500AC |
SF57T-0453500AC |
SF57T-0503500AC |
SF57T-0553500AC |
|
3.4A |
SF57T-0303400AC |
SF57T-0353400AC |
SF57T-0403400AC |
SF57T-0453400AC |
SF57T-0503400AC |
SF57T-0553400AC |
|
3.3A |
SF57T-0303300AC |
SF57T-0353300AC |
SF57T-0403300AC |
SF57T-0453300AC |
SF57T-0503300AC |
SF57T-0553300AC |
|
3.2A |
SF57T-0303200AC |
SF57T-0353200AC |
SF57T-0403200AC |
SF57T-0453200AC |
SF57T-0503200AC |
SF57T-0553200AC |
|
3.1A |
SF57T-0303100AC |
SF57T-0353100AC |
SF57T-0403100AC |
SF57T-0453100AC |
SF57T-0503100AC |
SF57T-0553100AC |
|
3.0A |
SF57T-0303000AC |
SF57T-0353000AC |
SF57T-0403000AC |
SF57T-0453000AC |
SF57T-0503000AC |
SF57T-0553000AC |
|
2.9A |
SF57T-0302900AC |
SF57T-0352900AC |
SF57T-0402900AC |
SF57T-0452900AC |
SF57T-0502900AC |
SF57T-0552900AC |
|
2.8A |
SF57T-0302800AC |
SF57T-0352800AC |
SF57T-0402800AC |
SF57T-0452800AC |
SF57T-0502800AC |
SF57T-0552800AC |
|
2.7A |
SF57T-0302700AC |
SF57T-0352700AC |
SF57T-0402700AC |
SF57T-0452700AC |
SF57T-0502700AC |
SF57T-0552700AC |
|
2.6A |
SF57T-0302600AC |
SF57T-0352600AC |
SF57T-0402600AC |
SF57T-0452600AC |
SF57T-0502600AC |
SF57T-0552600AC |
|
2.5A |
SF57T-0302500AC |
SF57T-0352500AC |
SF57T-0402500AC |
SF57T-0452500AC |
SF57T-0502500AC |
SF57T-0552500AC |
|
2.4A |
SF57T-0302400AC |
SF57T-0352400AC |
SF57T-0402400AC |
SF57T-0452400AC |
SF57T-0502400AC |
SF57T-0552400AC |
|
2.3A |
SF57T-0302300AC |
SF57T-0352300AC |
SF57T-0402300AC |
SF57T-0452300AC |
SF57T-0502300AC |
SF57T-0552300AC |
|
2.2A |
SF57T-0302200AC |
SF57T-0352200AC |
SF57T-0402200AC |
SF57T-0452200AC |
SF57T-0502200AC |
SF57T-0552200AC |
|
2.1A |
SF57T-0302100AC |
SF57T-0352100AC |
SF57T-0402100AC |
SF57T-0452100AC |
SF57T-0502100AC |
SF57T-0552100AC |
|
2.0A |
SF57T-0302000AC |
SF57T-0352000AC |
SF57T-0402000AC |
SF57T-0452000AC |
SF57T-0502000AC |
SF57T-0552000AC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.9A |
SF57T-0903900AC |
|
|
|
|
|
|
3.8A |
SF57T-0903800AC |
SF57T-0953800AC |
|
|
|
|
|
3.7A |
SF57T-0903700AC |
SF57T-0953700AC |
SF57T-1003700AC |
|
|
|
|
3.6A |
SF57T-0903600AC |
SF57T-0953600AC |
SF57T-1003600AC |
|
|
|
|
3.5A |
SF57T-0903500AC |
SF57T-0953500AC |
SF57T-1003500AC |
SF57T-1053500AC |
|
|
|
3.4A |
SF57T-0903400AC |
SF57T-0953400AC |
SF57T-1003400AC |
SF57T-1053400AC |
SF57T-1103400AC |
|
|
3.3A |
SF57T-0903300AC |
SF57T-0953300AC |
SF57T-1003300AC |
SF57T-1053300AC |
SF57T-1103300AC |
|
|
3.2A |
SF57T-0903200AC |
SF57T-0953200AC |
SF57T-1003200AC |
SF57T-1053200AC |
SF57T-1103200AC |
SF57T-1153200AC |
|
3.1A |
SF57T-0903100AC |
SF57T-0953100AC |
SF57T-1003100AC |
SF57T-1053100AC |
SF57T-1103100AC |
SF57T-1153100AC |
|
3.0A |
SF57T-0903000AC |
SF57T-0953000AC |
SF57T-1003000AC |
SF57T-1053000AC |
SF57T-1103000AC |
SF57T-1153000AC |
|
2.9A |
SF57T-0902900AC |
SF57T-0952900AC |
SF57T-1002900AC |
SF57T-1052900AC |
SF57T-1102900AC |
SF57T-1152900AC |
|
2.8A |
SF57T-0902800AC |
SF57T-0952800AC |
SF57T-1002800AC |
SF57T-1052800AC |
SF57T-1102800AC |
SF57T-1152800AC |
|
2.7A |
SF57T-0902700AC |
SF57T-0952700AC |
SF57T-1002700AC |
SF57T-1052700AC |
SF57T-1102700AC |
SF57T-1152700AC |
|
2.6A |
SF57T-0902600AC |
SF57T-0952600AC |
SF57T-1002600AC |
SF57T-1052600AC |
SF57T-1102600AC |
SF57T-1152600AC |
|
2.5A |
SF57T-0902500AC |
SF57T-0952500AC |
SF57T-1002500AC |
SF57T-1052500AC |
SF57T-1102500AC |
SF57T-1152500AC |
|
2.4A |
SF57T-0902400AC |
SF57T-0952400AC |
SF57T-1002400AC |
SF57T-1052400AC |
SF57T-1102400AC |
SF57T-1152400AC |
|
2.3A |
SF57T-0902300AC |
SF57T-0952300AC |
SF57T-1002300AC |
SF57T-1052300AC |
SF57T-1102300AC |
SF57T-1152300AC |
|
2.2A |
SF57T-0902200AC |
SF57T-0952200AC |
SF57T-1002200AC |
SF57T-1052200AC |
SF57T-1102200AC |
SF57T-1152200AC |
|
2.1A |
SF57T-0902100AC |
SF57T-0952100AC |
SF57T-1002100AC |
SF57T-1052100AC |
SF57T-1102100AC |
SF57T-1152100AC |
|
2.0A |
SF57T-0902000AC |
SF57T-0952000AC |
SF57T-1002000AC |
SF57T-1052000AC |
SF57T-1102000AC |
SF57T-1152000AC |
|
1.9A |
SF57T-0901900AC |
SF57T-0951900AC |
SF57T-1001900AC |
SF57T-1051900AC |
SF57T-1101900AC |
SF57T-1151900AC |
|
1.8A |
|
|
SF57T-1001800AC |
SF57T-1051800AC |
SF57T-1101800AC |
SF57T-1151800AC |
|
1.7A |
|
|
|
|
SF57T-1101700AC |
SF57T-1151700AC |
|
1.6A |
|
|
|
|
|
SF57T-1151600AC |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-25V |
 |
 |
 |
 |
 |
 |
