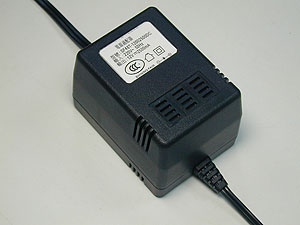

LINEAR ADAPTOR
DESKTOP
EI 57 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-2.5A |
|
|
|
Output Watt |
24VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CCC |
IEC 60950 |
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
27V |
28V |
29V |
30V |
|
|
|
|
0.8A |
SF57T-2700800DC |
SF57T-2800800DC |
SF57T-2900800DC |
SF57T-3000800DC |
|
|
|
0.7A |
SF57T-2700700DC |
SF57T-2800700DC |
SF57T-2900700DC |
SF57T-3000700DC |
|
|
|
0.6A |
SF57T-2700600DC |
SF57T-2800600DC |
SF57T-2900600DC |
SF57T-3000600DC |
|
|
|
0.5A |
SF57T-2700500DC |
SF57T-2800500DC |
SF57T-2900500DC |
SF57T-3000500DC |
|
|
|
0.4A |
SF57T-2700400DC |
SF57T-2800400DC |
SF57T-2900400DC |
SF57T-3000400DC |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
1.1A |
SF57T-2101100DC |
|
|
|
|
|
|
1.0A |
SF57T-2101000DC |
SF57T-2201000DC |
SF57T-2301000DC |
SF57T-2401000DC |
SF57T-2501000DC |
SF57T-2601000DC |
|
0.9A |
SF57T-2100900DC |
SF57T-2200900DC |
SF57T-2300900DC |
SF57T-2400900DC |
SF57T-2500900DC |
SF57T-2600900DC |
|
0.8A |
SF57T-2100800DC |
SF57T-2200800DC |
SF57T-2300800DC |
SF57T-2400800DC |
SF57T-2500800DC |
SF57T-2600800DC |
|
0.7A |
SF57T-2100700DC |
SF57T-2200700DC |
SF57T-2300700DC |
SF57T-2400700DC |
SF57T-2500700DC |
SF57T-2600700DC |
|
0.6A |
SF57T-2100600DC |
SF57T-2200600DC |
SF57T-2300600DC |
SF57T-2400600DC |
SF57T-2500600DC |
SF57T-2600600DC |
|
0.5A |
SF57T-2100500DC |
SF57T-2200500DC |
SF57T-2300500DC |
SF57T-2400500DC |
SF57T-2500500DC |
SF57T-2600500DC |
|
0.4A |
|
|
|
|
SF57T-2500400DC |
SF57T-2600400DC |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
1.6A |
SF57T-1501600DC |
|
|
|
|
|
|
1.5A |
SF57T-1501500DC |
SF57T-1601500DC |
|
|
|
|
|
1.4A |
SF57T-1501400DC |
SF57T-1601400DC |
SF57T-1701400DC |
|
|
|
|
1.3A |
SF57T-1501300DC |
SF57T-1601300DC |
SF57T-1701300DC |
SF57T-1801300DC |
|
|
|
1.2A |
SF57T-1501200DC |
SF57T-1601200DC |
SF57T-1701200DC |
SF57T-1801200DC |
SF57T-1901200DC |
SF57T-2001200DC |
|
1.1A |
SF57T-1501100DC |
SF57T-1601100DC |
SF57T-1701100DC |
SF57T-1801100DC |
SF57T-1901100DC |
SF57T-2001100DC |
|
1.0A |
SF57T-1501000DC |
SF57T-1601000DC |
SF57T-1701000DC |
SF57T-1801000DC |
SF57T-1901000DC |
SF57T-2001000DC |
|
0.9A |
SF57T-1500900DC |
SF57T-1600900DC |
SF57T-1700900DC |
SF57T-1800900DC |
SF57T-1900900DC |
SF57T-2000900DC |
|
0.8A |
SF57T-1500800DC |
SF57T-1600800DC |
SF57T-1700800DC |
SF57T-1800800DC |
SF57T-1900800DC |
SF57T-2000800DC |
|
0.7A |
|
SF57T-1600700DC |
SF57T-1700700DC |
SF57T-1800700DC |
SF57T-1900700DC |
SF57T-2000700DC |
|
0.6A |
|
|
|
SF57T-1800600DC |
SF57T-1900600DC |
SF57T-2000600DC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
2.0A |
SF57T-1202000DC |
|
|
|
|
|
|
1.9A |
SF57T-1201900DC |
SF57T-1251900DC |
|
|
|
|
|
1.8A |
SF57T-1201800DC |
SF57T-1251800DC |
SF57T-1301800DC |
|
|
|
|
1.7A |
SF57T-1201700DC |
SF57T-1251700DC |
SF57T-1301700DC |
SF57T-1351700DC |
SF57T-1401700DC |
|
|
1.6A |
SF57T-1201600DC |
SF57T-1251600DC |
SF57T-1301600DC |
SF57T-1351600DC |
SF57T-1401600DC |
SF57T-1451600DC |
|
1.5A |
SF57T-1201500DC |
SF57T-1251500DC |
SF57T-1301500DC |
SF57T-1351500DC |
SF57T-1401500DC |
SF57T-1451500DC |
|
1.4A |
SF57T-1201400DC |
SF57T-1251400DC |
SF57T-1301400DC |
SF57T-1351400DC |
SF57T-1401400DC |
SF57T-1451400DC |
|
1.3A |
SF57T-1201300DC |
SF57T-1251300DC |
SF57T-1301300DC |
SF57T-1351300DC |
SF57T-1401300DC |
SF57T-1451300DC |
|
1.2A |
SF57T-1201200DC |
SF57T-1251200DC |
SF57T-1301200DC |
SF57T-1351200DC |
SF57T-1401200DC |
SF57T-1451200DC |
|
1.1A |
SF57T-1201100DC |
SF57T-1251100DC |
SF57T-1301100DC |
SF57T-1351100DC |
SF57T-1401100DC |
SF57T-1451100DC |
|
1.0A |
SF57T-1201000DC |
SF57T-1251000DC |
SF57T-1301000DC |
SF57T-1351000DC |
SF57T-1401000DC |
SF57T-1451000DC |
|
0.9A |
|
SF57T-1250900DC |
SF57T-1300900DC |
SF57T-1350900DC |
SF57T-1400900DC |
SF57T-1450900DC |
|
0.8A |
|
|
|
SF57T-1350800DC |
SF57T-1400800DC |
SF57T-1450800DC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
2.5A |
SF57T-0902500DC |
SF57T-0952500DC |
|
|
|
|
|
2.4A |
SF57T-0902400DC |
SF57T-0952400DC |
SF57T-1002400DC |
|
|
|
|
2.3A |
SF57T-0902300DC |
SF57T-0952300DC |
SF57T-1002300DC |
|
|
|
|
2.2A |
SF57T-0902200DC |
SF57T-0952200DC |
SF57T-1002200DC |
SF57T-1052200DC |
|
|
|
2.1A |
SF57T-0902100DC |
SF57T-0952100DC |
SF57T-1002100DC |
SF57T-1052100DC |
SF57T-1102100DC |
|
|
2.0A |
SF57T-0902000DC |
SF57T-0952000DC |
SF57T-1002000DC |
SF57T-1052000DC |
SF57T-1102000DC |
SF57T-1152000DC |
|
1.9A |
SF57T-0901900DC |
SF57T-0951900DC |
SF57T-1001900DC |
SF57T-1051900DC |
SF57T-1101900DC |
SF57T-1151900DC |
|
1.8A |
SF57T-0901800DC |
SF57T-0951800DC |
SF57T-1001800DC |
SF57T-1051800DC |
SF57T-1101800DC |
SF57T-1151800DC |
|
1.7A |
SF57T-0901700DC |
SF57T-0951700DC |
SF57T-1001700DC |
SF57T-1051700DC |
SF57T-1101700DC |
SF57T-1151700DC |
|
1.6A |
SF57T-0901600DC |
SF57T-0951600DC |
SF57T-1001600DC |
SF57T-1051600DC |
SF57T-1101600DC |
SF57T-1151600DC |
|
1.5A |
SF57T-0901500DC |
SF57T-0951500DC |
SF57T-1001500DC |
SF57T-1051500DC |
SF57T-1101500DC |
SF57T-1151500DC |
|
1.4A |
SF57T-0901400DC |
SF57T-0951400DC |
SF57T-1001400DC |
SF57T-1051400DC |
SF57T-1101400DC |
SF57T-1151400DC |
|
1.3A |
SF57T-0901300DC |
SF57T-0951300DC |
SF57T-1001300DC |
SF57T-1051300DC |
SF57T-1101300DC |
SF57T-1151300DC |
|
1.2A |
SF57T-0901200DC |
SF57T-0951200DC |
SF57T-1001200DC |
SF57T-1051200DC |
SF57T-1101200DC |
SF57T-1151200DC |
|
1.1A |
|
|
SF57T-1001100DC |
SF57T-1051100DC |
SF57T-1101100DC |
SF57T-1151100DC |
|
1.0A |
|
|
|
|
SF57T-1101000DC |
SF57T-1151000DC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
2.5A |
SF57T-0602500DC |
SF57T-0652500DC |
SF57T-0702500DC |
SF57T-0752500DC |
SF57T-0802500DC |
SF57T-0852500DC |
|
2.4A |
SF57T-0602400DC |
SF57T-0652400DC |
SF57T-0702400DC |
SF57T-0752400DC |
SF57T-0802400DC |
SF57T-0852400DC |
|
2.3A |
SF57T-0602300DC |
SF57T-0652300DC |
SF57T-0702300DC |
SF57T-0752300DC |
SF57T-0802300DC |
SF57T-0852300DC |
|
2.2A |
SF57T-0602200DC |
SF57T-0652200DC |
SF57T-0702200DC |
SF57T-0752200DC |
SF57T-0802200DC |
SF57T-0852200DC |
|
2.1A |
SF57T-0602100DC |
SF57T-0652100DC |
SF57T-0702100DC |
SF57T-0752100DC |
SF57T-0802100DC |
SF57T-0852100DC |
|
2.0A |
SF57T-0602000DC |
SF57T-0652000DC |
SF57T-0702000DC |
SF57T-0752000DC |
SF57T-0802000DC |
SF57T-0852000DC |
|
1.9A |
SF57T-0601900DC |
SF57T-0651900DC |
SF57T-0701900DC |
SF57T-0751900DC |
SF57T-0801900DC |
SF57T-0851900DC |
|
1.8A |
SF57T-0601800DC |
SF57T-0651800DC |
SF57T-0701800DC |
SF57T-0751800DC |
SF57T-0801800DC |
SF57T-0851800DC |
|
1.7A |
SF57T-0601700DC |
SF57T-0651700DC |
SF57T-0701700DC |
SF57T-0751700DC |
SF57T-0801700DC |
SF57T-0851700DC |
|
1.6A |
SF57T-0601600DC |
SF57T-0651600DC |
SF57T-0701600DC |
SF57T-0751600DC |
SF57T-0801600DC |
SF57T-0851600DC |
|
1.5A |
SF57T-0601500DC |
SF57T-0651500DC |
SF57T-0701500DC |
SF57T-0751500DC |
SF57T-0801500DC |
SF57T-0851500DC |
|
1.4A |
SF57T-0601400DC |
SF57T-0651400DC |
SF57T-0701400DC |
SF57T-0751400DC |
SF57T-0801400DC |
SF57T-0851400DC |
|
1.3A |
SF57T-0601300DC |
SF57T-0651300DC |
SF57T-0701300DC |
SF57T-0751300DC |
SF57T-0801300DC |
SF57T-0851300DC |
|
1.2A |
SF57T-0601200DC |
SF57T-0651200DC |
SF57T-0701200DC |
SF57T-0751200DC |
SF57T-0801200DC |
SF57T-0851200DC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.5A |
SF57T-0302500DC |
SF57T-0352500DC |
SF57T-0402500DC |
SF57T-0452500DC |
SF57T-0502500DC |
SF57T-0552500DC |
|
2.4A |
SF57T-0302400DC |
SF57T-0352400DC |
SF57T-0402400DC |
SF57T-0452400DC |
SF57T-0502400DC |
SF57T-0552400DC |
|
2.3A |
SF57T-0302300DC |
SF57T-0352300DC |
SF57T-0402300DC |
SF57T-0452300DC |
SF57T-0502300DC |
SF57T-0552300DC |
|
2.2A |
SF57T-0302200DC |
SF57T-0352200DC |
SF57T-0402200DC |
SF57T-0452200DC |
SF57T-0502200DC |
SF57T-0552200DC |
|
2.1A |
SF57T-0302100DC |
SF57T-0352100DC |
SF57T-0402100DC |
SF57T-0452100DC |
SF57T-0502100DC |
SF57T-0552100DC |
|
2.0A |
SF57T-0302000DC |
SF57T-0352000DC |
SF57T-0402000DC |
SF57T-0452000DC |
SF57T-0502000DC |
SF57T-0552000DC |
|
1.9A |
SF57T-0301900DC |
SF57T-0351900DC |
SF57T-0401900DC |
SF57T-0451900DC |
SF57T-0501900DC |
SF57T-0551900DC |
|
1.8A |
SF57T-0301800DC |
SF57T-0351800DC |
SF57T-0401800DC |
SF57T-0451800DC |
SF57T-0501800DC |
SF57T-0551800DC |
|
1.7A |
SF57T-0301700DC |
SF57T-0351700DC |
SF57T-0401700DC |
SF57T-0451700DC |
SF57T-0501700DC |
SF57T-0551700DC |
|
1.6A |
SF57T-0301600DC |
SF57T-0351600DC |
SF57T-0401600DC |
SF57T-0451600DC |
SF57T-0501600DC |
SF57T-0551600DC |
|
1.5A |
SF57T-0301500DC |
SF57T-0351500DC |
SF57T-0401500DC |
SF57T-0451500DC |
SF57T-0501500DC |
SF57T-0551500DC |
|
1.4A |
SF57T-0301400DC |
SF57T-0351400DC |
SF57T-0401400DC |
SF57T-0451400DC |
SF57T-0501400DC |
SF57T-0551400DC |
|
1.3A |
SF57T-0301300DC |
SF57T-0351300DC |
SF57T-0401300DC |
SF57T-0451300DC |
SF57T-0501300DC |
SF57T-0551300DC |
|
1.2A |
SF57T-0301200DC |
SF57T-0351200DC |
SF57T-0401200DC |
SF57T-0451200DC |
SF57T-0501200DC |
SF57T-0551200DC |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
 |
 |
 |
 |
 |
 |
