LINEAR ADAPTOR
DESKTOP

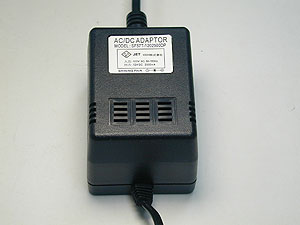

EI 57 AC TO DC ADAPTOR
INPUT:100V AC 50/60 Hz

ELECTRICAL SPECIFICATION

INPUT

OUTPUT

Input Voltage

100V AC

Output Voltage

3-30V DC

Input Frequency

50/60Hz

Output Tolerance (Load)

5%





Output Current

0.4-2.5A





Output Watt

24VA max

GENERAL SPECIFICATION

Temperatures

Humidity

Operating Temperatures

-10 to +30oC

Operating Humidity

10 to 90% RH

Storage Temperatures

-10 to +70oC

Storage Humidity

5 to 95% RH

Hi-Pot Test

Safety

Compliance With

Primary to Core

1800V AC, one second

PSE

J 60950

Primary to Secondary

1800V AC, one second

00title405a

OUTPUT SPECIFICATION

40-PSE

name5txt

27V

28V

29V

30V





0.8A

SF57T-2700800DP

SF57T-2800800DP

SF57T-2900800DP

SF57T-3000800DP





0.7A

SF57T-2700700DP

SF57T-2800700DP

SF57T-2900700DP

SF57T-3000700DP





0.6A

SF57T-2700600DP

SF57T-2800600DP

SF57T-2900600DP

SF57T-3000600DP





0.5A

SF57T-2700500DP

SF57T-2800500DP

SF57T-2900500DP

SF57T-3000500DP





0.4A

SF57T-2700400DP

SF57T-2800400DP

SF57T-2900400DP

SF57T-3000400DP





name5txt

21V

22V

23V

24V

25V

26V

1.1A

SF57T-2101100DP











1.0A

SF57T-2101000DP

SF57T-2201000DP

SF57T-2301000DP

SF57T-2401000DP

SF57T-2501000DP

SF57T-2601000DP

0.9A

SF57T-2100900DP

SF57T-2200900DP

SF57T-2300900DP

SF57T-2400900DP

SF57T-2500900DP

SF57T-2600900DP

0.8A

SF57T-2100800DP

SF57T-2200800DP

SF57T-2300800DP

SF57T-2400800DP

SF57T-2500800DP

SF57T-2600800DP

0.7A

SF57T-2100700DP

SF57T-2200700DP

SF57T-2300700DP

SF57T-2400700DP

SF57T-2500700DP

SF57ၔ-2600700DP

0.6A

SF57T-2100600DP

SF57T-2200600DP

SF57T-2300600DP

SF57T-2400600DP

SF57T-2500600DP

SF57T-2600600DP

0.5A

SF57T-2100500DP

SF57T-2200500DP

SF57T-2300500DP

SF57T-2400500DP

SF57T-2500500DP

SF57T-2600500DP

0.4A









SF57T-2500400DP

SF57T-2600400DP

name5txt

15V

16V

17V

18V

19V

20V

1.6A

SF57T-1501600DP











1.5A

SF57T-1501500DP

SF57T-1601500DP









1.4A

SF57T-1501400DP

SF57T-1601400DP

SF57T-1701400DP







1.3A

SF57T-1501300DP

SF57T-1601300DP

SF57T-1701300DP

SF57T-1801300DP





1.2A

SF57T-1501200DP

SF57T-1601200DP

SF57T-1701200DP

SF57T-1801200DP

SF57T-1901200DP

SF57T-2001200DP

1.1A

SF57T-1501100DP

SF57T-1601100DP

SF57T-1701100DP

SF57T-1801100DP

SF57T-1901100DP

SF57T-2001100DP

1.0A

SF57T-1501000DP

SF57T-1601000DP

SF57T-1701000DP

SF57T-1801000DP

SF57T-1901000DP

SF57T-2001000DP

0.9A

SF57T-1500900DP

SF57T-1600900DP

SF57T-1700900DP

SF57T-1800900DP

SF57T-1900900DP

SF57T-2000900DP

0.8A

SF57T-1500800DP

SF57T-1600800DP

SF57T-1700800DP

SF57T-1800800DP

SF57T-1900800DP

SF57T-2000800DP

0.7A



SF57T-1600700DP

SF57T-1700700DP

SF57T-1800700DP

SF57T-1900700DP

SF57T-2000700DP

0.6A







SF57T-1800600DP

SF57T-1900600DP

SF57T-2000600DP

name5txt

12V

12.5V

13V

13.5V

14V

14.5V

2.0A

SF57T-1202000DP











1.9A

SF57T-1201900DP

SF57T-1251900DP









1.8A

SF57T-1201800DP

SF57T-1251800DP

SF57T-1301800DP







1.7A

SF57T-1201700DP

SF57T-1251700DP

SF57T-1301700DP

SF57T-1351700DP

SF57T-1401700DP



1.6A

SF57T-1201600DP

SF57T-1251600DP

SF57T-1301600DP

SF57T-1351600DP

SF57T-1401600DP

SF57T-1451600DP

1.5A

SF57T-1201500DP

SF57T-1251500DP

SF57T-1301500DP

SF57T-1351500DP

SF57T-1401500DP

SF57T-1451500DP

1.4A

SF57T-1201400DP

SF57T-1251400DP

SF57T-1301400DP

SF57T-1351400DP

SF57T-1401400DP

SF57T-1451400DP

1.3A

SF57T-1201300DP

SF57T-1251300DP

SF57T-1301300DP

SF57T-1351300DP

SF57T-1401300DP

SF57T-1451300DP

1.2A

SF57T-1201200DP

SF57T-1251200DP

SF57T-1301200DP

SF57T-1351200DP

SF57T-1401200DP

SF57T-1451200DP

1.1A

SF57T-1201100DP

SF57T-1251100DP

SF57T-1301100DP

SF57T-1351100DP

SF57T-1401100DP

SF57T-1451100DP

1.0A

SF57T-1201000DP

SF57T-1251000DP

SF57T-1301000DP

SF57T-1351000DP

SF57T-1401000DP

SF57T-1451000DP

0.9A



SF57T-1250900DP

SF57T-1300900DP

SF57T-1350900DP

SF57T-1400900DP

SF57T-1450900DP

0.8A







SF57T-1350800DP

SF57T-1400800DP

SF57T-1450800DP

name5txt

9V

9.5V

10V

10.5V

11V

11.5V

2.5A

SF57T-0902500DP

SF57T-0952500DP









2.4A

SF57T-0902400DP

SF57T-0952400DP

SF57T-1002400DP







2.3A

SF57T-0902300DP

SF57T-0952300DP

SF57T-1002300DP







2.2A

SF57T-0902200DP

SF57T-0952200DP

SF57T-1002200DP

SF57T-1052200DP





2.1A

SF57T-0902100DP

SF57T-0952100DP

SF57T-1002100DP

SF57T-1052100DP

SF57T-1102100DP



2.0A

SF57T-0902000DP

SF57T-0952000DP

SF57T-1002000DP

SF57T-1052000DP

SF57T-1102000DP

SF57T-1152000DP

1.9A

SF57T-0901900DP

SF57T-0951900DP

SF57T-1001900DP

SF57T-1051900DP

SF57T-1101900DP

SF57T-1151900DP

1.8A

SF57T-0901800DP

SF57T-0951800DP

SF57T-1001800DP

SF57T-1051800DP

SF57T-1101800DP

SF57T-1151800DP

1.7A

SF57T-0901700DP

SF57T-0951700DP

SF57T-1001700DP

SF57T-1051700DP

SF57T-1101700DP

SF57T-1151700DP

1.6A

SF57T-0901600DP

SF57T-0951600DP

SF57T-1001600DP

SF57T-1051600DP

SF57T-1101600DP

SF57T-1151600DP

1.5A

SF57T-0901500DP

SF57T-0951500DP

SF57T-1001500DP

SF57T-1051500DP

SF57T-1101500DP

SF57T-1151500DP

1.4A

SF57T-0901400DP

SF57T-0951400DP

SF57T-1001400DP

SF57T-1051400DP

SF57T-1101400DP

SF57T-1151400DP

1.3A

SF57T-0901300DP

SF57T-0951300DP

SF57T-1001300DP

SF57T-1051300DP

SF57T-1101300DP

SF57T-1151300DP

1.2A

SF57T-0901200DP

SF57T-0951200DP

SF57T-1001200DP

SF57T-1051200DP

SF57T-1101200DP

SF57T-1151200DP

1.1A





SF57T-1001100DP

SF57T-1051100DP

SF57T-1101100DP

SF57T-1151100DP

1.0A









SF57T-1101000DP

SF57T-1151000DP

name5txt

6V

6.5V

7V

7.5V

8V

8.5V

2.5A

SF57T-0602500DP

SF57T-0652500DP

SF57T-0702500DP

SF57T-0752500DP

SF57T-0802500DP

SF57T-0852500DP

2.4A

SF57T-0602400DP

SF57T-0652400DP

SF57T-0702400DP

SF57T-0752400DP

SF57T-0802400DP

SF57T-0852400DP

2.3A

SF57T-0602300DP

SF57T-0652300DP

SF57T-0702300DP

SF57T-0752300DP

SF57T-0802300DP

SF57T-0852300DP

2.2A

SF57T-0602200DP

SF57T-0652200DP

SF57T-0702200DP

SF57T-0752200DP

SF57T-0802200DP

SF57T-0852200DP

2.1A

SF57T-0602100DP

SF57T-0652100DP

SF57T-0702100DP

SF57T-0752100DP

SF57T-0802100DP

SF57T-0852100DP

2.0A

SF57T-0602000DP

SF57T-0652000DP

SF57T-0702000DP

SF57T-0752000DP

SF57T-0802000DP

SF57T-0852000DP

1.9A

SF57T-0601900DP

SF57T-0651900DP

SF57T-0701900DP

SF57T-0751900DP

SF57T-0801900DP

SF57T-0851900DP

1.8A

SF57T-0601800DP

SF57T-0651800DP

SF57T-0701800DP

SF57T-0751800DP

SF57T-0801800DP

SF57T-0851800DP

1.7A

SF57T-0601700DP

SF57T-0651700DP

SF57T-0701700DP

SF57T-0751700DP

SF57T-0801700DP

SF57T-0851700DP

1.6A

SF57T-0601600DP

SF57T-0651600DP

SF57T-0701600DP

SF57T-0751600DP

SF57T-0801600DP

SF57T-0851600DP

1.5A

SF57T-0601500DP

SF57T-0651500DP

SF57T-0701500DP

SF57T-0751500DP

SF57T-0801500DP

SF57T-0851500DP

1.4A

SF57T-0601400DP

SF57T-0651400DP

SF57T-0701400DP

SF57T-0751400DP

SF57T-0801400DP

SF57T-0851400DP

1.3A

SF57T-0601300DP

SF57T-0651300DP

SF57T-0701300DP

SF57T-0751300DP

SF57T-0801300DP

SF57T-0851300DP

1.2A

SF57T-0601200DP

SF57T-0651200DP

SF57T-0701200DP

SF57T-0751200DP

SF57T-0801200DP

SF57T-0851200DP

name5txt

3V

3.5V

4V

4.5V

5V

5.5V

2.5A

SF57T-0302500DP

SF57T-0352500DP

SF57T-0402500DP

SF57T-0452500DP

SF57T-0502500DP

SF57T-0552500DP

2.4A

SF57T-0302400DP

SF57T-0352400DP

SF57T-0402400DP

SF57T-0452400DP

SF57T-0502400DP

SF57T-0552400DP

2.3A

SF57T-0302300DP

SF57T-0352300DP

SF57T-0402300DP

SF57T-0452300DP

SF57T-0502300DP

SF57T-0552300DP

2.2A

SF57T-0302200DP

SF57T-0352200DP

SF57T-0402200DP

SF57T-0452200DP

SF57T-0502200DP

SF57T-0552200DP

2.1A

SF57T-0302100DP

SF57T-0352100DP

SF57T-0402100DP

SF57T-0452100DP

SF57T-0502100DP

SF57T-0552100DP

2.0A

SF57T-0302000DP

SF57T-0352000DP

SF57T-0402000DP

SF57T-0452000DP

SF57T-0502000DP

SF57T-0552000DP

1.9A

SF57T-0301900DP

SF57T-0351900DP

SF57T-0401900DP

SF57T-0451900DP

SF57T-0501900DP

SF57T-0551900DP

1.8A

SF57T-0301800DP

SF57T-0351800DP

SF57T-0401800DP

SF57T-0451800DP

SF57T-0501800DP

SF57T-0551800DP

1.7A

SF57T-0301700DP

SF57T-0351700DP

SF57T-0401700DP

SF57T-0451700DP

SF57T-0501700DP

SF57T-0551700DP

1.6A

SF57T-0301600DP

SF57T-0351600DP

SF57T-0401600DP

SF57T-0451600DP

SF57T-0501600DP

SF57T-0551600DP

1.5A

SF57T-0301500DP

SF57T-0351500DP

SF57T-0401500DP

SF57T-0451500DP

SF57T-0501500DP

SF57T-0551500DP

1.4A

SF57T-0301400DP

SF57T-0351400DP

SF57T-0401400DP

SF57T-0451400DP

SF57T-0501400DP

SF57T-0551400DP

1.3A

SF57T-0301300DP

SF57T-0351300DP

SF57T-0401300DP

SF57T-0451300DP

SF57T-0501300DP

SF57T-0551300DP

1.2A

SF57T-0301200DP

SF57T-0351200DP

SF57T-0401200DP

SF57T-0451200DP

SF57T-0501200DP

SF57T-0551200DP

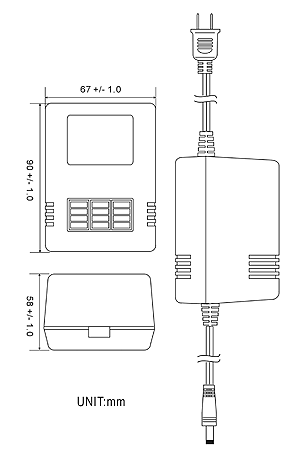

01-JAP-DC-EI57-P-D
01-JAP-DC-EI57-DIM-D

3-5.5V

6-8.5V

9-11.5V

12-14.5V

15-20V

21-26V

27-30V
