LINEAR ADAPTOR
WALLMOUNT

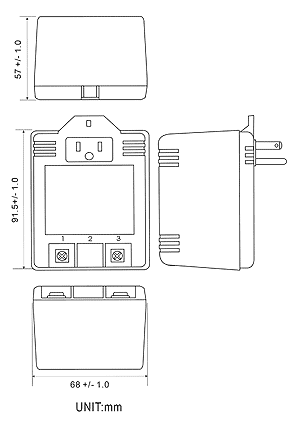

EI 57 AC TO AC ADAPTOR (US 3 PIN+SCREWED)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.4-7A |
|
|
|
Output Watt |
50.6VA max |
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
2.0A |
SF57-2502000AU-1W |
|
|
|
|
|
|
1.9A |
SF57-2501900AU-1W |
SF57-2551900AU-1W |
SF57-2601900AU-1W |
|
|
|
|
1.8A |
SF57-2501800AU-1W |
SF57-2551800AU-1W |
SF57-2601800AU-1W |
|
|
|
|
1.7A |
SF57-2501700AU-1W |
SF57-2551700AU-1W |
SF57-2601700AU-1W |
SF57-2651700AU-1W |
|
|
|
1.6A |
SF57-2501600AU-1W |
SF57-2551600AU-1W |
SF57-2601600AU-1W |
SF57-2651600AU-1W |
|
|
|
1.5A |
SF57-2501500AU-1W |
SF57-2551500AU-1W |
SF57-2601500AU-1W |
SF57-2651500AU-1W |
|
|
|
1.4A |
SF57-2501400AU-1W |
SF57-2551400AU-1W |
SF57-2601400AU-1W |
SF57-2651400AU-1W |
|
|
|
1.3A |
SF57-2501300AU-1W |
SF57-2551300AU-1W |
SF57-2601300AU-1W |
SF57-2651300AU-1W |
SF57-2701300AU-1W |
|
|
1.2A |
SF57-2501200AU-1W |
SF57-2551200AU-1W |
SF57-2601200AU-1W |
SF57-2651200AU-1W |
SF57-2701200AU-1W |
SF57-2801200AU-1W |
|
1.1A |
SF57-2501100AU-1W |
SF57-2551100AU-1W |
SF57-2601100AU-1W |
SF57-2651100AU-1W |
SF57-2701100AU-1W |
SF57-2801100AU-1W |
|
1.0A |
SF57-2501000AU-1W |
SF57-2551000AU-1W |
SF57-2601000AU-1W |
SF57-2651000AU-1W |
SF57-2701000AU-1W |
SF57-2801000AU-1W |
|
0.9A |
SF57-2500900AU-1W |
SF57-2550900AU-1W |
SF57-2600900AU-1W |
SF57-2650900AU-1W |
SF57-2700900AU-1W |
SF57-2800900AU-1W |
|
0.8A |
SF57-2500800AU-1W |
SF57-2550800AU-1W |
SF57-2600800AU-1W |
SF57-2650800AU-1W |
SF57-2700800AU-1W |
SF57-2800800AU-1W |
|
0.7A |
SF57-2500700AU-1W |
SF57-2550700AU-1W |
SF57-2600700AU-1W |
SF57-2650700AU-1W |
SF57-2700700AU-1W |
SF57-2800700AU-1W |
|
0.6A |
SF57-2500600AU-1W |
SF57-2550600AU-1W |
SF57-2600600AU-1W |
SF57-2650600AU-1W |
SF57-2700600AU-1W |
SF57-2800600AU-1W |
|
0.5A |
|
|
SF57-2600500AU-1W |
SF57-2650500AU-1W |
SF57-2700500AU-1W |
SF57-2800500AU-1W |
|
0.4A |
|
|
|
|
|
SF57-2800400AU-1W |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
2.3A |
SF57-2202300AU-1W |
|
|
|
|
|
|
2.2A |
SF57-2202200AU-1W |
SF57-2252200AU-1W |
SF57-2302200AU-1W |
|
|
|
|
2.1A |
SF57-2202100AU-1W |
SF57-2252100AU-1W |
SF57-2302100AU-1W |
SF57-2352100AU-1W |
SF57-2402100AU-1W |
|
|
2.0A |
SF57-2202000AU-1W |
SF57-2252000AU-1W |
SF57-2302000AU-1W |
SF57-2352000AU-1W |
SF57-2402000AU-1W |
SF57-2452000AU-1W |
|
1.9A |
SF57-2201900AU-1W |
SF57-2251900AU-1W |
SF57-2301900AU-1W |
SF57-2351900AU-1W |
SF57-2401900AU-1W |
SF57-2451900AU-1W |
|
1.8A |
SF57-2201800AU-1W |
SF57-2251800AU-1W |
SF57-2301800AU-1W |
SF57-2351800AU-1W |
SF57-2401800AU-1W |
SF57-2451800AU-1W |
|
1.7A |
SF57-2201700AU-1W |
SF57-2251700AU-1W |
SF57-2301700AU-1W |
SF57-2351700AU-1W |
SF57-2401700AU-1W |
SF57-2451700AU-1W |
|
1.6A |
SF57-2201600AU-1W |
SF57-2251600AU-1W |
SF57-2301600AU-1W |
SF57-2351600AU-1W |
SF57-2401600AU-1W |
SF57-2451600AU-1W |
|
1.5A |
SF57-2201500AU-1W |
SF57-2251500AU-1W |
SF57-2301500AU-1W |
SF57-2351500AU-1W |
SF57-2401500AU-1W |
SF57-2451500AU-1W |
|
1.4A |
SF57-2201400AU-1W |
SF57-2251400AU-1W |
SF57-2301400AU-1W |
SF57-2351400AU-1W |
SF57-2401400AU-1W |
SF57-2451400AU-1W |
|
1.3A |
SF57-2201300AU-1W |
SF57-2251300AU-1W |
SF57-2301300AU-1W |
SF57-2351300AU-1W |
SF57-2401300AU-1W |
SF57-2451300AU-1W |
|
1.2A |
SF57-2201200AU-1W |
SF57-2251200AU-1W |
SF57-2301200AU-1W |
SF57-2351200AU-1W |
SF57-2401200AU-1W |
SF57-2451200AU-1W |
|
1.1A |
SF57-2201100AU-1W |
SF57-2251100AU-1W |
SF57-2301100AU-1W |
SF57-2351100AU-1W |
SF57-2401100AU-1W |
SF57-2451100AU-1W |
|
1.0A |
SF57-2201000AU-1W |
SF57-2251000AU-1W |
SF57-2301000AU-1W |
SF57-2351000AU-1W |
SF57-2401000AU-1W |
SF57-2451000AU-1W |
|
0.9A |
SF57-2200900AU-1W |
SF57-2250900AU-1W |
SF57-2300900AU-1W |
SF57-2350900AU-1W |
SF57-2400900AU-1W |
SF57-2450900AU-1W |
|
0.8A |
SF57-2200800AU-1W |
SF57-2250800AU-1W |
SF57-2300800AU-1W |
SF57-2350800AU-1W |
SF57-2400800AU-1W |
SF57-2450800AU-1W |
|
0.7A |
SF57-2200700AU-1W |
SF57-2250700AU-1W |
SF57-2300700AU-1W |
SF57-2350700AU-1W |
SF57-2400700AU-1W |
SF57-2450700AU-1W |
|
0.6A |
|
|
SF57-2300600AU-1W |
SF57-2350600AU-1W |
SF57-2400600AU-1W |
SF57-2450600AU-1W |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
2.6A |
SF57-1902600AU-1W |
|
|
|
|
|
|
2.5A |
SF57-1902500AU-1W |
SF57-1952500AU-1W |
SF57-2002500AU-1W |
|
|
|
|
2.4A |
SF57-1902400AU-1W |
SF57-1952400AU-1W |
SF57-2002400AU-1W |
SF57-2052400AU-1W |
SF57-2102400AU-1W |
|
|
2.3A |
SF57-1902300AU-1W |
SF57-1952300AU-1W |
SF57-2002300AU-1W |
SF57-2052300AU-1W |
SF57-2102300AU-1W |
SF57-2152300AU-1W |
|
2.2A |
SF57-1902200AU-1W |
SF57-1952200AU-1W |
SF57-2002200AU-1W |
SF57-2052200AU-1W |
SF57-2102200AU-1W |
SF57-2152200AU-1W |
|
2.1A |
SF57-1902100AU-1W |
SF57-1952100AU-1W |
SF57-2002100AU-1W |
SF57-2052100AU-1W |
SF57-2102100AU-1W |
SF57-2152100AU-1W |
|
2.0A |
SF57-1902000AU-1W |
SF57-1952000AU-1W |
SF57-2002000AU-1W |
SF57-2052000AU-1W |
SF57-2102000AU-1W |
SF57-2152000AU-1W |
|
1.9A |
SF57-1901900AU-1W |
SF57-1951900AU-1W |
SF57-2001900AU-1W |
SF57-2051900AU-1W |
SF57-2101900AU-1W |
SF57-2151900AU-1W |
|
1.8A |
SF57-1901800AU-1W |
SF57-1951800AU-1W |
SF57-2001800AU-1W |
SF57-2051800AU-1W |
SF57-2101800AU-1W |
SF57-2151800AU-1W |
|
1.7A |
SF57-1901700AU-1W |
SF57-1951700AU-1W |
SF57-2001700AU-1W |
SF57-2051700AU-1W |
SF57-2101700AU-1W |
SF57-2151700AU-1W |
|
1.6A |
SF57-1901600AU-1W |
SF57-1951600AU-1W |
SF57-2001600AU-1W |
SF57-2051600AU-1W |
SF57-2101600AU-1W |
SF57-2151600AU-1W |
|
1.5A |
SF57-1901500AU-1W |
SF57-1951500AU-1W |
SF57-2001500AU-1W |
SF57-2051500AU-1W |
SF57-2101500AU-1W |
SF57-2151500AU-1W |
|
1.4A |
SF57-1901400AU-1W |
SF57-1951400AU-1W |
SF57-2001400AU-1W |
SF57-2051400AU-1W |
SF57-2101400AU-1W |
SF57-2151400AU-1W |
|
1.3A |
SF57-1901300AU-1W |
SF57-1951300AU-1W |
SF57-2001300AU-1W |
SF57-2051300AU-1W |
SF57-2101300AU-1W |
SF57-2151300AU-1W |
|
1.2A |
SF57-1901200AU-1W |
SF57-1951200AU-1W |
SF57-2001200AU-1W |
SF57-2051200AU-1W |
SF57-2101200AU-1W |
SF57-2151200AU-1W |
|
1.1A |
SF57-1901100AU-1W |
SF57-1951100AU-1W |
SF57-2001100AU-1W |
SF57-2051100AU-1W |
SF57-2101100AU-1W |
SF57-2151100AU-1W |
|
1.0A |
SF57-1901000AU-1W |
SF57-1951000AU-1W |
SF57-2001000AU-1W |
SF57-2051000AU-1W |
SF57-2101000AU-1W |
SF57-2151000AU-1W |
|
0.9A |
SF57-1900900AU-1W |
SF57-1950900AU-1W |
SF57-2000900AU-1W |
SF57-2050900AU-1W |
SF57-2100900AU-1W |
SF57-2150900AU-1W |
|
0.8A |
|
|
SF57-2000800AU-1W |
SF57-2050800AU-1W |
SF57-2100800AU-1W |
SF57-2150800AU-1W |
|
0.7A |
|
|
|
|
SF57-2100700AU-1W |
SF57-2150700AU-1W |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
3.1A |
SF57-1603100AU-1W |
|
|
|
|
|
|
3.0A |
SF57-1603000AU-1W |
SF57-1653000AU-1W |
|
|
|
|
|
2.9A |
SF57-1602900AU-1W |
SF57-1652900AU-1W |
SF57-1702900AU-1W |
|
|
|
|
2.8A |
SF57-1602800AU-1W |
SF57-1652800AU-1W |
SF57-1702800AU-1W |
SF57-1752800AU-1W |
|
|
|
2.7A |
SF57-1602700AU-1W |
SF57-1652700AU-1W |
SF57-1702700AU-1W |
SF57-1752700AU-1W |
SF57-1802700AU-1W |
|
|
2.6A |
SF57-1602600AU-1W |
SF57-1652600AU-1W |
SF57-1702600AU-1W |
SF57-1752600AU-1W |
SF57-1802600AU-1W |
SF57-1852600AU-1W |
|
2.5A |
SF57-1602500AU-1W |
SF57-1652500AU-1W |
SF57-1702500AU-1W |
SF57-1752500AU-1W |
SF57-1802500AU-1W |
SF57-1852500AU-1W |
|
2.4A |
SF57-1602400AU-1W |
SF57-1652400AU-1W |
SF57-1702400AU-1W |
SF57-1752400AU-1W |
SF57-1802400AU-1W |
SF57-1852400AU-1W |
|
2.3A |
SF57-1602300AU-1W |
SF57-1652300AU-1W |
SF57-1702300AU-1W |
SF57-1752300AU-1W |
SF57-1802300AU-1W |
SF57-1852300AU-1W |
|
2.2A |
SF57-1602200AU-1W |
SF57-1652200AU-1W |
SF57-1702200AU-1W |
SF57-1752200AU-1W |
SF57-1802200AU-1W |
SF57-1852200AU-1W |
|
2.1A |
SF57-1602100AU-1W |
SF57-1652100AU-1W |
SF57-1702100AU-1W |
SF57-1752100AU-1W |
SF57-1802100AU-1W |
SF57-1852100AU-1W |
|
2.0A |
SF57-1602000AU-1W |
SF57-1652000AU-1W |
SF57-1702000AU-1W |
SF57-1752000AU-1W |
SF57-1802000AU-1W |
SF57-1852000AU-1W |
|
1.9A |
SF57-1601900AU-1W |
SF57-1651900AU-1W |
SF57-1701900AU-1W |
SF57-1751900AU-1W |
SF57-1801900AU-1W |
SF57-1851900AU-1W |
|
1.8A |
SF57-1601800AU-1W |
SF57-1651800AU-1W |
SF57-1701800AU-1W |
SF57-1751800AU-1W |
SF57-1801800AU-1W |
SF57-1851800AU-1W |
|
1.7A |
SF57-1601700AU-1W |
SF57-1651700AU-1W |
SF57-1701700AU-1W |
SF57-1751700AU-1W |
SF57-1801700AU-1W |
SF57-1851700AU-1W |
|
1.6A |
SF57-1601600AU-1W |
SF57-1651600AU-1W |
SF57-1701600AU-1W |
SF57-1751600AU-1W |
SF57-1801600AU-1W |
SF57-1851600AU-1W |
|
1.5A |
SF57-1601500AU-1W |
SF57-1651500AU-1W |
SF57-1701500AU-1W |
SF57-1751500AU-1W |
SF57-1801500AU-1W |
SF57-1851500AU-1W |
|
1.4A |
SF57-1601400AU-1W |
SF57-1651400AU-1W |
SF57-1701400AU-1W |
SF57-1751400AU-1W |
SF57-1801400AU-1W |
SF57-1851400AU-1W |
|
1.3A |
SF57-1601300AU-1W |
SF57-1651300AU-1W |
SF57-1701300AU-1W |
SF57-1751300AU-1W |
SF57-1801300AU-1W |
SF57-1851300AU-1W |
|
1.2A |
SF57-1601200AU-1W |
SF57-1651200AU-1W |
SF57-1701200AU-1W |
SF57-1751200AU-1W |
SF57-1801200AU-1W |
SF57-1851200AU-1W |
|
1.1A |
SF57-1601100AU-1W |
SF57-1651100AU-1W |
SF57-1701100AU-1W |
SF57-1751100AU-1W |
SF57-1801100AU-1W |
SF57-1851100AU-1W |
|
1.0A |
|
|
SF57-1701000AU-1W |
SF57-1751000AU-1W |
SF57-1801000AU-1W |
SF57-1851000AU-1W |
|
0.9A |
|
|
|
|
SF57-1800900AU-1W |
SF57-1850900AU-1W |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
3.8A |
SF57-1303800AU-1W |
|
|
|
|
|
|
3.7A |
SF57-1303700AU-1W |
SF57-1353700AU-1W |
|
|
|
|
|
3.6A |
SF57-1303600AU-1W |
SF57-1353600AU-1W |
SF57-1403600AU-1W |
|
|
|
|
3.5A |
SF57-1303500AU-1W |
SF57-1353500AU-1W |
SF57-1403500AU-1W |
SF57-1453500AU-1W |
|
|
|
3.4A |
SF57-1303400AU-1W |
SF57-1353400AU-1W |
SF57-1403400AU-1W |
SF57-1453400AU-1W |
|
|
|
3.3A |
SF57-1303300AU-1W |
SF57-1353300AU-1W |
SF57-1403300AU-1W |
SF57-1453300AU-1W |
SF57-1503300AU-1W |
|
|
3.2A |
SF57-1303200AU-1W |
SF57-1353200AU-1W |
SF57-1403200AU-1W |
SF57-1453200AU-1W |
SF57-1503200AU-1W |
SF57-1553200AU-1W |
|
3.1A |
SF57-1303100AU-1W |
SF57-1353100AU-1W |
SF57-1403100AU-1W |
SF57-1451000AU-1W |
SF57-1503100AU-1W |
SF57-1553100AU-1W |
|
3.0A |
SF57-1303000AU-1W |
SF57-1353000AU-1W |
SF57-1403000AU-1W |
SF57-1453000AU-1W |
SF57-1503000AU-1W |
SF57-1553000AU-1W |
|
2.9A |
SF57-1302900AU-1W |
SF57-1352900AU-1W |
SF57-1402900AU-1W |
SF57-1452900AU-1W |
SF57-1502900AU-1W |
SF57-1552900AU-1W |
|
2.8A |
SF57-1302800AU-1W |
SF57-1352800AU-1W |
SF57-1402800AU-1W |
SF57-1452800AU-1W |
SF57-1502800AU-1W |
SF57-1552800AU-1W |
|
2.7A |
SF57-1302700AU-1W |
SF57-1352700AU-1W |
SF57-1402700AU-1W |
SF57-1452700AU-1W |
SF57-1502700AU-1W |
SF57-1552700AU-1W |
|
2.6A |
SF57-1302600AU-1W |
SF57-1352600AU-1W |
SF57-1402600AU-1W |
SF57-1452600AU-1W |
SF57-1202600AU-1W |
SF57-1552600AU-1W |
|
2.5A |
SF57-1302500AU-1W |
SF57-1352500AU-1W |
SF57-1402500AU-1W |
SF57-1452500AU-1W |
SF57-1202500AU-1W |
SF57-1552500AU-1W |
|
2.4A |
SF57-1302400AU-1W |
SF57-1352400AU-1W |
SF57-1402400AU-1W |
SF57-1452400AU-1W |
SF57-1202400AU-1W |
SF57-1552400AU-1W |
|
2.3A |
SF57-1302300AU-1W |
SF57-1352300AU-1W |
SF57-1402300AU-1W |
SF57-1452300AU-1W |
SF57-1202300AU-1W |
SF57-1552300AU-1W |
|
2.2A |
SF57-1302200AU-1W |
SF57-1352200AU-1W |
SF57-1402200AU-1W |
SF57-1452200AU-1W |
SF57-1202200AU-1W |
SF57-1552200AU-1W |
|
2.1A |
SF57-1302100AU-1W |
SF57-1352100AU-1W |
SF57-1402100AU-1W |
SF57-1452100AU-1W |
SF57-1202100AU-1W |
SF57-1552100AU-1W |
|
2.0A |
SF57-1302000AU-1W |
SF57-1352000AU-1W |
SF57-1402000AU-1W |
SF57-1452000AU-1W |
SF57-1202000AU-1W |
SF57-1552000AU-1W |
|
1.9A |
SF57-1301900AU-1W |
SF57-1351900AU-1W |
SF57-1401900AU-1W |
SF57-1451900AU-1W |
SF57-1201900AU-1W |
SF57-1551900AU-1W |
|
1.8A |
SF57-1301800AU-1W |
SF57-1351800AU-1W |
SF57-1401800AU-1W |
SF57-1451800AU-1W |
SF57-1201800AU-1W |
SF57-1551800AU-1W |
|
1.7A |
SF57-1301700AU-1W |
SF57-1351700AU-1W |
SF57-1401700AU-1W |
SF57-1451700AU-1W |
SF57-1201700AU-1W |
SF57-1551700AU-1W |
|
1.6A |
SF57-1301600AU-1W |
SF57-1351600AU-1W |
SF57-1401600AU-1W |
SF57-1451600AU-1W |
SF57-1201600AU-1W |
SF57-1551600AU-1W |
|
1.5A |
|
|
SF57-1401500AU-1W |
SF57-1451500AU-1W |
SF57-1201500AU-1W |
SF57-1551500AU-1W |
|
1.4A |
|
|
|
|
SF57-1201400AU-1W |
SF57-1551400AU-1W |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
4.6A |
SF57-1004600AU-1W |
|
|
|
|
|
|
4.5A |
SF57-1004500AU-1W |
SF57-1054500AU-1W |
|
|
|
|
|
4.4A |
SF57-1004400AU-1W |
SF57-1054400AU-1W |
SF57-1104400AU-1W |
|
|
|
|
4.3A |
SF57-1004300AU-1W |
SF57-1054300AU-1W |
SF57-1104300AU-1W |
|
|
|
|
4.2A |
SF57-1004200AU-1W |
SF57-1054200AU-1W |
SF57-1104200AU-1W |
SF57-1154200AU-1W |
|
|
|
4.1A |
SF57-1004100AU-1W |
SF57-1054100AU-1W |
SF57-1104100AU-1W |
SF57-1154100AU-1W |
SF57-1204100AU-1W |
|
|
4.0A |
SF57-1004000AU-1W |
SF57-1054000AU-1W |
SF57-1104000AU-1W |
SF57-1154000AU-1W |
SF57-1204000AU-1W |
SF57-1254000AU-1W |
|
3.9A |
SF57-1003900AU-1W |
SF57-1053900AU-1W |
SF57-1103900AU-1W |
SF57-1153900AU-1W |
SF57-1203900AU-1W |
SF57-1253900AU-1W |
|
3.8A |
SF57-1003800AU-1W |
SF57-1053800AU-1W |
SF57-1103800AU-1W |
SF57-1153800AU-1W |
SF57-1203800AU-1W |
SF57-1253800AU-1W |
|
3.7A |
SF57-1003700AU-1W |
SF57-1053700AU-1W |
SF57-1103700AU-1W |
SF57-1153700AU-1W |
SF57-1203700AU-1W |
SF57-1253700AU-1W |
|
3.6A |
SF57-1003600AU-1W |
SF57-1053600AU-1W |
SF57-1103600AU-1W |
SF57-1153600AU-1W |
SF57-1203600AU-1W |
SF57-1253600AU-1W |
|
3.5A |
SF57-1003500AU-1W |
SF57-1053500AU-1W |
SF57-1103500AU-1W |
SF57-1153500AU-1W |
SF57-1203500AU-1W |
SF57-1253500AU-1W |
|
3.4A |
SF57-1003400AU-1W |
SF57-1053400AU-1W |
SF57-1103400AU-1W |
SF57-1153400AU-1W |
SF57-1203400AU-1W |
SF57-1253400AU-1W |
|
3.3A |
SF57-1003300AU-1W |
SF57-1053300AU-1W |
SF57-1103300AU-1W |
SF57-1153300AU-1W |
SF57-1203300AU-1W |
SF57-1253300AU-1W |
|
3.2A |
SF57-1003200AU-1W |
SF57-1053200AU-1W |
SF57-1103200AU-1W |
SF57-1153200AU-1W |
SF57-1203200AU-1W |
SF57-1253200AU-1W |
|
3.1A |
SF57-1003000AU-1W |
SF57-1053000AU-1W |
SF57-1103000AU-1W |
SF57-1153000AU-1W |
SF57-1203000AU-1W |
SF57-1253000AU-1W |
|
3.0A |
SF57-1003000AU-1W |
SF57-1053000AU-1W |
SF57-1103000AU-1W |
SF57-1153000AU-1W |
SF57-1203000AU-1W |
SF57-1253000AU-1W |
|
2.9A |
SF57-1002900AU-1W |
SF57-1052900AU-1W |
SF57-1102900AU-1W |
SF57-1152900AU-1W |
SF57-1202900AU-1W |
SF57-1252900AU-1W |
|
2.8A |
SF57-1002800AU-1W |
SF57-1052800AU-1W |
SF57-1102800AU-1W |
SF57-1152800AU-1W |
SF57-1202800AU-1W |
SF57-1252800AU-1W |
|
2.7A |
SF57-1002700AU-1W |
SF57-1052700AU-1W |
SF57-1102700AU-1W |
SF57-1152700AU-1W |
SF57-1202700AU-1W |
SF57-1252700AU-1W |
|
2.6A |
SF57-1002600AU-1W |
SF57-1052600AU-1W |
SF57-1102600AU-1W |
SF57-1152600AU-1W |
SF57-1202600AU-1W |
SF57-1252600AU-1W |
|
2.5A |
SF57-1002500AU-1W |
SF57-1052500AU-1W |
SF57-1102500AU-1W |
SF57-1152500AU-1W |
SF57-1202500AU-1W |
SF57-1252500AU-1W |
|
2.4A |
SF57-1002400AU-1W |
SF57-1052400AU-1W |
SF57-1102400AU-1W |
SF57-1152400AU-1W |
SF57-1202400AU-1W |
SF57-1252400AU-1W |
|
2.3A |
SF57-1002300AU-1W |
SF57-1052300AU-1W |
SF57-1102300AU-1W |
SF57-1152300AU-1W |
SF57-1202300AU-1W |
SF57-1252300AU-1W |
|
2.2A |
SF57-1002200AU-1W |
SF57-1052200AU-1W |
SF57-1102200AU-1W |
SF57-1152200AU-1W |
SF57-1202200AU-1W |
SF57-1252200AU-1W |
|
2.1A |
SF57-1002100AU-1W |
SF57-1052100AU-1W |
SF57-1102100AU-1W |
SF57-1152100AU-1W |
SF57-1202100AU-1W |
SF57-1252100AU-1W |
|
2.0A |
SF57-1002000AU-1W |
SF57-1052000AU-1W |
SF57-1102000AU-1W |
SF57-1152000AU-1W |
SF57-1202000AU-1W |
SF57-1252000AU-1W |
|
1.9A |
SF57-1001900AU-1W |
SF57-1051900AU-1W |
SF57-1101900AU-1W |
SF57-1151900AU-1W |
SF57-1201900AU-1W |
SF57-1251900AU-1W |
|
1.8A |
SF57-1001800AU-1W |
SF57-1051800AU-1W |
SF57-1101800AU-1W |
SF57-1151800AU-1W |
SF57-1201800AU-1W |
SF57-1251800AU-1W |
|
1.7A |
SF57-1001700AU-1W |
SF57-1051700AU-1W |
SF57-1101700AU-1W |
SF57-1151700AU-1W |
SF57-1201700AU-1W |
SF57-1251700AU-1W |
|
1.6A |
SF57-1001600AU-1W |
SF57-1051600AU-1W |
SF57-1101600AU-1W |
SF57-1151600AU-1W |
SF57-1201600AU-1W |
SF57-1251600AU-1W |
|
1.5A |
|
|
SF57-1101500AU-1W |
SF57-1151500AU-1W |
SF57-1201500AU-1W |
SF57-1251500AU-1W |
|
1.4A |
|
|
|
|
SF57-1201400AU-1W |
SF57-1251400AU-1W |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
5.2A |
SF57-0705200AU-1W |
|
|
|
|
|
|
5.1A |
SF57-0705100AU-1W |
SF57-0755100AU-1W |
|
|
|
|
|
5.0A? |
SF57-0705000AU-1W |
SF57-0755000AU-1W |
SF57-0805000AU-1W |
|
|
|
|
4.9A |
SF57-0704900AU-1W |
SF57-0754900AU-1W |
SF57-0804900AU-1W |
SF57-0854900AU-1W |
|
|
|
4.8A |
SF57-0704800AU-1W |
SF57-0754800AU-1W |
SF57-0804800AU-1W |
SF57-0854800AU-1W |
SF57-0904800AU-1W |
|
|
4.7A |
SF57-0704700AU-1W |
SF57-0754700AU-1W |
SF57-0804700AU-1W |
SF57-0854700AU-1W |
SF57-0904700AU-1W |
SF57-0954700AU-1W |
|
4.6A |
SF57-0704600AU-1W |
SF57-0754600AU-1W |
SF57-0804600AU-1W |
SF57-0854600AU-1W |
SF57-0904600AU-1W |
SF57-0954600AU-1W |
|
4.5A |
SF57-0704500AU-1W |
SF57-0754500AU-1W |
SF57-0804500AU-1W |
SF57-0854500AU-1W |
SF57-0904500AU-1W |
SF57-0954500AU-1W |
|
4.4A |
SF57-0704400AU-1W |
SF57-0754400AU-1W |
SF57-0804400AU-1W |
SF57-0854400AU-1W |
SF57-0904400AU-1W |
SF57-0954400AU-1W |
|
4.3A |
SF57-0704300AU-1W |
SF57-0754300AU-1W |
SF57-0804300AU-1W |
SF57-0854300AU-1W |
SF57-0904300AU-1W |
SF57-0954300AU-1W |
|
4.2A |
SF57-0704200AU-1W |
SF57-0754200AU-1W |
SF57-0804200AU-1W |
SF57-0854200AU-1W |
SF57-0904200AU-1W |
SF57-0954200AU-1W |
|
4.1A |
SF57-0704100AU-1W |
SF57-0754100AU-1W |
SF57-0804100AU-1W |
SF57-0854100AU-1W |
SF57-0904100AU-1W |
SF57-0954100AU-1W |
|
4.0A |
SF57-0704000AU-1W |
SF57-0754000AU-1W |
SF57-0804000AU-1W |
SF57-0854000AU-1W |
SF57-0904000AU-1W |
SF57-0954000AU-1W |
|
3.9A |
SF57-0703900AU-1W |
SF57-0753900AU-1W |
SF57-0803900AU-1W |
SF57-0853900AU-1W |
SF57-0903900AU-1W |
SF57-0953900AU-1W |
|
3.8A |
SF57-0703800AU-1W |
SF57-0753800AU-1W |
SF57-0803800AU-1W |
SF57-0853800AU-1W |
SF57-0903800AU-1W |
SF57-0953800AU-1W |
|
3.7A |
SF57-0703700AU-1W |
SF57-0753700AU-1W |
SF57-0803700AU-1W |
SF57-0853700AU-1W |
SF57-0903700AU-1W |
SF57-0953700AU-1W |
|
3.6A |
SF57-0703600AU-1W |
SF57-0753600AU-1W |
SF57-0803600AU-1W |
SF57-0853600AU-1W |
SF57-0903600AU-1W |
SF57-0953600AU-1W |
|
3.5A |
SF57-0703500AU-1W |
SF57-0753500AU-1W |
SF57-0803500AU-1W |
SF57-0853500AU-1W |
SF57-0903500AU-1W |
SF57-0953500AU-1W |
|
3.4A |
SF57-0703400AU-1W |
SF57-0753400AU-1W |
SF57-0803400AU-1W |
SF57-0853400AU-1W |
SF57-0903400AU-1W |
SF57-0953400AU-1W |
|
3.3A |
SF57-0703300AU-1W |
SF57-0753300AU-1W |
SF57-0803300AU-1W |
SF57-0853300AU-1W |
SF57-0903300AU-1W |
SF57-0953300AU-1W |
|
3.2A |
SF57-0703200AU-1W |
SF57-0753200AU-1W |
SF57-0803200AU-1W |
SF57-0853200AU-1W |
SF57-0903200AU-1W |
SF57-0953200AU-1W |
|
3.1A |
SF57-0703000AU-1W |
SF57-0753000AU-1W |
SF57-0803000AU-1W |
SF57-0853000AU-1W |
SF57-0903000AU-1W |
SF57-0953000AU-1W |
|
3.0A |
SF57-0703000AU-1W |
SF57-0753000AU-1W |
SF57-0803000AU-1W |
SF57-0853000AU-1W |
SF57-0903000AU-1W |
SF57-0953000AU-1W |
|
2.9A |
SF57-0702900AU-1W |
SF57-0752900AU-1W |
SF57-0802900AU-1W |
SF57-0852900AU-1W |
SF57-0902900AU-1W |
SF57-0952900AU-1W |
|
2.8A |
SF57-0702800AU-1W |
SF57-0752800AU-1W |
SF57-0802800AU-1W |
SF57-0852800AU-1W |
SF57-0902800AU-1W |
SF57-0952800AU-1W |
|
2.7A |
SF57-0702700AU-1W |
SF57-0752700AU-1W |
SF57-0802700AU-1W |
SF57-0852700AU-1W |
SF57-0902700AU-1W |
SF57-0952700AU-1W |
|
2.6A |
SF57-0702600AU-1W |
SF57-0752600AU-1W |
SF57-0802600AU-1W |
SF57-0852600AU-1W |
SF57-0902600AU-1W |
SF57-0952600AU-1W |
|
2.5A |
SF57-0702500AU-1W |
SF57-0752500AU-1W |
SF57-0802500AU-1W |
SF57-0852500AU-1W |
SF57-0902500AU-1W |
SF57-0952500AU-1W |
|
2.4A |
SF57-0702400AU-1W |
SF57-0752400AU-1W |
SF57-0802400AU-1W |
SF57-0852400AU-1W |
SF57-0902400AU-1W |
SF57-0952400AU-1W |
|
2.3A |
SF57-0702300AU-1W |
SF57-0752300AU-1W |
SF57-0802300AU-1W |
SF57-0852300AU-1W |
SF57-0902300AU-1W |
SF57-0952300AU-1W |
|
2.2A |
|
|
SF57-0802200AU-1W |
SF57-0852200AU-1W |
SF57-0902200AU-1W |
SF57-0952200AU-1W |
|
2.1A |
|
|
|
|
SF57-0902100AU-1W |
SF57-0952100AU-1W |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
6.0A |
SF57-0406000AU-1W |
|
|
|
|
|
|
5.7A |
SF57-0405700AU-1W |
SF57-0455700AU-1W |
SF57-0505700AU-1W |
|
|
|
|
5.5A |
SF57-0405500AU-1W |
SF57-0455500AU-1W |
SF57-0505500AU-1W |
SF57-0555500AU-1W |
SF57-0605500AU-1W |
|
|
5.0A |
SF57-0405000AU-1W |
SF57-0455000AU-1W |
SF57-0505000AU-1W |
SF57-0555000AU-1W |
SF57-0605000AU-1W |
SF57-0655000AU-1W |
|
4.5A |
SF57-0404500AU-1W |
SF57-0454500AU-1W |
SF57-0504500AU-1W |
SF57-0554500AU-1W |
SF57-0604500AU-1W |
SF57-0654500AU-1W |
|
4.4A |
SF57-0404400AU-1W |
SF57-0454400AU-1W |
SF57-0504400AU-1W |
SF57-0554400AU-1W |
SF57-0604400AU-1W |
SF57-0654400AU-1W |
|
4.3A |
SF57-0404300AU-1W |
SF57-0454300AU-1W |
SF57-0504300AU-1W |
SF57-0554300AU-1W |
SF57-0604300AU-1W |
SF57-0654300AU-1W |
|
4.2A |
SF57-0404200AU-1W |
SF57-0454200AU-1W |
SF57-0504200AU-1W |
SF57-0554200AU-1W |
SF57-0604200AU-1W |
SF57-0654200AU-1W |
|
4.1A |
SF57-0404100AU-1W |
SF57-0454100AU-1W |
SF57-0504100AU-1W |
SF57-0554100AU-1W |
SF57-0604100AU-1W |
SF57-0654100AU-1W |
|
4.0A |
SF57-0404000AU-1W |
SF57-0454000AU-1W |
SF57-0504000AU-1W |
SF57-0554000AU-1W |
SF57-0604000AU-1W |
SF57-0654000AU-1W |
|
3.9A |
SF57-0403900AU-1W |
SF57-0453900AU-1W |
SF57-0503900AU-1W |
SF57-0553900AU-1W |
SF57-0603900AU-1W |
SF57-0653900AU-1W |
|
3.8A |
SF57-0403800AU-1W |
SF57-0453800AU-1W |
SF57-0503800AU-1W |
SF57-0553800AU-1W |
SF57-0603800AU-1W |
SF57-0653800AU-1W |
|
3.7A |
SF57-0403700AU-1W |
SF57-0453700AU-1W |
SF57-0503700AU-1W |
SF57-0553700AU-1W |
SF57-0603700AU-1W |
SF57-0653700AU-1W |
|
3.6A |
SF57-0403600AU-1W |
SF57-0453600AU-1W |
SF57-0503600AU-1W |
SF57-0553600AU-1W |
SF57-0603600AU-1W |
SF57-0653600AU-1W |
|
3.5A |
SF57-0403500AU-1W |
SF57-0453500AU-1W |
SF57-0503500AU-1W |
SF57-0553500AU-1W |
SF57-0603500AU-1W |
SF57-0653500AU-1W |
|
3.4A |
SF57-0403400AU-1W |
SF57-0453400AU-1W |
SF57-0503400AU-1W |
SF57-0553400AU-1W |
SF57-0603400AU-1W |
SF57-0653400AU-1W |
|
3.3A |
SF57-0403300AU-1W |
SF57-0453300AU-1W |
SF57-0503300AU-1W |
SF57-0553300AU-1W |
SF57-0603300AU-1W |
SF57-0653300AU-1W |
|
3.2A |
SF57-0403200AU-1W |
SF57-0453200AU-1W |
SF57-0503200AU-1W |
SF57-0553200AU-1W |
SF57-0603200AU-1W |
SF57-0653200AU-1W |
|
3.1A |
|
|
SF57-0503100AU-1W |
SF57-0553100AU-1W |
SF57-0603100AU-1W |
SF57-0653100AU-1W |
|
3.0A |
|
|
|
|
SF57-0603000AU-1W |
SF57-0653000AU-1W |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
7.0A |
SF57-0107000AU-1W |
SF57-0157000AU-1W |
SF57-0207000AU-1W |
SF57-0257000AU-1W |
SF57-0307000AU-1W |
|
|
6.5A |
SF57-0106500AU-1W |
SF57-0156500AU-1W |
SF57-0206500AU-1W |
SF57-0256500AU-1W |
SF57-0306500AU-1W |
SF57-0356500AU-1W |
|
6.0A |
SF57-0106000AU-1W |
SF57-0156000AU-1W |
SF57-0206000AU-1W |
SF57-0256000AU-1W |
SF57-0306000AU-1W |
SF57-0356000AU-1W |
|
5.5A |
SF57-0105500AU-1W |
SF57-0155500AU-1W |
SF57-0205500AU-1W |
SF57-0255500AU-1W |
SF57-0305500AU-1W |
SF57-0355500AU-1W |
|
5.0A |
SF57-0105000AU-1W |
SF57-0155000AU-1W |
SF57-0205000AU-1W |
SF57-0255000AU-1W |
SF57-0305000AU-1W |
SF57-0355000AU-1W |
|
4.5A |
SF57-0104500AU-1W |
SF57-0154500AU-1W |
SF57-0204500AU-1W |
SF57-0254500AU-1W |
SF57-0304500AU-1W |
SF57-0354500AU-1W |
|
4.4A |
SF57-0104400AU-1W |
SF57-0154400AU-1W |
SF57-0204400AU-1W |
SF57-0254400AU-1W |
SF57-0304400AU-1W |
SF57-0354400AU-1W |
|
4.3A |
SF57-0104300AU-1W |
SF57-0154300AU-1W |
SF57-0204300AU-1W |
SF57-0254300AU-1W |
SF57-0304300AU-1W |
SF57-0354300AU-1W |
|
4.2A |
SF57-0104200AU-1W |
SF57-0154200AU-1W |
SF57-0204200AU-1W |
SF57-0254200AU-1W |
SF57-0304200AU-1W |
SF57-0354200AU-1W |
|
4.1A |
SF57-0104100AU-1W |
SF57-0154100AU-1W |
SF57-0204100AU-1W |
SF57-0254100AU-1W |
SF57-0304100AU-1W |
SF57-0354100AU-1W |
|
4.0A |
SF57-0104000AU-1W |
SF57-0154000AU-1W |
SF57-0204000AU-1W |
SF57-0254000AU-1W |
SF57-0304000AU-1W |
SF57-0354000AU-1W |
|
3.9A |
SF57-0103900AU-1W |
SF57-0153900AU-1W |
SF57-0203900AU-1W |
SF57-0253900AU-1W |
SF57-0303900AU-1W |
SF57-0353900AU-1W |
|
3.8A |
SF57-0103800AU-1W |
SF57-0153800AU-1W |
SF57-0203800AU-1W |
SF57-0253800AU-1W |
SF57-0303800AU-1W |
SF57-0353800AU-1W |
|
3.7A |
SF57-0103700AU-1W |
SF57-0153700AU-1W |
SF57-0203700AU-1W |
SF57-0253700AU-1W |
SF57-0303700AU-1W |
SF57-0353700AU-1W |
|
3.6A |
SF57-0103600AU-1W |
SF57-0153600AU-1W |
SF57-0203600AU-1W |
SF57-0253600AU-1W |
SF57-0303600AU-1W |
SF57-0353600AU-1W |
|
3.5A |
SF57-0103500AU-1W |
SF57-0153500AU-1W |
SF57-0203500AU-1W |
SF57-0253500AU-1W |
SF57-0303500AU-1W |
SF57-0353500AU-1W |
 |
 |
 |
 |
 |
 |
