LINEAR ADAPTOR
WALLMOUNT - DUAL OUTPUT

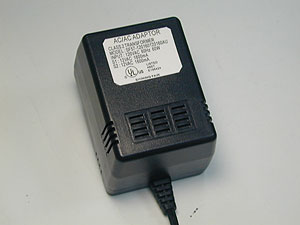

EI 57 AC TO AC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-26V AC, S2:1-26V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-3A, S2:0.1-3A |
|
|
|
Output Watt |
38.4VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to AC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
|
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF57-aaaYYaaaYYAU |
3V AC |
3A |
3V AC |
3A |
18VA |
|
x = b |
SF57-bbbYYbbbYYAU |
5V AC |
2.5A |
5V AC |
2.5A |
25VA |
|
x = c |
SF57-cccYYcccYYAU |
7V AC |
2A |
7V AC |
2A |
28VA |
|
x = d |
SF57-dddYYdddYYAU |
9V AC |
1.7A |
9V AC |
1.7A |
30.6VA |
|
x = e |
SF57-eeeYYeeeYYAU |
12V AC |
1.4A |
12V AC |
1.4A |
33.6VA |
|
x = f |
SF57-fffYYfffYYAU |
18V AC |
1A |
18V AC |
1A |
36VA |
|
x = g |
SF57-gggYYgggYYAU |
20V AC |
0.9A |
20V AC |
0.9A |
36VA |
|
x = h |
SF57-hhhYYhhhYYAU |
24V AC |
0.8A |
24V AC |
0.8A |
38.4VA |
|
x = i |
SF57-iiiYYiiiYYAU |
26V AC |
0.7A |
26V AC |
0.7A |
36.4VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF57-0153003030AU |
1.5V AC |
3A |
3V AC |
3A |
13.5VA |
|
|
SF57-0502505025AU |
5V AC |
2.5A |
5V AC |
2.5A |
25VA |
|
|
SF57-0302706020AU |
3V AC |
2.7A |
6V AC |
2A |
20.1VA |
|
|
SF57-0502009017AU |
5V AC |
2A |
9V AC |
1.7A |
25.3VA |
|
|
SF57-0502512014AU |
5V AC |
2.5A |
12V AC |
1.4A |
29.3VA |
|
|
SF57-0501512010AU |
5V AC |
1.5A |
12V AC |
1A |
19.5VA |
|
|
SF57-1201419009AU |
12V AC |
1.4A |
19V AC |
0.9A |
33.9VA |
|
|
SF57-1850924008AU |
18.5V AC |
0.9A |
24V AC |
0.8A |
35.85VA |
|
|
SF57-2600526007AU |
26V AC |
0.5A |
26V AC |
0.7A |
31.2VA |
|
 |
 |
 |
 |
 |
 |
