LINEAR ADAPTOR
WALLMOUNT

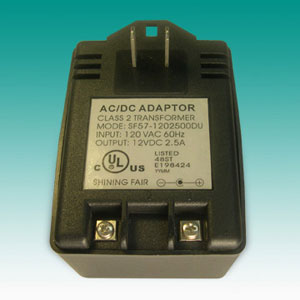

EI 57 AC TO DC ADAPTOR (US 2 PIN+SCREWED)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.5-6A |
|
|
|
Output Watt |
39VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
1.5A |
SF57-2501500DUW |
SF57-2551500DUW |
SF57-2601500DUW |
|
|
|
|
1.4A |
SF57-2501400DUW |
SF57-2551400DUW |
SF57-2601400DUW |
SF57-2651400DUW |
SF57-2701400DUW |
|
|
1.3A |
SF57-2501300DUW |
SF57-2551300DUW |
SF57-2601300DUW |
SF57-2651300DUW |
SF57-2701300DUW |
SF57-2801300DUW |
|
1.2A |
SF57-2501200DUW |
SF57-2551200DUW |
SF57-2601200DUW |
SF57-2651200DUW |
SF57-2701200DUW |
SF57-2801200DUW |
|
1.1A |
SF57-2501100DUW |
SF57-2551100DUW |
SF57-2601100DUW |
SF57-2651100DUW |
SF57-2701100DUW |
SF57-2801100DUW |
|
1.0A |
SF57-2501000DUW |
SF57-2551000DUW |
SF57-2601000DUW |
SF57-2651000DUW |
SF57-2701000DUW |
SF57-2801000DUW |
|
0.9A |
SF57-2500900DUW |
SF57-2550900DUW |
SF57-2600900DUW |
SF57-2650900DUW |
SF57-2700900DUW |
SF57-2800900DUW |
|
0.8A |
SF57-2500800DUW |
SF57-2550800DUW |
SF57-2600800DUW |
SF57-2650800DUW |
SF57-2700800DUW |
SF57-2800800DUW |
|
0.7A |
SF57-2500700DUW |
SF57-2550700DUW |
SF57-2600700DUW |
SF57-2650700DUW |
SF57-2700700DUW |
SF57-2800700DUW |
|
0.6A |
SF57-2500600DUW |
SF57-2550600DUW |
SF57-2600600DUW |
SF57-2650600DUW |
SF57-2700600DUW |
SF57-2800600DUW |
|
0.5A |
|
|
|
|
SF57-2700500DUW |
SF57-2800500DUW |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
1.6A |
SF57-2201600DUW |
SF57-2251600DUW |
SF57-2301600DUW |
SF57-2351600DUW |
SF57-2401600DUW |
|
|
1.5A |
SF57-2201500DUW |
SF57-2251500DUW |
SF57-2301500DUW |
SF57-2351500DUW |
SF57-2401500DUW |
SF57-2451500DUW |
|
1.4A |
SF57-2201400DUW |
SF57-2251400DUW |
SF57-2301400DUW |
SF57-2351400DUW |
SF57-2401400DUW |
SF57-2451400DUW |
|
1.3A |
SF57-2201300DUW |
SF57-2251300DUW |
SF57-2301300DUW |
SF57-2351300DUW |
SF57-2401300DUW |
SF57-2451300DUW |
|
1.2A |
SF57-2201200DUW |
SF57-2251200DUW |
SF57-2301200DUW |
SF57-2351200DUW |
SF57-2401200DUW |
SF57-2451200DUW |
|
1.1A |
SF57-2201100DUW |
SF57-2251100DUW |
SF57-2301100DUW |
SF57-2351100DUW |
SF57-2401100DUW |
SF57-2451100DUW |
|
1.0A |
SF57-2201000DUW |
SF57-2251000DUW |
SF57-2301000DUW |
SF57-2351000DUW |
SF57-2401000DUW |
SF57-2451000DUW |
|
0.9A |
SF57-2200900DUW |
SF57-2250900DUW |
SF57-2300900DUW |
SF57-2350900DUW |
SF57-2400900DUW |
SF57-2450900DUW |
|
0.8A |
SF57-2200800DUW |
SF57-2250800DUW |
SF57-2300800DUW |
SF57-2350800DUW |
SF57-2400800DUW |
SF57-2450800DUW |
|
0.7A |
|
|
SF57-2300700DUW |
SF57-2350700DUW |
SF57-2400700DUW |
SF57-2450700DUW |
|
0.6A |
|
|
|
|
SF57-2400600DUW |
SF57-2450600DUW |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.8A |
SF57-1901800DUW |
|
|
|
|
|
|
1.7A |
SF57-1901700DUW |
SF57-1951700DUW |
SF57-2001700DUW |
SF57-2051700DUW |
SF57-2101700DUW |
|
|
1.6A |
SF57-1901600DUW |
SF57-1951600DUW |
SF57-2001600DUW |
SF57-2051600DUW |
SF57-2101600DUW |
SF57-2151600DUW |
|
1.5A |
SF57-1901500DUW |
SF57-1951500DUW |
SF57-2001500DUW |
SF57-2051500DUW |
SF57-2101500DUW |
SF57-2151500DUW |
|
1.4A |
SF57-1901400DUW |
SF57-1951400DUW |
SF57-2001400DUW |
SF57-2051400DUW |
SF57-2101400DUW |
SF57-2151400DUW |
|
1.3A |
SF57-1901300DUW |
SF57-1951300DUW |
SF57-2001300DUW |
SF57-2051300DUW |
SF57-2101300DUW |
SF57-2151300DUW |
|
1.2A |
SF57-1901200DUW |
SF57-1951200DUW |
SF57-2001200DUW |
SF57-2051200DUW |
SF57-2101200DUW |
SF57-2151200DUW |
|
1.1A |
SF57-1901100DUW |
SF57-1951100DUW |
SF57-2001100DUW |
SF57-2051100DUW |
SF57-2101100DUW |
SF57-2151100DUW |
|
1.0A |
SF57-1901000DUW |
SF57-1951000DUW |
SF57-2001000DUW |
SF57-2051000DUW |
SF57-2101000DUW |
SF57-2151000DUW |
|
0.9A |
SF57-1900900DUW |
SF57-1950900DUW |
SF57-2000900DUW |
SF57-2050900DUW |
SF57-2100900DUW |
SF57-2150900DUW |
|
0.8A |
|
|
SF57-2000800DUW |
SF57-2050800DUW |
SF57-2100800DUW |
SF57-2150800DUW |
|
0.7A |
|
|
|
|
SF57-2100700DUW |
SF57-2150700DUW |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
2.0A |
SF57-1602000DUW |
SF57-1652000DUW |
|
|
|
|
|
1.9A |
SF57-1601900DUW |
SF57-1651900DUW |
SF57-1701900DUW |
SF57-1751900DUW |
SF57-1801900DUW |
|
|
1.8A |
SF57-1601800DUW |
SF57-1651800DUW |
SF57-1701800DUW |
SF57-1751800DUW |
SF57-1801800DUW |
SF57-1851800DUW |
|
1.7A |
SF57-1601700DUW |
SF57-1651700DUW |
SF57-1701700DUW |
SF57-1751700DUW |
SF57-1801700DUW |
SF57-1851700DUW |
|
1.6A |
SF57-1601600DUW |
SF57-1651600DUW |
SF57-1701600DUW |
SF57-1751600DUW |
SF57-1801600DUW |
SF57-1851600DUW |
|
1.5A |
SF57-1601500DUW |
SF57-1651500DUW |
SF57-1701500DUW |
SF57-1751500DUW |
SF57-1801500DUW |
SF57-1851500DUW |
|
1.4A |
SF57-1601400DUW |
SF57-1651400DUW |
SF57-1701400DUW |
SF57-1751400DUW |
SF57-1801400DUW |
SF57-1851400DUW |
|
1.3A |
SF57-1601300DUW |
SF57-1651300DUW |
SF57-1701300DUW |
SF57-1751300DUW |
SF57-1801300DUW |
SF57-1851300DUW |
|
1.2A |
SF57-1601200DUW |
SF57-1651200DUW |
SF57-1701200DUW |
SF57-1751200DUW |
SF57-1801200DUW |
SF57-1851200DUW |
|
1.1A |
SF57-1601100DUW |
SF57-1651100DUW |
SF57-1701100DUW |
SF57-1751100DUW |
SF57-1801100DUW |
SF57-1851100DUW |
|
1.0A |
SF57-1601000DUW |
SF57-1651000DUW |
SF57-1701000DUW |
SF57-1751000DUW |
SF57-1801000DUW |
SF57-1851000DUW |
|
0.9A |
SF57-1600900DUW |
SF57-1650900DUW |
SF57-1700900DUW |
SF57-1750900DUW |
SF57-1800900DUW |
SF57-1850900DUW |
|
0.8A |
|
|
SF57-1700800DUW |
SF57-1750800DUW |
SF57-1800800DUW |
SF57-1850800DUW |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
2.4A |
SF57-1302400DUW |
|
|
|
|
|
|
2.3A |
SF57-1302300DUW |
SF57-1352300DUW |
|
|
|
|
|
2.2A |
SF57-1302200DUW |
SF57-1352200DUW |
SF57-1402200DUW |
SF57-1452200DUW |
|
|
|
2.1A |
SF57-1302100DUW |
SF57-1352100DUW |
SF57-1402100DUW |
SF57-1452100DUW |
SF57-1502100DUW |
|
|
2.0A |
SF57-1302000DUW |
SF57-1352000DUW |
SF57-1402000DUW |
SF57-1452000DUW |
SF57-1502000DUW |
SF57-1552000DUW |
|
1.9A |
SF57-1301900DUW |
SF57-1351900DUW |
SF57-1401900DUW |
SF57-1451900DUW |
SF57-1501900DUW |
SF57-1551900DUW |
|
1.8A |
SF57-1301800DUW |
SF57-1351800DUW |
SF57-1401800DUW |
SF57-1451800DUW |
SF57-1501800DUW |
SF57-1551800DUW |
|
1.7A |
SF57-1301700DUW |
SF57-1351700DUW |
SF57-1401700DUW |
SF57-1451700DUW |
SF57-1501700DUW |
SF57-1551700DUW |
|
1.6A |
SF57-1301600DUW |
SF57-1351600DUW |
SF57-1401600DUW |
SF57-1451600DUW |
SF57-1501600DUW |
SF57-1551600DUW |
|
1.5A |
SF57-1301500DUW |
SF57-1351500DUW |
SF57-1401500DUW |
SF57-1451500DUW |
SF57-1501500DUW |
SF57-1551500DUW |
|
1.4A |
SF57-1301400DUW |
SF57-1351400DUW |
SF57-1401400DUW |
SF57-1451400DUW |
SF57-1501400DUW |
SF57-1551400DUW |
|
1.3A |
SF57-1301300DUW |
SF57-1351300DUW |
SF57-1401300DUW |
SF57-1451300DUW |
SF57-1501300DUW |
SF57-1551300DUW |
|
1.2A |
SF57-1301200DUW |
SF57-1351200DUW |
SF57-1401200DUW |
SF57-1451200DUW |
SF57-1501200DUW |
SF57-1551200DUW |
|
1.1A |
SF57-1301100DUW |
SF57-1351100DUW |
SF57-1401100DUW |
SF57-1451100DUW |
SF57-1501100DUW |
SF57-1551100DUW |
|
1.0A |
SF57-1301000DUW |
SF57-1351000DUW |
SF57-1401000DUW |
SF57-1451000DUW |
SF57-1501000DUW |
SF57-1551000DUW |
|
0.9A |
|
|
SF57-1400900DUW |
SF57-1450900DUW |
SF57-1500900DUW |
SF57-1550900DUW |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.9A |
SF57-1002900DUW |
|
|
|
|
|
|
2.8A |
SF57-1002800DUW |
|
|
|
|
|
|
2.7A |
SF57-1002700DUW |
SF57-1052700DUW |
SF57-1102700DUW |
|
|
|
|
2.6A |
SF57-1002600DUW |
SF57-1052600DUW |
SF57-1102600DUW |
SF57-1152600DUW |
|
|
|
2.5A |
SF57-1002500DUW |
SF57-1052500DUW |
SF57-1102500DUW |
SF57-1152500DUW |
SF57-1202500DUW |
|
|
2.4A |
SF57-1002400DUW |
SF57-1052400DUW |
SF57-1102400DUW |
SF57-1152400DUW |
SF57-1202400DUW |
SF57-1252400DUW |
|
2.3A |
SF57-1002300DUW |
SF57-1052300DUW |
SF57-1102300DUW |
SF57-1152300DUW |
SF57-1202300DUW |
SF57-1252300DUW |
|
2.2A |
SF57-1002200DUW |
SF57-1052200DUW |
SF57-1102200DUW |
SF57-1152200DUW |
SF57-1202200DUW |
SF57-1252200DUW |
|
2.1A |
SF57-1002100DUW |
SF57-1052100DUW |
SF57-1102100DUW |
SF57-1152100DUW |
SF57-1202100DUW |
SF57-1252100DUW |
|
2.0A |
SF57-1002000DUW |
SF57-1052000DUW |
SF57-1102000DUW |
SF57-1152000DUW |
SF57-1202000DUW |
SF57-1252000DUW |
|
1.9A |
SF57-1001900DUW |
SF57-1051900DUW |
SF57-1101900DUW |
SF57-1151900DUW |
SF57-1201900DUW |
SF57-1251900DUW |
|
1.8A |
SF57-1001800DUW |
SF57-1051800DUW |
SF57-1101800DUW |
SF57-1151800DUW |
SF57-1201800DUW |
SF57-1251800DUW |
|
1.7A |
SF57-1001700DUW |
SF57-1051700DUW |
SF57-1101700DUW |
SF57-1151700DUW |
SF57-1201700DUW |
SF57-1251700DUW |
|
1.6A |
SF57-1001600DUW |
SF57-1051600DUW |
SF57-1101600DUW |
SF57-1151600DUW |
SF57-1201600DUW |
SF57-1251600DUW |
|
1.5A |
SF57-1001500DUW |
SF57-1051500DUW |
SF57-1101500DUW |
SF57-1151500DUW |
SF57-1201500DUW |
SF57-1251500DUW |
|
1.4A |
|
|
SF57-1101400DUW |
SF57-1151400DUW |
SF57-1201400DUW |
SF57-1251400DUW |
|
1.3A |
|
|
|
|
SF57-1201300DUW |
SF57-1251300DUW |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
4.0A |
SF57-0704000DUW |
|
|
|
|
|
|
3.9A |
SF57-0703900DUW |
|
|
|
|
|
|
3.8A |
SF57-0703800DUW |
SF57-0753800DUW |
|
|
|
|
|
3.7A |
SF57-0703700DUW |
SF57-0753700DUW |
|
|
|
|
|
3.6A |
SF57-0703600DUW |
SF57-0753600DUW |
SF57-0803600DUW |
|
|
|
|
3.5A |
SF57-0703500DUW |
SF57-0753500DUW |
SF57-0803500DUW |
|
|
|
|
3.4A |
SF57-0703400DUW |
SF57-0753400DUW |
SF57-0803400DUW |
SF57-0853400DUW |
|
|
|
3.3A |
SF57-0703300DUW |
SF57-0753300DUW |
SF57-0803300DUW |
SF57-0853300DUW |
|
|
|
3.2A |
SF57-0703200DUW |
SF57-0753200DUW |
SF57-0803200DUW |
SF57-0853200DUW |
SF57-0903200DUW |
|
|
3.1A |
SF57-0703100DUW |
SF57-0753100DUW |
SF57-0803100DUW |
SF57-0853100DUW |
SF57-0903100DUW |
|
|
3.0A |
SF57-0703000DUW |
SF57-0753000DUW |
SF57-0803000DUW |
SF57-0853000DUW |
SF57-0903000DUW |
SF57-0953000DUW |
|
2.9A |
SF57-0702900DUW |
SF57-0752900DUW |
SF57-0802900DUW |
SF57-0852900DUW |
SF57-0902900DUW |
SF57-0952900DUW |
|
2.8A |
SF57-0702800DUW |
SF57-0752800DUW |
SF57-0802800DUW |
SF57-0852800DUW |
SF57-0902800DUW |
SF57-0952800DUW |
|
2.7A |
SF57-0702700DUW |
SF57-0752700DUW |
SF57-0802700DUW |
SF57-0852700DUW |
SF57-0902700DUW |
SF57-0952700DUW |
|
2.6A |
SF57-0702600DUW |
SF57-0752600DUW |
SF57-0802600DUW |
SF57-0852600DUW |
SF57-0902600DUW |
SF57-0952600DUW |
|
2.5A |
SF57-0702500DUW |
SF57-0752500DUW |
SF57-0802500DUW |
SF57-0852500DUW |
SF57-0902500DUW |
SF57-0952500DUW |
|
2.4A |
SF57-0702400DUW |
SF57-0752400DUW |
SF57-0802400DUW |
SF57-0852400DUW |
SF57-0902400DUW |
SF57-0952400DUW |
|
2.3A |
SF57-0702300DUW |
SF57-0752300DUW |
SF57-0802300DUW |
SF57-0852300DUW |
SF57-0902300DUW |
SF57-0952300DUW |
|
2.2A |
SF57-0702200DUW |
SF57-0752200DUW |
SF57-0802200DUW |
SF57-0852200DUW |
SF57-0902200DUW |
SF57-0952200DUW |
|
2.1A |
SF57-0702100DUW |
SF57-0752100DUW |
SF57-0802100DUW |
SF57-0852100DUW |
SF57-0902100DUW |
SF57-0952100DUW |
|
2.0A |
SF57-0702000DUW |
SF57-0752000DUW |
SF57-0802000DUW |
SF57-0852000DUW |
SF57-0902000DUW |
SF57-0952000DUW |
|
1.9A |
SF57-0701900DUW |
SF57-0751900DUW |
SF57-0801900DUW |
SF57-0851900DUW |
SF57-0901900DUW |
SF57-0951900DUW |
|
1.8A |
|
|
SF57-0801800DUW |
SF57-0851800DUW |
SF57-0901800DUW |
SF57-0951800DUW |
|
1.7A |
|
|
|
|
SF57-0901700DUW |
SF57-0951700DUW |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
5.3A |
SF57-0405300DUW |
|
|
|
|
|
|
5.2A |
SF57-0405200DUW |
|
|
|
|
|
|
5.1A |
SF57-0405100DUW |
SF57-0455100DUW |
|
|
|
|
|
5.0A |
SF57-0405000DUW |
SF57-0455000DUW |
|
|
|
|
|
4.9A |
SF57-0404900DUW |
SF57-0454900DUW |
SF57-0504900DUW |
|
|
|
|
4.8A |
SF57-0404800DUW |
SF57-0454800DUW |
SF57-0504800DUW |
|
|
|
|
4.7A |
SF57-0404700DUW |
SF57-0454700DUW |
SF57-0504700DUW |
SF57-0554700DUW |
|
|
|
4.6A |
SF57-0404600DUW |
SF57-0454600DUW |
SF57-0504600DUW |
SF57-0554600DUW |
|
|
|
4.5A |
SF57-0404500DUW |
SF57-0454500DUW |
SF57-0504500DUW |
SF57-0554500DUW |
SF57-0604500DUW |
|
|
4.4A |
SF57-0404400DUW |
SF57-0454400DUW |
SF57-0504400DUW |
SF57-0554400DUW |
SF57-0604400DUW |
|
|
4.3A |
SF57-0404300DUW |
SF57-0454300DUW |
SF57-0504300DUW |
SF57-0554300DUW |
SF57-0604300DUW |
SF57-0654300DUW |
|
4.2A |
SF57-0404200DUW |
SF57-0454200DUW |
SF57-0504200DUW |
SF57-0554200DUW |
SF57-0604200DUW |
SF57-0654200DUW |
|
4.1A |
SF57-0404100DUW |
SF57-0454100DUW |
SF57-0504100DUW |
SF57-0554100DUW |
SF57-0604100DUW |
SF57-0654100DUW |
|
4.0A |
SF57-0404000DUW |
SF57-0454000DUW |
SF57-0504000DUW |
SF57-0554000DUW |
SF57-0604000DUW |
SF57-0654000DUW |
|
3.9A |
SF57-0403900DUW |
SF57-0453900DUW |
SF57-0503900DUW |
SF57-0553900DUW |
SF57-0603900DUW |
SF57-0653900DUW |
|
3.8A |
SF57-0403800DUW |
SF57-0453800DUW |
SF57-0503800DUW |
SF57-0553800DUW |
SF57-0603800DUW |
SF57-0653800DUW |
|
3.7A |
SF57-0403700DUW |
SF57-0453700DUW |
SF57-0503700DUW |
SF57-0553700DUW |
SF57-0603700DUW |
SF57-0653700DUW |
|
3.6A |
SF57-0403600DUW |
SF57-0453600DUW |
SF57-0503600DUW |
SF57-0553600DUW |
SF57-0603600DUW |
SF57-0653600DUW |
|
3.5A |
SF57-0403500DUW |
SF57-0453500DUW |
SF57-0503500DUW |
SF57-0553500DUW |
SF57-0603500DUW |
SF57-0653500DUW |
|
3.4A |
SF57-0403400DUW |
SF57-0453400DUW |
SF57-0503400DUW |
SF57-0553400DUW |
SF57-0603400DUW |
SF57-0653400DUW |
|
3.3A |
SF57-0403300DUW |
SF57-0453300DUW |
SF57-0503300DUW |
SF57-0553300DUW |
SF57-0603300DUW |
SF57-0653300DUW |
|
3.2A |
SF57-0403200DUW |
SF57-0453200DUW |
SF57-0503200DUW |
SF57-0553200DUW |
SF57-0603200DUW |
SF57-0653200DUW |
|
3.1A |
SF57-0403100DUW |
SF57-0453100DUW |
SF57-0503100DUW |
SF57-0553100DUW |
SF57-0603100DUW |
SF57-0653100DUW |
|
3.0A |
SF57-0403000DUW |
SF57-0453000DUW |
SF57-0503000DUW |
SF57-0553000DUW |
SF57-0603000DUW |
SF57-0653000DUW |
|
2.9A |
SF57-0402900DUW |
SF57-0452900DUW |
SF57-0502900DUW |
SF57-0552900DUW |
SF57-0602900DUW |
SF57-0652900DUW |
|
2.8A |
SF57-0402800DUW |
SF57-0452800DUW |
SF57-0502800DUW |
SF57-0552800DUW |
SF57-0602800DUW |
SF57-0652800DUW |
|
2.7A |
SF57-0402700DUW |
SF57-0452700DUW |
SF57-0502700DUW |
SF57-0552700DUW |
SF57-0602700DUW |
SF57-0652700DUW |
|
2.6A |
SF57-0402600DUW |
SF57-0452600DUW |
SF57-0502600DUW |
SF57-0552600DUW |
SF57-0602600DUW |
SF57-0652600DUW |
|
2.5A |
|
|
SF57-0502500DUW |
SF57-0552500DUW |
SF57-0602500DUW |
SF57-0652500DUW |
|
2.4A |
|
|
SF57-0502400DUW |
SF57-0552400DUW |
SF57-0602400DUW |
SF57-0652400DUW |
|
2.3A |
|
|
|
|
SF57-0602300DUW |
SF57-0652300DUW |
|
2.2A |
|
|
|
|
SF57-0602200DUW |
SF57-0652200DUW |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
6.0A |
SF57-0106000DUW |
SF57-0156000DUW |
SF57-0206000DUW |
|
|
|
|
5.9A |
SF57-0105900DUW |
SF57-0155900DUW |
SF57-0205900DUW |
|
|
|
|
5.8A |
SF57-0105800DUW |
SF57-0155800DUW |
SF57-0205800DUW |
SF57-0255800DUW |
|
|
|
5.7A |
SF57-0105700DUW |
SF57-0155700DUW |
SF57-0205700DUW |
SF57-0255700DUW |
|
|
|
5.6A |
SF57-0105600DUW |
SF57-0155600DUW |
SF57-0205600DUW |
SF57-0255600DUW |
SF57-0305600DUW |
|
|
5.5A |
SF57-0105500DUW |
SF57-0155500DUW |
SF57-0205500DUW |
SF57-0255500DUW |
SF57-0305500DUW |
SF57-0355500DUW |
|
5.4A |
SF57-0105400DUW |
SF57-0155400DUW |
SF57-0205400DUW |
SF57-0255400DUW |
SF57-0305400DUW |
SF57-0355400DUW |
|
5.3A |
SF57-0105300DUW |
SF57-0155300DUW |
SF57-0205300DUW |
SF57-0255300DUW |
SF57-0305300DUW |
SF57-0355300DUW |
|
5.2A |
SF57-0105200DUW |
SF57-0155200DUW |
SF57-0205200DUW |
SF57-0255200DUW |
SF57-0305200DUW |
SF57-0355200DUW |
|
5.1A |
SF57-0105100DUW |
SF57-0155100DUW |
SF57-0205100DUW |
SF57-0255100DUW |
SF57-0305100DUW |
SF57-0355100DUW |
|
5.0A |
SF57-0105000DUW |
SF57-0155000DUW |
SF57-0205000DUW |
SF57-0255000DUW |
SF57-0305000DUW |
SF57-0355000DUW |
|
4.9A |
SF57-0104900DUW |
SF57-0154900DUW |
SF57-0204900DUW |
SF57-0254900DUW |
SF57-0304900DUW |
SF57-0354900DUW |
|
4.8A |
SF57-0104800DUW |
SF57-0154800DUW |
SF57-0204800DUW |
SF57-0254800DUW |
SF57-0304800DUW |
SF57-0354800DUW |
|
4.7A |
SF57-0104700DUW |
SF57-0154700DUW |
SF57-0204700DUW |
SF57-0254700DUW |
SF57-0304700DUW |
SF57-0354700DUW |
|
4.6A |
SF57-0104600DUW |
SF57-0154600DUW |
SF57-0204600DUW |
SF57-0254600DUW |
SF57-0304600DUW |
SF57-0354600DUW |
|
4.5A |
SF57-0104500DUW |
SF57-0154500DUW |
SF57-0204500DUW |
SF57-0254500DUW |
SF57-0304500DUW |
SF57-0354500DUW |
|
4.4A |
SF57-0104400DUW |
SF57-0154400DUW |
SF57-0204400DUW |
SF57-0254400DUW |
SF57-0304400DUW |
SF57-0354400DUW |
|
4.3A |
SF57-0104300DUW |
SF57-0154300DUW |
SF57-0204300DUW |
SF57-0254300DUW |
SF57-0304300DUW |
SF57-0354300DUW |
|
4.2A |
SF57-0104200DUW |
SF57-0154200DUW |
SF57-0204200DUW |
SF57-0254200DUW |
SF57-0304200DUW |
SF57-0354200DUW |
|
4.1A |
SF57-0104100DUW |
SF57-0154100DUW |
SF57-0204100DUW |
SF57-0254100DUW |
SF57-0304100DUW |
SF57-0354100DUW |
|
4.0A |
SF57-0104000DUW |
SF57-0154000DUW |
SF57-0204000DUW |
SF57-0254000DUW |
SF57-0304000DUW |
SF57-0354000DUW |
|
3.9A |
SF57-0103900DUW |
SF57-0153900DUW |
SF57-0203900DUW |
SF57-0253900DUW |
SF57-0303900DUW |
SF57-0353900DUW |
|
3.8A |
SF57-0103800DUW |
SF57-0153800DUW |
SF57-0203800DUW |
SF57-0253800DUW |
SF57-0303800DUW |
SF57-0353800DUW |
|
3.7A |
SF57-0103700DUW |
SF57-0153700DUW |
SF57-0203700DUW |
SF57-0253700DUW |
SF57-0303700DUW |
SF57-0353700DUW |
|
3.6A |
SF57-0103600DUW |
SF57-0153600DUW |
SF57-0203600DUW |
SF57-0253600DUW |
SF57-0303600DUW |
SF57-0353600DUW |
|
3.5A |
SF57-0103500DUW |
SF57-0153500DUW |
SF57-0203500DUW |
SF57-0253500DUW |
SF57-0303500DUW |
SF57-0353500DUW |
|
3.4A |
|
|
SF57-0203400DUW |
SF57-0253400DUW |
SF57-0303400DUW |
SF57-0353400DUW |
|
3.3A |
|
|
SF57-0203300DUW |
SF57-0253300DUW |
SF57-0303300DUW |
SF57-0353300DUW |
|
3.2A |
|
|
SF57-0203200DUW |
SF57-0253200DUW |
SF57-0303200DUW |
SF57-0353200DUW |
|
3.1A |
|
|
|
|
SF57-0303100DUW |
SF57-0353100DUW |
|
3.0A |
|
|
|
|
SF57-0303000DUW |
SF57-0353000DUW |
|
2.9A |
|
|
|
|
SF57-0302900DUW |
SF57-0352900DUW |
|
2.8A |
|
|
|
|
SF57-0302800DUW |
SF57-0352800DUW |
 |
 |
 |
 |
 |
 |
