LINEAR ADAPTOR
WALLMOUNT

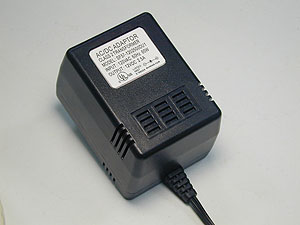

EI 57 AC TO DC ADAPTOR (US 3 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.5-6A |
|
|
|
Output Watt |
39VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
1.5A |
SF57-2501500DU-1 |
SF57-2551500DU-1 |
SF57-2601500DU-1 |
|
|
|
|
1.4A |
SF57-2501400DU-1 |
SF57-2551400DU-1 |
SF57-2601400DU-1 |
SF57-2651400DU-1 |
SF57-2701400DU-1 |
|
|
1.3A |
SF57-2501300DU-1 |
SF57-2551300DU-1 |
SF57-2601300DU-1 |
SF57-2651300DU-1 |
SF57-2701300DU-1 |
SF57-2801300DU-1 |
|
1.2A |
SF57-2501200DU-1 |
SF57-2551200DU-1 |
SF57-2601200DU-1 |
SF57-2651200DU-1 |
SF57-2701200DU-1 |
SF57-2801200DU-1 |
|
1.1A |
SF57-2501100DU-1 |
SF57-2551100DU-1 |
SF57-2601100DU-1 |
SF57-2651100DU-1 |
SF57-2701100DU-1 |
SF57-2801100DU-1 |
|
1.0A |
SF57-2501000DU-1 |
SF57-2551000DU-1 |
SF57-2601000DU-1 |
SF57-2651000DU-1 |
SF57-2701000DU-1 |
SF57-2801000DU-1 |
|
0.9A |
SF57-2500900DU-1 |
SF57-2550900DU-1 |
SF57-2600900DU-1 |
SF57-2650900DU-1 |
SF57-2700900DU-1 |
SF57-2800900DU-1 |
|
0.8A |
SF57-2500800DU-1 |
SF57-2550800DU-1 |
SF57-2600800DU-1 |
SF57-2650800DU-1 |
SF57-2700800DU-1 |
SF57-2800800DU-1 |
|
0.7A |
SF57-2500700DU-1 |
SF57-2550700DU-1 |
SF57-2600700DU-1 |
SF57-2650700DU-1 |
SF57-2700700DU-1 |
SF57-2800700DU-1 |
|
0.6A |
SF57-2500600DU-1 |
SF57-2550600DU-1 |
SF57-2600600DU-1 |
SF57-2650600DU-1 |
SF57-2700600DU-1 |
SF57-2800600DU-1 |
|
0.5A |
|
|
|
|
SF57-2700500DU-1 |
SF57-2800500DU-1 |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
1.6A |
SF57-2201600DU-1 |
SF57-2251600DU-1 |
SF57-2301600DU-1 |
SF57-2351600DU-1 |
SF57-2401600DU-1 |
|
|
1.5A |
SF57-2201500DU-1 |
SF57-2251500DU-1 |
SF57-2301500DU-1 |
SF57-2351500DU-1 |
SF57-2401500DU-1 |
SF57-2451500DU-1 |
|
1.4A |
SF57-2201400DU-1 |
SF57-2251400DU-1 |
SF57-2301400DU-1 |
SF57-2351400DU-1 |
SF57-2401400DU-1 |
SF57-2451400DU-1 |
|
1.3A |
SF57-2201300DU-1 |
SF57-2251300DU-1 |
SF57-2301300DU-1 |
SF57-2351300DU-1 |
SF57-2401300DU-1 |
SF57-2451300DU-1 |
|
1.2A |
SF57-2201200DU-1 |
SF57-2251200DU-1 |
SF57-2301200DU-1 |
SF57-2351200DU-1 |
SF57-2401200DU-1 |
SF57-2451200DU-1 |
|
1.1A |
SF57-2201100DU-1 |
SF57-2251100DU-1 |
SF57-2301100DU-1 |
SF57-2351100DU-1 |
SF57-2401100DU-1 |
SF57-2451100DU-1 |
|
1.0A |
SF57-2201000DU-1 |
SF57-2251000DU-1 |
SF57-2301000DU-1 |
SF57-2351000DU-1 |
SF57-2401000DU-1 |
SF57-2451000DU-1 |
|
0.9A |
SF57-2200900DU-1 |
SF57-2250900DU-1 |
SF57-2300900DU-1 |
SF57-2350900DU-1 |
SF57-2400900DU-1 |
SF57-2450900DU-1 |
|
0.8A |
SF57-2200800DU-1 |
SF57-2250800DU-1 |
SF57-2300800DU-1 |
SF57-2350800DU-1 |
SF57-2400800DU-1 |
SF57-2450800DU-1 |
|
0.7A |
|
|
SF57-2300700DU-1 |
SF57-2350700DU-1 |
SF57-2400700DU-1 |
SF57-2450700DU-1 |
|
0.6A |
|
|
|
|
SF57-2400600DU-1 |
SF57-2450600DU-1 |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
1.8A |
SF57-1901800DU-1 |
|
|
|
|
|
|
1.7A |
SF57-1901700DU-1 |
SF57-1951700DU-1 |
SF57-2001700DU-1 |
SF57-2051700DU-1 |
SF57-2101700DU-1 |
|
|
1.6A |
SF57-1901600DU-1 |
SF57-1951600DU-1 |
SF57-2001600DU-1 |
SF57-2051600DU-1 |
SF57-2101600DU-1 |
SF57-2151600DU-1 |
|
1.5A |
SF57-1901500DU-1 |
SF57-1951500DU-1 |
SF57-2001500DU-1 |
SF57-2051500DU-1 |
SF57-2101500DU-1 |
SF57-2151500DU-1 |
|
1.4A |
SF57-1901400DU-1 |
SF57-1951400DU-1 |
SF57-2001400DU-1 |
SF57-2051400DU-1 |
SF57-2101400DU-1 |
SF57-2151400DU-1 |
|
1.3A |
SF57-1901300DU-1 |
SF57-1951300DU-1 |
SF57-2001300DU-1 |
SF57-2051300DU-1 |
SF57-2101300DU-1 |
SF57-2151300DU-1 |
|
1.2A |
SF57-1901200DU-1 |
SF57-1951200DU-1 |
SF57-2001200DU-1 |
SF57-2051200DU-1 |
SF57-2101200DU-1 |
SF57-2151200DU-1 |
|
1.1A |
SF57-1901100DU-1 |
SF57-1951100DU-1 |
SF57-2001100DU-1 |
SF57-2051100DU-1 |
SF57-2101100DU-1 |
SF57-2151100DU-1 |
|
1.0A |
SF57-1901000DU-1 |
SF57-1951000DU-1 |
SF57-2001000DU-1 |
SF57-2051000DU-1 |
SF57-2101000DU-1 |
SF57-2151000DU-1 |
|
0.9A |
SF57-1900900DU-1 |
SF57-1950900DU-1 |
SF57-2000900DU-1 |
SF57-2050900DU-1 |
SF57-2100900DU-1 |
SF57-2150900DU-1 |
|
0.8A |
|
|
SF57-2000800DU-1 |
SF57-2050800DU-1 |
SF57-2100800DU-1 |
SF57-2150800DU-1 |
|
0.7A |
|
|
|
|
SF57-2100700DU-1 |
SF57-2150700DU-1 |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
2.0A |
SF57-1602000DU-1 |
SF57-1652000DU-1 |
|
|
|
|
|
1.9A |
SF57-1601900DU-1 |
SF57-1651900DU-1 |
SF57-1701900DU-1 |
SF57-1751900DU-1 |
SF57-1801900DU-1 |
|
|
1.8A |
SF57-1601800DU-1 |
SF57-1651800DU-1 |
SF57-1701800DU-1 |
SF57-1751800DU-1 |
SF57-1801800DU-1 |
SF57-1851800DU-1 |
|
1.7A |
SF57-1601700DU-1 |
SF57-1651700DU-1 |
SF57-1701700DU-1 |
SF57-1751700DU-1 |
SF57-1801700DU-1 |
SF57-1851700DU-1 |
|
1.6A |
SF57-1601600DU-1 |
SF57-1651600DU-1 |
SF57-1701600DU-1 |
SF57-1751600DU-1 |
SF57-1801600DU-1 |
SF57-1851600DU-1 |
|
1.5A |
SF57-1601500DU-1 |
SF57-1651500DU-1 |
SF57-1701500DU-1 |
SF57-1751500DU-1 |
SF57-1801500DU-1 |
SF57-1851500DU-1 |
|
1.4A |
SF57-1601400DU-1 |
SF57-1651400DU-1 |
SF57-1701400DU-1 |
SF57-1751400DU-1 |
SF57-1801400DU-1 |
SF57-1851400DU-1 |
|
1.3A |
SF57-1601300DU-1 |
SF57-1651300DU-1 |
SF57-1701300DU-1 |
SF57-1751300DU-1 |
SF57-1801300DU-1 |
SF57-1851300DU-1 |
|
1.2A |
SF57-1601200DU-1 |
SF57-1651200DU-1 |
SF57-1701200DU-1 |
SF57-1751200DU-1 |
SF57-1801200DU-1 |
SF57-1851200DU-1 |
|
1.1A |
SF57-1601100DU-1 |
SF57-1651100DU-1 |
SF57-1701100DU-1 |
SF57-1751100DU-1 |
SF57-1801100DU-1 |
SF57-1851100DU-1 |
|
1.0A |
SF57-1601000DU-1 |
SF57-1651000DU-1 |
SF57-1701000DU-1 |
SF57-1751000DU-1 |
SF57-1801000DU-1 |
SF57-1851000DU-1 |
|
0.9A |
SF57-1600900DU-1 |
SF57-1650900DU-1 |
SF57-1700900DU-1 |
SF57-1750900DU-1 |
SF57-1800900DU-1 |
SF57-1850900DU-1 |
|
0.8A |
|
|
SF57-1700800DU-1 |
SF57-1750800DU-1 |
SF57-1800800DU-1 |
SF57-1850800DU-1 |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
2.4A |
SF57-1302400DU-1 |
|
|
|
|
|
|
2.3A |
SF57-1302300DU-1 |
SF57-1352300DU-1 |
|
|
|
|
|
2.2A |
SF57-1302200DU-1 |
SF57-1352200DU-1 |
SF57-1402200DU-1 |
SF57-1452200DU-1 |
|
|
|
2.1A |
SF57-1302100DU-1 |
SF57-1352100DU-1 |
SF57-1402100DU-1 |
SF57-1452100DU-1 |
SF57-1502100DU-1 |
|
|
2.0A |
SF57-1302000DU-1 |
SF57-1352000DU-1 |
SF57-1402000DU-1 |
SF57-1452000DU-1 |
SF57-1502000DU-1 |
SF57-1552000DU-1 |
|
1.9A |
SF57-1301900DU-1 |
SF57-1351900DU-1 |
SF57-1401900DU-1 |
SF57-1451900DU-1 |
SF57-1501900DU-1 |
SF57-1551900DU-1 |
|
1.8A |
SF57-1301800DU-1 |
SF57-1351800DU-1 |
SF57-1401800DU-1 |
SF57-1451800DU-1 |
SF57-1501800DU-1 |
SF57-1551800DU-1 |
|
1.7A |
SF57-1301700DU-1 |
SF57-1351700DU-1 |
SF57-1401700DU-1 |
SF57-1451700DU-1 |
SF57-1501700DU-1 |
SF57-1551700DU-1 |
|
1.6A |
SF57-1301600DU-1 |
SF57-1351600DU-1 |
SF57-1401600DU-1 |
SF57-1451600DU-1 |
SF57-1501600DU-1 |
SF57-1551600DU-1 |
|
1.5A |
SF57-1301500DU-1 |
SF57-1351500DU-1 |
SF57-1401500DU-1 |
SF57-1451500DU-1 |
SF57-1501500DU-1 |
SF57-1551500DU-1 |
|
1.4A |
SF57-1301400DU-1 |
SF57-1351400DU-1 |
SF57-1401400DU-1 |
SF57-1451400DU-1 |
SF57-1501400DU-1 |
SF57-1551400DU-1 |
|
1.3A |
SF57-1301300DU-1 |
SF57-1351300DU-1 |
SF57-1401300DU-1 |
SF57-1451300DU-1 |
SF57-1501300DU-1 |
SF57-1551300DU-1 |
|
1.2A |
SF57-1301200DU-1 |
SF57-1351200DU-1 |
SF57-1401200DU-1 |
SF57-1451200DU-1 |
SF57-1501200DU-1 |
SF57-1551200DU-1 |
|
1.1A |
SF57-1301100DU-1 |
SF57-1351100DU-1 |
SF57-1401100DU-1 |
SF57-1451100DU-1 |
SF57-1501100DU-1 |
SF57-1551100DU-1 |
|
1.0A |
SF57-1301000DU-1 |
SF57-1351000DU-1 |
SF57-1401000DU-1 |
SF57-1451000DU-1 |
SF57-1501000DU-1 |
SF57-1551000DU-1 |
|
0.9A |
|
|
SF57-1400900DU-1 |
SF57-1450900DU-1 |
SF57-1500900DU-1 |
SF57-1550900DU-1 |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
2.9A |
SF57-1002900DU-1 |
|
|
|
|
|
|
2.8A |
SF57-1002800DU-1 |
|
|
|
|
|
|
2.7A |
SF57-1002700DU-1 |
SF57-1052700DU-1 |
SF57-1102700DU-1 |
|
|
|
|
2.6A |
SF57-1002600DU-1 |
SF57-1052600DU-1 |
SF57-1102600DU-1 |
SF57-1152600DU-1 |
|
|
|
2.5A |
SF57-1002500DU-1 |
SF57-1052500DU-1 |
SF57-1102500DU-1 |
SF57-1152500DU-1 |
SF57-1202500DU-1 |
|
|
2.4A |
SF57-1002400DU-1 |
SF57-1052400DU-1 |
SF57-1102400DU-1 |
SF57-1152400DU-1 |
SF57-1202400DU-1 |
SF57-1252400DU-1 |
|
2.3A |
SF57-1002300DU-1 |
SF57-1052300DU-1 |
SF57-1102300DU-1 |
SF57-1152300DU-1 |
SF57-1202300DU-1 |
SF57-1252300DU-1 |
|
2.2A |
SF57-1002200DU-1 |
SF57-1052200DU-1 |
SF57-1102200DU-1 |
SF57-1152200DU-1 |
SF57-1202200DU-1 |
SF57-1252200DU-1 |
|
2.1A |
SF57-1002100DU-1 |
SF57-1052100DU-1 |
SF57-1102100DU-1 |
SF57-1152100DU-1 |
SF57-1202100DU-1 |
SF57-1252100DU-1 |
|
2.0A |
SF57-1002000DU-1 |
SF57-1052000DU-1 |
SF57-1102000DU-1 |
SF57-1152000DU-1 |
SF57-1202000DU-1 |
SF57-1252000DU-1 |
|
1.9A |
SF57-1001900DU-1 |
SF57-1051900DU-1 |
SF57-1101900DU-1 |
SF57-1151900DU-1 |
SF57-1201900DU-1 |
SF57-1251900DU-1 |
|
1.8A |
SF57-1001800DU-1 |
SF57-1051800DU-1 |
SF57-1101800DU-1 |
SF57-1151800DU-1 |
SF57-1201800DU-1 |
SF57-1251800DU-1 |
|
1.7A |
SF57-1001700DU-1 |
SF57-1051700DU-1 |
SF57-1101700DU-1 |
SF57-1151700DU-1 |
SF57-1201700DU-1 |
SF57-1251700DU-1 |
|
1.6A |
SF57-1001600DU-1 |
SF57-1051600DU-1 |
SF57-1101600DU-1 |
SF57-1151600DU-1 |
SF57-1201600DU-1 |
SF57-1251600DU-1 |
|
1.5A |
SF57-1001500DU-1 |
SF57-1051500DU-1 |
SF57-1101500DU-1 |
SF57-1151500DU-1 |
SF57-1201500DU-1 |
SF57-1251500DU-1 |
|
1.4A |
|
|
SF57-1101400DU-1 |
SF57-1151400DU-1 |
SF57-1201400DU-1 |
SF57-1251400DU-1 |
|
1.3A |
|
|
|
|
SF57-1201300DU-1 |
SF57-1251300DU-1 |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
4.0A |
SF57-0704000DU-1 |
|
|
|
|
|
|
3.9A |
SF57-0703900DU-1 |
|
|
|
|
|
|
3.8A |
SF57-0703800DU-1 |
SF57-0753800DU-1 |
|
|
|
|
|
3.7A |
SF57-0703700DU-1 |
SF57-0753700DU-1 |
|
|
|
|
|
3.6A |
SF57-0703600DU-1 |
SF57-0753600DU-1 |
SF57-0803600DU-1 |
|
|
|
|
3.5A |
SF57-0703500DU-1 |
SF57-0753500DU-1 |
SF57-0803500DU-1 |
|
|
|
|
3.4A |
SF57-0703400DU-1 |
SF57-0753400DU-1 |
SF57-0803400DU-1 |
SF57-0853400DU-1 |
|
|
|
3.3A |
SF57-0703300DU-1 |
SF57-0753300DU-1 |
SF57-0803300DU-1 |
SF57-0853300DU-1 |
|
|
|
3.2A |
SF57-0703200DU-1 |
SF57-0753200DU-1 |
SF57-0803200DU-1 |
SF57-0853200DU-1 |
SF57-0903200DU-1 |
|
|
3.1A |
SF57-0703100DU-1 |
SF57-0753100DU-1 |
SF57-0803100DU-1 |
SF57-0853100DU-1 |
SF57-0903100DU-1 |
|
|
3.0A |
SF57-0703000DU-1 |
SF57-0753000DU-1 |
SF57-0803000DU-1 |
SF57-0853000DU-1 |
SF57-0903000DU-1 |
SF57-0953000DU-1 |
|
2.9A |
SF57-0702900DU-1 |
SF57-0752900DU-1 |
SF57-0802900DU-1 |
SF57-0852900DU-1 |
SF57-0902900DU-1 |
SF57-0952900DU-1 |
|
2.8A |
SF57-0702800DU-1 |
SF57-0752800DU-1 |
SF57-0802800DU-1 |
SF57-0852800DU-1 |
SF57-0902800DU-1 |
SF57-0952800DU-1 |
|
2.7A |
SF57-0702700DU-1 |
SF57-0752700DU-1 |
SF57-0802700DU-1 |
SF57-0852700DU-1 |
SF57-0902700DU-1 |
SF57-0952700DU-1 |
|
2.6A |
SF57-0702600DU-1 |
SF57-0752600DU-1 |
SF57-0802600DU-1 |
SF57-0852600DU-1 |
SF57-0902600DU-1 |
SF57-0952600DU-1 |
|
2.5A |
SF57-0702500DU-1 |
SF57-0752500DU-1 |
SF57-0802500DU-1 |
SF57-0852500DU-1 |
SF57-0902500DU-1 |
SF57-0952500DU-1 |
|
2.4A |
SF57-0702400DU-1 |
SF57-0752400DU-1 |
SF57-0802400DU-1 |
SF57-0852400DU-1 |
SF57-0902400DU-1 |
SF57-0952400DU-1 |
|
2.3A |
SF57-0702300DU-1 |
SF57-0752300DU-1 |
SF57-0802300DU-1 |
SF57-0852300DU-1 |
SF57-0902300DU-1 |
SF57-0952300DU-1 |
|
2.2A |
SF57-0702200DU-1 |
SF57-0752200DU-1 |
SF57-0802200DU-1 |
SF57-0852200DU-1 |
SF57-0902200DU-1 |
SF57-0952200DU-1 |
|
2.1A |
SF57-0702100DU-1 |
SF57-0752100DU-1 |
SF57-0802100DU-1 |
SF57-0852100DU-1 |
SF57-0902100DU-1 |
SF57-0952100DU-1 |
|
2.0A |
SF57-0702000DU-1 |
SF57-0752000DU-1 |
SF57-0802000DU-1 |
SF57-0852000DU-1 |
SF57-0902000DU-1 |
SF57-0952000DU-1 |
|
1.9A |
SF57-0701900DU-1 |
SF57-0751900DU-1 |
SF57-0801900DU-1 |
SF57-0851900DU-1 |
SF57-0901900DU-1 |
SF57-0951900DU-1 |
|
1.8A |
|
|
SF57-0801800DU-1 |
SF57-0851800DU-1 |
SF57-0901800DU-1 |
SF57-0951800DU-1 |
|
1.7A |
|
|
|
|
SF57-0901700DU-1 |
SF57-0951700DU-1 |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
5.3A |
SF57-0405300DU-1 |
|
|
|
|
|
|
5.2A |
SF57-0405200DU-1 |
|
|
|
|
|
|
5.1A |
SF57-0405100DU-1 |
SF57-0455100DU-1 |
|
|
|
|
|
5.0A |
SF57-0405000DU-1 |
SF57-0455000DU-1 |
|
|
|
|
|
4.9A |
SF57-0404900DU-1 |
SF57-0454900DU-1 |
SF57-0504900DU-1 |
|
|
|
|
4.8A |
SF57-0404800DU-1 |
SF57-0454800DU-1 |
SF57-0504800DU-1 |
|
|
|
|
4.7A |
SF57-0404700DU-1 |
SF57-0454700DU-1 |
SF57-0504700DU-1 |
SF57-0554700DU-1 |
|
|
|
4.6A |
SF57-0404600DU-1 |
SF57-0454600DU-1 |
SF57-0504600DU-1 |
SF57-0554600DU-1 |
|
|
|
4.5A |
SF57-0404500DU-1 |
SF57-0454500DU-1 |
SF57-0504500DU-1 |
SF57-0554500DU-1 |
SF57-0604500DU-1 |
|
|
4.4A |
SF57-0404400DU-1 |
SF57-0454400DU-1 |
SF57-0504400DU-1 |
SF57-0554400DU-1 |
SF57-0604400DU-1 |
|
|
4.3A |
SF57-0404300DU-1 |
SF57-0454300DU-1 |
SF57-0504300DU-1 |
SF57-0554300DU-1 |
SF57-0604300DU-1 |
SF57-0654300DU-1 |
|
4.2A |
SF57-0404200DU-1 |
SF57-0454200DU-1 |
SF57-0504200DU-1 |
SF57-0554200DU-1 |
SF57-0604200DU-1 |
SF57-0654200DU-1 |
|
4.1A |
SF57-0404100DU-1 |
SF57-0454100DU-1 |
SF57-0504100DU-1 |
SF57-0554100DU-1 |
SF57-0604100DU-1 |
SF57-0654100DU-1 |
|
4.0A |
SF57-0404000DU-1 |
SF57-0454000DU-1 |
SF57-0504000DU-1 |
SF57-0554000DU-1 |
SF57-0604000DU-1 |
SF57-0654000DU-1 |
|
3.9A |
SF57-0403900DU-1 |
SF57-0453900DU-1 |
SF57-0503900DU-1 |
SF57-0553900DU-1 |
SF57-0603900DU-1 |
SF57-0653900DU-1 |
|
3.8A |
SF57-0403800DU-1 |
SF57-0453800DU-1 |
SF57-0503800DU-1 |
SF57-0553800DU-1 |
SF57-0603800DU-1 |
SF57-0653800DU-1 |
|
3.7A |
SF57-0403700DU-1 |
SF57-0453700DU-1 |
SF57-0503700DU-1 |
SF57-0553700DU-1 |
SF57-0603700DU-1 |
SF57-0653700DU-1 |
|
3.6A |
SF57-0403600DU-1 |
SF57-0453600DU-1 |
SF57-0503600DU-1 |
SF57-0553600DU-1 |
SF57-0603600DU-1 |
SF57-0653600DU-1 |
|
3.5A |
SF57-0403500DU-1 |
SF57-0453500DU-1 |
SF57-0503500DU-1 |
SF57-0553500DU-1 |
SF57-0603500DU-1 |
SF57-0653500DU-1 |
|
3.4A |
SF57-0403400DU-1 |
SF57-0453400DU-1 |
SF57-0503400DU-1 |
SF57-0553400DU-1 |
SF57-0603400DU-1 |
SF57-0653400DU-1 |
|
3.3A |
SF57-0403300DU-1 |
SF57-0453300DU-1 |
SF57-0503300DU-1 |
SF57-0553300DU-1 |
SF57-0603300DU-1 |
SF57-0653300DU-1 |
|
3.2A |
SF57-0403200DU-1 |
SF57-0453200DU-1 |
SF57-0503200DU-1 |
SF57-0553200DU-1 |
SF57-0603200DU-1 |
SF57-0653200DU-1 |
|
3.1A |
SF57-0403100DU-1 |
SF57-0453100DU-1 |
SF57-0503100DU-1 |
SF57-0553100DU-1 |
SF57-0603100DU-1 |
SF57-0653100DU-1 |
|
3.0A |
SF57-0403000DU-1 |
SF57-0453000DU-1 |
SF57-0503000DU-1 |
SF57-0553000DU-1 |
SF57-0603000DU-1 |
SF57-0653000DU-1 |
|
2.9A |
SF57-0402900DU-1 |
SF57-0452900DU-1 |
SF57-0502900DU-1 |
SF57-0552900DU-1 |
SF57-0602900DU-1 |
SF57-0652900DU-1 |
|
2.8A |
SF57-0402800DU-1 |
SF57-0452800DU-1 |
SF57-0502800DU-1 |
SF57-0552800DU-1 |
SF57-0602800DU-1 |
SF57-0652800DU-1 |
|
2.7A |
SF57-0402700DU-1 |
SF57-0452700DU-1 |
SF57-0502700DU-1 |
SF57-0552700DU-1 |
SF57-0602700DU-1 |
SF57-0652700DU-1 |
|
2.6A |
SF57-0402600DU-1 |
SF57-0452600DU-1 |
SF57-0502600DU-1 |
SF57-0552600DU-1 |
SF57-0602600DU-1 |
SF57-0652600DU-1 |
|
2.5A |
|
|
SF57-0502500DU-1 |
SF57-0552500DU-1 |
SF57-0602500DU-1 |
SF57-0652500DU-1 |
|
2.4A |
|
|
SF57-0502400DU-1 |
SF57-0552400DU-1 |
SF57-0602400DU-1 |
SF57-0652400DU-1 |
|
2.3A |
|
|
|
|
SF57-0602300DU-1 |
SF57-0652300DU-1 |
|
2.2A |
|
|
|
|
SF57-0602200DU-1 |
SF57-0652200DU-1 |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
6.0A |
SF57-0106000DU-1 |
SF57-0156000DU-1 |
SF57-0206000DU-1 |
|
|
|
|
5.9A |
SF57-0105900DU-1 |
SF57-0155900DU-1 |
SF57-0205900DU-1 |
|
|
|
|
5.8A |
SF57-0105800DU-1 |
SF57-0155800DU-1 |
SF57-0205800DU-1 |
SF57-0255800DU-1 |
|
|
|
5.7A |
SF57-0105700DU-1 |
SF57-0155700DU-1 |
SF57-0205700DU-1 |
SF57-0255700DU-1 |
|
|
|
5.6A |
SF57-0105600DU-1 |
SF57-0155600DU-1 |
SF57-0205600DU-1 |
SF57-0255600DU-1 |
SF57-0305600DU-1 |
|
|
5.5A |
SF57-0105500DU-1 |
SF57-0155500DU-1 |
SF57-0205500DU-1 |
SF57-0255500DU-1 |
SF57-0305500DU-1 |
SF57-0355500DU-1 |
|
5.4A |
SF57-0105400DU-1 |
SF57-0155400DU-1 |
SF57-0205400DU-1 |
SF57-0255400DU-1 |
SF57-0305400DU-1 |
SF57-0355400DU-1 |
|
5.3A |
SF57-0105300DU-1 |
SF57-0155300DU-1 |
SF57-0205300DU-1 |
SF57-0255300DU-1 |
SF57-0305300DU-1 |
SF57-0355300DU-1 |
|
5.2A |
SF57-0105200DU-1 |
SF57-0155200DU-1 |
SF57-0205200DU-1 |
SF57-0255200DU-1 |
SF57-0305200DU-1 |
SF57-0355200DU-1 |
|
5.1A |
SF57-0105100DU-1 |
SF57-0155100DU-1 |
SF57-0205100DU-1 |
SF57-0255100DU-1 |
SF57-0305100DU-1 |
SF57-0355100DU-1 |
|
5.0A |
SF57-0105000DU-1 |
SF57-0155000DU-1 |
SF57-0205000DU-1 |
SF57-0255000DU-1 |
SF57-0305000DU-1 |
SF57-0355000DU-1 |
|
4.9A |
SF57-0104900DU-1 |
SF57-0154900DU-1 |
SF57-0204900DU-1 |
SF57-0254900DU-1 |
SF57-0304900DU-1 |
SF57-0354900DU-1 |
|
4.8A |
SF57-0104800DU-1 |
SF57-0154800DU-1 |
SF57-0204800DU-1 |
SF57-0254800DU-1 |
SF57-0304800DU-1 |
SF57-0354800DU-1 |
|
4.7A |
SF57-0104700DU-1 |
SF57-0154700DU-1 |
SF57-0204700DU-1 |
SF57-0254700DU-1 |
SF57-0304700DU-1 |
SF57-0354700DU-1 |
|
4.6A |
SF57-0104600DU-1 |
SF57-0154600DU-1 |
SF57-0204600DU-1 |
SF57-0254600DU-1 |
SF57-0304600DU-1 |
SF57-0354600DU-1 |
|
4.5A |
SF57-0104500DU-1 |
SF57-0154500DU-1 |
SF57-0204500DU-1 |
SF57-0254500DU-1 |
SF57-0304500DU-1 |
SF57-0354500DU-1 |
|
4.4A |
SF57-0104400DU-1 |
SF57-0154400DU-1 |
SF57-0204400DU-1 |
SF57-0254400DU-1 |
SF57-0304400DU-1 |
SF57-0354400DU-1 |
|
4.3A |
SF57-0104300DU-1 |
SF57-0154300DU-1 |
SF57-0204300DU-1 |
SF57-0254300DU-1 |
SF57-0304300DU-1 |
SF57-0354300DU-1 |
|
4.2A |
SF57-0104200DU-1 |
SF57-0154200DU-1 |
SF57-0204200DU-1 |
SF57-0254200DU-1 |
SF57-0304200DU-1 |
SF57-0354200DU-1 |
|
4.1A |
SF57-0104100DU-1 |
SF57-0154100DU-1 |
SF57-0204100DU-1 |
SF57-0254100DU-1 |
SF57-0304100DU-1 |
SF57-0354100DU-1 |
|
4.0A |
SF57-0104000DU-1 |
SF57-0154000DU-1 |
SF57-0204000DU-1 |
SF57-0254000DU-1 |
SF57-0304000DU-1 |
SF57-0354000DU-1 |
|
3.9A |
SF57-0103900DU-1 |
SF57-0153900DU-1 |
SF57-0203900DU-1 |
SF57-0253900DU-1 |
SF57-0303900DU-1 |
SF57-0353900DU-1 |
|
3.8A |
SF57-0103800DU-1 |
SF57-0153800DU-1 |
SF57-0203800DU-1 |
SF57-0253800DU-1 |
SF57-0303800DU-1 |
SF57-0353800DU-1 |
|
3.7A |
SF57-0103700DU-1 |
SF57-0153700DU-1 |
SF57-0203700DU-1 |
SF57-0253700DU-1 |
SF57-0303700DU-1 |
SF57-0353700DU-1 |
|
3.6A |
SF57-0103600DU-1 |
SF57-0153600DU-1 |
SF57-0203600DU-1 |
SF57-0253600DU-1 |
SF57-0303600DU-1 |
SF57-0353600DU-1 |
|
3.5A |
SF57-0103500DU-1 |
SF57-0153500DU-1 |
SF57-0203500DU-1 |
SF57-0253500DU-1 |
SF57-0303500DU-1 |
SF57-0353500DU-1 |
|
3.4A |
|
|
SF57-0203400DU-1 |
SF57-0253400DU-1 |
SF57-0303400DU-1 |
SF57-0353400DU-1 |
|
3.3A |
|
|
SF57-0203300DU-1 |
SF57-0253300DU-1 |
SF57-0303300DU-1 |
SF57-0353300DU-1 |
|
3.2A |
|
|
SF57-0203200DU-1 |
SF57-0253200DU-1 |
SF57-0303200DU-1 |
SF57-0353200DU-1 |
|
3.1A |
|
|
|
|
SF57-0303100DU-1 |
SF57-0353100DU-1 |
|
3.0A |
|
|
|
|
SF57-0303000DU-1 |
SF57-0353000DU-1 |
|
2.9A |
|
|
|
|
SF57-0302900DU-1 |
SF57-0352900DU-1 |
|
2.8A |
|
|
|
|
SF57-0302800DU-1 |
SF57-0352800DU-1 |
 |
 |
 |
 |
 |
 |
