LINEAR ADAPTOR
DESKTOP

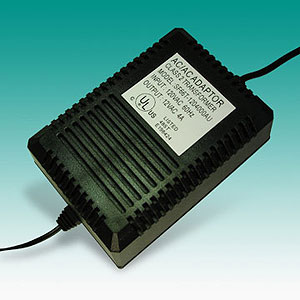

EI 66 AC TO AC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
3-27V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
1.1-4A |
|
|
|
Output Watt |
54VA max |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27V |
|---|
|
27V |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
1.9A |
SF66T-2701900AU |
|
|
|
|
|
|
1.8A |
SF66T-2701800AU |
|
|
|
|
|
|
1.7A |
SF66T-2701700AU |
|
|
|
|
|
|
1.6A |
SF66T-2701600AU |
|
|
|
|
|
|
1.5A |
SF66T-2701500AU |
|
|
|
|
|
|
1.4A |
SF66T-2701400AU |
|
|
|
|
|
|
1.3A |
SF66T-2701300AU |
|
|
|
|
|
|
1.2A |
SF66T-2701200AU |
|
|
|
|
|
|
1.1A |
SF66T-2701100AU |
|
|
|
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
2.3A |
SF66T-2102300AU |
|
|
|
|
|
|
2.2A |
SF66T-2102200AU |
SF66T-2202200AU |
|
|
|
|
|
2.1A |
SF66T-2102100AU |
SF66T-2202100AU |
SF66T-2302100AU |
|
|
|
|
2.0A |
SF66T-2102000AU |
SF66T-2202000AU |
SF66T-2302000AU |
SF66T-2402000AU |
SF66T-2502000AU |
|
|
1.9A |
SF66T-2101900AU |
SF66T-2201900AU |
SF66T-2301900AU |
SF66T-2401900AU |
SF66T-2501900AU |
SF66T-2601900AU |
|
1.8A |
SF66T-2101800AU |
SF66T-2201800AU |
SF66T-2301800AU |
SF66T-2401800AU |
SF66T-2501800AU |
SF66T-2601800AU |
|
1.7A |
SF66T-2101700AU |
SF66T-2201700AU |
SF66T-2301700AU |
SF66T-2401700AU |
SF66T-2501700AU |
SF66T-2601700AU |
|
1.6A |
SF66T-2101600AU |
SF66T-2201600AU |
SF66T-2301600AU |
SF66T-2401600AU |
SF66T-2501600AU |
SF66T-2601600AU |
|
1.5A |
SF66T-2101500AU |
SF66T-2201500AU |
SF66T-2301500AU |
SF66T-2401500AU |
SF66T-2501500AU |
SF66T-2601500AU |
|
1.4A |
|
SF66T-2201400AU |
SF66T-2301400AU |
SF66T-2401400AU |
SF66T-2501400AU |
SF66T-2601400AU |
|
1.3A |
|
|
SF66T-2301300AU |
SF66T-2401300AU |
SF66T-2501300AU |
SF66T-2601300AU |
|
1.2A |
|
|
|
SF66T-2401200AU |
SF66T-2501200AU |
SF66T-2601200AU |
|
1.1A |
|
|
|
|
|
SF66T-2601100AU |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
4.0A |
SF66T-1204000AU |
|
|
|
|
|
|
3.9A |
SF66T-1203900AU |
SF66T-1253900AU |
|
|
|
|
|
3.8A |
SF66T-1203800AU |
SF66T-1253800AU |
SF66T-1303800AU |
|
|
|
|
3.7A |
SF66T-1203700AU |
SF66T-1253700AU |
SF66T-1303700AU |
SF66T-1353700AU |
|
|
|
3.6A |
SF66T-1203600AU |
SF66T-1253600AU |
SF66T-1303600AU |
SF66T-1353600AU |
|
|
|
3.5A |
SF66T-1203500AU |
SF66T-1253500AU |
SF66T-1303500AU |
SF66T-1353500AU |
SF66T-1403500AU |
|
|
3.4A |
SF66T-1203400AU |
SF66T-1253400AU |
SF66T-1303400AU |
SF66T-1353400AU |
SF66T-1403400AU |
SF66T-1453400AU |
|
3.3A |
SF66T-1203300AU |
SF66T-1253300AU |
SF66T-1303300AU |
SF66T-1353300AU |
SF66T-1403300AU |
SF66T-1453300AU |
|
3.2A |
SF66T-1203200AU |
SF66T-1253200AU |
SF66T-1303200AU |
SF66T-1353200AU |
SF66T-1403200AU |
SF66T-1453200AU |
|
3.1A |
SF66T-1203000AU |
SF66T-1253000AU |
SF66T-1303000AU |
SF66T-1353000AU |
SF66T-1403000AU |
SF66T-1453000AU |
|
3.0A |
SF66T-1203000AU |
SF66T-1253000AU |
SF66T-1303000AU |
SF66T-1353000AU |
SF66T-1403000AU |
SF66T-1453000AU |
|
2.9A |
SF66T-1202900AU |
SF66T-1252900AU |
SF66T-1302900AU |
SF66T-1352900AU |
SF66T-1402900AU |
SF66T-1452900AU |
|
2.8A |
SF66T-1202800AU |
SF66T-1252800AU |
SF66T-1302800AU |
SF66T-1352800AU |
SF66T-1402800AU |
SF66T-1452800AU |
|
2.7A |
SF66T-1202700AU |
SF66T-1252700AU |
SF66T-1302700AU |
SF66T-1352700AU |
SF66T-1402700AU |
SF66T-1452700AU |
|
2.6A |
SF66T-1202600AU |
SF66T-1252600AU |
SF66T-1302600AU |
SF66T-1352600AU |
SF66T-1402600AU |
SF66T-1452600AU |
|
2.5A |
SF66T-1202500AU |
SF66T-1252500AU |
SF66T-1302500AU |
SF66T-1352500AU |
SF66T-1402500AU |
SF66T-1452500AU |
|
2.4A |
SF66T-1202400AU |
SF66T-1252400AU |
SF66T-1302400AU |
SF66T-1352400AU |
SF66T-1402400AU |
SF66T-1452400AU |
|
2.3A |
SF66T-1202300AU |
SF66T-1252300AU |
SF66T-1302300AU |
SF66T-1352300AU |
SF66T-1402300AU |
SF66T-1452300AU |
|
2.2A |
|
SF66T-1252200AU |
SF66T-1302200AU |
SF66T-1352200AU |
SF66T-1402200AU |
SF66T-1452200AU |
|
2.1A |
|
|
SF66T-1302100AU |
SF66T-1352100AU |
SF66T-1402100AU |
SF66T-1452100AU |
|
2.0A |
|
|
|
|
SF66T-1402000AU |
SF66T-1452000AU |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
4.0A |
SF66T-0904000AU |
SF66T-0954000AU |
SF66T-1004000AU |
SF66T-1054000AU |
SF66T-1104000AU |
SF66T-1154000AU |
|
3.9A |
SF66T-0903900AU |
SF66T-0953900AU |
SF66T-1003900AU |
SF66T-1053900AU |
SF66T-1103900AU |
SF66T-1153900AU |
|
3.8A |
SF66T-0903800AU |
SF66T-0953800AU |
SF66T-1003800AU |
SF66T-1053800AU |
SF66T-1103800AU |
SF66T-1153800AU |
|
3.7A |
SF66T-0903700AU |
SF66T-0953700AU |
SF66T-1003700AU |
SF66T-1053700AU |
SF66T-1103700AU |
SF66T-1153700AU |
|
3.6A |
SF66T-0903600AU |
SF66T-0953600AU |
SF66T-1003600AU |
SF66T-1053600AU |
SF66T-1103600AU |
SF66T-1153600AU |
|
3.5A |
SF66T-0903500AU |
SF66T-0953500AU |
SF66T-1003500AU |
SF66T-1053500AU |
SF66T-1103500AU |
SF66T-1153500AU |
|
3.4A |
SF66T-0903400AU |
SF66T-0953400AU |
SF66T-1003400AU |
SF66T-1053400AU |
SF66T-1103400AU |
SF66T-1153400AU |
|
3.3A |
SF66T-0903300AU |
SF66T-0953300AU |
SF66T-1003300AU |
SF66T-1053300AU |
SF66T-1103300AU |
SF66T-1153300AU |
|
3.2A |
SF66T-0903200AU |
SF66T-0953200AU |
SF66T-1003200AU |
SF66T-1053200AU |
SF66T-1103200AU |
SF66T-1153200AU |
|
3.1A |
SF66T-0903000AU |
SF66T-0953000AU |
SF66T-1003000AU |
SF66T-1053000AU |
SF66T-1103000AU |
SF66T-1153000AU |
|
3.0A |
SF66T-0903000AU |
SF66T-0953000AU |
SF66T-1003000AU |
SF66T-1053000AU |
SF66T-1103000AU |
SF66T-1153000AU |
|
2.9A |
SF66T-0902900AU |
SF66T-0952900AU |
SF66T-1002900AU |
SF66T-1052900AU |
SF66T-1102900AU |
SF66T-1152900AU |
|
2.8A |
SF66T-0902800AU |
SF66T-0952800AU |
SF66T-1002800AU |
SF66T-1052800AU |
SF66T-1102800AU |
SF66T-1152800AU |
|
2.7A |
SF66T-0902700AU |
SF66T-0952700AU |
SF66T-1002700AU |
SF66T-1052700AU |
SF66T-1102700AU |
SF66T-1152700AU |
|
2.6A |
SF66T-0902600AU |
SF66T-0952600AU |
SF66T-1002600AU |
SF66T-1052600AU |
SF66T-1102600AU |
SF66T-1152600AU |
|
2.5A |
SF66T-0902500AU |
SF66T-0952500AU |
SF66T-1002500AU |
SF66T-1052500AU |
SF66T-1102500AU |
SF66T-1152500AU |
|
2.4A |
SF66T-0902400AU |
SF66T-0952400AU |
SF66T-1002400AU |
SF66T-1052400AU |
SF66T-1102400AU |
SF66T-1152400AU |
|
2.3A |
SF66T-0902300AU |
SF66T-0952300AU |
SF66T-1002300AU |
SF66T-1052300AU |
SF66T-1102300AU |
SF66T-1152300AU |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
4.0A |
SF66T-0604000AU |
SF66T-0654000AU |
SF66T-0704000AU |
SF66T-0754000AU |
SF66T-0804000AU |
SF66T-0854000AU |
|
3.9A |
SF66T-0603900AU |
SF66T-0653900AU |
SF66T-0703900AU |
SF66T-0753900AU |
SF66T-0803900AU |
SF66T-0853900AU |
|
3.8A |
SF66T-0603800AU |
SF66T-0653800AU |
SF66T-0703800AU |
SF66T-0753800AU |
SF66T-0803800AU |
SF66T-0853800AU |
|
3.7A |
SF66T-0603700AU |
SF66T-0653700AU |
SF66T-0703700AU |
SF66T-0753700AU |
SF66T-0803700AU |
SF66T-0853700AU |
|
3.6A |
SF66T-0603600AU |
SF66T-0653600AU |
SF66T-0703600AU |
SF66T-0753600AU |
SF66T-0803600AU |
SF66T-0853600AU |
|
3.5A |
SF66T-0603500AU |
SF66T-0653500AU |
SF66T-0703500AU |
SF66T-0753500AU |
SF66T-0803500AU |
SF66T-0853500AU |
|
3.4A |
SF66T-0603400AU |
SF66T-0653400AU |
SF66T-0703400AU |
SF66T-0753400AU |
SF66T-0803400AU |
SF66T-0853400AU |
|
3.3A |
SF66T-0603300AU |
SF66T-0653300AU |
SF66T-0703300AU |
SF66T-0753300AU |
SF66T-0803300AU |
SF66T-0853300AU |
|
3.2A |
SF66T-0603200AU |
SF66T-0653200AU |
SF66T-0703200AU |
SF66T-0753200AU |
SF66T-0803200AU |
SF66T-0853200AU |
|
3.1A |
SF66T-0603000AU |
SF66T-0653000AU |
SF66T-0703000AU |
SF66T-0753000AU |
SF66T-0803000AU |
SF66T-0853000AU |
|
3.0A |
SF66T-0603000AU |
SF66T-0653000AU |
SF66T-0703000AU |
SF66T-0753000AU |
SF66T-0803000AU |
SF66T-0853000AU |
|
2.9A |
SF66T-0602900AU |
SF66T-0652900AU |
SF66T-0702900AU |
SF66T-0752900AU |
SF66T-0802900AU |
SF66T-0852900AU |
|
2.8A |
SF66T-0602800AU |
SF66T-0652800AU |
SF66T-0702800AU |
SF66T-0752800AU |
SF66T-0802800AU |
SF66T-0852800AU |
|
2.7A |
SF66T-0602700AU |
SF66T-0652700AU |
SF66T-0702700AU |
SF66T-0752700AU |
SF66T-0802700AU |
SF66T-0852700AU |
|
2.6A |
SF66T-0602600AU |
SF66T-0652600AU |
SF66T-0702600AU |
SF66T-0752600AU |
SF66T-0802600AU |
SF66T-0852600AU |
|
2.5A |
SF66T-0602500AU |
SF66T-0652500AU |
SF66T-0702500AU |
SF66T-0752500AU |
SF66T-0802500AU |
SF66T-0852500AU |
|
2.4A |
SF66T-0602400AU |
SF66T-0652400AU |
SF66T-0702400AU |
SF66T-0752400AU |
SF66T-0802400AU |
SF66T-0852400AU |
|
2.3A |
SF66T-0602300AU |
SF66T-0652300AU |
SF66T-0702300AU |
SF66T-0752300AU |
SF66T-0802300AU |
SF66T-0852300AU |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
4.0A |
SF66T-0304000AU |
SF66T-0354000AU |
SF66T-0404000AU |
SF66T-0454000AU |
SF66T-0504000AU |
SF66T-0554000AU |
|
3.9A |
SF66T-0303900AU |
SF66T-0353900AU |
SF66T-0403900AU |
SF66T-0453900AU |
SF66T-0503900AU |
SF66T-0553900AU |
|
3.8A |
SF66T-0303800AU |
SF66T-0353800AU |
SF66T-0403800AU |
SF66T-0453800AU |
SF66T-0503800AU |
SF66T-0553800AU |
|
3.7A |
SF66T-0303700AU |
SF66T-0353700AU |
SF66T-0403700AU |
SF66T-0453700AU |
SF66T-0503700AU |
SF66T-0553700AU |
|
3.6A |
SF66T-0303600AU |
SF66T-0353600AU |
SF66T-0403600AU |
SF66T-0453600AU |
SF66T-0503600AU |
SF66T-0553600AU |
|
3.5A |
SF66T-0303500AU |
SF66T-0353500AU |
SF66T-0403500AU |
SF66T-0453500AU |
SF66T-0503500AU |
SF66T-0553500AU |
|
3.4A |
SF66T-0303400AU |
SF66T-0353400AU |
SF66T-0403400AU |
SF66T-0453400AU |
SF66T-0503400AU |
SF66T-0553400AU |
|
3.3A |
SF66T-0303300AU |
SF66T-0353300AU |
SF66T-0403300AU |
SF66T-0453300AU |
SF66T-0503300AU |
SF66T-0553300AU |
|
3.2A |
SF66T-0303200AU |
SF66T-0353200AU |
SF66T-0403200AU |
SF66T-0453200AU |
SF66T-0503200AU |
SF66T-0553200AU |
|
3.1A |
SF66T-0303000AU |
SF66T-0353000AU |
SF66T-0403000AU |
SF66T-0453000AU |
SF66T-0503000AU |
SF66T-0553000AU |
|
3.0A |
SF66T-0303000AU |
SF66T-0353000AU |
SF66T-0403000AU |
SF66T-0453000AU |
SF66T-0503000AU |
SF66T-0553000AU |
|
2.9A |
SF66T-0302900AU |
SF66T-0352900AU |
SF66T-0402900AU |
SF66T-0452900AU |
SF66T-0502900AU |
SF66T-0552900AU |
|
2.8A |
SF66T-0302800AU |
SF66T-0352800AU |
SF66T-0402800AU |
SF66T-0452800AU |
SF66T-0502800AU |
SF66T-0552800AU |
|
2.7A |
SF66T-0302700AU |
SF66T-0352700AU |
SF66T-0402700AU |
SF66T-0452700AU |
SF66T-0502700AU |
SF66T-0552700AU |
|
2.6A |
SF66T-0302600AU |
SF66T-0352600AU |
SF66T-0402600AU |
SF66T-0452600AU |
SF66T-0502600AU |
SF66T-0552600AU |
|
2.5A |
SF66T-0302500AU |
SF66T-0352500AU |
SF66T-0402500AU |
SF66T-0452500AU |
SF66T-0502500AU |
SF66T-0552500AU |
|
2.4A |
SF66T-0302400AU |
SF66T-0352400AU |
SF66T-0402400AU |
SF66T-0452400AU |
SF66T-0502400AU |
SF66T-0552400AU |
|
2.3A |
SF66T-0302300AU |
SF66T-0352300AU |
SF66T-0402300AU |
SF66T-0452300AU |
SF66T-0502300AU |
SF66T-0552300AU |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
3.3A |
SF66T-1503300AU |
|
|
|
|
|
|
3.2A |
SF66T-1503200AU |
|
|
|
|
|
|
3.1A |
SF66T-1503000AU |
SF66T-1603000AU |
|
|
|
|
|
3.0A |
SF66T-1503000AU |
SF66T-1603000AU |
|
|
|
|
|
2.9A |
SF66T-1502900AU |
SF66T-1602900AU |
SF66T-1702900AU |
|
|
|
|
2.8A |
SF66T-1502800AU |
SF66T-1602800AU |
SF66T-1702800AU |
|
|
|
|
2.7A |
SF66T-1502700AU |
SF66T-1602700AU |
SF66T-1702700AU |
SF66T-1802700AU |
|
|
|
2.6A |
SF66T-1502600AU |
SF66T-1602600AU |
SF66T-1702600AU |
SF66T-1802600AU |
SF66T-1902600AU |
|
|
2.5A |
SF66T-1502500AU |
SF66T-1602500AU |
SF66T-1702500AU |
SF66T-1802500AU |
SF66T-1902500AU |
SF66T-2002500AU |
|
2.4A |
SF66T-1502400AU |
SF66T-1602400AU |
SF66T-1702400AU |
SF66T-1802400AU |
SF66T-1902400AU |
SF66T-2002400AU |
|
2.3A |
SF66T-1502300AU |
SF66T-1602300AU |
SF66T-1702300AU |
SF66T-1802300AU |
SF66T-1902300AU |
SF66T-2002300AU |
|
2.2A |
SF66T-1502200AU |
SF66T-1602200AU |
SF66T-1702200AU |
SF66T-1802200AU |
SF66T-1902200AU |
SF66T-2002200AU |
|
2.1A |
SF66T-1502100AU |
SF66T-1602100AU |
SF66T-1702100AU |
SF66T-1802100AU |
SF66T-1902100AU |
SF66T-2002100AU |
|
2.0A |
SF66T-1502000AU |
SF66T-1602000AU |
SF66T-1702000AU |
SF66T-1802000AU |
SF66T-1902000AU |
SF66T-2002000AU |
|
1.9A |
SF66T-1501900AU |
SF66T-1601900AU |
SF66T-1701900AU |
SF66T-1801900AU |
SF66T-1901900AU |
SF66T-2001900AU |
|
1.8A |
|
|
SF66T-1701800AU |
SF66T-1801800AU |
SF66T-1901800AU |
SF66T-2001800AU |
|
1.7A |
|
|
|
SF66T-1801700AU |
SF66T-1901700AU |
SF66T-2001700AU |
|
1.6A |
|
|
|
|
SF66T-1901600AU |
SF66T-2001600AU |
 |
 |
 |
 |
 |
 |
