LINEAR ADAPTOR
DESKTOP

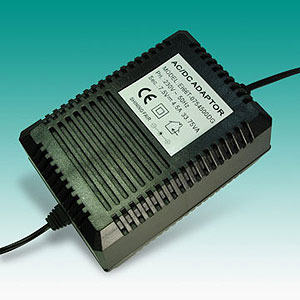

EI 66 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.9-3A |
|
|
|
Output Watt |
36VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.7A |
SF66T-2101700DG |
|
|
|
|
|
|
1.6A |
SF66T-2101600DG |
SF66T-2201600DG |
|
|
|
|
|
1.5A |
SF66T-2101500DG |
SF66T-2201500DG |
SF66T-2301500DG |
SF66T-2401500DG |
|
|
|
1.4A |
SF66T-2101400DG |
SF66T-2201400DG |
SF66T-2301400DG |
SF66T-2401400DG |
|
|
|
1.3A |
SF66T-2101300DG |
SF66T-2201300DG |
SF66T-2301300DG |
SF66T-2401300DG |
|
|
|
1.2A |
SF66T-2101200DG |
SF66T-2201200DG |
SF66T-2301200DG |
SF66T-2401200DG |
|
|
|
1.1A |
SF66T-2101100DG |
SF66T-2201100DG |
SF66T-2301100DG |
SF66T-2401100DG |
|
|
|
1.0A |
SF66T-2101000DG |
SF66T-2201000DG |
SF66T-2301000DG |
SF66T-2401000DG |
|
|
|
0.9A |
|
SF66T-2200900DG |
SF66T-2300900DG |
SF66T-2400900DG |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.4A |
SF66T-1502400DG |
|
|
|
|
|
|
2.3A |
SF66T-1502300DG |
|
|
|
|
|
|
2.2A |
SF66T-1502200DG |
SF66T-1602200DG |
|
|
|
|
|
2.1A |
SF66T-1502100DG |
SF66T-1602100DG |
SF66T-1702100DG |
|
|
|
|
2.0A |
SF66T-1502000DG |
SF66T-1602000DG |
SF66T-1702000DG |
SF66T-1802000DG |
|
|
|
1.9A |
SF66T-1501900DG |
SF66T-1601900DG |
SF66T-1701900DG |
SF66T-1801900DG |
|
|
|
1.8A |
SF66T-1501800DG |
SF66T-1601800DG |
SF66T-1701800DG |
SF66T-1801800DG |
SF66T-1901800DG |
SF66T-2001800DG |
|
1.7A |
SF66T-1501700DG |
SF66T-1601700DG |
SF66T-1701700DG |
SF66T-1801700DG |
SF66T-1901700DG |
SF66T-2001700DG |
|
1.6A |
SF66T-1501600DG |
SF66T-1601600DG |
SF66T-1701600DG |
SF66T-1801600DG |
SF66T-1901600DG |
SF66T-2001600DG |
|
1.5A |
SF66T-1501500DG |
SF66T-1601500DG |
SF66T-1701500DG |
SF66T-1801500DG |
SF66T-1901500DG |
SF66T-2001500DG |
|
1.4A |
SF66T-1501400DG |
SF66T-1601400DG |
SF66T-1701400DG |
SF66T-1801400DG |
SF66T-1901400DG |
SF66T-2001400DG |
|
1.3A |
SF66T-1501300DG |
SF66T-1601300DG |
SF66T-1701300DG |
SF66T-1801300DG |
SF66T-1901300DG |
SF66T-2001300DG |
|
1.2A |
SF66T-1501200DG |
SF66T-1601200DG |
SF66T-1701200DG |
SF66T-1801200DG |
SF66T-1901200DG |
SF66T-2001200DG |
|
1.1A |
|
|
SF66T-1701100DG |
SF66T-1801100DG |
SF66T-1901100DG |
SF66T-2001100DG |
|
1.0A |
|
|
|
|
SF66T-1901000DG |
SF66T-2001000DG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.0A |
SF66T-1203000DG |
|
|
|
|
|
|
2.9A |
SF66T-1202900DG |
|
|
|
|
|
|
2.8A |
SF66T-1202800DG |
SF66T-1252800DG |
|
|
|
|
|
2.7A |
SF66T-1202700DG |
SF66T-1252700DG |
SF66T-1302700DG |
|
|
|
|
2.6A |
SF66T-1202600DG |
SF66T-1252600DG |
SF66T-1302600DG |
SF66T-1352600DG |
|
|
|
2.5A |
SF66T-1202500DG |
SF66T-1252500DG |
SF66T-1302500DG |
SF66T-1352500DG |
SF66T-1402500DG |
|
|
2.4A |
SF66T-1202400DG |
SF66T-1252400DG |
SF66T-1302400DG |
SF66T-1352400DG |
SF66T-1402400DG |
SF66T-1452400DG |
|
2.3A |
SF66T-1202300DG |
SF66T-1252300DG |
SF66T-1302300DG |
SF66T-1352300DG |
SF66T-1402300DG |
SF66T-1452300DG |
|
2.2A |
SF66T-1202200DG |
SF66T-1252200DG |
SF66T-1302200DG |
SF66T-1352200DG |
SF66T-1402200DG |
SF66T-1452200DG |
|
2.1A |
SF66T-1202100DG |
SF66T-1252100DG |
SF66T-1302100DG |
SF66T-1352100DG |
SF66T-1402100DG |
SF66T-1452100DG |
|
2.0A |
SF66T-1202000DG |
SF66T-1252000DG |
SF66T-1302000DG |
SF66T-1352000DG |
SF66T-1402000DG |
SF66T-1452000DG |
|
1.9A |
SF66T-1201900DG |
SF66T-1251900DG |
SF66T-1301900DG |
SF66T-1351900DG |
SF66T-1401900DG |
SF66T-1451900DG |
|
1.8A |
SF66T-1201800DG |
SF66T-1251800DG |
SF66T-1301800DG |
SF66T-1351800DG |
SF66T-1401800DG |
SF66T-1451800DG |
|
1.7A |
SF66T-1201700DG |
SF66T-1251700DG |
SF66T-1301700DG |
SF66T-1351700DG |
SF66T-1401700DG |
SF66T-1451700DG |
|
1.6A |
SF66T-1201600DG |
SF66T-1251600DG |
SF66T-1301600DG |
SF66T-1351600DG |
SF66T-1401600DG |
SF66T-1451600DG |
|
1.5A |
SF66T-1201500DG |
SF66T-1251500DG |
SF66T-1301500DG |
SF66T-1351500DG |
SF66T-1401500DG |
SF66T-1451500DG |
|
1.4A |
|
SF66T-1251400DG |
SF66T-1301400DG |
SF66T-1351400DG |
SF66T-1401400DG |
SF66T-1451400DG |
|
1.3A |
|
|
SF66T-1301300DG |
SF66T-1351300DG |
SF66T-1401300DG |
SF66T-1451300DG |
|
1.2A |
|
|
|
|
|
SF66T-1451200DG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.0A |
SF66T-0903000DG |
SF66T-0953000DG |
SF66T-1003000DG |
SF66T-1053000DG |
SF66T-1103000DG |
SF66T-1153000DG |
|
2.9A |
SF66T-0902900DG |
SF66T-0952900DG |
SF66T-1002900DG |
SF66T-1052900DG |
SF66T-1102900DG |
SF66T-1152900DG |
|
2.8A |
SF66T-0902800DG |
SF66T-0952800DG |
SF66T-1002800DG |
SF66T-1052800DG |
SF66T-1102800DG |
SF66T-1152800DG |
|
2.7A |
SF66T-0902700DG |
SF66T-0952700DG |
SF66T-1002700DG |
SF66T-1052700DG |
SF66T-1102700DG |
SF66T-1152700DG |
|
2.6A |
SF66T-0902600DG |
SF66T-0952600DG |
SF66T-1002600DG |
SF66T-1052600DG |
SF66T-1102600DG |
SF66T-1152600DG |
|
2.5A |
SF66T-0902500DG |
SF66T-0952500DG |
SF66T-1002500DG |
SF66T-1052500DG |
SF66T-1102500DG |
SF66T-1152500DG |
|
2.4A |
SF66T-0902400DG |
SF66T-0952400DG |
SF66T-1002400DG |
SF66T-1052400DG |
SF66T-1102400DG |
SF66T-1152400DG |
|
2.3A |
SF66T-0902300DG |
SF66T-0952300DG |
SF66T-1002300DG |
SF66T-1052300DG |
SF66T-1102300DG |
SF66T-1152300DG |
|
2.2A |
SF66T-0902200DG |
SF66T-0952200DG |
SF66T-1002200DG |
SF66T-1052200DG |
SF66T-1102200DG |
SF66T-1152200DG |
|
2.1A |
SF66T-0902100DG |
SF66T-0952100DG |
SF66T-1002100DG |
SF66T-1052100DG |
SF66T-1102100DG |
SF66T-1152100DG |
|
2.0A |
SF66T-0902000DG |
SF66T-0952000DG |
SF66T-1002000DG |
SF66T-1052000DG |
SF66T-1102000DG |
SF66T-1152000DG |
|
1.9A |
SF66T-0901900DG |
SF66T-0951900DG |
SF66T-1001900DG |
SF66T-1051900DG |
SF66T-1101900DG |
SF66T-1151900DG |
|
1.8A |
SF66T-0901800DG |
SF66T-0951800DG |
SF66T-1001800DG |
SF66T-1051800DG |
SF66T-1101800DG |
SF66T-1151800DG |
|
1.7A |
SF66T-0901700DG |
SF66T-0951700DG |
SF66T-1001700DG |
SF66T-1051700DG |
SF66T-1101700DG |
SF66T-1151700DG |
|
1.6A |
SF66T-0901600DG |
SF66T-0951600DG |
SF66T-1001600DG |
SF66T-1051600DG |
SF66T-1101600DG |
SF66T-1151600DG |
|
1.5A |
SF66T-0901500DG |
SF66T-0951500DG |
SF66T-1001500DG |
SF66T-1051500DG |
SF66T-1101500DG |
SF66T-1151500DG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF66T-0603000DG |
SF66T-0653000DG |
SF66T-0703000DG |
SF66T-0753000DG |
SF66T-0803000DG |
SF66T-0853000DG |
|
2.9A |
SF66T-0602900DG |
SF66T-0652900DG |
SF66T-0702900DG |
SF66T-0752900DG |
SF66T-0802900DG |
SF66T-0852900DG |
|
2.8A |
SF66T-0602800DG |
SF66T-0652800DG |
SF66T-0702800DG |
SF66T-0752800DG |
SF66T-0802800DG |
SF66T-0852800DG |
|
2.7A |
SF66T-0602700DG |
SF66T-0652700DG |
SF66T-0702700DG |
SF66T-0752700DG |
SF66T-0802700DG |
SF66T-0852700DG |
|
2.6A |
SF66T-0602600DG |
SF66T-0652600DG |
SF66T-0702600DG |
SF66T-0752600DG |
SF66T-0802600DG |
SF66T-0852600DG |
|
2.5A |
SF66T-0602500DG |
SF66T-0652500DG |
SF66T-0702500DG |
SF66T-0752500DG |
SF66T-0802500DG |
SF66T-0852500DG |
|
2.4A |
SF66T-0602400DG |
SF66T-0652400DG |
SF66T-0702400DG |
SF66T-0752400DG |
SF66T-0802400DG |
SF66T-0852400DG |
|
2.3A |
SF66T-0602300DG |
SF66T-0652300DG |
SF66T-0702300DG |
SF66T-0752300DG |
SF66T-0802300DG |
SF66T-0852300DG |
|
2.2A |
SF66T-0602200DG |
SF66T-0652200DG |
SF66T-0702200DG |
SF66T-0752200DG |
SF66T-0802200DG |
SF66T-0852200DG |
|
2.1A |
SF66T-0602100DG |
SF66T-0652100DG |
SF66T-0702100DG |
SF66T-0752100DG |
SF66T-0802100DG |
SF66T-0852100DG |
|
2.0A |
SF66T-0602000DG |
SF66T-0652000DG |
SF66T-0702000DG |
SF66T-0752000DG |
SF66T-0802000DG |
SF66T-0852000DG |
|
1.9A |
SF66T-0601900DG |
SF66T-0651900DG |
SF66T-0701900DG |
SF66T-0751900DG |
SF66T-0801900DG |
SF66T-0851900DG |
|
1.8A |
SF66T-0601800DG |
SF66T-0651800DG |
SF66T-0701800DG |
SF66T-0751800DG |
SF66T-0801800DG |
SF66T-0851800DG |
|
1.7A |
SF66T-0601700DG |
SF66T-0651700DG |
SF66T-0701700DG |
SF66T-0751700DG |
SF66T-0801700DG |
SF66T-0851700DG |
|
1.6A |
SF66T-0601600DG |
SF66T-0651600DG |
SF66T-0701600DG |
SF66T-0751600DG |
SF66T-0801600DG |
SF66T-0851600DG |
|
1.5A |
SF66T-0601500DG |
SF66T-0651500DG |
SF66T-0701500DG |
SF66T-0751500DG |
SF66T-0801500DG |
SF66T-0851500DG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF66T-0303000DG |
SF66T-0353000DG |
SF66T-0403000DG |
SF66T-0453000DG |
SF66T-0503000DG |
SF66T-0553000DG |
|
2.9A |
SF66T-0302900DG |
SF66T-0352900DG |
SF66T-0402900DG |
SF66T-0452900DG |
SF66T-0502900DG |
SF66T-0552900DG |
|
2.8A |
SF66T-0302800DG |
SF66T-0352800DG |
SF66T-0402800DG |
SF66T-0452800DG |
SF66T-0502800DG |
SF66T-0552800DG |
|
2.7A |
SF66T-0302700DG |
SF66T-0352700DG |
SF66T-0402700DG |
SF66T-0452700DG |
SF66T-0502700DG |
SF66T-0552700DG |
|
2.6A |
SF66T-0302600DG |
SF66T-0352600DG |
SF66T-0402600DG |
SF66T-0452600DG |
SF66T-0502600DG |
SF66T-0552600DG |
|
2.5A |
SF66T-0302500DG |
SF66T-0352500DG |
SF66T-0402500DG |
SF66T-0452500DG |
SF66T-0502500DG |
SF66T-0552500DG |
|
2.4A |
SF66T-0302400DG |
SF66T-0352400DG |
SF66T-0402400DG |
SF66T-0452400DG |
SF66T-0502400DG |
SF66T-0552400DG |
|
2.3A |
SF66T-0302300DG |
SF66T-0352300DG |
SF66T-0402300DG |
SF66T-0452300DG |
SF66T-0502300DG |
SF66T-0552300DG |
|
2.2A |
SF66T-0302200DG |
SF66T-0352200DG |
SF66T-0402200DG |
SF66T-0452200DG |
SF66T-0502200DG |
SF66T-0552200DG |
|
2.1A |
SF66T-0302100DG |
SF66T-0352100DG |
SF66T-0402100DG |
SF66T-0452100DG |
SF66T-0502100DG |
SF66T-0552100DG |
|
2.0A |
SF66T-0302000DG |
SF66T-0352000DG |
SF66T-0402000DG |
SF66T-0452000DG |
SF66T-0502000DG |
SF66T-0552000DG |
|
1.9A |
SF66T-0301900DG |
SF66T-0351900DG |
SF66T-0401900DG |
SF66T-0451900DG |
SF66T-0501900DG |
SF66T-0551900DG |
|
1.8A |
SF66T-0301800DG |
SF66T-0351800DG |
SF66T-0401800DG |
SF66T-0451800DG |
SF66T-0501800DG |
SF66T-0551800DG |
|
1.7A |
SF66T-0301700DG |
SF66T-0351700DG |
SF66T-0401700DG |
SF66T-0451700DG |
SF66T-0501700DG |
SF66T-0551700DG |
|
1.6A |
SF66T-0301600DG |
SF66T-0351600DG |
SF66T-0401600DG |
SF66T-0451600DG |
SF66T-0501600DG |
SF66T-0551600DG |
|
1.5A |
SF66T-0301500DG |
SF66T-0351500DG |
SF66T-0401500DG |
SF66T-0451500DG |
SF66T-0501500DG |
SF66T-0551500DG |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
