LINEAR ADAPTOR
DESKTOP

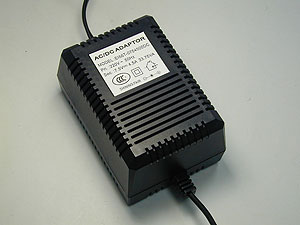

EI 66 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.9-3A |
|
|
|
Output Watt |
36VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CCC |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.7A |
SF66T-2101700DC |
|
|
|
|
|
|
1.6A |
SF66T-2101600DC |
SF66T-2201600DC |
|
|
|
|
|
1.5A |
SF66T-2101500DC |
SF66T-2201500DC |
SF66T-2301500DC |
SF66T-2401500DC |
|
|
|
1.4A |
SF66T-2101400DC |
SF66T-2201400DC |
SF66T-2301400DC |
SF66T-2401400DC |
|
|
|
1.3A |
SF66T-2101300DC |
SF66T-2201300DC |
SF66T-2301300DC |
SF66T-2401300DC |
|
|
|
1.2A |
SF66T-2101200DC |
SF66T-2201200DC |
SF66T-2301200DC |
SF66T-2401200DC |
|
|
|
1.1A |
SF66T-2101100DC |
SF66T-2201100DC |
SF66T-2301100DC |
SF66T-2401100DC |
|
|
|
1.0A |
SF66T-2101000DC |
SF66T-2201000DC |
SF66T-2301000DC |
SF66T-2401000DC |
|
|
|
0.9A |
|
SF66T-2200900DC |
SF66T-2300900DC |
SF66T-2400900DC |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.4A |
SF66T-1502400DC |
|
|
|
|
|
|
2.3A |
SF66T-1502300DC |
|
|
|
|
|
|
2.2A |
SF66T-1502200DC |
SF66T-1602200DC |
|
|
|
|
|
2.1A |
SF66T-1502100DC |
SF66T-1602100DC |
SF66T-1702100DC |
|
|
|
|
2.0A |
SF66T-1502000DC |
SF66T-1602000DC |
SF66T-1702000DC |
SF66T-1802000DC |
|
|
|
1.9A |
SF66T-1501900DC |
SF66T-1601900DC |
SF66T-1701900DC |
SF66T-1801900DC |
|
|
|
1.8A |
SF66T-1501800DC |
SF66T-1601800DC |
SF66T-1701800DC |
SF66T-1801800DC |
SF66T-1901800DC |
SF66T-2001800DC |
|
1.7A |
SF66T-1501700DC |
SF66T-1601700DC |
SF66T-1701700DC |
SF66T-1801700DC |
SF66T-1901700DC |
SF66T-2001700DC |
|
1.6A |
SF66T-1501600DC |
SF66T-1601600DC |
SF66T-1701600DC |
SF66T-1801600DC |
SF66T-1901600DC |
SF66T-2001600DC |
|
1.5A |
SF66T-1501500DC |
SF66T-1601500DC |
SF66T-1701500DC |
SF66T-1801500DC |
SF66T-1901500DC |
SF66T-2001500DC |
|
1.4A |
SF66T-1501400DC |
SF66T-1601400DC |
SF66T-1701400DC |
SF66T-1801400DC |
SF66T-1901400DC |
SF66T-2001400DC |
|
1.3A |
SF66T-1501300DC |
SF66T-1601300DC |
SF66T-1701300DC |
SF66T-1801300DC |
SF66T-1901300DC |
SF66T-2001300DC |
|
1.2A |
SF66T-1501200DC |
SF66T-1601200DC |
SF66T-1701200DC |
SF66T-1801200DC |
SF66T-1901200DC |
SF66T-2001200DC |
|
1.1A |
|
|
SF66T-1701100DC |
SF66T-1801100DC |
SF66T-1901100DC |
SF66T-2001100DC |
|
1.0A |
|
|
|
|
SF66T-1901000DC |
SF66T-2001000DC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.0A |
SF66T-1203000DC |
|
|
|
|
|
|
2.9A |
SF66T-1202900DC |
|
|
|
|
|
|
2.8A |
SF66T-1202800DC |
SF66T-1252800DC |
|
|
|
|
|
2.7A |
SF66T-1202700DC |
SF66T-1252700DC |
SF66T-1302700DC |
|
|
|
|
2.6A |
SF66T-1202600DC |
SF66T-1252600DC |
SF66T-1302600DC |
SF66T-1352600DC |
|
|
|
2.5A |
SF66T-1202500DC |
SF66T-1252500DC |
SF66T-1302500DC |
SF66T-1352500DC |
SF66T-1402500DC |
|
|
2.4A |
SF66T-1202400DC |
SF66T-1252400DC |
SF66T-1302400DC |
SF66T-1352400DC |
SF66T-1402400DC |
SF66T-1452400DC |
|
2.3A |
SF66T-1202300DC |
SF66T-1252300DC |
SF66T-1302300DC |
SF66T-1352300DC |
SF66T-1402300DC |
SF66T-1452300DC |
|
2.2A |
SF66T-1202200DC |
SF66T-1252200DC |
SF66T-1302200DC |
SF66T-1352200DC |
SF66T-1402200DC |
SF66T-1452200DC |
|
2.1A |
SF66T-1202100DC |
SF66T-1252100DC |
SF66T-1302100DC |
SF66T-1352100DC |
SF66T-1402100DC |
SF66T-1452100DC |
|
2.0A |
SF66T-1202000DC |
SF66T-1252000DC |
SF66T-1302000DC |
SF66T-1352000DC |
SF66T-1402000DC |
SF66T-1452000DC |
|
1.9A |
SF66T-1201900DC |
SF66T-1251900DC |
SF66T-1301900DC |
SF66T-1351900DC |
SF66T-1401900DC |
SF66T-1451900DC |
|
1.8A |
SF66T-1201800DC |
SF66T-1251800DC |
SF66T-1301800DC |
SF66T-1351800DC |
SF66T-1401800DC |
SF66T-1451800DC |
|
1.7A |
SF66T-1201700DC |
SF66T-1251700DC |
SF66T-1301700DC |
SF66T-1351700DC |
SF66T-1401700DC |
SF66T-1451700DC |
|
1.6A |
SF66T-1201600DC |
SF66T-1251600DC |
SF66T-1301600DC |
SF66T-1351600DC |
SF66T-1401600DC |
SF66T-1451600DC |
|
1.5A |
SF66T-1201500DC |
SF66T-1251500DC |
SF66T-1301500DC |
SF66T-1351500DC |
SF66T-1401500DC |
SF66T-1451500DC |
|
1.4A |
|
SF66T-1251400DC |
SF66T-1301400DC |
SF66T-1351400DC |
SF66T-1401400DC |
SF66T-1451400DC |
|
1.3A |
|
|
SF66T-1301300DC |
SF66T-1351300DC |
SF66T-1401300DC |
SF66T-1451300DC |
|
1.2A |
|
|
|
|
|
SF66T-1451200DC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.0A |
SF66T-0903000DC |
SF66T-0953000DC |
SF66T-1003000DC |
SF66T-1053000DC |
SF66T-1103000DC |
SF66T-1153000DC |
|
2.9A |
SF66T-0902900DC |
SF66T-0952900DC |
SF66T-1002900DC |
SF66T-1052900DC |
SF66T-1102900DC |
SF66T-1152900DC |
|
2.8A |
SF66T-0902800DC |
SF66T-0952800DC |
SF66T-1002800DC |
SF66T-1052800DC |
SF66T-1102800DC |
SF66T-1152800DC |
|
2.7A |
SF66T-0902700DC |
SF66T-0952700DC |
SF66T-1002700DC |
SF66T-1052700DC |
SF66T-1102700DC |
SF66T-1152700DC |
|
2.6A |
SF66T-0902600DC |
SF66T-0952600DC |
SF66T-1002600DC |
SF66T-1052600DC |
SF66T-1102600DC |
SF66T-1152600DC |
|
2.5A |
SF66T-0902500DC |
SF66T-0952500DC |
SF66T-1002500DC |
SF66T-1052500DC |
SF66T-1102500DC |
SF66T-1152500DC |
|
2.4A |
SF66T-0902400DC |
SF66T-0952400DC |
SF66T-1002400DC |
SF66T-1052400DC |
SF66T-1102400DC |
SF66T-1152400DC |
|
2.3A |
SF66T-0902300DC |
SF66T-0952300DC |
SF66T-1002300DC |
SF66T-1052300DC |
SF66T-1102300DC |
SF66T-1152300DC |
|
2.2A |
SF66T-0902200DC |
SF66T-0952200DC |
SF66T-1002200DC |
SF66T-1052200DC |
SF66T-1102200DC |
SF66T-1152200DC |
|
2.1A |
SF66T-0902100DC |
SF66T-0952100DC |
SF66T-1002100DC |
SF66T-1052100DC |
SF66T-1102100DC |
SF66T-1152100DC |
|
2.0A |
SF66T-0902000DC |
SF66T-0952000DC |
SF66T-1002000DC |
SF66T-1052000DC |
SF66T-1102000DC |
SF66T-1152000DC |
|
1.9A |
SF66T-0901900DC |
SF66T-0951900DC |
SF66T-1001900DC |
SF66T-1051900DC |
SF66T-1101900DC |
SF66T-1151900DC |
|
1.8A |
SF66T-0901800DC |
SF66T-0951800DC |
SF66T-1001800DC |
SF66T-1051800DC |
SF66T-1101800DC |
SF66T-1151800DC |
|
1.7A |
SF66T-0901700DC |
SF66T-0951700DC |
SF66T-1001700DC |
SF66T-1051700DC |
SF66T-1101700DC |
SF66T-1151700DC |
|
1.6A |
SF66T-0901600DC |
SF66T-0951600DC |
SF66T-1001600DC |
SF66T-1051600DC |
SF66T-1101600DC |
SF66T-1151600DC |
|
1.5A |
SF66T-0901500DC |
SF66T-0951500DC |
SF66T-1001500DC |
SF66T-1051500DC |
SF66T-1101500DC |
SF66T-1151500DC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF66T-0603000DC |
SF66T-0653000DC |
SF66T-0703000DC |
SF66T-0753000DC |
SF66T-0803000DC |
SF66T-0853000DC |
|
2.9A |
SF66T-0602900DC |
SF66T-0652900DC |
SF66T-0702900DC |
SF66T-0752900DC |
SF66T-0802900DC |
SF66T-0852900DC |
|
2.8A |
SF66T-0602800DC |
SF66T-0652800DC |
SF66T-0702800DC |
SF66T-0752800DC |
SF66T-0802800DC |
SF66T-0852800DC |
|
2.7A |
SF66T-0602700DC |
SF66T-0652700DC |
SF66T-0702700DC |
SF66T-0752700DC |
SF66T-0802700DC |
SF66T-0852700DC |
|
2.6A |
SF66T-0602600DC |
SF66T-0652600DC |
SF66T-0702600DC |
SF66T-0752600DC |
SF66T-0802600DC |
SF66T-0852600DC |
|
2.5A |
SF66T-0602500DC |
SF66T-0652500DC |
SF66T-0702500DC |
SF66T-0752500DC |
SF66T-0802500DC |
SF66T-0852500DC |
|
2.4A |
SF66T-0602400DC |
SF66T-0652400DC |
SF66T-0702400DC |
SF66T-0752400DC |
SF66T-0802400DC |
SF66T-0852400DC |
|
2.3A |
SF66T-0602300DC |
SF66T-0652300DC |
SF66T-0702300DC |
SF66T-0752300DC |
SF66T-0802300DC |
SF66T-0852300DC |
|
2.2A |
SF66T-0602200DC |
SF66T-0652200DC |
SF66T-0702200DC |
SF66T-0752200DC |
SF66T-0802200DC |
SF66T-0852200DC |
|
2.1A |
SF66T-0602100DC |
SF66T-0652100DC |
SF66T-0702100DC |
SF66T-0752100DC |
SF66T-0802100DC |
SF66T-0852100DC |
|
2.0A |
SF66T-0602000DC |
SF66T-0652000DC |
SF66T-0702000DC |
SF66T-0752000DC |
SF66T-0802000DC |
SF66T-0852000DC |
|
1.9A |
SF66T-0601900DC |
SF66T-0651900DC |
SF66T-0701900DC |
SF66T-0751900DC |
SF66T-0801900DC |
SF66T-0851900DC |
|
1.8A |
SF66T-0601800DC |
SF66T-0651800DC |
SF66T-0701800DC |
SF66T-0751800DC |
SF66T-0801800DC |
SF66T-0851800DC |
|
1.7A |
SF66T-0601700DC |
SF66T-0651700DC |
SF66T-0701700DC |
SF66T-0751700DC |
SF66T-0801700DC |
SF66T-0851700DC |
|
1.6A |
SF66T-0601600DC |
SF66T-0651600DC |
SF66T-0701600DC |
SF66T-0751600DC |
SF66T-0801600DC |
SF66T-0851600DC |
|
1.5A |
SF66T-0601500DC |
SF66T-0651500DC |
SF66T-0701500DC |
SF66T-0751500DC |
SF66T-0801500DC |
SF66T-0851500DC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF66T-0303000DC |
SF66T-0353000DC |
SF66T-0403000DC |
SF66T-0453000DC |
SF66T-0503000DC |
SF66T-0553000DC |
|
2.9A |
SF66T-0302900DC |
SF66T-0352900DC |
SF66T-0402900DC |
SF66T-0452900DC |
SF66T-0502900DC |
SF66T-0552900DC |
|
2.8A |
SF66T-0302800DC |
SF66T-0352800DC |
SF66T-0402800DC |
SF66T-0452800DC |
SF66T-0502800DC |
SF66T-0552800DC |
|
2.7A |
SF66T-0302700DC |
SF66T-0352700DC |
SF66T-0402700DC |
SF66T-0452700DC |
SF66T-0502700DC |
SF66T-0552700DC |
|
2.6A |
SF66T-0302600DC |
SF66T-0352600DC |
SF66T-0402600DC |
SF66T-0452600DC |
SF66T-0502600DC |
SF66T-0552600DC |
|
2.5A |
SF66T-0302500DC |
SF66T-0352500DC |
SF66T-0402500DC |
SF66T-0452500DC |
SF66T-0502500DC |
SF66T-0552500DC |
|
2.4A |
SF66T-0302400DC |
SF66T-0352400DC |
SF66T-0402400DC |
SF66T-0452400DC |
SF66T-0502400DC |
SF66T-0552400DC |
|
2.3A |
SF66T-0302300DC |
SF66T-0352300DC |
SF66T-0402300DC |
SF66T-0452300DC |
SF66T-0502300DC |
SF66T-0552300DC |
|
2.2A |
SF66T-0302200DC |
SF66T-0352200DC |
SF66T-0402200DC |
SF66T-0452200DC |
SF66T-0502200DC |
SF66T-0552200DC |
|
2.1A |
SF66T-0302100DC |
SF66T-0352100DC |
SF66T-0402100DC |
SF66T-0452100DC |
SF66T-0502100DC |
SF66T-0552100DC |
|
2.0A |
SF66T-0302000DC |
SF66T-0352000DC |
SF66T-0402000DC |
SF66T-0452000DC |
SF66T-0502000DC |
SF66T-0552000DC |
|
1.9A |
SF66T-0301900DC |
SF66T-0351900DC |
SF66T-0401900DC |
SF66T-0451900DC |
SF66T-0501900DC |
SF66T-0551900DC |
|
1.8A |
SF66T-0301800DC |
SF66T-0351800DC |
SF66T-0401800DC |
SF66T-0451800DC |
SF66T-0501800DC |
SF66T-0551800DC |
|
1.7A |
SF66T-0301700DC |
SF66T-0351700DC |
SF66T-0401700DC |
SF66T-0451700DC |
SF66T-0501700DC |
SF66T-0551700DC |
|
1.6A |
SF66T-0301600DC |
SF66T-0351600DC |
SF66T-0401600DC |
SF66T-0451600DC |
SF66T-0501600DC |
SF66T-0551600DC |
|
1.5A |
SF66T-0301500DC |
SF66T-0351500DC |
SF66T-0401500DC |
SF66T-0451500DC |
SF66T-0501500DC |
SF66T-0551500DC |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
