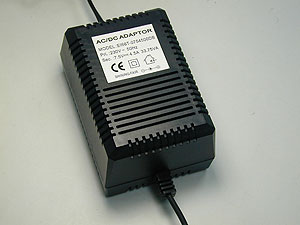

LINEAR ADAPTOR
DESKTOP
EI 66 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230VAC |
Output Voltage |
3-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.9-3A |
|
|
|
Output Watt |
36VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750VAC, one second |
CE |
|
|
Primary to Secondary |
3750VAC, one second |
||
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
1.7A |
SF66T-2101700DB |
|
|
|
|
|
|
1.6A |
SF66T-2101600DB |
SF66T-2201600DB |
|
|
|
|
|
1.5A |
SF66T-2101500DB |
SF66T-2201500DB |
SF66T-2301500DB |
SF66T-2401500DB |
|
|
|
1.4A |
SF66T-2101400DB |
SF66T-2201400DB |
SF66T-2301400DB |
SF66T-2401400DB |
|
|
|
1.3A |
SF66T-2101300DB |
SF66T-2201300DB |
SF66T-2301300DB |
SF66T-2401300DB |
|
|
|
1.2A |
SF66T-2101200DB |
SF66T-2201200DB |
SF66T-2301200DB |
SF66T-2401200DB |
|
|
|
1.1A |
SF66T-2101100DB |
SF66T-2201100DB |
SF66T-2301100DB |
SF66T-2401100DB |
|
|
|
1.0A |
SF66T-2101000DB |
SF66T-2201000DB |
SF66T-2301000DB |
SF66T-2401000DB |
|
|
|
0.9A |
|
SF66T-2200900DB |
SF66T-2300900DB |
SF66T-2400900DB |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
2.4A |
SF66T-1502400DB |
|
|
|
|
|
|
2.3A |
SF66T-1502300DB |
|
|
|
|
|
|
2.2A |
SF66T-1502200DB |
SF66T-1602200DB |
|
|
|
|
|
2.1A |
SF66T-1502100DB |
SF66T-1602100DB |
SF66T-1702100DB |
|
|
|
|
2.0A |
SF66T-1502000DB |
SF66T-1602000DB |
SF66T-1702000DB |
SF66T-1802000DB |
|
|
|
1.9A |
SF66T-1501900DB |
SF66T-1601900DB |
SF66T-1701900DB |
SF66T-1801900DB |
|
|
|
1.8A |
SF66T-1501800DB |
SF66T-1601800DB |
SF66T-1701800DB |
SF66T-1801800DB |
SF66T-1901800DB |
SF66T-2001800DB |
|
1.7A |
SF66T-1501700DB |
SF66T-1601700DB |
SF66T-1701700DB |
SF66T-1801700DB |
SF66T-1901700DB |
SF66T-2001700DB |
|
1.6A |
SF66T-1501600DB |
SF66T-1601600DB |
SF66T-1701600DB |
SF66T-1801600DB |
SF66T-1901600DB |
SF66T-2001600DB |
|
1.5A |
SF66T-1501500DB |
SF66T-1601500DB |
SF66T-1701500DB |
SF66T-1801500DB |
SF66T-1901500DB |
SF66T-2001500DB |
|
1.4A |
SF66T-1501400DB |
SF66T-1601400DB |
SF66T-1701400DB |
SF66T-1801400DB |
SF66T-1901400DB |
SF66T-2001400DB |
|
1.3A |
SF66T-1501300DB |
SF66T-1601300DB |
SF66T-1701300DB |
SF66T-1801300DB |
SF66T-1901300DB |
SF66T-2001300DB |
|
1.2A |
SF66T-1501200DB |
SF66T-1601200DB |
SF66T-1701200DB |
SF66T-1801200DB |
SF66T-1901200DB |
SF66T-2001200DB |
|
1.1A |
|
|
SF66T-1701100DB |
SF66T-1801100DB |
SF66T-1901100DB |
SF66T-2001100DB |
|
1.0A |
|
|
|
|
SF66T-1901000DB |
SF66T-2001000DB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
3.0A |
SF66T-1203000DB |
|
|
|
|
|
|
2.9A |
SF66T-1202900DB |
|
|
|
|
|
|
2.8A |
SF66T-1202800DB |
SF66T-1252800DB |
|
|
|
|
|
2.7A |
SF66T-1202700DB |
SF66T-1252700DB |
SF66T-1302700DB |
|
|
|
|
2.6A |
SF66T-1202600DB |
SF66T-1252600DB |
SF66T-1302600DB |
SF66T-1352600DB |
|
|
|
2.5A |
SF66T-1202500DB |
SF66T-1252500DB |
SF66T-1302500DB |
SF66T-1352500DB |
SF66T-1402500DB |
|
|
2.4A |
SF66T-1202400DB |
SF66T-1252400DB |
SF66T-1302400DB |
SF66T-1352400DB |
SF66T-1402400DB |
SF66T-1452400DB |
|
2.3A |
SF66T-1202300DB |
SF66T-1252300DB |
SF66T-1302300DB |
SF66T-1352300DB |
SF66T-1402300DB |
SF66T-1452300DB |
|
2.2A |
SF66T-1202200DB |
SF66T-1252200DB |
SF66T-1302200DB |
SF66T-1352200DB |
SF66T-1402200DB |
SF66T-1452200DB |
|
2.1A |
SF66T-1202100DB |
SF66T-1252100DB |
SF66T-1302100DB |
SF66T-1352100DB |
SF66T-1402100DB |
SF66T-1452100DB |
|
2.0A |
SF66T-1202000DB |
SF66T-1252000DB |
SF66T-1302000DB |
SF66T-1352000DB |
SF66T-1402000DB |
SF66T-1452000DB |
|
1.9A |
SF66T-1201900DB |
SF66T-1251900DB |
SF66T-1301900DB |
SF66T-1351900DB |
SF66T-1401900DB |
SF66T-1451900DB |
|
1.8A |
SF66T-1201800DB |
SF66T-1251800DB |
SF66T-1301800DB |
SF66T-1351800DB |
SF66T-1401800DB |
SF66T-1451800DB |
|
1.7A |
SF66T-1201700DB |
SF66T-1251700DB |
SF66T-1301700DB |
SF66T-1351700DB |
SF66T-1401700DB |
SF66T-1451700DB |
|
1.6A |
SF66T-1201600DB |
SF66T-1251600DB |
SF66T-1301600DB |
SF66T-1351600DB |
SF66T-1401600DB |
SF66T-1451600DB |
|
1.5A |
SF66T-1201500DB |
SF66T-1251500DB |
SF66T-1301500DB |
SF66T-1351500DB |
SF66T-1401500DB |
SF66T-1451500DB |
|
1.4A |
|
SF66T-1251400DB |
SF66T-1301400DB |
SF66T-1351400DB |
SF66T-1401400DB |
SF66T-1451400DB |
|
1.3A |
|
|
SF66T-1301300DB |
SF66T-1351300DB |
SF66T-1401300DB |
SF66T-1451300DB |
|
1.2A |
|
|
|
|
|
SF66T-1451200DB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
3.0A |
SF66T-0903000DB |
SF66T-0953000DB |
SF66T-1003000DB |
SF66T-1053000DB |
SF66T-1103000DB |
SF66T-1153000DB |
|
2.9A |
SF66T-0902900DB |
SF66T-0952900DB |
SF66T-1002900DB |
SF66T-1052900DB |
SF66T-1102900DB |
SF66T-1152900DB |
|
2.8A |
SF66T-0902800DB |
SF66T-0952800DB |
SF66T-1002800DB |
SF66T-1052800DB |
SF66T-1102800DB |
SF66T-1152800DB |
|
2.7A |
SF66T-0902700DB |
SF66T-0952700DB |
SF66T-1002700DB |
SF66T-1052700DB |
SF66T-1102700DB |
SF66T-1152700DB |
|
2.6A |
SF66T-0902600DB |
SF66T-0952600DB |
SF66T-1002600DB |
SF66T-1052600DB |
SF66T-1102600DB |
SF66T-1152600DB |
|
2.5A |
SF66T-0902500DB |
SF66T-0952500DB |
SF66T-1002500DB |
SF66T-1052500DB |
SF66T-1102500DB |
SF66T-1152500DB |
|
2.4A |
SF66T-0902400DB |
SF66T-0952400DB |
SF66T-1002400DB |
SF66T-1052400DB |
SF66T-1102400DB |
SF66T-1152400DB |
|
2.3A |
SF66T-0902300DB |
SF66T-0952300DB |
SF66T-1002300DB |
SF66T-1052300DB |
SF66T-1102300DB |
SF66T-1152300DB |
|
2.2A |
SF66T-0902200DB |
SF66T-0952200DB |
SF66T-1002200DB |
SF66T-1052200DB |
SF66T-1102200DB |
SF66T-1152200DB |
|
2.1A |
SF66T-0902100DB |
SF66T-0952100DB |
SF66T-1002100DB |
SF66T-1052100DB |
SF66T-1102100DB |
SF66T-1152100DB |
|
2.0A |
SF66T-0902000DB |
SF66T-0952000DB |
SF66T-1002000DB |
SF66T-1052000DB |
SF66T-1102000DB |
SF66T-1152000DB |
|
1.9A |
SF66T-0901900DB |
SF66T-0951900DB |
SF66T-1001900DB |
SF66T-1051900DB |
SF66T-1101900DB |
SF66T-1151900DB |
|
1.8A |
SF66T-0901800DB |
SF66T-0951800DB |
SF66T-1001800DB |
SF66T-1051800DB |
SF66T-1101800DB |
SF66T-1151800DB |
|
1.7A |
SF66T-0901700DB |
SF66T-0951700DB |
SF66T-1001700DB |
SF66T-1051700DB |
SF66T-1101700DB |
SF66T-1151700DB |
|
1.6A |
SF66T-0901600DB |
SF66T-0951600DB |
SF66T-1001600DB |
SF66T-1051600DB |
SF66T-1101600DB |
SF66T-1151600DB |
|
1.5A |
SF66T-0901500DB |
SF66T-0951500DB |
SF66T-1001500DB |
SF66T-1051500DB |
SF66T-1101500DB |
SF66T-1151500DB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
3.0A |
SF66T-0603000DB |
SF66T-0653000DB |
SF66T-0703000DB |
SF66T-0753000DB |
SF66T-0803000DB |
SF66T-0853000DB |
|
2.9A |
SF66T-0602900DB |
SF66T-0652900DB |
SF66T-0702900DB |
SF66T-0752900DB |
SF66T-0802900DB |
SF66T-0852900DB |
|
2.8A |
SF66T-0602800DB |
SF66T-0652800DB |
SF66T-0702800DB |
SF66T-0752800DB |
SF66T-0802800DB |
SF66T-0852800DB |
|
2.7A |
SF66T-0602700DB |
SF66T-0652700DB |
SF66T-0702700DB |
SF66T-0752700DB |
SF66T-0802700DB |
SF66T-0852700DB |
|
2.6A |
SF66T-0602600DB |
SF66T-0652600DB |
SF66T-0702600DB |
SF66T-0752600DB |
SF66T-0802600DB |
SF66T-0852600DB |
|
2.5A |
SF66T-0602500DB |
SF66T-0652500DB |
SF66T-0702500DB |
SF66T-0752500DB |
SF66T-0802500DB |
SF66T-0852500DB |
|
2.4A |
SF66T-0602400DB |
SF66T-0652400DB |
SF66T-0702400DB |
SF66T-0752400DB |
SF66T-0802400DB |
SF66T-0852400DB |
|
2.3A |
SF66T-0602300DB |
SF66T-0652300DB |
SF66T-0702300DB |
SF66T-0752300DB |
SF66T-0802300DB |
SF66T-0852300DB |
|
2.2A |
SF66T-0602200DB |
SF66T-0652200DB |
SF66T-0702200DB |
SF66T-0752200DB |
SF66T-0802200DB |
SF66T-0852200DB |
|
2.1A |
SF66T-0602100DB |
SF66T-0652100DB |
SF66T-0702100DB |
SF66T-0752100DB |
SF66T-0802100DB |
SF66T-0852100DB |
|
2.0A |
SF66T-0602000DB |
SF66T-0652000DB |
SF66T-0702000DB |
SF66T-0752000DB |
SF66T-0802000DB |
SF66T-0852000DB |
|
1.9A |
SF66T-0601900DB |
SF66T-0651900DB |
SF66T-0701900DB |
SF66T-0751900DB |
SF66T-0801900DB |
SF66T-0851900DB |
|
1.8A |
SF66T-0601800DB |
SF66T-0651800DB |
SF66T-0701800DB |
SF66T-0751800DB |
SF66T-0801800DB |
SF66T-0851800DB |
|
1.7A |
SF66T-0601700DB |
SF66T-0651700DB |
SF66T-0701700DB |
SF66T-0751700DB |
SF66T-0801700DB |
SF66T-0851700DB |
|
1.6A |
SF66T-0601600DB |
SF66T-0651600DB |
SF66T-0701600DB |
SF66T-0751600DB |
SF66T-0801600DB |
SF66T-0851600DB |
|
1.5A |
SF66T-0601500DB |
SF66T-0651500DB |
SF66T-0701500DB |
SF66T-0751500DB |
SF66T-0801500DB |
SF66T-0851500DB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
3.0A |
SF66T-0303000DB |
SF66T-0353000DB |
SF66T-0403000DB |
SF66T-0453000DB |
SF66T-0503000DB |
SF66T-0553000DB |
|
2.9A |
SF66T-0302900DB |
SF66T-0352900DB |
SF66T-0402900DB |
SF66T-0452900DB |
SF66T-0502900DB |
SF66T-0552900DB |
|
2.8A |
SF66T-0302800DB |
SF66T-0352800DB |
SF66T-0402800DB |
SF66T-0452800DB |
SF66T-0502800DB |
SF66T-0552800DB |
|
2.7A |
SF66T-0302700DB |
SF66T-0352700DB |
SF66T-0402700DB |
SF66T-0452700DB |
SF66T-0502700DB |
SF66T-0552700DB |
|
2.6A |
SF66T-0302600DB |
SF66T-0352600DB |
SF66T-0402600DB |
SF66T-0452600DB |
SF66T-0502600DB |
SF66T-0552600DB |
|
2.5A |
SF66T-0302500DB |
SF66T-0352500DB |
SF66T-0402500DB |
SF66T-0452500DB |
SF66T-0502500DB |
SF66T-0552500DB |
|
2.4A |
SF66T-0302400DB |
SF66T-0352400DB |
SF66T-0402400DB |
SF66T-0452400DB |
SF66T-0502400DB |
SF66T-0552400DB |
|
2.3A |
SF66T-0302300DB |
SF66T-0352300DB |
SF66T-0402300DB |
SF66T-0452300DB |
SF66T-0502300DB |
SF66T-0552300DB |
|
2.2A |
SF66T-0302200DB |
SF66T-0352200DB |
SF66T-0402200DB |
SF66T-0452200DB |
SF66T-0502200DB |
SF66T-0552200DB |
|
2.1A |
SF66T-0302100DB |
SF66T-0352100DB |
SF66T-0402100DB |
SF66T-0452100DB |
SF66T-0502100DB |
SF66T-0552100DB |
|
2.0A |
SF66T-0302000DB |
SF66T-0352000DB |
SF66T-0402000DB |
SF66T-0452000DB |
SF66T-0502000DB |
SF66T-0552000DB |
|
1.9A |
SF66T-0301900DB |
SF66T-0351900DB |
SF66T-0401900DB |
SF66T-0451900DB |
SF66T-0501900DB |
SF66T-0551900DB |
|
1.8A |
SF66T-0301800DB |
SF66T-0351800DB |
SF66T-0401800DB |
SF66T-0451800DB |
SF66T-0501800DB |
SF66T-0551800DB |
|
1.7A |
SF66T-0301700DB |
SF66T-0351700DB |
SF66T-0401700DB |
SF66T-0451700DB |
SF66T-0501700DB |
SF66T-0551700DB |
|
1.6A |
SF66T-0301600DB |
SF66T-0351600DB |
SF66T-0401600DB |
SF66T-0451600DB |
SF66T-0501600DB |
SF66T-0551600DB |
|
1.5A |
SF66T-0301500DB |
SF66T-0351500DB |
SF66T-0401500DB |
SF66T-0451500DB |
SF66T-0501500DB |
SF66T-0551500DB |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
