GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC |
Safety Approvals |
GS/CE/CB |
|
GREEN POWER |
Safety Compliant |
EN 60950 |
|
|
ErP |
|||
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
4.2 - 24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
2.5A(15VA max) |
|
Input Current |
0.5A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mVp-p max |
|
|
|
Efficiency |
>60% |

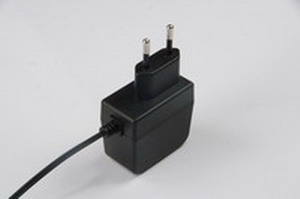

SWITCHING ADAPTOR
WALLMOUNT
15A SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : GP15A
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
GP15A-1451030 |
14.5V |
1.03A |
GP15A-1501000 |
15.0V |
1.00A |
GP15A-1550960 |
15.5V |
0.96A |
GP15A-1600930 |
16.0V |
0.93A |
GP15A-1650900 |
16.5V |
0.90A |
GP15A-1700880 |
17.0V |
0.88A |
GP15A-1750850 |
17.5V |
0.85A |
GP15A-1800830 |
18.0V |
0.83A |
GP15A-1850810 |
18.5V |
0.81A |
GP15A-1900780 |
19.0V |
0.78A |
GP15A-1950760 |
19.5V |
0.76A |
GP15A-2000750 |
20.0V |
0.75A |
GP15A-2050730 |
20.5V |
0.73A |
GP15A-2100710 |
21.0V |
0.71A |
GP15A-2150690 |
21.5V |
0.69A |
GP15A-2200680 |
22.0V |
0.68A |
GP15A-2250660 |
22.5V |
0.66A |
GP15A-2300650 |
23.0V |
0.65A |
GP15A-2350630 |
23.5V |
0.63A |
GP15A-2400620 |
24.0V |
0.62A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
GP15A-0422500 |
4.2V |
2.50A |
|
GP15A-0452500 |
4.5V |
2.50A |
|
GP15A-0502500 |
5.0V |
2.50A |
|
GP15A-0552500 |
5.5V |
2.50A |
|
GP15A-0602500 |
6.0V |
2.50A |
|
GP15A-0652300 |
6.5V |
2.30A |
|
GP15A-0702140 |
7.0V |
2.14A |
|
GP15A-0752000 |
7.5V |
2.00A |
|
GP15A-0801870 |
8.0V |
1.87A |
|
GP15A-0851760 |
8.5V |
1.76A |
|
GP15A-0901660 |
9.0V |
1.66A |
|
GP15A-0951570 |
9.5V |
1.57A |
|
GP15A-1001500 |
10.0V |
1.50A |
|
GP15A-1051420 |
10.5V |
1.42A |
|
GP15A-1101360 |
11.0V |
1.36A |
|
GP15A-1151300 |
11.5V |
1.30A |
|
GP15A-1201250 |
12.0V |
1.25A |
|
GP15A-1251200 |
12.5V |
1.20A |
|
GP15A-1301150 |
13.0V |
1.15A |
|
GP15A-1351110 |
13.5V |
1.11A |
|
GP15A-1401070 |
14.0V |
1.07A |
 |
 |
 |
 |
 |
 |
