| ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
| Input |
Output |
||
Input Voltage Range |
90-264V AC |
Output Voltage |
15 - 24V DC |
Input Frequency |
47-63Hz |
Output Current |
5.60 A(90VA max) |
Input Current |
2.0A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : IEC90M
PART NO. |
OUTPUT |
||
VOLT |
CURRENT (max) |
POWER (max) |
|
IEC90M-150-240 |
15.0 ~ 24.0 V |
5.60A |
90W |

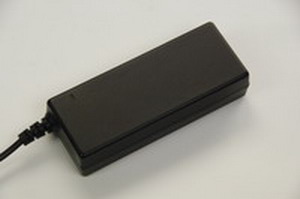

SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
90 SERIES With Multi-AdjustableOutput Voltage
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/GS/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/AS/ |
|
|
CEC/ErP/MEPS |
|||
 |
 |
 |
 |
 |
 |
