GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
0 to 85% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
1 to 90% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
50,000Hours at 25oC |
|
EMISSSION |
SAFETY |
||
|
EMI/EMC |
FCC |
Safety Approvals |
UL/CUL/GS/CCC/ |
|
Safety Compliant |
UL 60950/EN 60950/ |
||
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
15-19-24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
6A(90VA max) |
|
Input Current |
2A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
1%p-p max |
|
|
|
Efficiency |
>75% |
OUTPUT SPECIFICATIONS
SERIES NO. : IEC90
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
IEC90-1506000 |
15.0V |
6.00A |
|
IEC90-1904730 |
19.0V |
4.73A |
|
IEC90-2403750 |
24.0V |
3.75A |

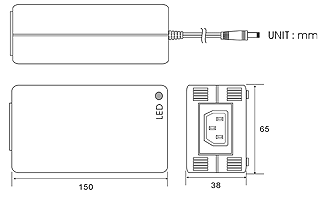

SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
90 SERIES
 |
 |
 |
 |
 |
 |
