ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
4.2 - 24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
4A(30VA max) |
|
Input Current |
1.2A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>60% |

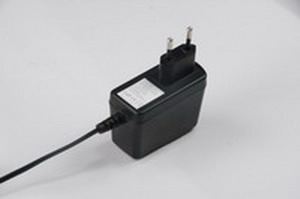

SWITCHING ADAPTOR
WALLMOUNT
30A SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : KP30A
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
K30A-0424000 |
4.2V |
4.00A |
K30A-0404000 |
4.0V |
4.00A |
K30A-0454000 |
4.5V |
4.00A |
K30A-0504000 |
5.0V |
4.00A |
K30A-0554000 |
5.5V |
4.00A |
K30A-0604000 |
6.0V |
4.00A |
K30A-0654000 |
6.5V |
4.00A |
K30A-0704000 |
7.0V |
4.00A |
K30A-0754000 |
7.5V |
4.00A |
K30A-0803000 |
8.0V |
3.00A |
K30A-0853000 |
8.5V |
3.00A |
K30A-0903000 |
9.0V |
3.00A |
K30A-0953000 |
9.5V |
3.00A |
K30A-1003000 |
10.0V |
3.00A |
K30A-1052850 |
10.5V |
2.85A |
K30A-1102500 |
11.0V |
2.50A |
K30A-1152500 |
11.5V |
2.50A |
K30A-1202500 |
12.0V |
2.50A |
K30A-1252400 |
12.5V |
2.40A |
K30A-1302300 |
13.0V |
2.30A |
K30A-1352220 |
13.5V |
2.22A |
K30A-1402140 |
14.0V |
2.14A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
K30A-1402140 |
14.0V |
2.14A |
K30A-1452060 |
14.5V |
2.06A |
K30A-1502000 |
15.0V |
2.00A |
K30A-1551930 |
15.5V |
1.93A |
K30A-1601870 |
16.0V |
1.87A |
K30A-1651800 |
16.5V |
1.80A |
K30A-1701760 |
17.0V |
1.76A |
K30A-1751710 |
17.5V |
1.71A |
K30A-1801660 |
18.0V |
1.66A |
K30A-1851620 |
18.5V |
1.62A |
K30A-1901570 |
19.0V |
1.57A |
K30A-1951530 |
19.5V |
1.53A |
K30A-2001500 |
20.0V |
1.50A |
K30A-2051460 |
20.5V |
1.46A |
K30A-2101420 |
21.0V |
1.42A |
K30A-2151390 |
21.5V |
1.39A |
K30A-2201360 |
22.0V |
1.36A |
K30A-2251330 |
22.5V |
1.33A |
K30A-2301300 |
23.0V |
1.30A |
K30A-2351270 |
23.5V |
1.27A |
K30A-2401250 |
24.0V |
1.25A |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
|
Safety Approvals |
CB |
|
GREEN POWER |
Safety Compliant |
IEC 60950 |
|
|
CEC |
|||
 |
 |
 |
 |
 |
 |
