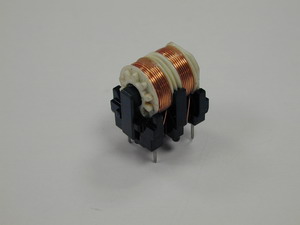

LINE FILTER
EE, UT & ET SERIES

side-bg11b
side-bg11
side-bg12
side-bg-crn1
page4s1
btn-blk
side-bg11
side-bg-crn
btn-co-j1
00002
ELECTRICAL SPECIFICATION
Part Number
Inductance Range (mH)
DC Resistance Range (ohm) max
Rate Current Range (Aac)
Temperature Rise (Celsius) max
LFEE190HA
0.6~10.0
0.25~2.00
2.0~0.4
45
LFEE250HA
1.0~20.0
0.20~2.50
3.0~1.0
45
LFEE250VA
2.5~24.0
0.20~2.50
3.0~1.0
45
LFEE25LVA
2.5~24.0
0.20~2.50
3.0~1.0
45
LFUT200VA
1.2~33.0
0.10~2.90
2.0~0.3
45
LFET200HA
1.8~47.0
0.10~2.90
2.0~0.3
45
LFET240HA
2.3~62.0
0.09~2.02
2.4~0.3
45
LFET240VA
2.3~62.0
0.09~2.02
2.4~0.3
45
LFET280HA
5.0~78.0
0.11~1.50
2.5~0.6
45
LFET280VA
5.0~78.0
0.11~1.50
2.5~0.6
45
LFET350VA
2.7~48.0
0.04~1.1
5.0~1.1
45



MECHANICAL PHYSICAL DIMENSIONS (Unit: mm)
Part Number
A (max)
B (max)
C (max)
D +/- 0.5
E +/- 0.3
F +/- 0.3
G(O) +/- 0.3
LFEE190HA
20
23
18
13
13.8
15
0.7
LFEE250HA
27
25
25
15
19
20
0.8
LFEE250VA
20
21
28.5
14.7
13.7
-
0.8
LFEE25LVA
26
24
34
16
5
-
0.8
LFUT200VA
22
17
23
10
13
-
0.8
LFET200HA
22
22
18.5
10
13
-
0.8
LFET240HA
26
26
21
15
21
-
0.8
LFET240VA
26
19
31
10
13
-
0.8
LFET280HA
30
30
25
20
24
-
0.8
LFET280VA
30
22
35.5
10
13
-
0.8
LFET350A
37
26
45
15
21
-
1.2
