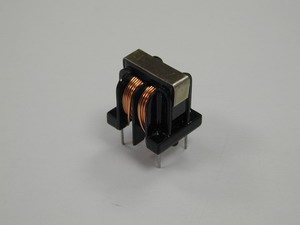

LINE FILTER
UU SERIES

side-bg11b
side-bg11
side-bg12
side-bg-crn1
page4s1
btn-blk
side-bg11
side-bg-crn
btn-co-j1
00002
ELECTRICAL SPECIFICATION
Part Number
Inductance Range (mH)
DC Resistance Range (ohm) max
Rate Current Range (Aac)
Temperature Rise (Celsius) max
LFUU098HA
0.5~5.0
0.05~2.00
0.5~0.25
45
LFUU105HA
0.7~13.0
0.08~1.50
2.3~0.50
45
LFUU105VA
0.7~13.0
0.08~1.50
2.3~0.50
45
LFUU105VB
0.7~13.0
0.08~1.50
2.3~0.50
45
LFUU120HA
0.7~13.0
0.08~1.50
2.3~0.50
45
LFUU157VA
2.1~22.0
0.10~1.10
2.2~0.60
45
LFUU157VB
2.1~22.0
0.10~1.10
2.2~0.60
45
LFUU170HA
1.0~16.0
0.25~0.38
4.0~1.00
45
LFUU170VA
1.0~16.0
0.25~0.38
4.0~1.00
45



MECHANICAL PHYSICAL DIMENSIONS (Unit: mm)
Part Number
A (max)
B (max)
C (max)
D +/- 0.5
E +/- 0.3
F +/- 0.3
G(O) +/- 0.3
LFUU098HA
11
13
16
8
7
0.6
4
LFUU105HA
20
18
17
13
10
0.7
4
LFUU105VA
17
19
22
13
10
0.7
4
LFUU105VB
17
19
22
13
10
0.7
4
LFUU120HA
11
18
18
10
7.5
0.8
4
LFUU157VA
19
23
27
13
10
0.7
4
LFUU157VB
19
23
27
13
10
0.7
4
LFUU170HA
20
35
28
30
12.5
1
4
LFUU170VA
27
21
37
15
10
1
4
