OUTPUT SPECIFICATIONS
DC/DC CONVERTER
NON-ISOLATED TYPE
NOS16W SERIES
|
Mechanical Characteristics |
|
|---|---|
|
Length:50.8mm |
Height: 13.0mm |
|
Width: 10.7mm |
Weight: 7.5g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-40oC to +85oC |
Isolation Voltage |
None |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
300 KHz typ |
|
Over termperature |
130oC typ |
Sturcture |
Open Frame |
|
Efficiency |
80% min |
|
|
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
8V-14V |
Load Regulation |
+/-0.5% max |
|
Input Filter |
Capacitive |
Minimum Load |
0% |
|
Voltage Setpoint Accuracy |
+/-2% |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.05%/oC |
Short Circuit Restart |
Continuous |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Line Regulation |
+/-2% max |
|
|
|
REMOTE ON/OFF CONTROL VOLTAGE |
|
|---|---|
|
OUTPUT POWER ON |
Vin or Open Circuit |
|
OUTPUT POWER OFF |
<0.4V |
|
EXTERNAL RESISTOR VALUES FOR PROGRAMMING OUTPUT VOLTAGE |
|
|---|---|
|
Vout (VDC) |
Rtrim (K ohm) |
|
0.725 |
Open |
|
1.2 |
22.46 |
|
1.5 |
13.05 |
|
1.8 |
9.024 |
|
2.0 |
7.417 |
|
2.5 |
5.009 |
|
3.3 |
3.122 |
|
5.0 |
1.472 |
|
16A OUTPUT |
||||||
|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE (DC) |
OUTPUT VOLTAGE (DC) |
OUTPUT CURRENT (mA) |
INPUT CURRENT(mA) |
EFF(%) |
|
|
FULL LOAD |
NO LOAD |
|||||
|
NOS16W |
8-14 |
0.7525 |
16 |
1210 |
40 |
80 |
|
8-14 |
1.2 |
16 |
1882 |
40 |
85 |
|
|
8-14 |
1.5 |
16 |
2270 |
49 |
88 |
|
|
8-14 |
1.8 |
16 |
2699 |
60 |
89 |
|
|
8-14 |
2.0 |
16 |
2965 |
60 |
90 |
|
|
8-14 |
2.5 |
16 |
2665 |
65 |
91 |
|
|
8-14 |
3.3 |
16 |
4730 |
75 |
93 |
|
|
8-14 |
5.0 |
16 |
7095 |
95 |
94 |
|

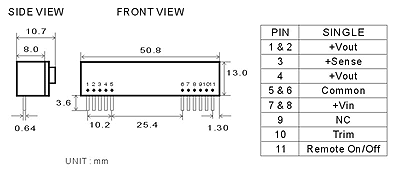

MECHANICAL DIMENSIONS DETAILS
 |
 |
 |
 |
 |
 |
