| ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
| Input |
Output |
||
Input Voltage Range |
90-264V AC |
Output Voltage |
10 - 48V DC |
Input Frequency |
47-63Hz |
Output Current |
7A(90VA max) |
Input Current |
2.0A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : SIE90
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
SIE90-1007000 |
10.0V |
7.00A |
SIE90-1057000 |
10.5V |
7.00A |
SIE90-1107000 |
11.0V |
7.00A |
SIE90-1157000 |
11.5V |
7.00A |
SIE90-1207000 |
12.0V |
7.00A |
SIE90-1256720 |
12.5V |
6.72A |
SIE90-1306460 |
13.0V |
6.46A |
SIE90-1356220 |
13.5V |
6.22A |
SIE90-1406000 |
14.0V |
6.00A |
SIE90-1455790 |
14.5V |
5.79A |
SIE90-1505600 |
15.0V |
5.60A |
SIE90-1555600 |
15.5V |
5.60A |
SIE90-1605600 |
16.0V |
5.60A |
SIE90-1655450 |
16.5V |
5.45A |
SIE90-1705290 |
17.0V |
5.29A |
SIE90-1755140 |
17.5V |
5.14A |
SIE90-1805000 |
18.0V |
5.00A |
SIE90-1854860 |
18.5V |
4.86A |
SIE90-1904730 |
19.0V |
4.73A |
SIE90-1954610 |
19.5V |
4.61A |
SIE90-2004500 |
20.0V |
4.50A |
SIE90-2054390 |
20.5V |
4.39A |
SIE90-2104280 |
21.0V |
4.28A |
SIE90-2154180 |
21.5V |
4.18A |
SIE90-2204090 |
22.0V |
4.09A |
SIE90-2254000 |
22.5V |
4.00A |
SIE90-2303910 |
23.0V |
3.91A |
SIE90-2353820 |
23.5V |
3.82A |
SIE90-2403750 |
24.0V |
3.75A |
SIE90-2453670 |
24.5V |
3.67A |
SIE90-2503600 |
25.0V |
3.60A |
SIE90-2553520 |
25.5V |
3.52A |
SIE90-2603460 |
26.0V |
3.46A |
SIE90-2653390 |
26.5V |
3.39A |
SIE90-2703330 |
27.0V |
3.33A |
SIE90-2753270 |
27.5V |
3.27A |
SIE90-2803210 |
28.0V |
3.21A |
SIE90-2853150 |
28.5V |
3.15A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
SIE90-2903100 |
29.0V |
3.10A |
SIE90-2953050 |
29.5V |
3.05A |
SIE90-3003000 |
30.0V |
3.00A |
SIE90-3052950 |
30.5V |
2.95A |
SIE90-3102900 |
31.0V |
2.90A |
SIE90-3152850 |
31.5V |
2.85A |
SIE90-3202810 |
32.0V |
2.81A |
SIE90-3252760 |
32.5V |
2.76A |
SIE90-3302720 |
33.0V |
2.72A |
SIE90-3352680 |
33.5V |
2.68A |
SIE90-3402640 |
34.0V |
2.64A |
SIE90-3452600 |
34.5V |
2.60A |
SIE90-3502570 |
35.0V |
2.57A |
SIE90-3552530 |
35.5V |
2.53A |
SIE90-3602500 |
36.0V |
2.50A |
SIE90-3652460 |
36.5V |
2.46A |
SIE90-3702430 |
37.0V |
2.43A |
SIE90-3752400 |
37.5V |
2.40A |
SIE90-3802360 |
38.0V |
2.36A |
SIE90-3852330 |
38.5V |
2.33A |
SIE90-3902300 |
39.0V |
2.30A |
SIE90-3952270 |
39.5V |
2.27A |
SIE90-4002250 |
40.0V |
2.25A |
SIE90-4052220 |
40.5V |
2.22A |
SIE90-4102190 |
41.0V |
2.19A |
SIE90-4152160 |
41.5V |
2.16A |
SIE90-4202140 |
42.0V |
2.14A |
SIE90-4252110 |
42.5V |
2.11A |
SIE90-4302090 |
43.0V |
2.09A |
SIE90-4352060 |
43.5V |
2.06A |
SIE90-4402040 |
44.0V |
2.04A |
SIE90-4452020 |
44.5V |
2.02A |
SIE90-4502000 |
45.0V |
2.00A |
SIE90-4551970 |
45.5V |
1.97A |
SIE90-4601950 |
46.0V |
1.95A |
SIE90-4651930 |
46.5V |
1.93A |
SIE90-4701910 |
47.0V |
1.91A |
SIE90-4751890 |
47.5V |
1.89A |
SIE90-4801870 |
48.0V |
1.87A |

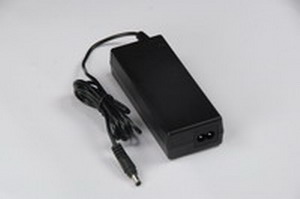

SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
90 SERIES
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/GS/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/AS/ |
|
|
CEC/ErP/MEPS |
|||
 |
 |
 |
 |
 |
 |
