ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3 - 30V DC |
|
Input Frequency |
47-63Hz |
Output Current |
2.6A(15VA max) |
|
Input Current |
0.4A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
120mVp-p max |
|
|
|
Efficiency |
>75% |

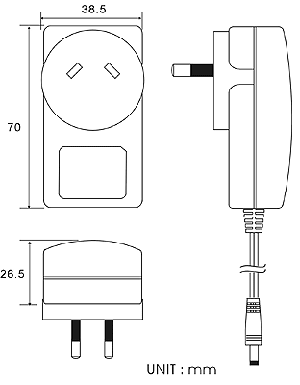

SWITCHING ADAPTOR
WALLMOUNT
15 SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : SP15
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
C-tick |
Safety Approvals |
SAA/CB |
|
GREEN POWER |
Safety Compliant |
AS/NZS 60950/EN60950 |
|
|
MEPS |
|||
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
SP15-0302600 |
3.0V |
2.60A |
|
SP15-0352600 |
3.5V |
2.60A |
|
SP15-0402600 |
4.0V |
2.60A |
|
SP15-0452600 |
4.5V |
2.60A |
|
SP15-0502600 |
5.0V |
2.60A |
|
SP15-0552600 |
5.5V |
2.60A |
|
SP15-0602500 |
6.0V |
2.50A |
|
SP15-0652300 |
6.5V |
2.30A |
|
SP15-0702140 |
7.0V |
2.14A |
|
SP15-0752000 |
7.5V |
2.00A |
|
SP15-0801870 |
8.0V |
1.87A |
|
SP15-0851760 |
8.5V |
1.76A |
|
SP15-0901660 |
9.0V |
1.66A |
|
SP15-0951570 |
9.5V |
1.57A |
|
SP15-1001500 |
10.0V |
1.50A |
|
SP15-1051420 |
10.5V |
1.42A |
|
SP15-1101360 |
11.0V |
1.36A |
|
SP15-1151300 |
11.5V |
1.30A |
|
SP15-1201250 |
12.0V |
1.25A |
|
SP15-1251200 |
12.5V |
1.20A |
|
SP15-1301150 |
13.0V |
1.15A |
|
SP15-1351110 |
13.5V |
1.11A |
|
SP15-1401070 |
14.0V |
1.07A |
|
SP15-1451030 |
14.5V |
1.03A |
|
SP15-1501000 |
15.0V |
1.00A |
|
SP15-1550960 |
15.5V |
0.96A |
|
SP15-1600930 |
16.0V |
0.93A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
SP15-1650900 |
16.5V |
0.90A |
|
SP15-1700880 |
17.0V |
0.88A |
|
SP15-1750850 |
17.5V |
0.85A |
|
SP15-1800830 |
18.0V |
0.83A |
|
SP15-1850810 |
18.5V |
0.81A |
|
SP15-1900780 |
19.0V |
0.78A |
|
SP15-1950760 |
19.5V |
0.76A |
|
SP15-2000750 |
20.0V |
0.75A |
|
SP15-2050730 |
20.5V |
0.73A |
|
SP15-2100710 |
21.0V |
0.71A |
|
SP15-2150690 |
21.5V |
0.69A |
|
SP15-2200680 |
22.0V |
0.68A |
|
SP15-2250660 |
22.5V |
0.66A |
|
SP15-2300650 |
23.0V |
0.65A |
|
SP15-2350630 |
23.5V |
0.63A |
|
SP15-2400620 |
24.0V |
0.62A |
|
SP15-2450610 |
24.5V |
0.61A |
|
SP15-2500600 |
25.0V |
0.60A |
|
SP15-2550580 |
25.5V |
0.58A |
|
SP15-2600570 |
26.0V |
0.57A |
|
SP15-2650560 |
26.5V |
0.56A |
|
SP15-2700550 |
27.0V |
0.55A |
|
SP15-2750540 |
27.5V |
0.54A |
|
SP15-2800530 |
28.0V |
0.53A |
|
SP15-2850520 |
28.5V |
0.52A |
|
SP15-2900510 |
29.0V |
0.51A |
|
SP15-2950500 |
29.5V |
0.50A |
|
SP15-3000500 |
30.0V |
0.50A |
 |
 |
 |
 |
 |
 |
